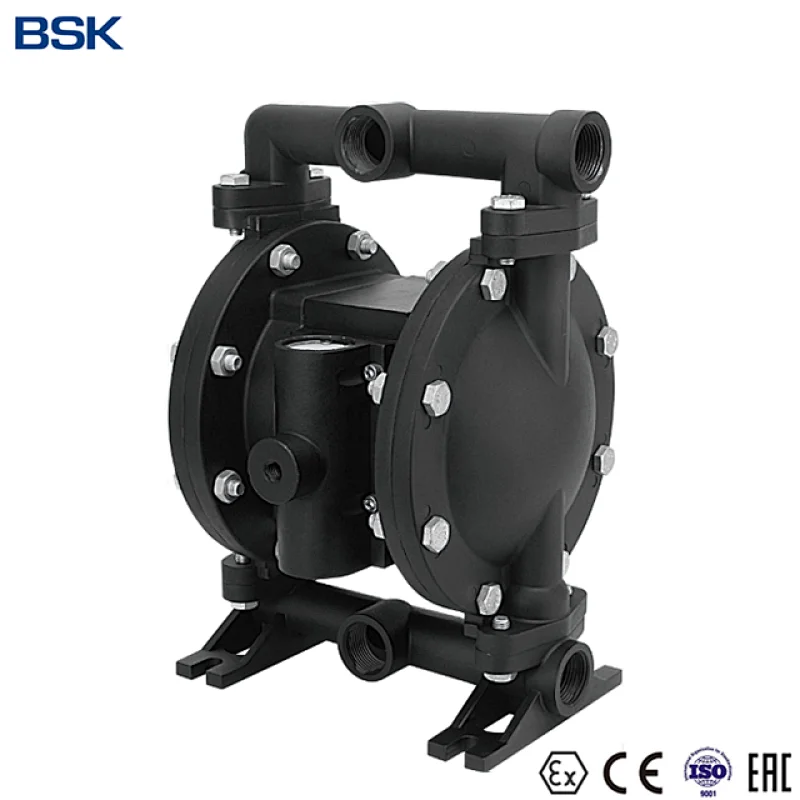

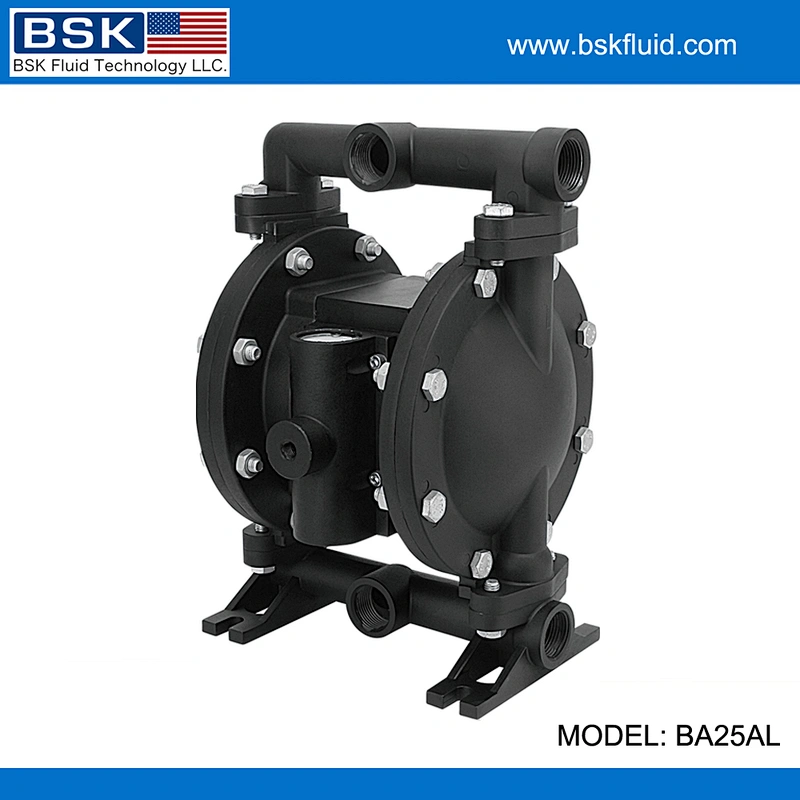

BSK aluminum alloy air diaphragm pump with santoprene diaphragm for anti-wear function in filter press industry
BSK aluminum alloy air diaphragm pump with santoprene diaphragm for anti-wear function in filter press industry
BSK aluminum alloy air diaphragm pump with santoprene diaphragm for anti-wear function in filter press industry
BSK aluminum alloy air diaphragm pump with santoprene diaphragm for anti-wear function in filter press industry
BSK aluminum alloy air diaphragm pump with santoprene diaphragm for anti-wear function in filter press industry

BSK aluminum alloy air diaphragm pump with santoprene diaphragm for anti-wear function in filter press industry

Model NO.
BA25AL-P991-A
Quantity:
  • Place of Origin:CN;GUA
  • Application:Automotive Industry
  • Application:Biofuel Industry
  • Application:Commercial Buildings
  • Application:Developing World Water Solutions
  • Application:District Energy
  • Application:Drinking water treatment
  • Application:Family Homes
  • Application:Food and Beverage Industry
  • Application:HVAC OEM
  • Application:Industrial Boilers
  • Application:Industrial Utilities
  • Application:Irrigation and Agriculture
  • Application:Machining
  • Application:Marine
  • Application:Metal and Equipment Manufacturers
  • Application:Mining industry
  • Application:Pharmaceutical industry
  • Application:Raw Water Intake
  • Application:temperature control
  • Application:Washing and Cleaning
  • Application:Wastewater Transport and Flood Control
  • Application:wastewater treatment
  • Application:Water Distribution
  • Application:Water Treatment Solutions
  • Power Source:Pneumatic
  • Structure:Diaphragm Pump
  • Certification:ce
  • Brand Name:BSK
  • Model Number:BA25AL-P991-A
  • Power Source:compressed air
  • Certification:EAC
  • Air pressure:120PSI/8.3Bar

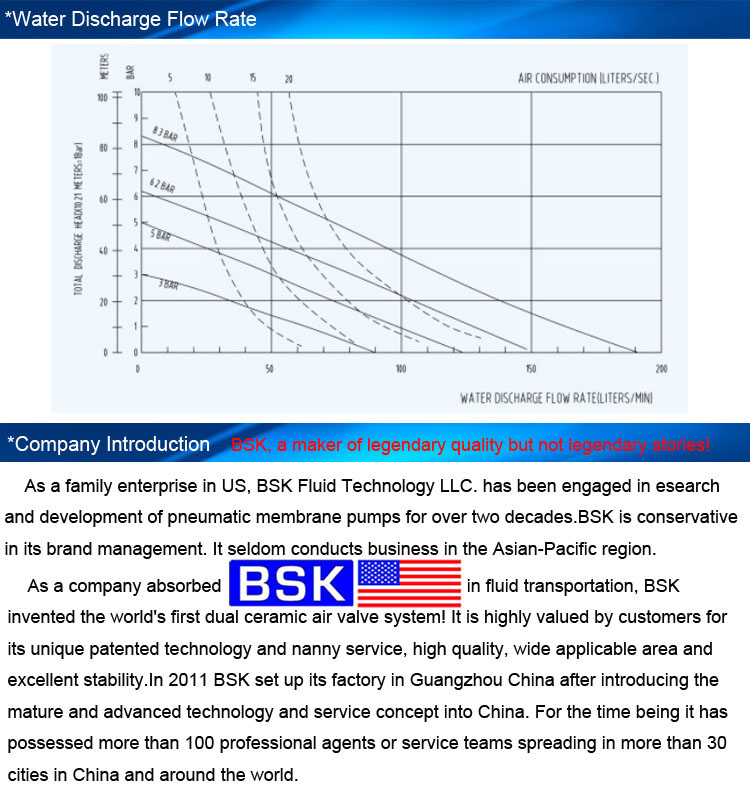

  • Max. Flow Rate:192L/min
  • Max. Particle Size:3mm
  • Max. Dry Suction:6.7M
  • Noise Level @70psi:75dB
  • Weight:9.5KG
  • Box Size:31*25*44cm

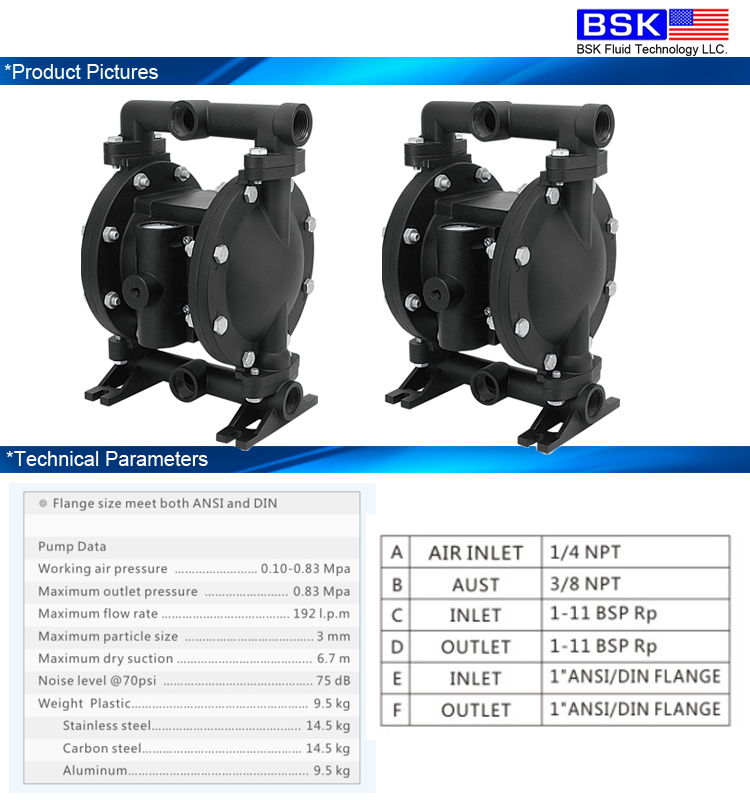

Model No.Pipe SizeMax. Air PressureMax. Flow RateAir side/
Fluid side Material
Seat MaterialDiaphragm/Ball
Material
BA25AL-P991-A1 inch/
25mm
8.3BAR/120PSI192L/minAluminium Alloy
(AL)
Polypropylene
(PP)
Santonprene
Product Description
Pneumatic diaphragm pump is a new transport machinery , is currently one of the most innovative pump . Using compressed gas as a power source for a variety of corrosive liquid , with particles of liquid , high viscosity , volatile, flammable, poisonous liquid can be pumped optical exhaustion . There are four pneumatic diaphragm material: plastic , aluminum, cast iron , stainless steel. Pneumatic diaphragm pumps were used nitrile,rubber,neoprene , Viton , Teflon , depending on the liquid medium , poly ethylene forty-six . To meet the needs of different users . Placed in a variety of special occasions , for pumping a variety of conventional pumps can not pump the media , have achieved satisfactory results.
Product Application
Die-casting machine
sprayer
Pumping mold release agent to the die casting machine, mold release agent go through equipments to the die casting machine, to make sure mold easystripping from the die casting machines.
Pressure filterPlate-and-frame type filter press, for filter polluted water and separate
moisture material.
Packaging MachineryPumping adhesives or glass glue etc.
Waste Water TreatmentSewage, clean water transferring

Pneumatic diaphragm pump is a new transport machinery , is currently one of the most innovative pump . Using compressed gas as a power source for a variety of corrosive liquid , with particles of liquid , high viscosity , volatile, flammable, poisonous liquid can be pumped optical exhaustion . There are four pneumatic diaphragm material: plastic , aluminum, cast iron , stainless steel. Pneumatic diaphragm pumps were used nitrile,rubber,neoprene , Viton , Teflon , depending on the liquid medium , poly ethylene forty-six . To meet the needs of different users . Placed in a variety of special occasions , for pumping a variety of conventional pumps can not pump the media , have achieved satisfactory results.
