- Place of Origin:CN;GUA
- Structure:Diaphragm Pump
- Power:Pneumatic
- Brand Name:BSK
- Usage:Air Pump
- Standard or Nonstandard:Standard

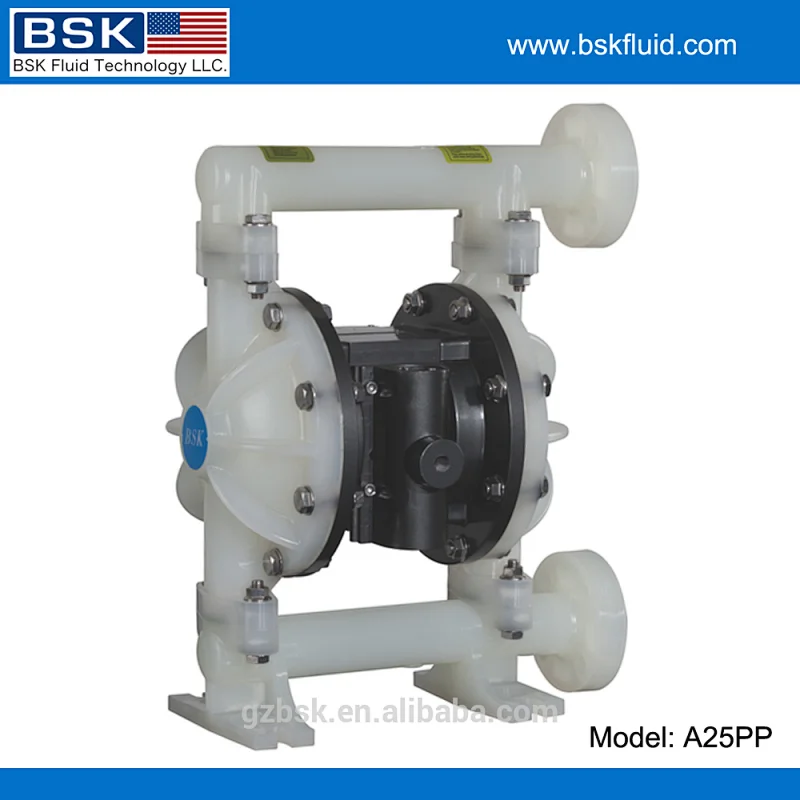

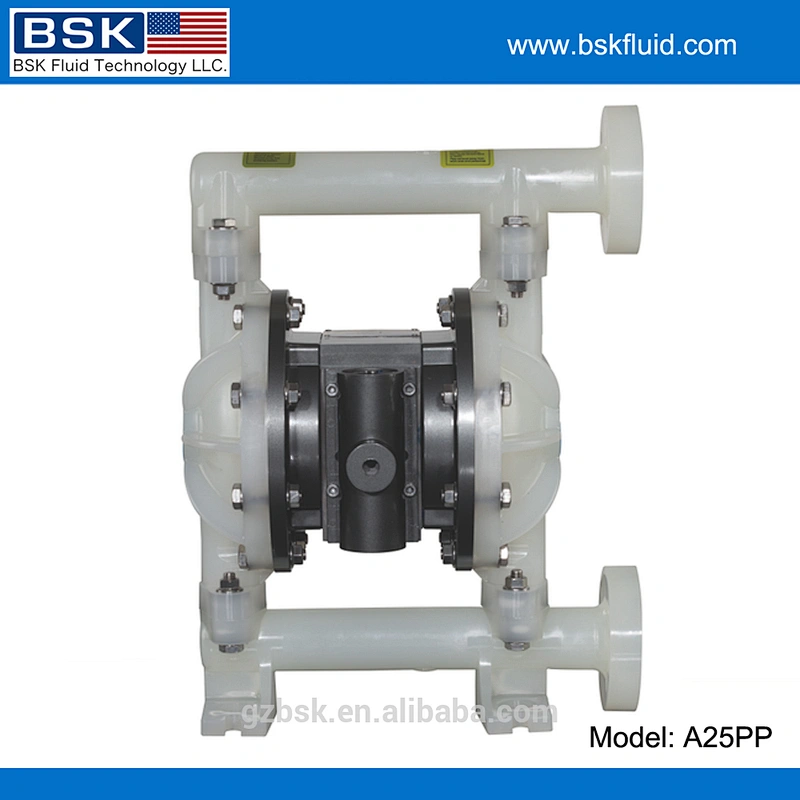

- Model Number:A25PP-PTT-C
- Pressure:8.3 Bar
- Fuel:Air
- Application:Liquid pumping
- Theory:Air operated diaphragm pump

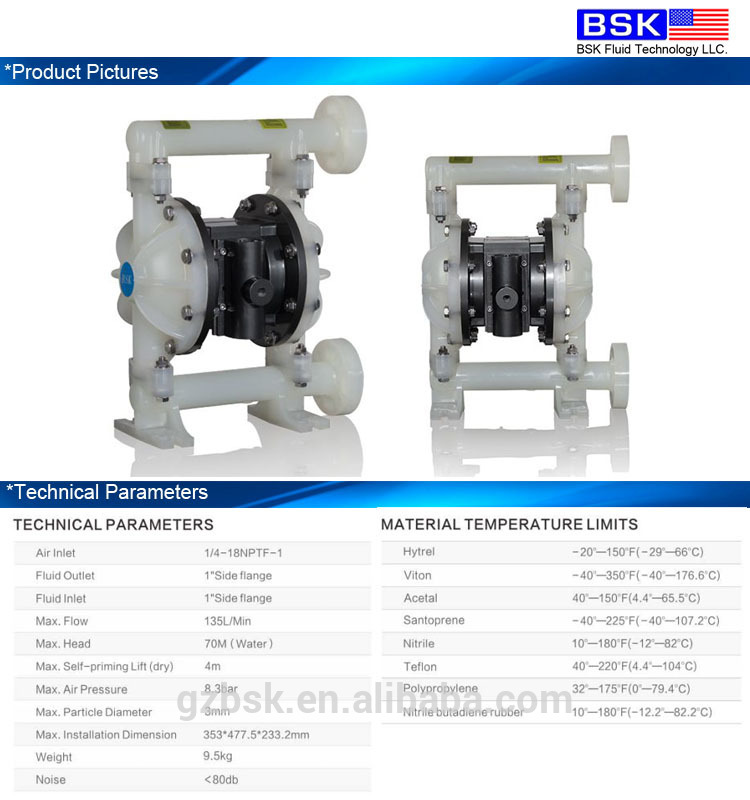

- Air Inlet:1/4-18NPTF-1
- Liquid Outlet:1"Side Flange
- Liquid Inlet:1"Side Flange
- Max Flow:135L/Min
- Max Head:70M/Water
- Max Self-Priming Lift(Dry):4M
- Max Air Pressure:8.3Bar
- Max Particle Diameter:3mm
- Max Installation Dimension:353*477.5*233.2cm
- Weight:9.5KG
| Model No. | Pipe Size | Air side/ Fluid side Material | Seat Material | Diaphragm/Ball Material |
| A25PP-PTT-C | 1’inch | Polypropylene (PP) | Polypropylene (PP) | PTFE |
| Product Description | ||||
Pneumatic diaphragm pump is a new transport machinery , is currently one of the most innovative pump . Using compressed gas as a power source for a variety of corrosive liquid , with particles of liquid , high viscosity , volatile, flammable, poisonous liquid can be pump ed optical exhaustion . There are four pneumatic diaphragm material: plastic , aluminum, cast iron , stainless steel. Pneumatic diaphragm pumps were used nitrile rubber,neoprene , Viton , Teflon , depending on the liquid medium , poly ethylene fortysix . To meet the needs of different users . Placed in a variety of special occasions , for pumping a variety of conventional pumps can not pump the media , have achieved satisfactory results. | ||||
| Product Application | ||||
| * | Chemical Factory | Material handling or removable barrels material ( instead of | ||
| * | Pharmaceutical factory | Material handling or removable barrels material ( instead of drum pumps ) | ||
| * | Pharmaceutical chemical factory | Material handling or removable barrels material ( instead of drum pumps ) | ||
| * | Electroplating Machinery | Pumping plating material or wastewater replacement. | ||
| * | Spinning factory | Delivery dye for textile/knitting production | ||
    | ||||
