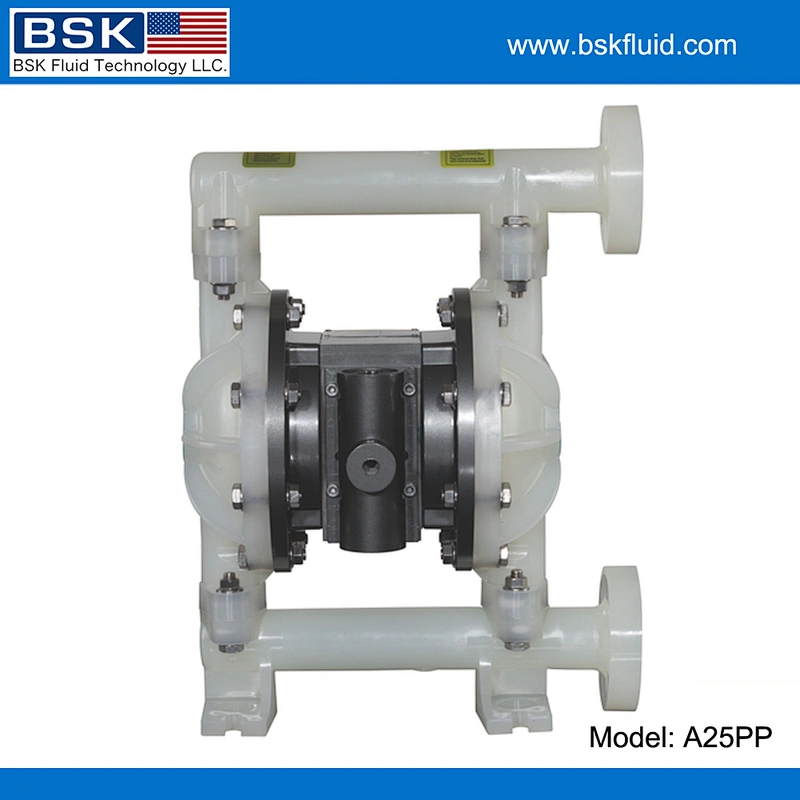

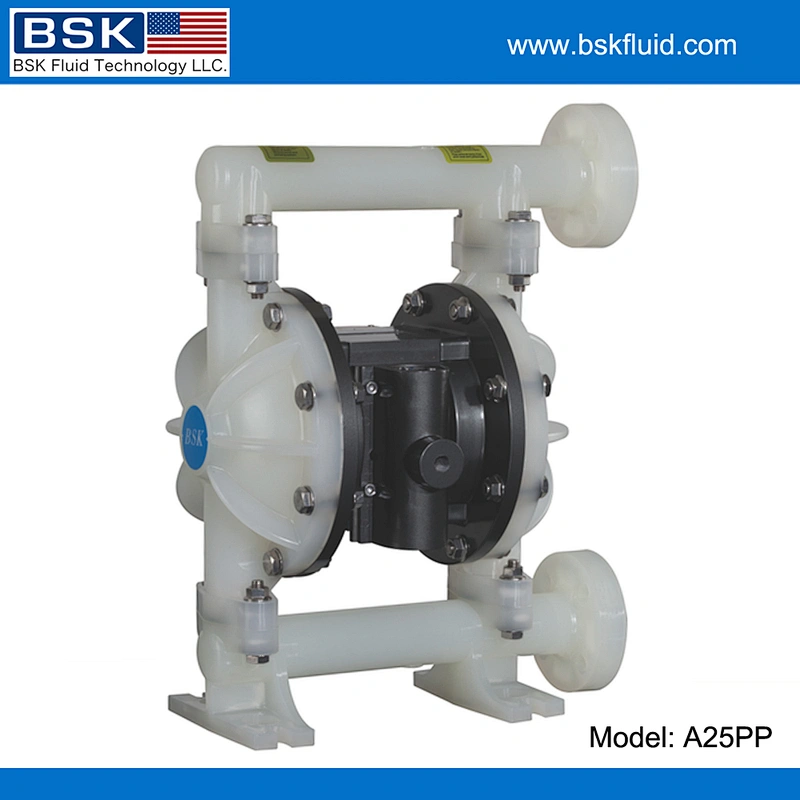

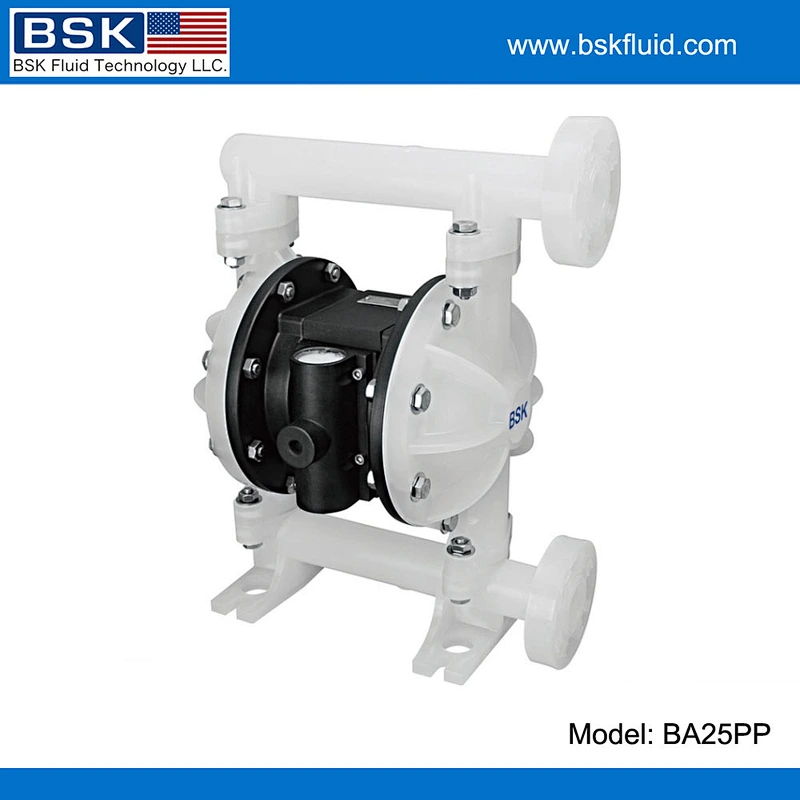

1.5" PP pump air driven pneumatic diaphragm pump

Model NO.
BA25PP-PTT4-C
Price:
USD 800.00-800.00 / sets
Minimum order quantity:
10 sets
Supply Ability:
10000 sets / Year
Country of Origin:
gz
Quantity:
  • Place of Origin:CN;GUI
  • Structure:Diaphragm Pump
  • Power:Pneumatic
  • Brand Name:BSK
  • Pressure:Low Pressure
  • Fuel:Gasoline
  • Application:Submersible
  • Usage:Air Pump
  • Standard or Nonstandard:Standard
  • Theory:Vacuum Pump
  • Model Number:BA25PP-PTT4-C
  • Inlet:one inch
  • Material:PP
  • Warranty:One Year
  • diaphragm:PTFE
Product Description

Product Application

Air operated double diaphragm pumps not only can exhaust the flow liquid , but also can convey some uneasy flowed medium.

SPECIFICATIONS FOR 25AL Diaphragm Pump of BSK
Product Parameters
Air Inlet
1/4-18NPTF-1
Fluid outlet & inlet
1-11-1/2NPTF-1
Rp1-11BSP
Max. Flow
189
L/Min
Technical Parameters
Weight
9.5
kgs
Noise
<80
db
Max. Self-priming Lift(dry)
4
m
Main performance parameters
Max.Head
70
m(water)
Max.Air Pressure
8.3
bar
Max.Particle Diameter
3
mm

Main Features

1.Ceramic material for main valve and reversing valve ensures longer life, more stability and working in dirty compressed air ( most occasions, air filter become option).

2.Without ice with the muffler. Innovative design with the exhaust space of the pump, some of muffler inside, this makes the air outlet smooth.)

3.Outward parts of the pump are all die casted aluminum and special environment-protected painting, makes the pump with elegant appearance.

4.Large flow capacity. Innovative design of chamber maximizes the flow capacity. Seamless adjustment with inlet valve, or even close the valve, without damaging the pump.

5.Low consumption compressed air. Innovative design of the air flow system, minimizes the usage of compressed air to achieve maximum performance.

6.Light and small size, movable.

7.Modularization of main valve and air motor. No broken, easy to disassemble and repair.

8.Optimized design greatly reduces overall component number of pump. Significantly improve performance, help for maintenance.

9.For power variety, pneumatic pump’s flow capacity normally lowers than electric pump, but BSK pump is workable in series at certain conditions. This can largely satisfy customer request.

10.Innovated design of sealing structure and material, totally solve the leakage inside or outside.

11.BSK pump can be started with low air press ( only 1.5 KG air press can start BSK pump).

Certifications CEISO

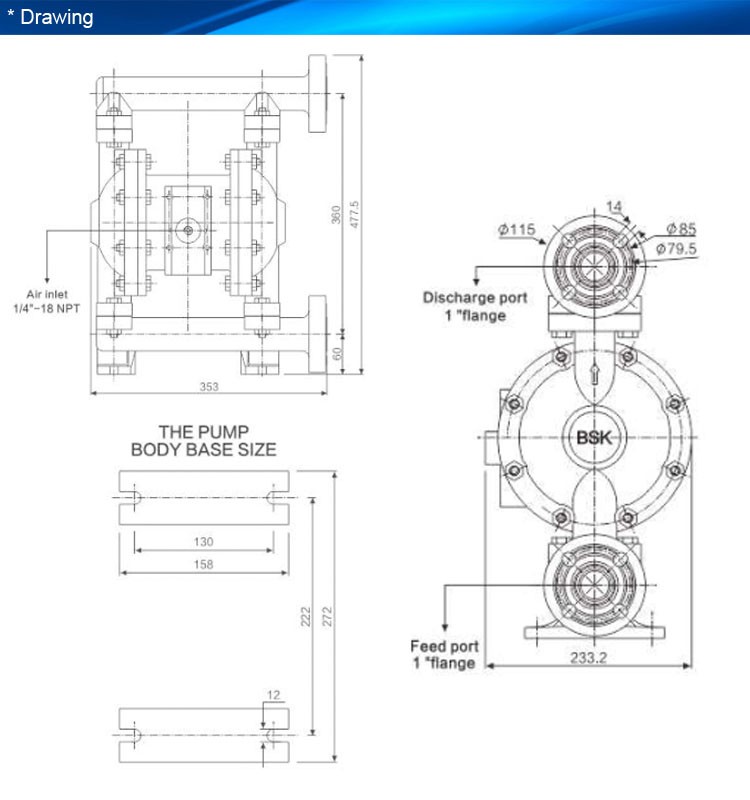

Detailed Images

Machine Parts


Main Features


Main Features

Name: BSK FLUID.
Brand: BSK
Original:Domestic

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* One year warranty

Packing & Delivery
Packaging
Size
(Size: 38L*25W*50H).
Weight
9.6kg



Packaging Details
The normal package is carton box(Size: 38L*25W*50H).
