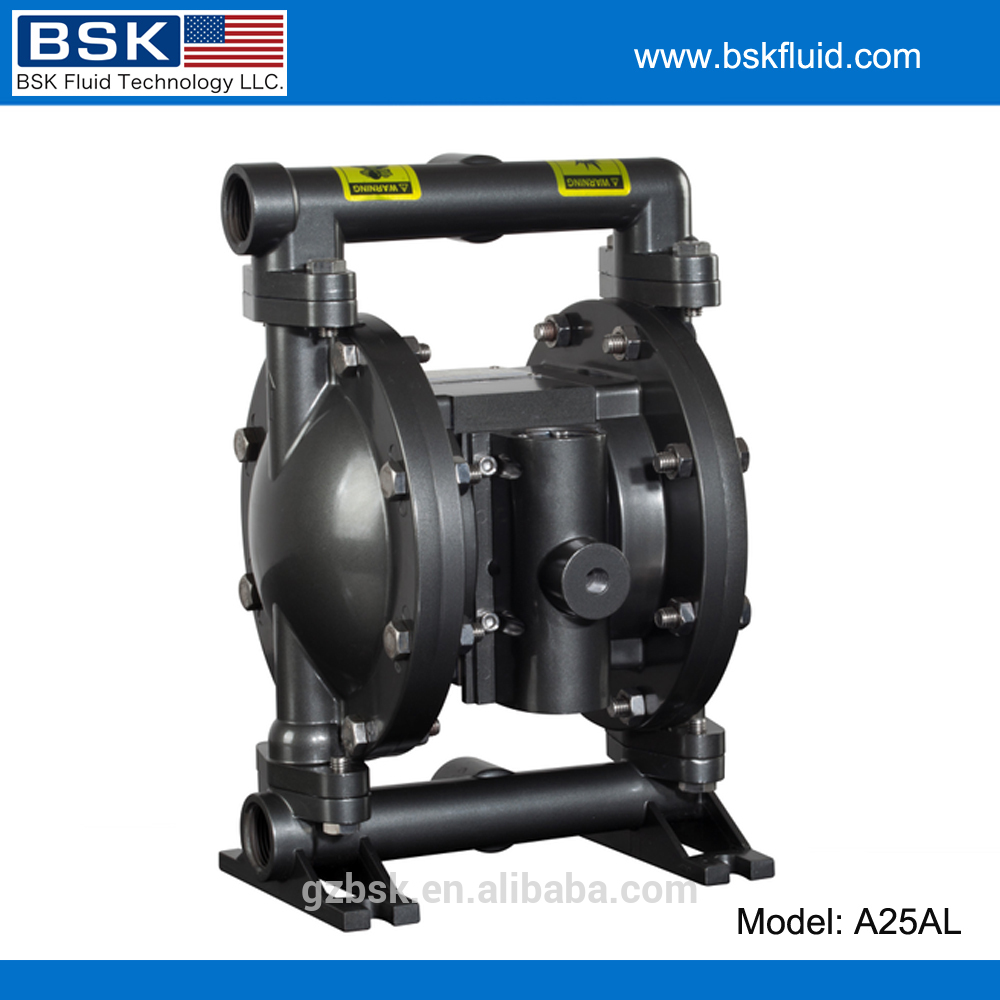

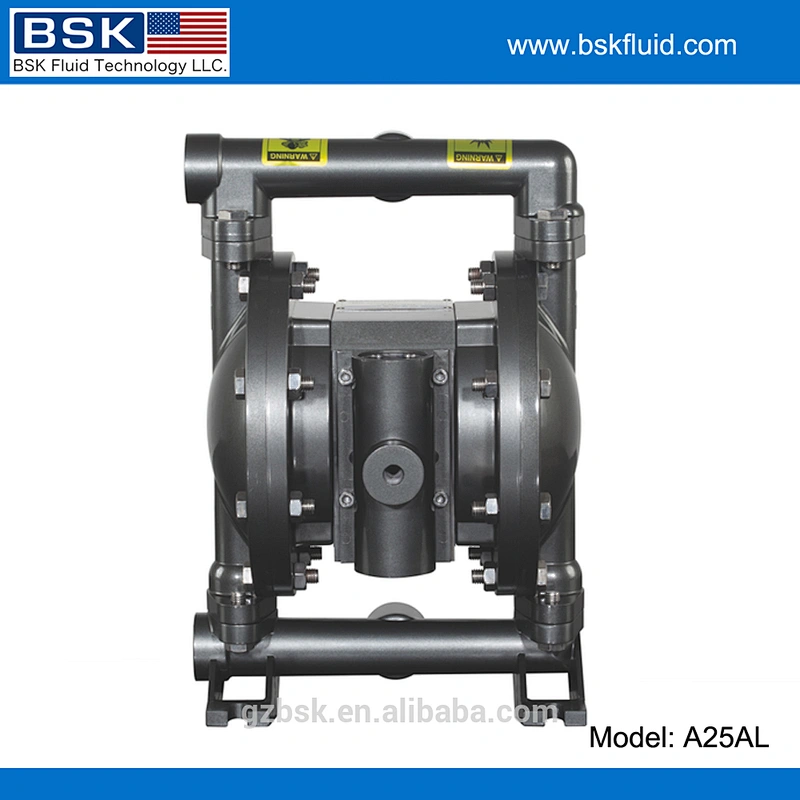

1" waster and pure water treatment industry liquid transfer pumping pneumatic diaphragm pumps

Model NO.
A25AL-PHH-A
Price:
USD 1.00-300.00 / piece
Minimum order quantity:
1 piece
Supply Ability:
2000 piece / Month
Country of Origin:
Guangzhou
Quantity:

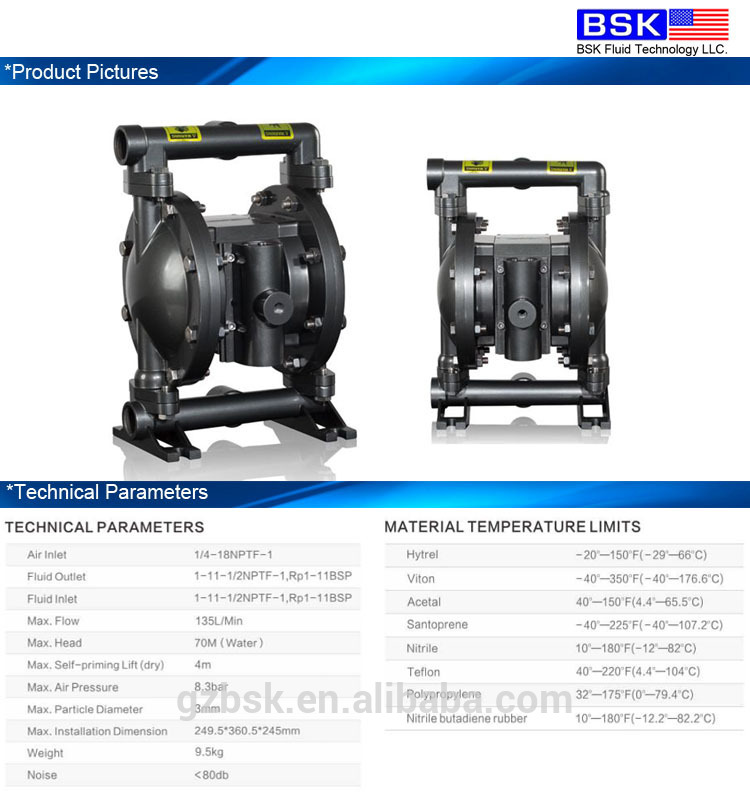

  • Place of Origin:CN;GUA
  • Structure:Diaphragm Pump
  • Power:Pneumatic
  • Brand Name:BSK
  • Usage:Air Pump
  • Standard or Nonstandard:Standard
  • Model Number:A25AL-PHH-A
  • Pressure:8.3 Bar
  • Fuel:Air
  • Application:Liquid pumping
  • Theory:Air operated diaphragm pump
  • Air Inlet:1/4-18NPTF-1
  • Liquid Outlet:1-11-1/2NPTF-1,Rp1-11BSP
  • Liquid Inlet:1-11-1/2NPTF-1,Rp1-11BSP

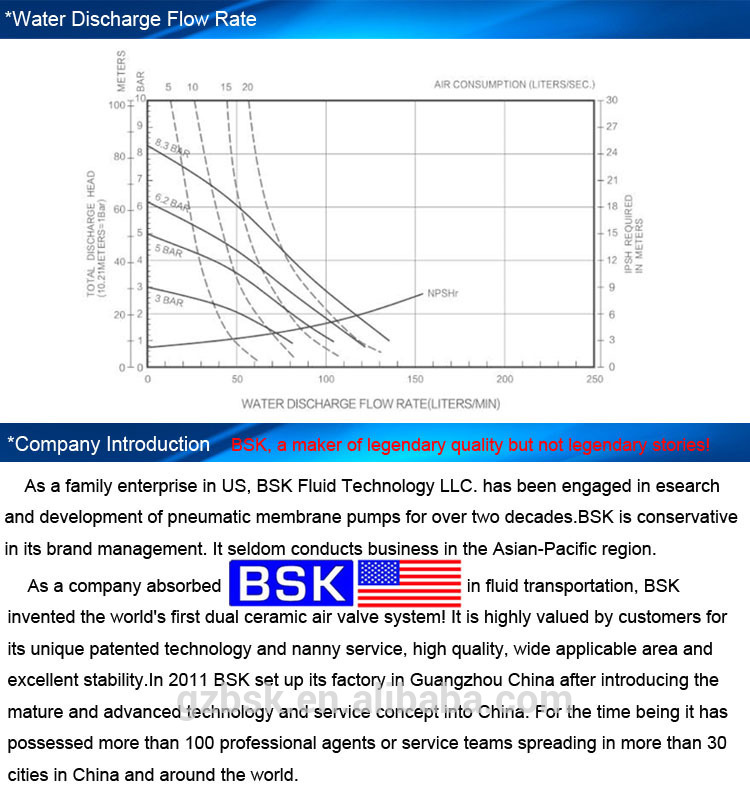

  • Max Flow:135L/Min
  • Max Head:70M/Water
  • Max Self-Priming Lift(Dry):4M
  • Max Air Pressure:8Bar
  • Max Particle Diameter:3mm

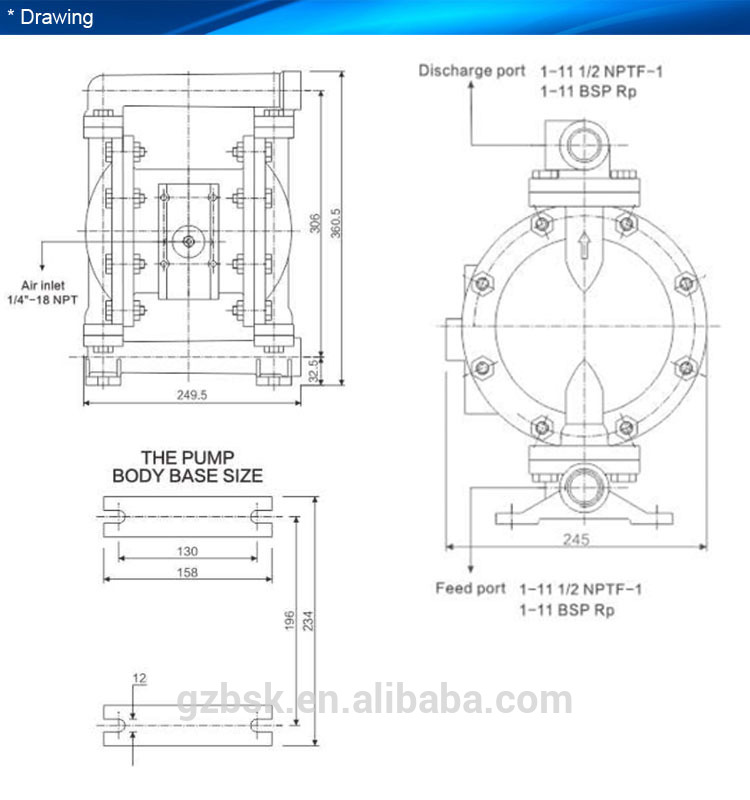

  • Max Installation Dimension:249.5*360.5*245
  • Weight:9.5KG

Model No.Pipe SizeAir side/
Fluid side Material
Seat MaterialDiaphragm/Ball
Material
A25AL-PHH-A1’inchAluminium Alloy
(AL)
Polypropylene
(PP)
Hytrel
Product Description

Pneumatic diaphragm pump is a new transport machinery , is currently one of the most

innovative pump . Using compressed gas as a power source for a variety of corrosive

liquid , with particles of liquid , high viscosity , volatile, flammable, poisonous liquid

can be pumped optical exhaustion . There are four pneumatic diaphragm material:

plastic , aluminum, cast iron , stainless steel. Pneumatic diaphragm pumps were used

nitrile rubber,neoprene , Viton , Teflon , depending on the liquid medium , poly ethylene

fortysix . To meet the needs of different users . Placed in a variety of special occasions

, for pumping a variety of conventional pumps can not pump the media , have achieved

satisfactory results.
