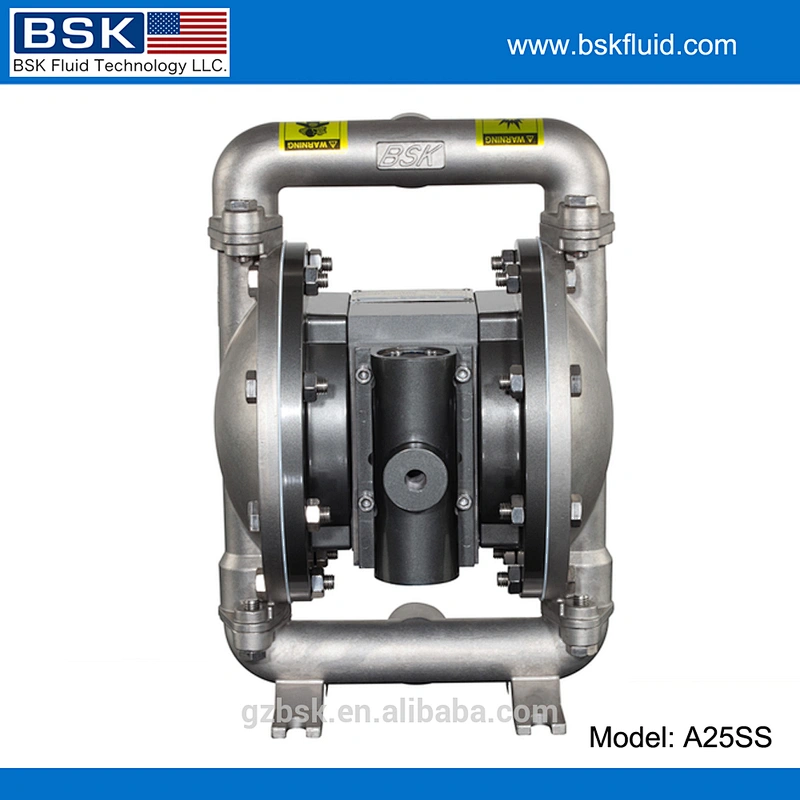

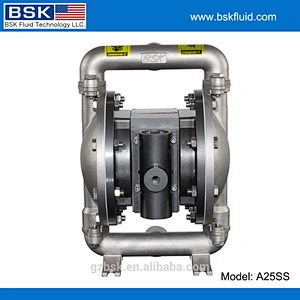

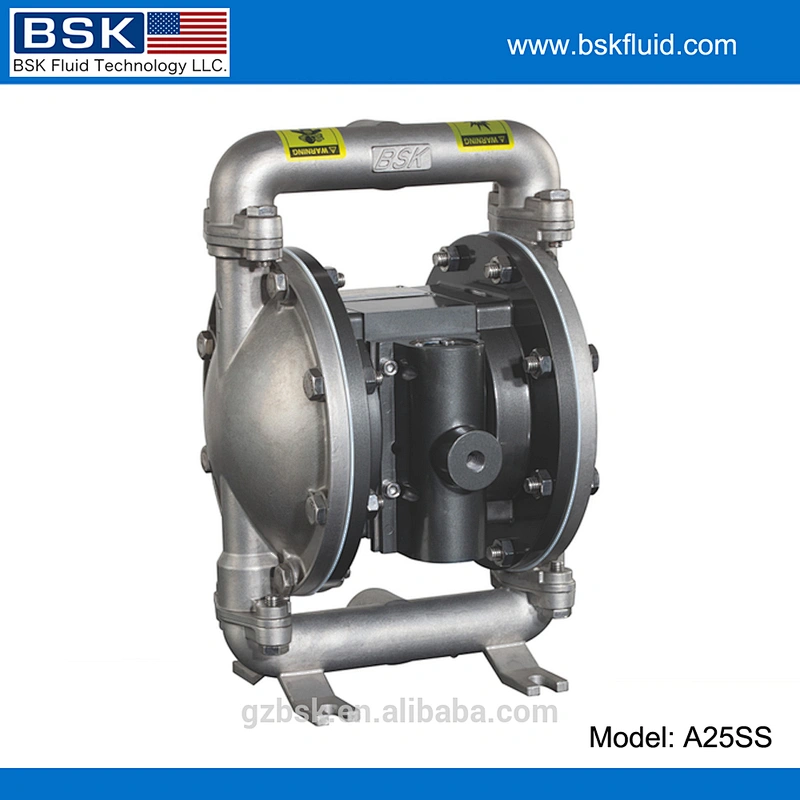

316ss mini size air membrane diaprhagm chemical pump

316ss mini size air membrane diaprhagm chemical pump

Model NO.: BA25SS-TTT3-A
Price:: USD 1.00-500.00 / pieces
Minimum order quantity: 10 pieces
Supply Ability: 2000 pieces / Month
Country of Origin: Guangzhou

Quantity:

Product Description

Place of Origin:CN;GUA
Structure:Diaphragm Pump
Usage:Air Pump
Power:Pneumatic
Application:Liquid pumping
Fuel:Air
Pressure:8.3 Bar
Brand Name:BSK
Model Number:BA25SS-TTT3-A
Standard or Nonstandard:Standard
Theory:Air operated diaphragm pump
Air Inlet:1/4-18NPTF-1
Liquid Outlet:1-11-1/2NPTF-1,Rp1-11BSP
Liquid Inlet:1-11-1/2NPTF-1,Rp1-11BSP
Max Flow:135L/Min
Max Head:70M/Water
Max Self-Priming Lift(Dry):4M
Max Air Pressure:8.3Bar
Max Particle Diameter:3mm

Model No.	Pipe Size	Air side/ Fluid side Material	Seat Material	Diaphragm/Ball Material
A25SS-SHH-A	1’inch	316#Stainless Steel (SS)	316#Stainless Steel (SS)	Hytrel
Product Description
Pneumatic diaphragm pump is a new transport machinery , is currently one of the most innovative pump . Using compressed gas as a power source for a variety of corrosive liquid , with particles of liquid , high viscosity , volatile, flammable, poisonous liquid can be pumped optical exhaustion . There are four pneumatic diaphragm material: plastic , aluminum, cast iron , stainless steel. Pneumatic diaphragm pumps were used nitrile rubber,neoprene , Viton , Teflon , depending on the liquid medium , poly ethylene forty-six . To meet the needs of different users . Placed in a variety of special occasions , for pumping a variety of conventional pumps can not pump the media , have achieved satisfactory results.
Product Application
*	Chemical Factory	Material handling or removable barrels material ( instead of drum pumps ),applicable to concentrated sulfuric acid, nitric acid and other strong oxidizing materials.
	Pharmaceutical factory	Material handling or removable barrels material ( instead of drum pumps )
	Pharmaceutical chemical factory	Pumping animal blood for refining
	New Power Plant/ Multi- silicon plant	Pumping polysilicon raw material for solar
	Commodity Factory	Pumping perfume / fragrance / dairy mixture
*	Pressure filter	Plate-and-frame type filter press, for filter polluted water and separate moisture material.
*	Moving baggy filter	Industrial wastewater filtration or chemical material separation
*	Kneading machine	Leather rubbing printing
*	Tanneries	Rawhide manufacturing and processing , pumping water and additives
