- Place of Origin:CN;GUA
- Application:Automotive Industry
- Application:Biofuel Industry
- Application:Commercial Buildings
- Application:Developing World Water Solutions
- Application:District Energy
- Application:Drinking water treatment
- Application:Family Homes
- Application:Food and Beverage Industry
- Application:HVAC OEM
- Application:Industrial Boilers
- Application:Industrial Utilities
- Application:Irrigation and Agriculture
- Application:Machining
- Application:Marine
- Application:Metal and Equipment Manufacturers
- Application:Mining industry
- Application:Pharmaceutical industry
- Application:Raw Water Intake
- Application:temperature control
- Application:Washing and Cleaning
- Application:Wastewater Transport and Flood Control
- Application:wastewater treatment
- Application:Water Distribution
- Application:Water Treatment Solutions
- Power Source:Pneumatic
- Structure:Diaphragm Pump
- Certification:ce
- Brand Name:BSK

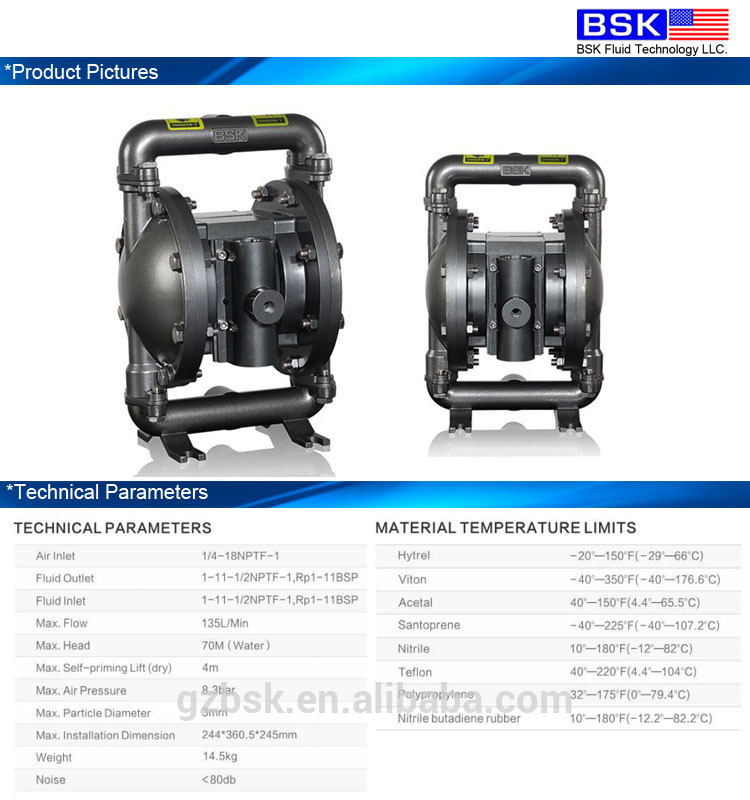

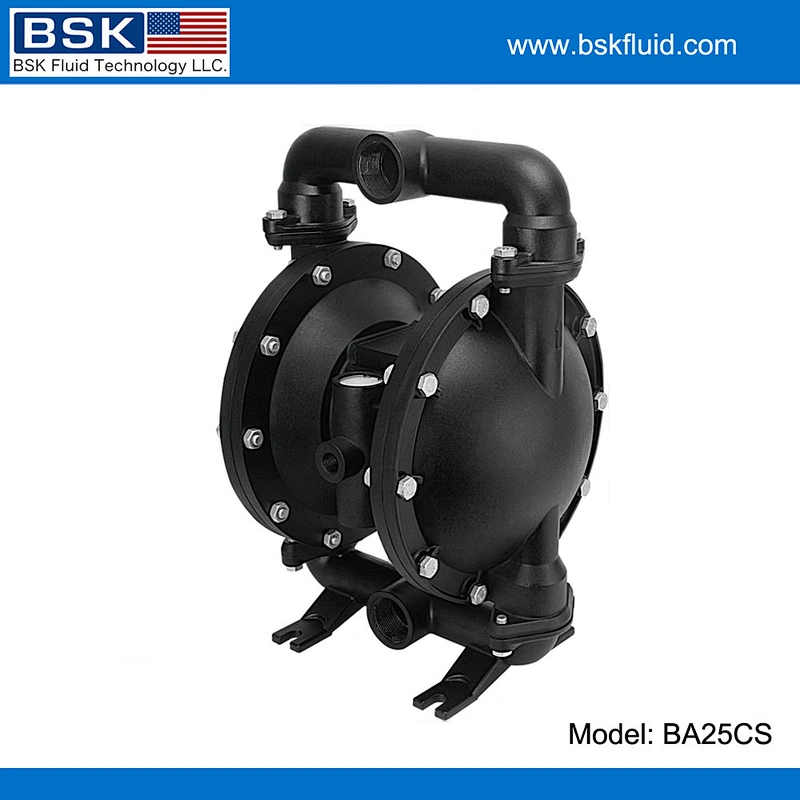

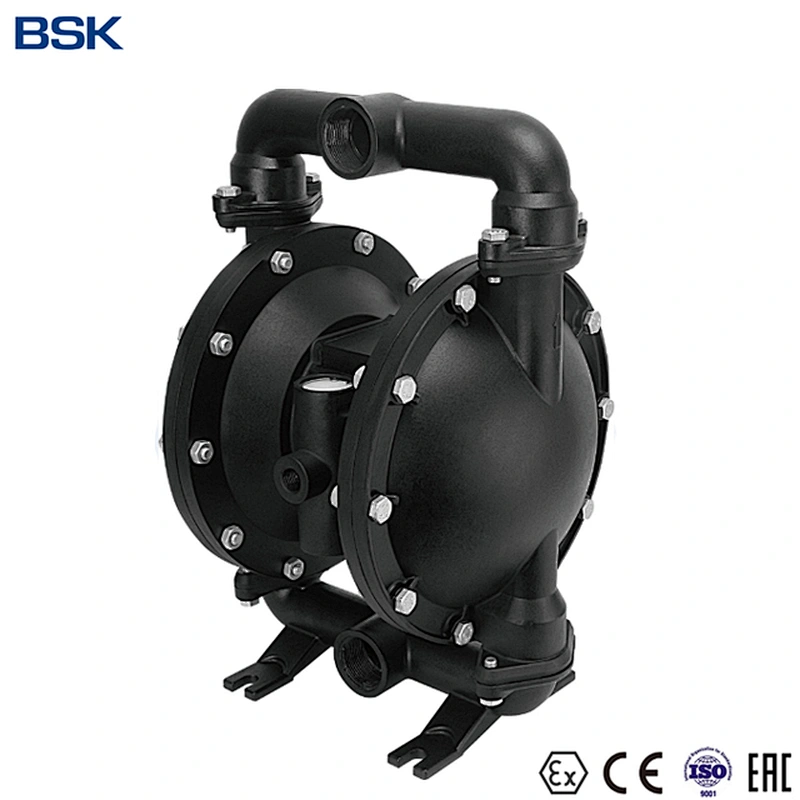

- Model Number:BA25CS-P991-A
- Horsepower:120PSI/8.3Bar
- Pressure:8.3 Bar
- Air Inlet:1/4-18NPTF-1
- Fluid inlet/outlet:1"/25mm

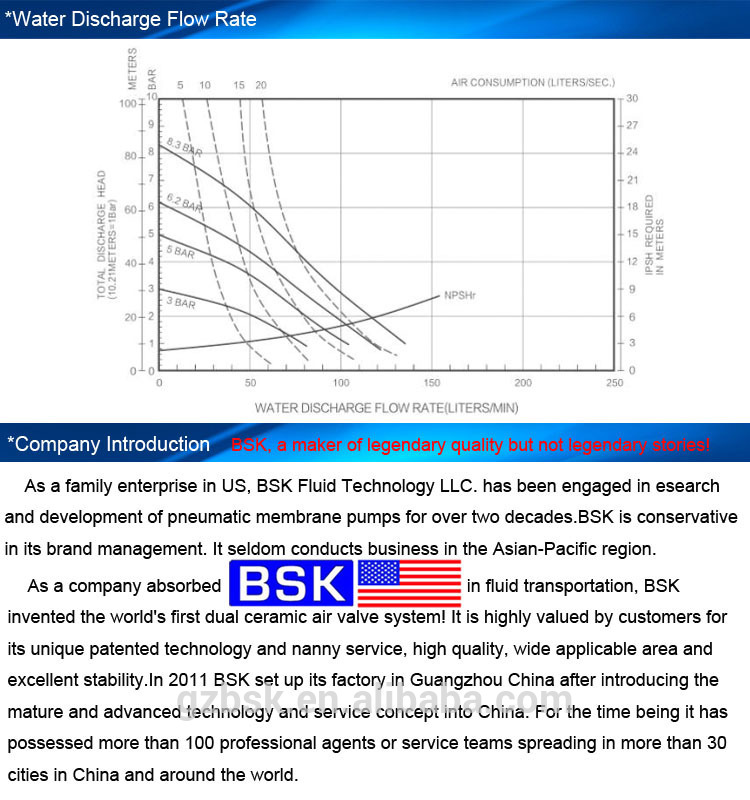

- Max Flow:192L/Min
- Max Head:70M/Water
- Max Self-Priming Lift(Dry):4M
- Max Air Pressure:8.3Bar
- Max Particle Diameter:3mm

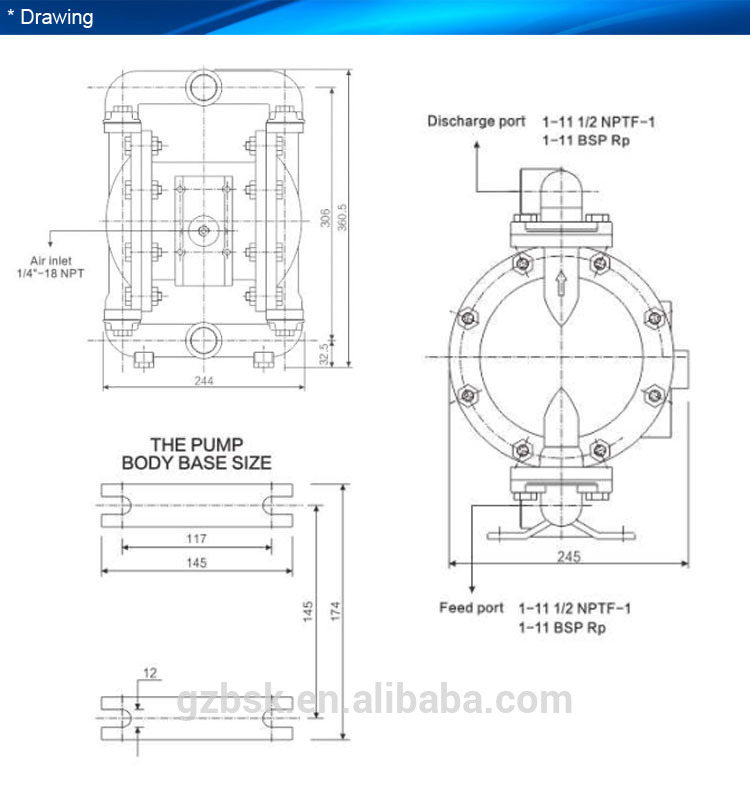

- Max Installation Dimension:244*360.5*245
- Weight:14.5KG
- Theory:Air operated diaphragm pump
| Model No. | Pipe Size | Air side/ Fluid side Material | Seat Material | Diaphragm/Ball Material |
| BA25CS-P991-A | 1’inch | Casting steel (CS) | Polypropylene (PP) | Santonprene |
| Product Description | ||||
Pneumatic diaphragm pump is a new transport machinery , is currently one of the most innovative pump . Using compressed gas as a power source for a variety of corrosive liquid , with particles of liquid , high viscosity , volatile, flammable, poisonous liquid can be pumped optical exhaustion . There are four pneumatic diaphragm material: plastic , aluminum, cast iron , stainless steel. Pneumatic diaphragm pumps were used nitrile,rubber,neoprene , Viton , Teflon , depending on the liquid medium , poly ethylene forty-six . To meet the needs of different users . Placed in a variety of special occasions , for pumping a variety of conventional pumps can not pump the media , have achieved satisfactory results. | ||||

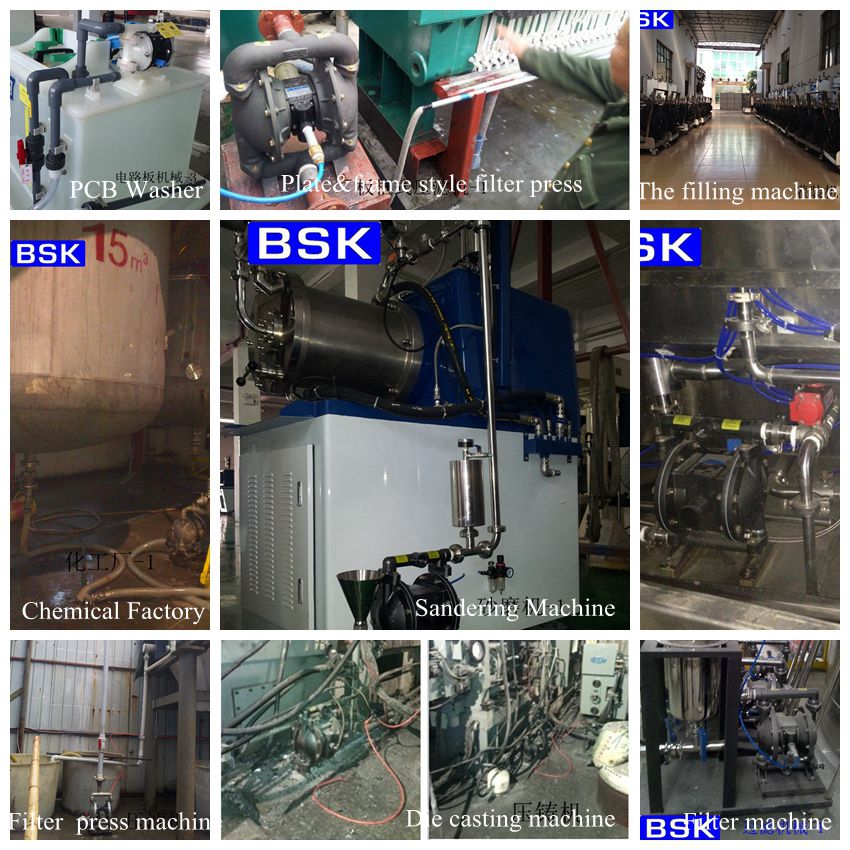

| Product Application | ||||
| * | Chemical Factory | Material handling or removable barrels material ( instead of drum pumps ),applicable to concentrated sulfuric acid, nitric acid and other strong oxidizing materials. | ||
| * | Pharmaceutical factory | Material handling or removable barrels material ( instead of drum pumps ) | ||
| * | Pharmaceutical chemical factory | Pumping animal blood for refining | ||
| * | New Power Plant/Multi - silicon plant | Pumping polysilicon raw material for solar | ||
| * | Commodity Factory | Pumping perfume / fragrance / dairy mixture | ||
| * | Pressure filter | Plate-and-frame type filter press, for filter polluted water and | ||
| * | Moving baggy filter | Industrial wastewater filtration or chemical material separation | ||
| * | Kneading machine | Leather rubbing printing | ||
| Tanneries | Rawhide manufacturing and processing , pumping water and additives | |||
    | ||||
