- Place of Origin:CN;GUA
- Structure:Diaphragm Pump
- Power:Pneumatic
- Brand Name:BSK
- Usage:Air Pump
- Standard or Nonstandard:Standard

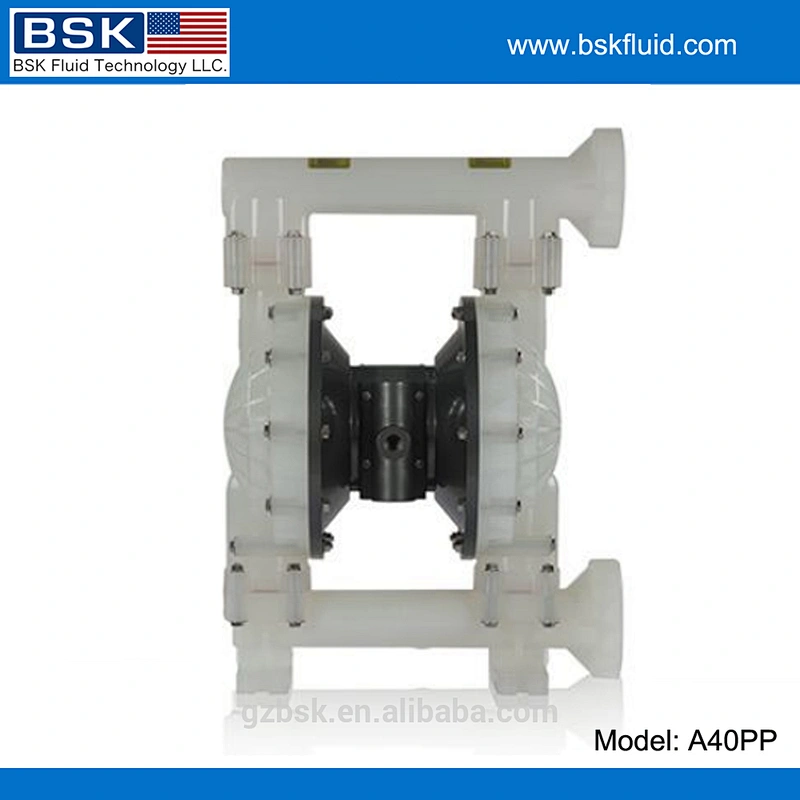

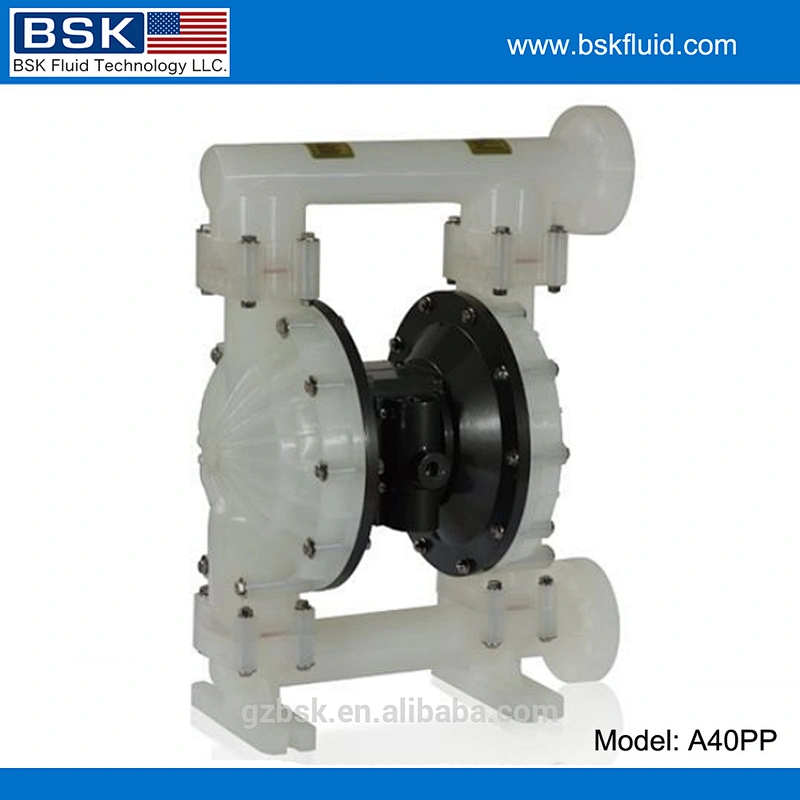

- Model Number:A40PP-P99-C
- Pressure:8.3 Bar
- Fuel:Air
- Application:Liquid pumping
- Theory:Air operated diaphragm pump
- Air Inlet:1/2-14NPTF-1
- Liquid Outlet:1.5"Side Flange
- Liquid Inlet:1.5"Side Flange
- Max Flow:330L/Min
- Max Head:70M/Water
- Max Self-Priming Lift(Dry):4.5M
- Max Air Pressure:8.3Bar
- Max Particle Diameter:6mm

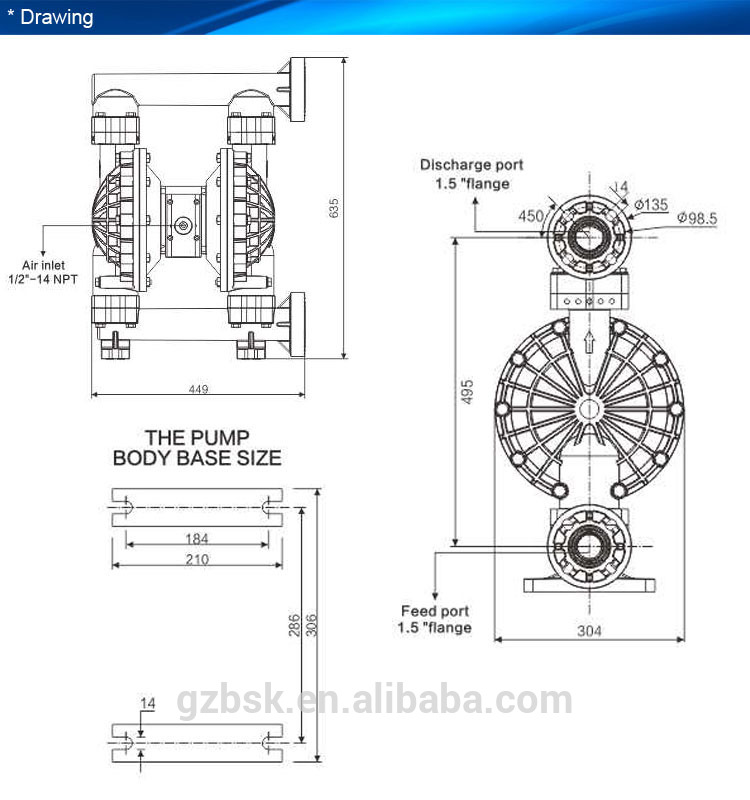

- Max Installation Dimension:635*449*304cm
- Weight:19KG
| Model No. | Pipe Size | Air side/ Fluid side Material | Seat Material | Diaphragm/Ball Material |
| A40PP-P99-C | 1 1/2’inch | Polypropylene (PP) | Polypropylene (PP) | Santonprene |
| Product Description | ||||
Pneumatic diaphragm pump is a new transport machinery , is currently one of the most innovative pump . Using compressed gas as a power source for a variety of corrosive liquid , with particles of liquid , high viscosity , volatile, flammable, poisonous liquid can be pumped optical exhaustion . There are four pneumatic diaphragm material: plastic , aluminum, cast iron , stainless steel. Pneumatic diaphragm pumps were used nitrile pumping a variety of conventional pumps can not pump the media , have achieved satisfactory results. | ||||

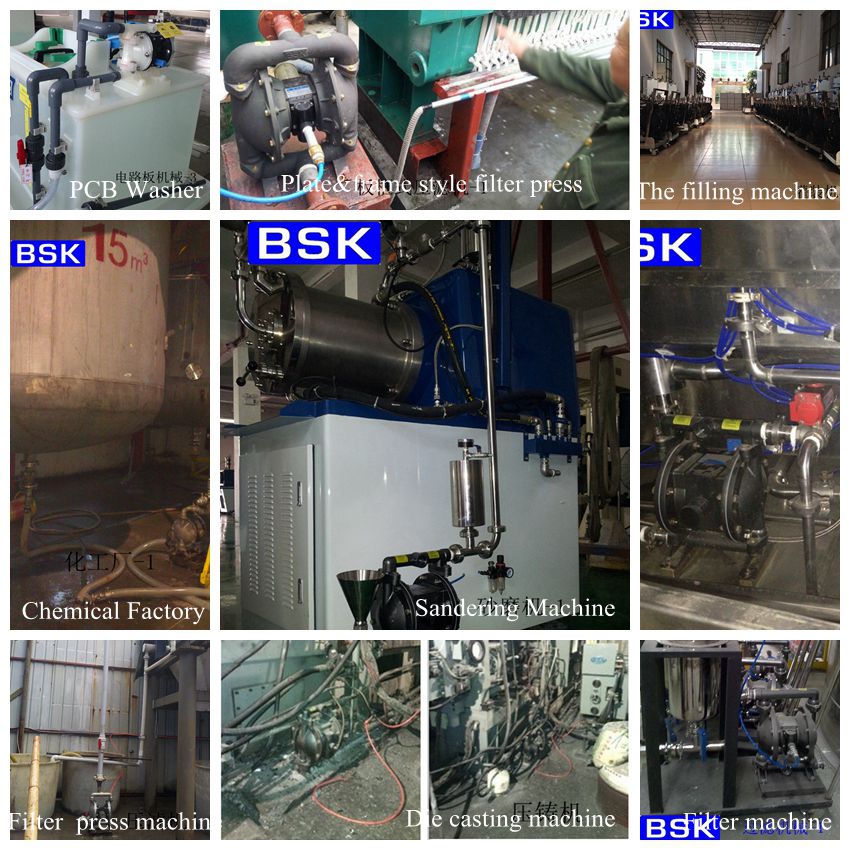

| Product Application | ||||
| * | Chemical Factory | Material handling or removable barrels material ( instead of drum pumps ) | ||
| * | Pharmaceutical factory | Material handling or removable barrels material ( instead of drum pumps ) | ||
| * | Pharmaceutical chemical factory | Material handling or removable barrels material ( instead of drum pumps ) | ||
| Electroplating Machinery | Pumping plating material or wastewater replacement. | |||
| Spinning factory | Delivery dye for textile/knitting production | |||
   | ||||
