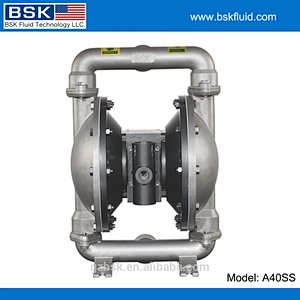

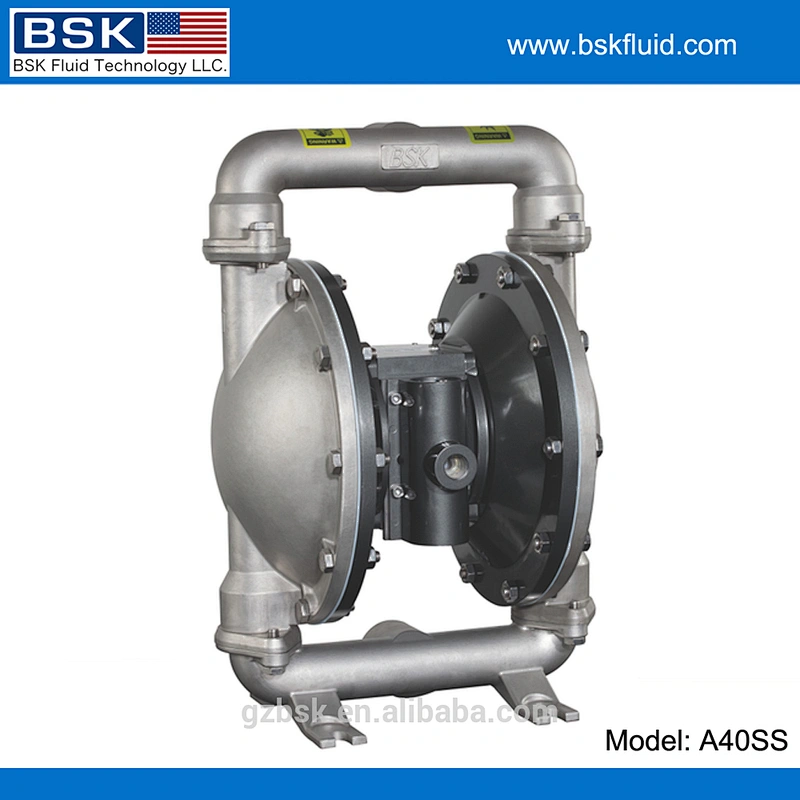

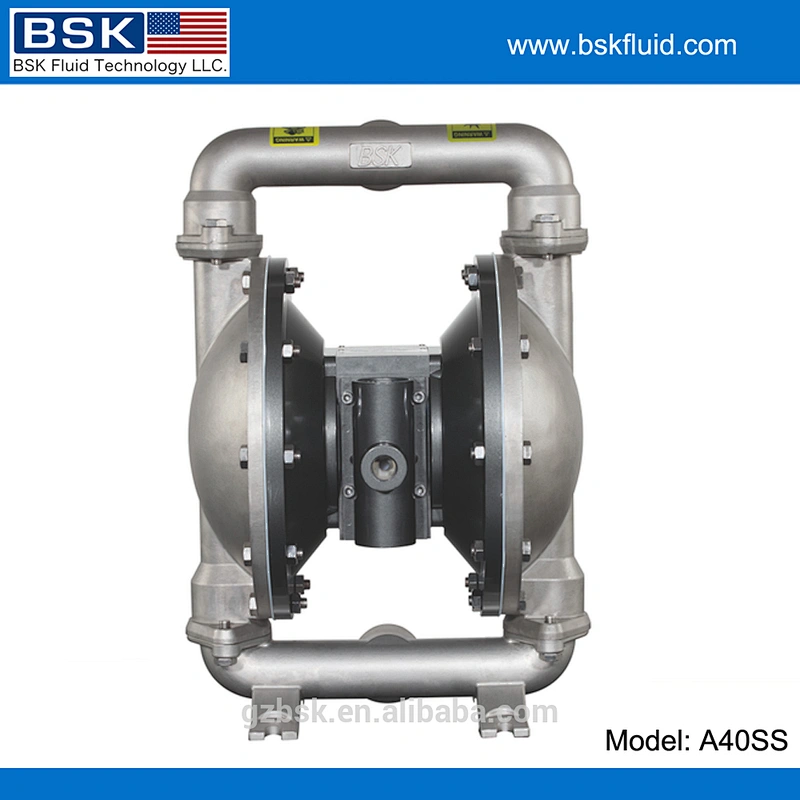

316SS stainless steel FDA standard air membrane pump 8.3bar
316SS stainless steel FDA standard air membrane pump 8.3bar
316SS stainless steel FDA standard air membrane pump 8.3bar
316SS stainless steel FDA standard air membrane pump 8.3bar
316SS stainless steel FDA standard air membrane pump 8.3bar

316SS stainless steel FDA standard air membrane pump 8.3bar

Model NO.
A40SS-STT-A
Price:
USD 1.00-1,000.00 / piece
Minimum order quantity:
1 piece
Supply Ability:
2000 piece / Month
Country of Origin:
Guangzhou
Quantity:
  • Place of Origin:CN;GUA
  • Structure:Diaphragm Pump
  • Power:Pneumatic
  • Brand Name:BSK
  • Usage:Air Pump
  • Standard or Nonstandard:Standard
  • Model Number:A40SS-STT-A
  • Pressure:8.3 Bar
  • Fuel:Air
  • Application:Liquid pumping
  • Theory:Air operated diaphragm pump
  • Air Inlet:1/2-14NPTF-1
  • Liquid Outlet:1-1/2"-11-1/2NPTF-1,1-1/2-11BSP
  • Liquid Inlet:1-1/2"-11-1/2NPTF-1,1-1/2-11BSP

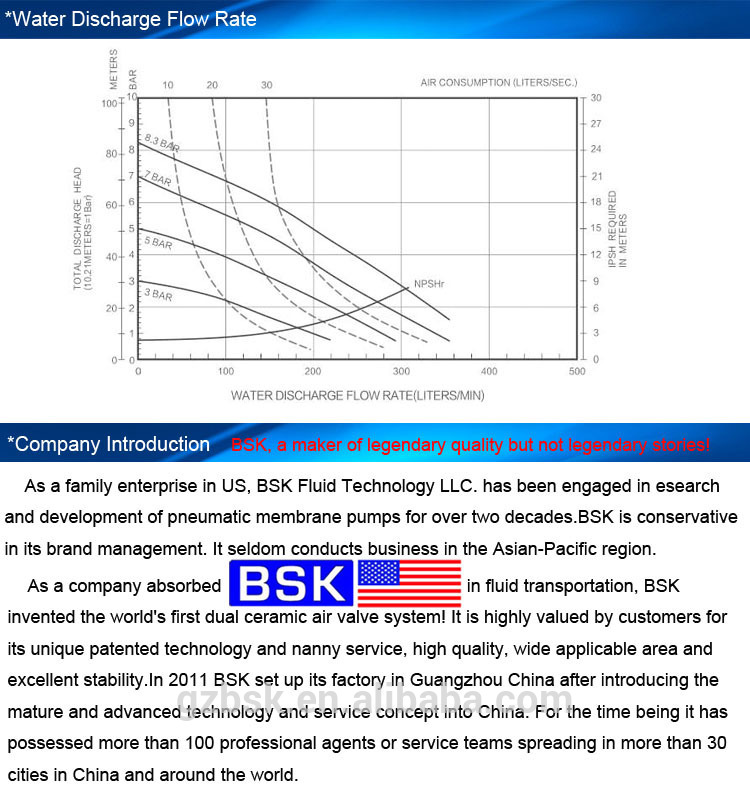

  • Max Flow:330L/Min
  • Max Head:70M/Water
  • Max Self-Priming Lift(Dry):4.5M
  • Max Air Pressure:8.3Bar
  • Max Particle Diameter:6mm
  • Max Installation Dimension:343*498*301cm
  • Weight:30KG



Model No.Pipe SizeAir side/
Fluid side Material
Seat MaterialDiaphragm/Ball
Material
A40SS-STT-A1 1/2’inch316#Stainless Steel
(SS)
316#Stainless Steel
(SS)
PTFE
Product Description

Pneumatic diaphragm pump is a new transport machinery , is currently one of the most

innovative pump . Using compressed gas as a power source for a variety of corrosive liquid ,

with particles of liquid , high viscosity , volatile, flammable, poisonous liquid can be pumped

optical exhaustion . There are four pneumatic diaphragm material: plastic , aluminum, cast iron ,

stainless steel. Pneumatic diaphragm pumps were used nitrile
rubber,neoprene , Viton , Teflon , depending on the liquid medium , poly ethylene forty-six .

To meet the needs of different users . Placed in a variety of special occasions , for pumping

a variety of conventional pumps can not pump the media , have achieved satisfactory results.

Product Application
*Chemical Factory

Material handling or removable barrels material ( instead of drum pumps ),

applicable to concentrated sulfuric acid, nitric acid and other strong

oxidizing materials.

 Pharmaceutical factoryMaterial handling or removable barrels material ( instead of drum pumps )
 Biological technology factoryPumping animal blood for refining
 New energy plant/
multi crystalline silicon plant
Pumping polysilicon raw material for solar
 Commodity FactoryPumping perfume / fragrance / dairy mixture
*Pressure filter

Plate-and-frame type filter press, for filter polluted water and separate

moisture material.

*Moving baggy filterIndustrial wastewater filtration or chemical material separation
