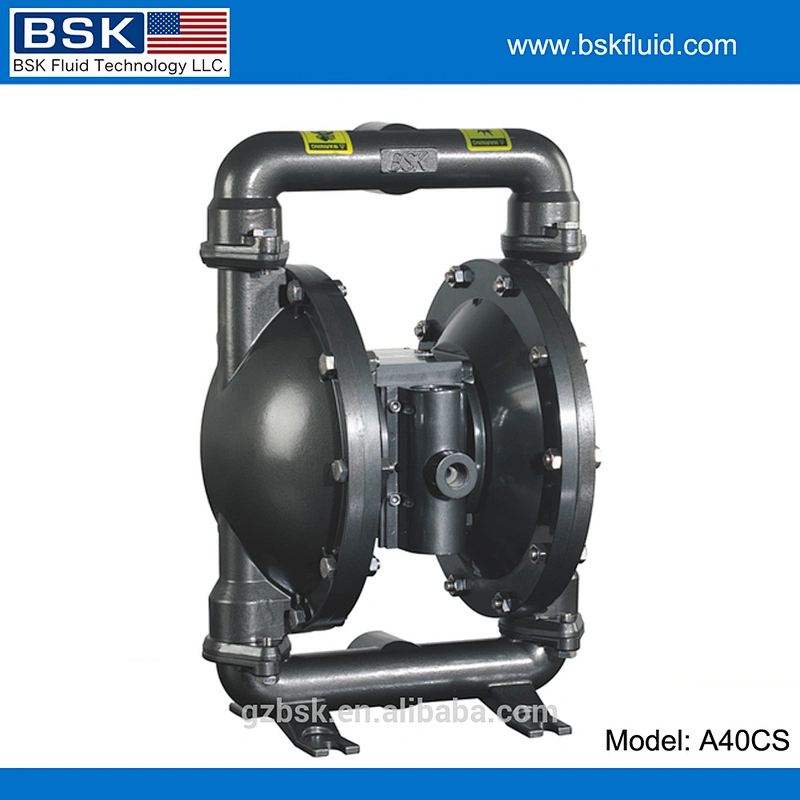

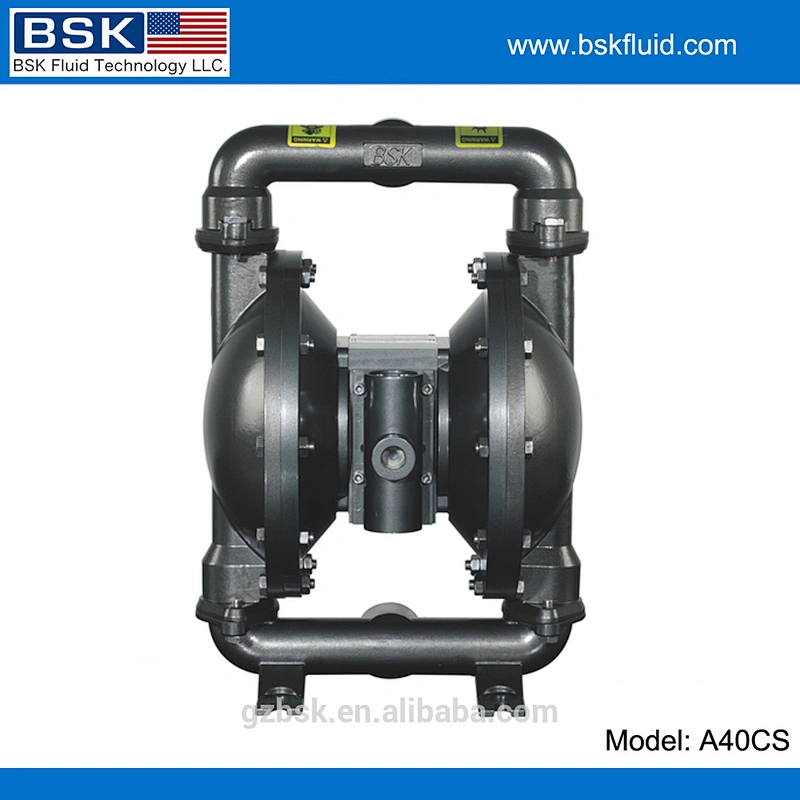

Model NO.
A40CS-P99-A
Price:
USD 1.00-550.00 / piece
Minimum order quantity:
1 piece
Supply Ability:
2000 piece / Month
Country of Origin:
Guangzhou
Quantity:
  • Place of Origin:CN;GUA
  • Structure:Diaphragm Pump
  • Power:Pneumatic
  • Brand Name:BSK
  • Usage:Air Pump
  • Standard or Nonstandard:Standard
  • Model Number:A40CS-P99-A
  • Pressure:8.3 Bar
  • Fuel:Air
  • Application:Liquid pumping
  • Theory:Air operated diaphragm pump
  • Air Inlet:1/2-14NPTF-1
  • Liquid Outlet:1--1/2"-11-1/2NPTF-1,1-1/2-11BSP
  • Liquid Inlet:1--1/2"-11-1/2NPTF-1,1-1/2-11BSP

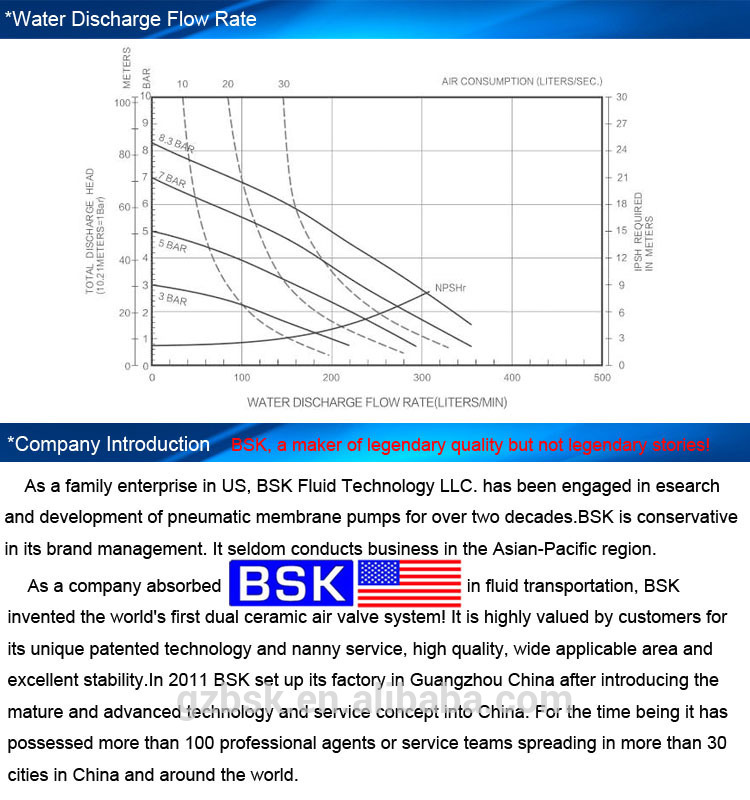

  • Max Flow:330L/Min
  • Max Head:70M/Water
  • Max Self-Priming Lift(Dry):4.5M
  • Max Air Pressure:8.3Bar
  • Max Particle Diameter:6mm
  • Max Installation Dimension:343*498*301cm
  • Weight:30KG
Model No.Pipe SizeAir side/
Fluid side Material
Seat MaterialDiaphragm/Ball
Material
A40CS-PHH-A1 1/2’inchCasting steel
(CS)
Polypropylene
(PP)
Hytrel
Product Description

Pneumatic diaphragm pump is a new transport machinery , is currently one of the

most innovative pump . Using compressed gas as a power source for a variety of

corrosive liquid , with particles of liquid , high viscosity , volatile, flammable,

poisonous liquid can be pumped optical exhaustion . There are four pneumatic

diaphragm material: plastic , aluminum, cast iron , stainless steel. Pneumatic

diaphragm pumps were used nitrile
rubber,neoprene , Viton , Teflon , depending on the liquid medium , poly ethylene

forty-six . To meet the needs of different users . Placed in a variety of special occasions ,

for pumping a variety of conventional pumps can not pump the media , have achieved

satisfactory results.

Product Application
*Glue machineCorrugated cardboard machinery and glue making machinery
*Plate-and-frame type filter press
*Tanneries

Rawhide manufacturing and processing , pumping water and

additives
