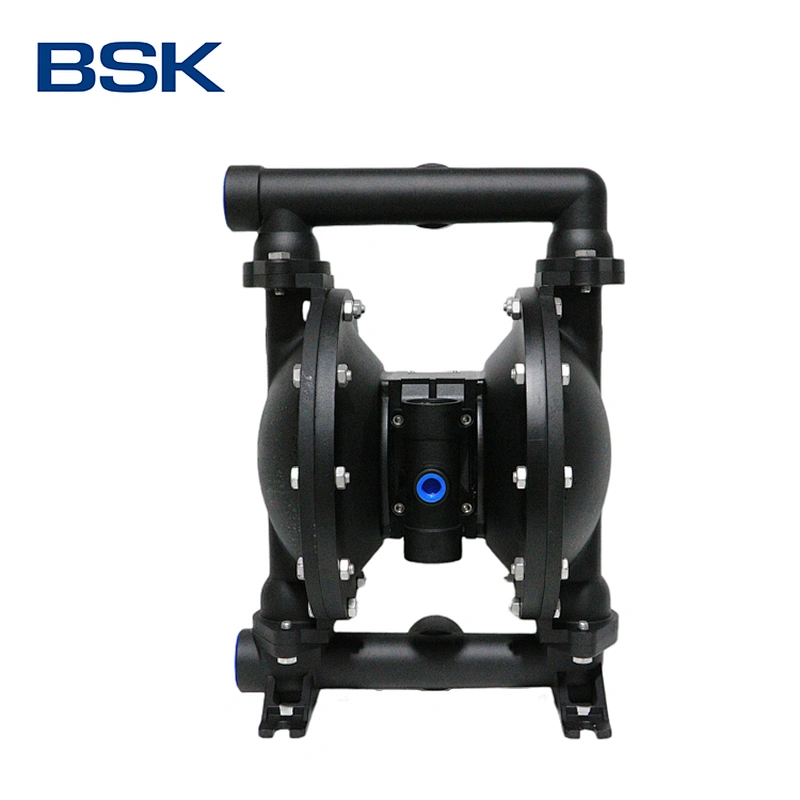

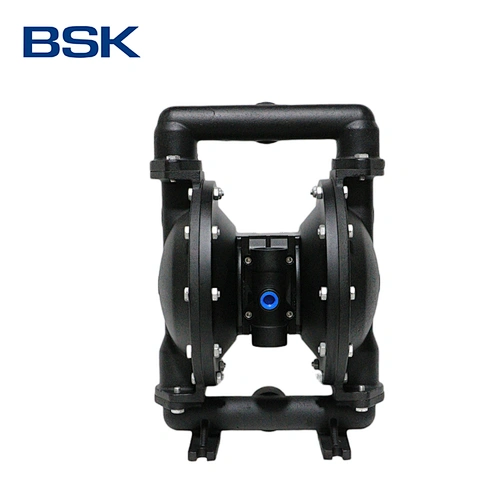

1.5" aluminum alloy pneumatic diaphragm pump

Model NO.
BA40AL-P991-A
Price:
USD 1.00-400.00 / piece
Minimum order quantity:
1 piece
Supply Ability:
2000 piece / Month
Country of Origin:
Guangzhou
Quantity:

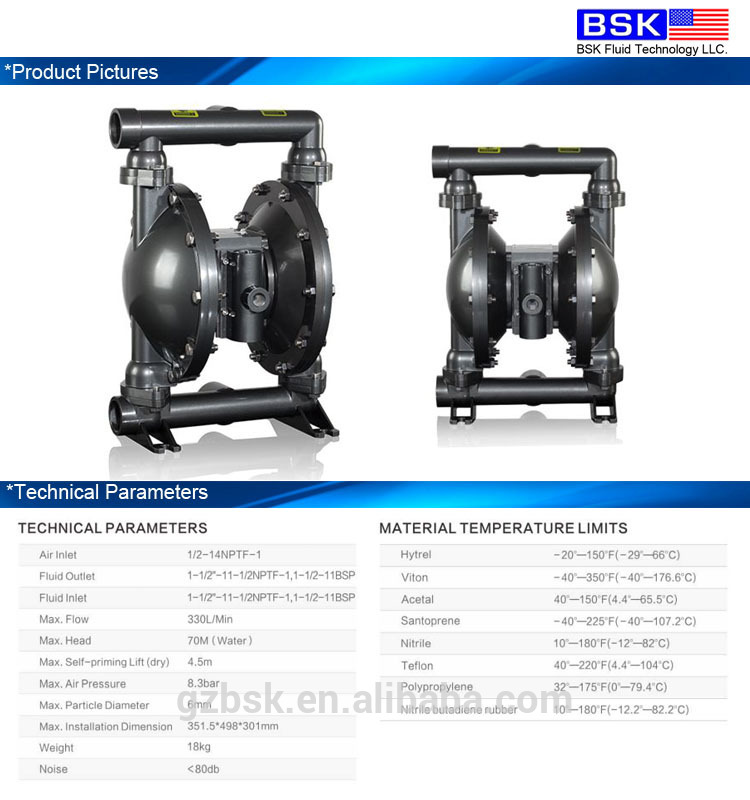

  • Place of Origin:CN;GUA
  • Structure:Diaphragm Pump
  • Power:Pneumatic
  • Brand Name:BSK
  • Usage:Air Pump
  • Standard or Nonstandard:Standard
  • Model Number:A40AL-P99-A
  • Pressure:8.3 Bar
  • Fuel:Air
  • Application:Liquid pumping
  • Theory:Air operated diaphragm pump
  • Air Inlet:1/2-14NPTF-1
  • Liquid Outlet:1-1/2"-11-1/2NPTF-1,1-1/2-11BSP
  • Liquid Inlet:1-1/2"-11-1/2NPTF-1,1-1/2-11BSP

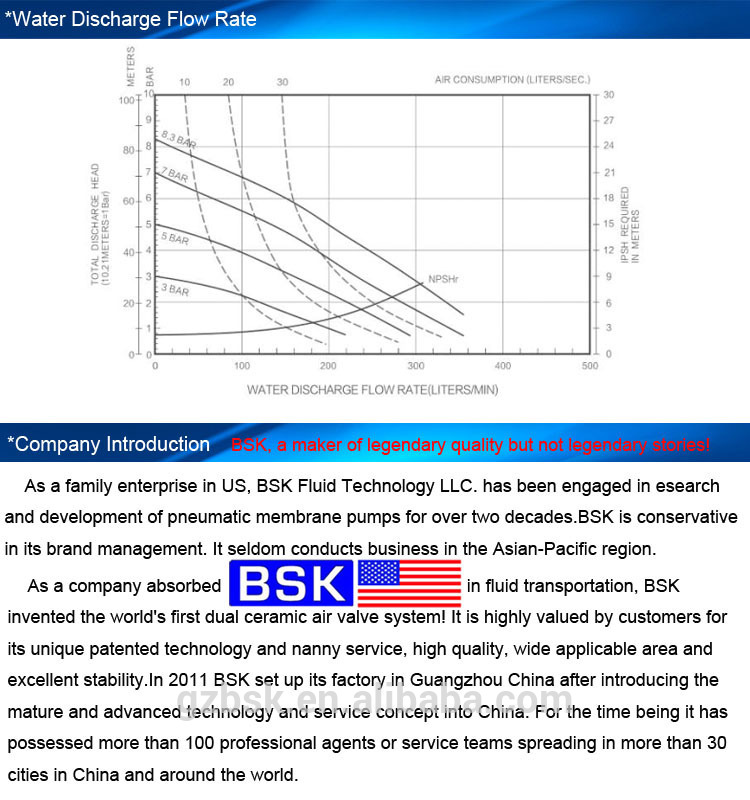

  • Max Flow:330L/Min
  • Max Head:70M/Water
  • Max Self-Priming Lift(Dry):4.5M
  • Max Air Pressure:8.3Bar
  • Max Particle Diameter:6mm

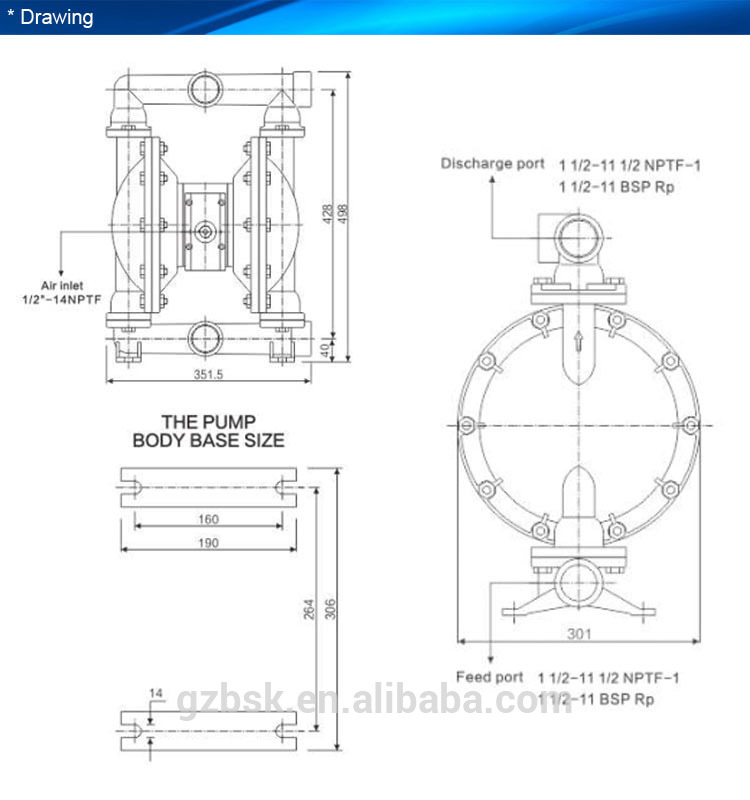

  • Max Installation Dimension:351.5*498*301cm
  • Weight:18KG
Model No.Pipe SizeAir side/
Fluid side Material
Seat MaterialDiaphragm/Ball
Material
A40AL-P99-A1 1/2’inchAluminium Alloy
(AL)
Polypropylene
(PP)
Santonprene
Product Description

Pneumatic diaphragm pump is a new transport machinery , is currently one of the most

innovative pump . Using compressed gas as a power source for a variety of corrosive

liquid , with particles of liquid , high viscosity , volatile, flammable, poisonous liquid

can be pumped optical exhaustion . There are four pneumatic diaphragm material: plastic

, aluminum, cast iron , stainless steel. Pneumatic diaphragm pumps were used nitrile

rubber,neoprene , Viton , Teflon , depending on the liquid medium , poly ethylene forty-six .

To meet the needs of different users . Placed in a variety of special occasions , for

pumping a variety of conventional pumps can not pump the media , have achieved satisfactory results.

Product Application
*Sandering machinery

Grinding varnish.There have lots of bead mills in varnish and

chemical factories.Need pumps can start up with low pressure

and endure 85 Celsius.

*Moving baggy filterIndustrial wastewater filtration or chemical material separation
*Material MixerChemical machinery or chemical plant use
*Ink/printing machineryMainly transfer ink. ep: printing machinery of newspaper/
magazine's .
*Pressure filterPlate-and-frame type filter press, for filter polluted water and
separate moisture material.
*Detergent factoryWater-based glass cleaner
*Chemical FactoryMaterial handling or removable barrels material ( instead of
drum pumps )
*Paint Filling Machinepumping varnish for filling and packaging
*Pressure filterPlate-and-frame type filter press, for filter polluted water and
separate moisture material.
*Feed factoryPumping animal blood for refining the Protein to be the fodder
*Moving baggy filterIndustrial wastewater filtration or chemical material separation
*Stencil Cleaner

Emerging industries ( steel washing machines or stencil

cleaning machines)

*Packaging MachineryPumping adhesives or glass glue etc.
