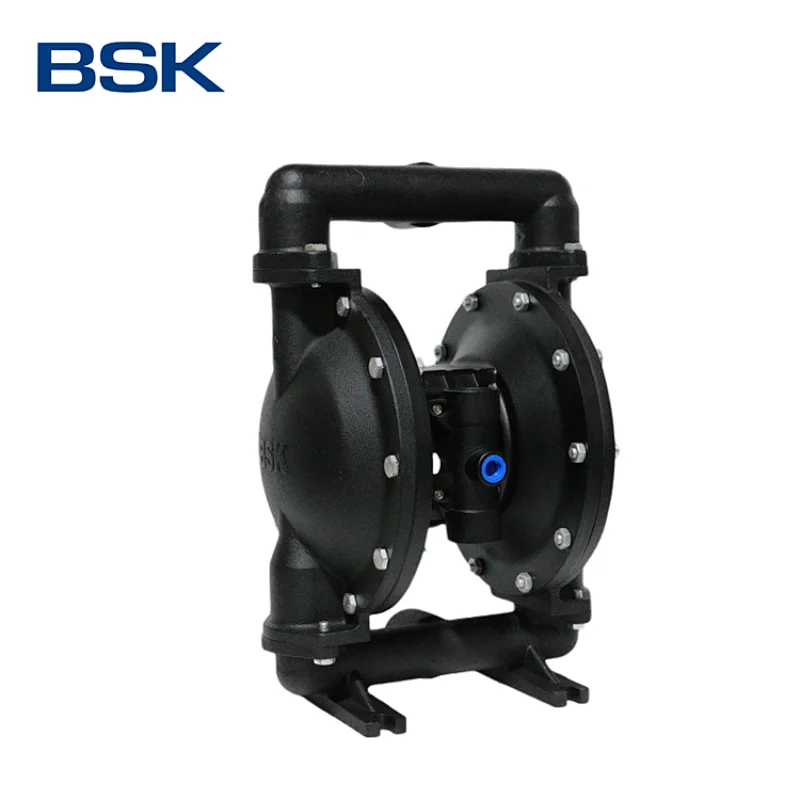

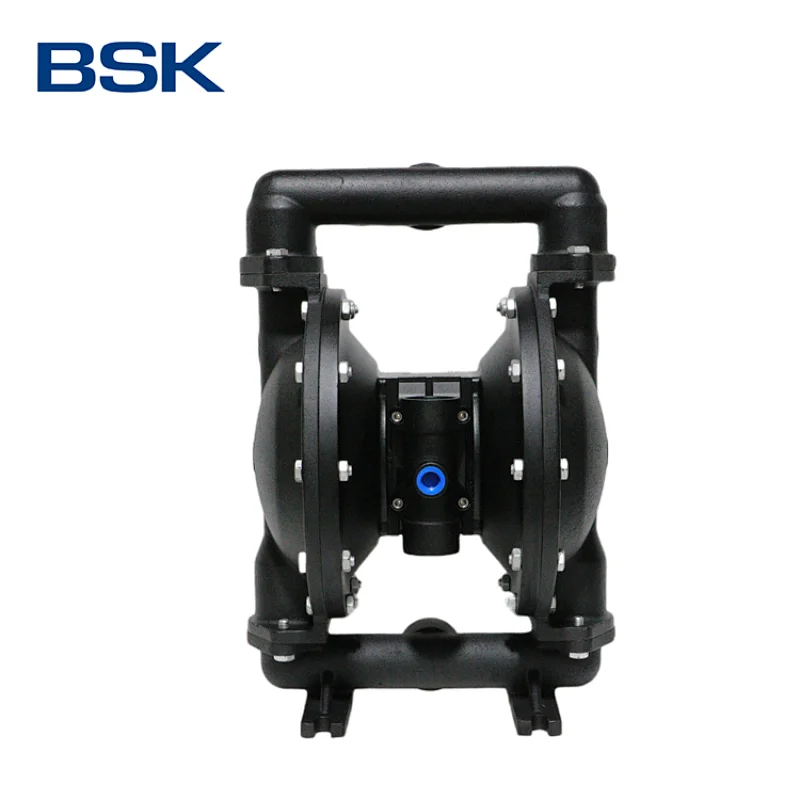

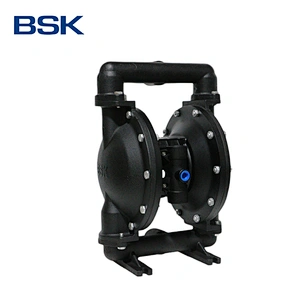

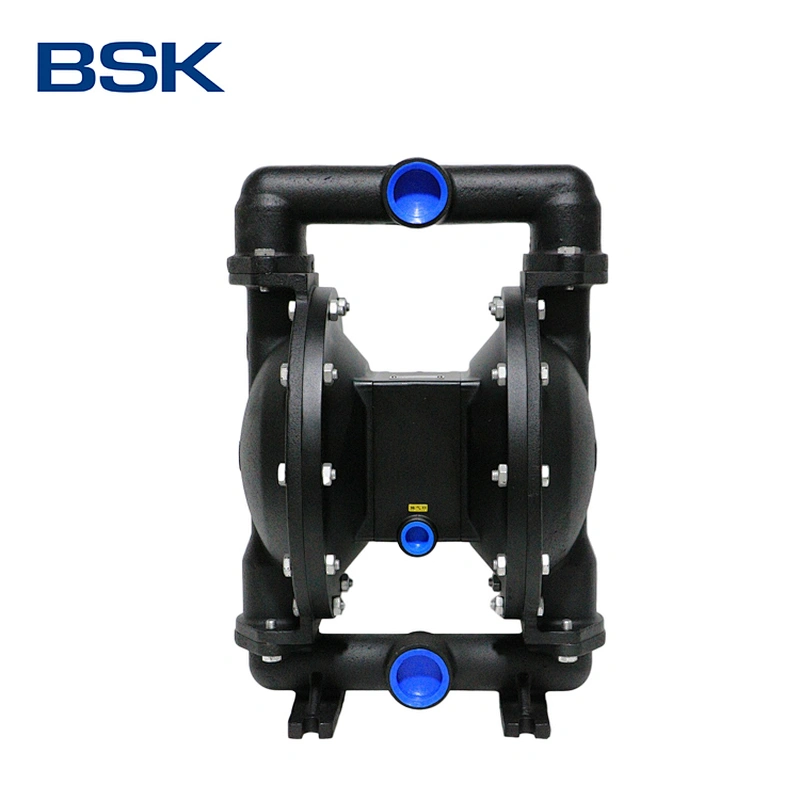

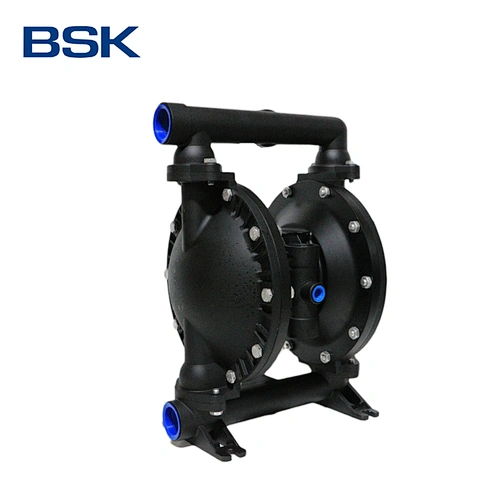

1.5 inch casting steel pipe hytrel diaphragm double ceramic chamber air operated pumps
1.5 inch casting steel pipe hytrel diaphragm double ceramic chamber air operated pumps
1.5 inch casting steel pipe hytrel diaphragm double ceramic chamber air operated pumps
1.5 inch casting steel pipe hytrel diaphragm double ceramic chamber air operated pumps
1.5 inch casting steel pipe hytrel diaphragm double ceramic chamber air operated pumps
1.5 inch casting steel pipe hytrel diaphragm double ceramic chamber air operated pumps
1.5 inch casting steel pipe hytrel diaphragm double ceramic chamber air operated pumps

1.5 inch casting steel pipe hytrel diaphragm double ceramic chamber air operated pumps

Model NO.
BA40CS-PHH1-A
Price:
USD 1.00-520.00 / piece
Minimum order quantity:
1 piece
Supply Ability:
2000 piece / Month
Country of Origin:
Guangzhou
Quantity:
  • Place of Origin:CN;GUA
  • Structure:Diaphragm Pump
  • Power:Pneumatic
  • Brand Name:BSK
  • Usage:Air Pump
  • Standard or Nonstandard:Standard
  • Model Number:A40CS-PHH-A
  • Pressure:8.3 Bar
  • Fuel:Air
  • Application:Liquid pumping
  • Theory:Air operated diaphragm pump

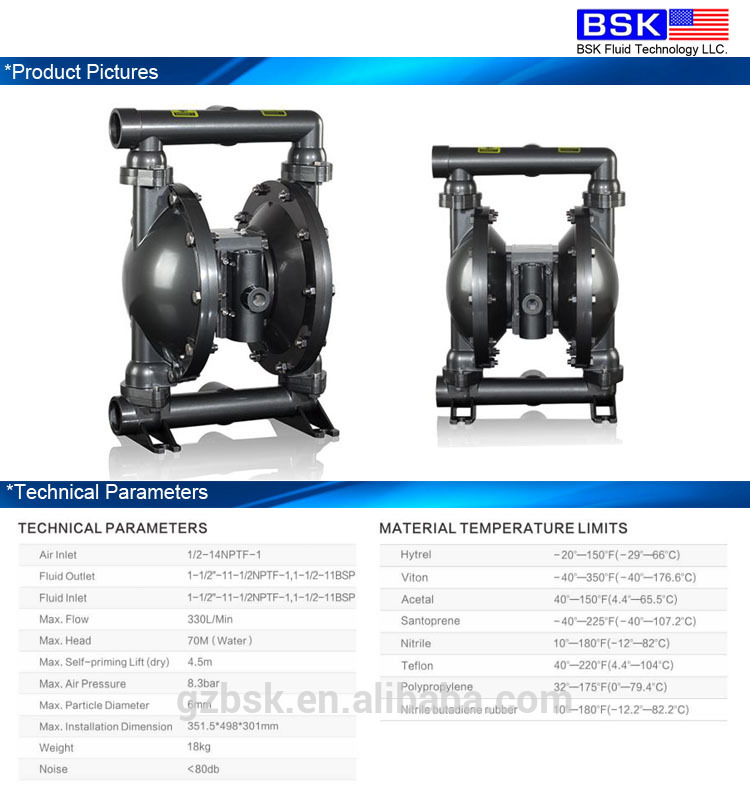

  • Air Inlet:1/2-14NPTF-1
  • Liquid Outlet:1-1/2"-11-1/2NPTF-1,1-1/2-11BSP
  • Liquid Inlet:1-1/2"-11-1/2NPTF-1,1-1/2-11BSP

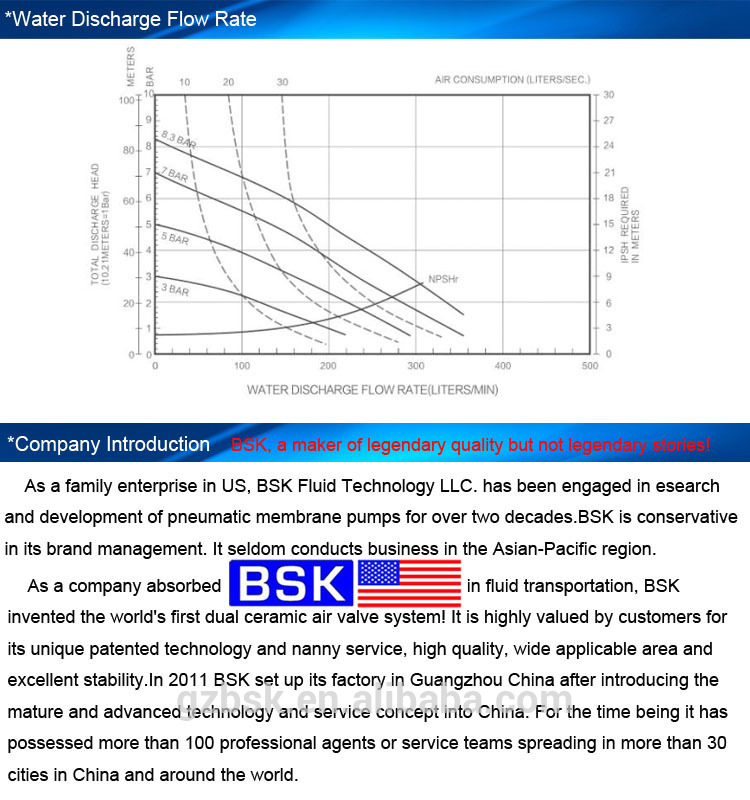

  • Max Flow:330L/Min
  • Max Head:70M/Water
  • Max Self-Priming Lift(Dry):4.5M
  • Max Air Pressure:8.3Bar
  • Max Particle Diameter:6mm

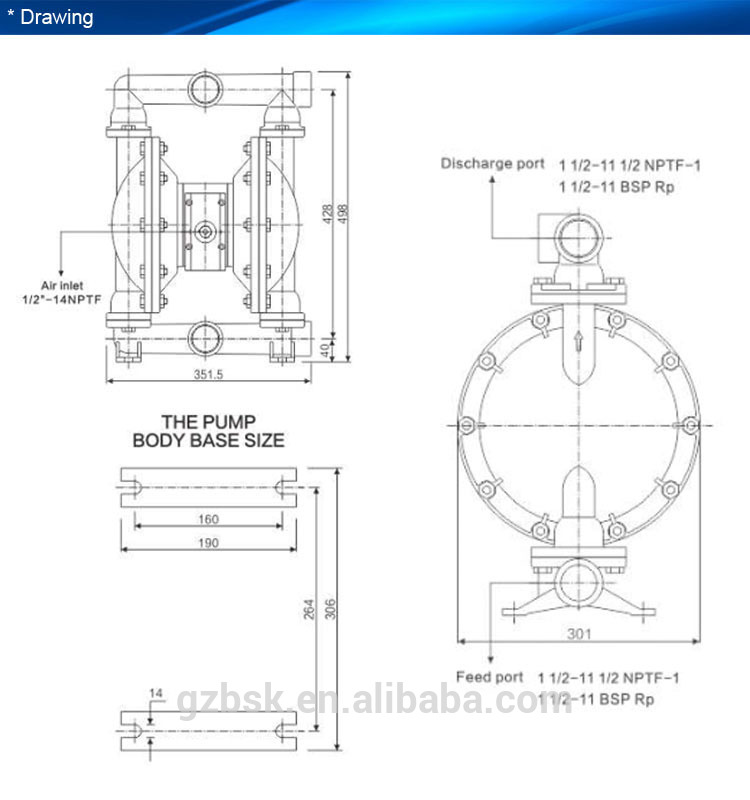

  • Max Installation Dimension:351.5*498*301cm
  • Weight:18KG
Model No.Pipe SizeAir side/
Fluid side Material
Seat MaterialDiaphragm/Ball
Material
A40CS-PHH-A1 1/2’inchCasting steel
(CS)
Polypropylene
(PP)
Hytrel
Product Description

Pneumatic diaphragm pump is a new transport machinery , is currently one of the

most innovative pump . Using compressed gas as a power source for a variety of

corrosive liquid , with particles of liquid , high viscosity , volatile, flammable, poisonous

liquid can be pumped optical exhaustion . There are four pneumatic diaphragm material:

plastic , aluminum, cast iron , stainless steel. Pneumatic diaphragm pumps were used nitrile
rubber,neoprene , Viton , Teflon , depending on the liquid medium , poly ethylene forty-six . To meet the needs of different users . Placed in a variety of special occasions , for

pumping a variety of conventional pumps can not pump the media , have achieved

satisfactory results.

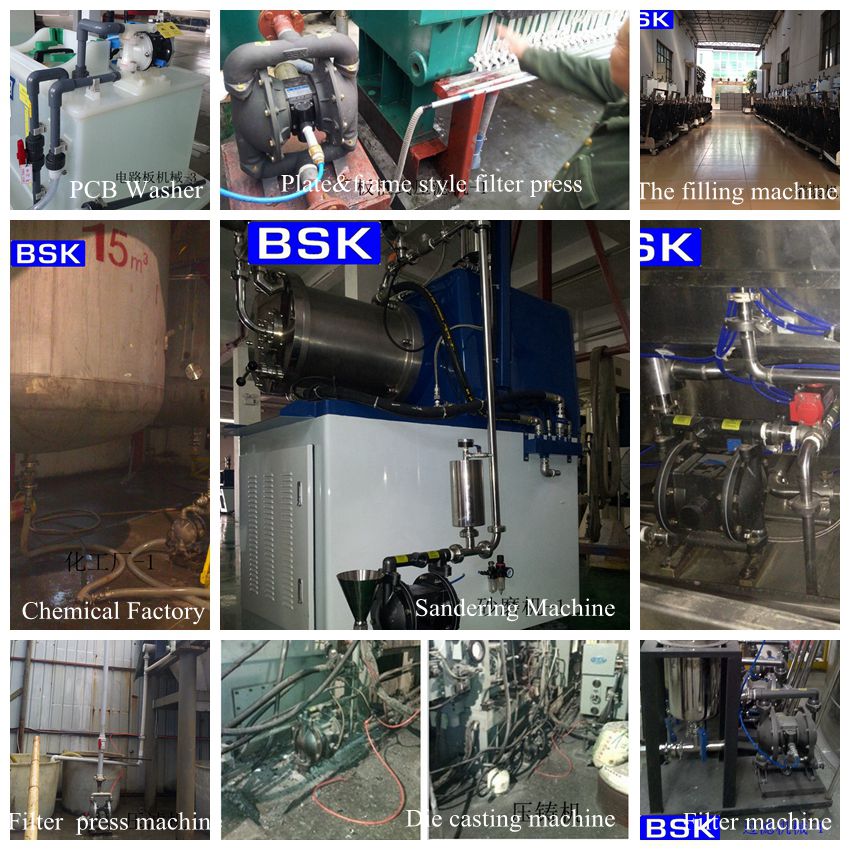

Product Application
*Glue machine

Corrugated cardboard machinery and glue making

machinery

*Plate-and-frame type filter press
*Tanneries

Rawhide manufacturing and processing , pumping water

and additives
