- Air Inlet:1/2-14NPTF-1
- Liquid Outlet:1-1/2"-11-1/2NPTF-1,1-1/2-11BSP
- Liquid Inlet:1-1/2"-11-1/2NPTF-1,1-1/2-11BSP
- Max Flow:378.5L/min
- Max Head:80M/Water
- Max Self-Priming Lift(Dry):4.5M
- Max Air Pressure:8.3Bar
- Max Particle Diameter:6mm

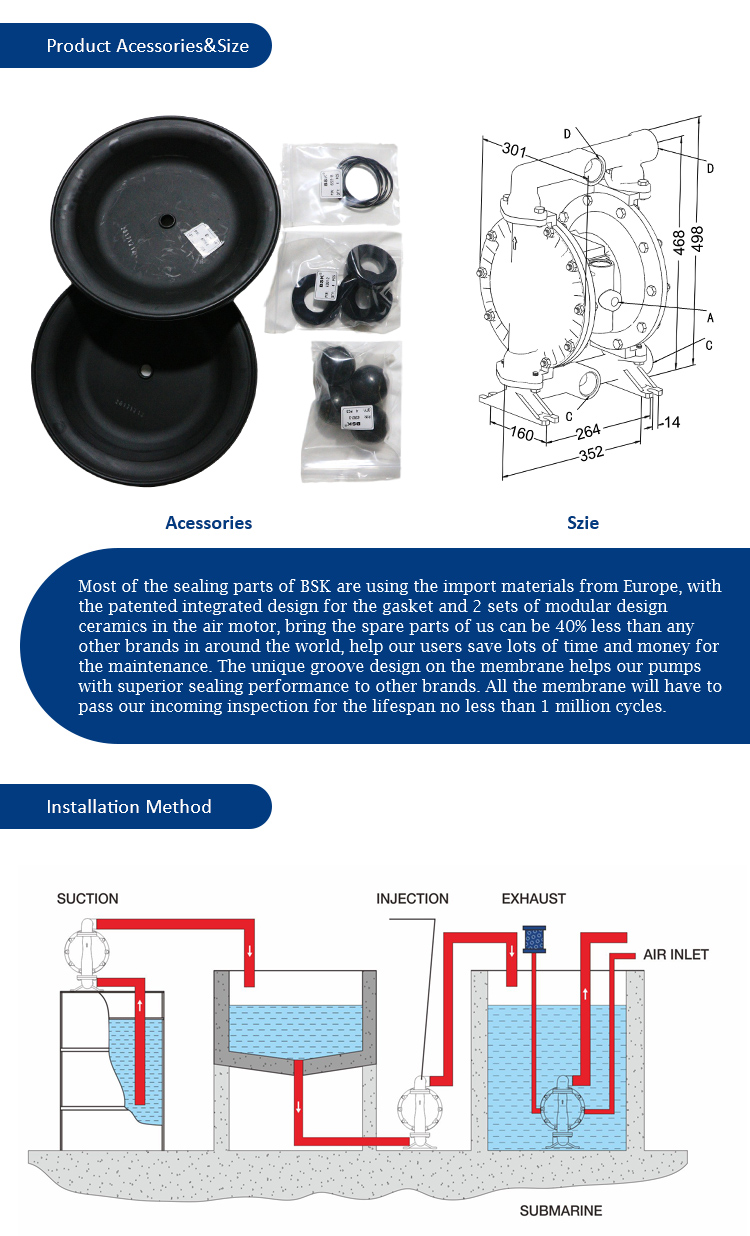

- Max Installation Dimension:351.5*498*301cm
- Weight:18KG
- Application:Automotive Industry
- Application:Biofuel Industry
- Application:Commercial Buildings
- Application:Developing World Water Solutions
- Application:District Energy
- Application:Drinking water treatment
- Application:Family Homes
- Application:Food and Beverage Industry
- Application:HVAC OEM
- Application:Industrial Boilers
- Application:Industrial Utilities
- Application:Irrigation and Agriculture
- Application:Machining
- Application:Marine
- Application:Metal and Equipment Manufacturers
- Application:Mining industry
- Application:Pharmaceutical industry
- Application:Raw Water Intake
- Application:temperature control
- Application:Washing and Cleaning
- Application:Wastewater Transport and Flood Control
- Application:wastewater treatment
- Application:Water Distribution
- Application:Water Treatment Solutions
- Power Source:Pneumatic
- Structure:Diaphragm Pump
- Certification:ce
- Place of Origin:CN;GUA
- Brand Name:BSK

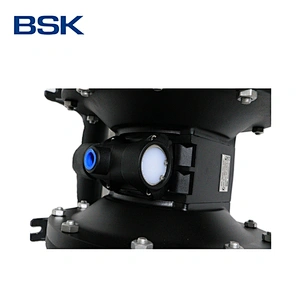

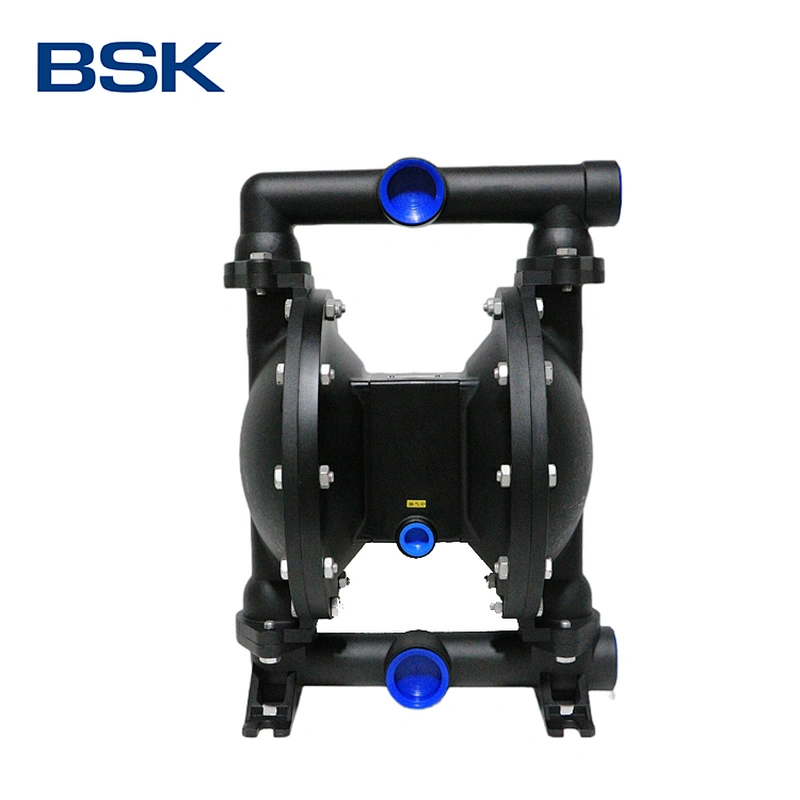

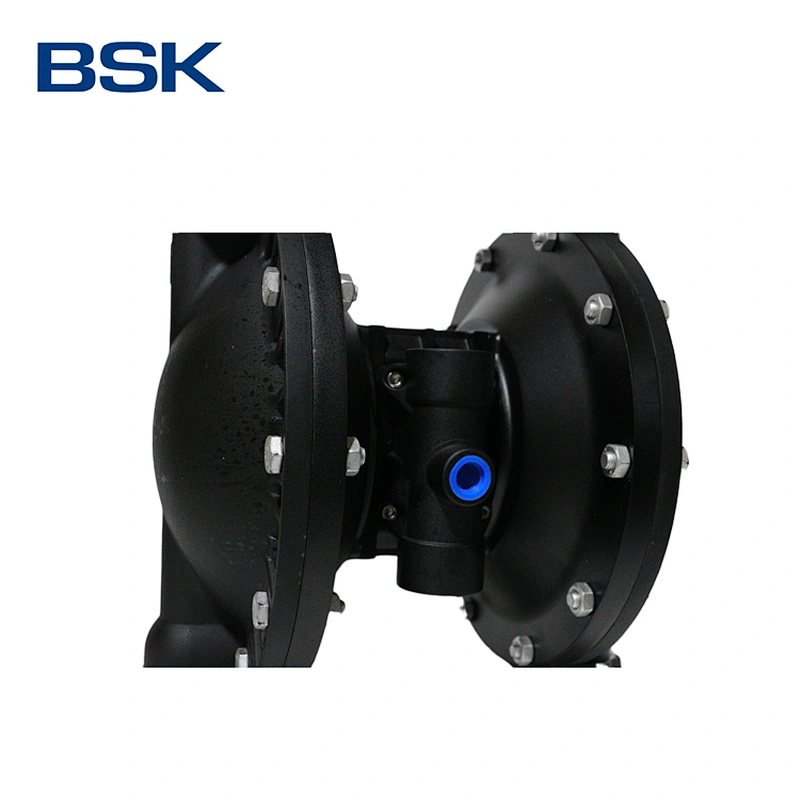

- Model Number:BA40AL-PBB1-A
- Pressure:8.3 Bar
- Cable Length:Type
- Outlet Size:Type

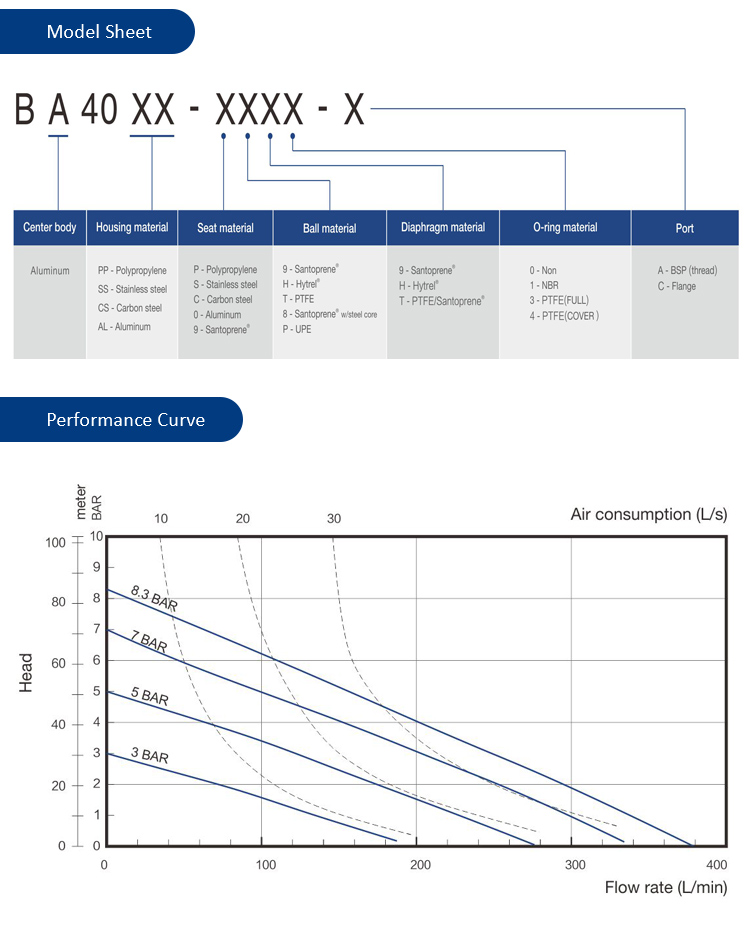

| Model No. | Pipe Size | Max. Air Pressure | Max. Flow Rate | Air side/ Fluid side Material | Seat Material | Diaphragm/Ball Material |
| BA40AL-PBB1-A | 1.5 inch/ 40mm | 8.3BAR/70PSI | 378.5/min | Polypropylene (PP) | Polypropylene (PP) | NBR |
| Product Description | ||||||
| Pneumatic diaphragm pump is a new transport machinery , is currently one of the most innovative pump . Using compressed gas as a power source for a variety of corrosive liquid , with particles of liquid , high viscosity , volatile, flammable, poisonous liquid can be pumped optical exhaustion . There are four pneumatic diaphragm material: plastic , aluminum, cast iron , stainless steel. Pneumatic diaphragm pumps were used nitrile,rubber,neoprene , Viton , Teflon , depending on the liquid medium , poly ethylene forty-six . To meet the needs of different users . Placed in a variety of special occasions , for pumping a variety of conventional pumps can not pump the media , have achieved satisfactory results. | ||||||
| Product Application | ||||||
| Sandering machinery | Grinding varnish.There have lots of bead mills in varnish and chemical factories.Need pumps can start up with low pressure and endure 85 Celsius. | |||||
| Moving baggy filter | Industrial wastewater filtration or chemical material separation. | |||||
| Material Mixer | Chemical machinery or chemical plant use. | |||||
| Ink/printing machinery | Mainly transfer ink. ep: printing machinery of newspaper/ magazine's . | |||||
| Pressure filter | Plate-and-frame type filter press, for filter polluted water and separate moisture material. | |||||
| Detergent factory | Water-based glass cleaner. | |||||
| Chemical Factory | Material handling or removable barrels material ( instead of drum pumps ). | |||||
| Paint Filling Machine | Pumping varnish for filling and packaging. | |||||
| Pressure filter | Plate-and-frame type filter press, for filter polluted water and separate moisture material. | |||||
| Feed factory | Pumping animal blood for refining the Protein to be the fodder. | |||||
| Moving baggy filter | Industrial wastewater filtration or chemical material separation. | |||||
| Stencil Cleaner | Emerging industries ( steel washing machines or stencil cleaning machines). | |||||
| Packaging Machinery | Pumping adhesives or glass glue etc. | |||||
Q1 : Are you a factory or a trading company?
A1 : BSK is the JV-Enterprise for Chinese and American,have our R&D office in USA and factory in
Guangzhou of China.
Q2 : What are your payment methods acceptable?
A2 : T/T , Western Union , Alipay , Paypal , L/C etc.
Q3 : What about your package?
A3 : Except 2 inch aluminum alloy pumps,other pumps less than 2 inch are using paper boxes,others
are using wooden boxes.
Q4 : How long is the warranty?
A4 : According to the international standard,under standard operation,BSK offers 5 years guaranteed
for the whole pump except the vulnerable parts.
Q5 : The function of your pumps?
A5 : 1.The pump can suck the peanut,pickles,tomato slurry,red sausage,chocolate,hops and syrup etc.
2.The pump can suck the paint,pigment,glue and adhesive etc.
3.The pump can suck various glazed slurries of tile,porcelain,brick and chinaware etc.
4.The pump can suck various toxin and flammable or volatility liquid etc.
5.The pump can suck various strong acid,alkali and corrosive liquid etc.
Q6 : How about your product quality and service?
A6 : We have many agents in around the world,they can offer you door-to-door after service when you
have question in using our pumps.For certificates,we have ISO: 9001: 2015,CE, EAC and own
design patents,quality assured,can accept OEM/ODM,provide various personalized needs.
