- Place of Origin:CN;GUA
- Application:Automotive Industry
- Application:Biofuel Industry
- Application:Commercial Buildings
- Application:Developing World Water Solutions
- Application:District Energy
- Application:Drinking water treatment
- Application:Family Homes
- Application:Food and Beverage Industry
- Application:HVAC OEM
- Application:Industrial Boilers
- Application:Industrial Utilities
- Application:Irrigation and Agriculture
- Application:Machining
- Application:Marine
- Application:Metal and Equipment Manufacturers
- Application:Mining industry
- Application:Pharmaceutical industry
- Application:Raw Water Intake
- Application:temperature control
- Application:Washing and Cleaning
- Application:Wastewater Transport and Flood Control
- Application:wastewater treatment
- Application:Water Distribution
- Application:Water Treatment Solutions
- Power Source:Pneumatic
- Structure:Diaphragm Pump
- Certification:ce
- Brand Name:BSK
- Model Number:BA50AL-9990-A
- Pressure:8.3 Bar
- Power Source:Compressed Air
- Certification:ISO:9001
- Power:Pneumatic
- Standard or Nonstandard:Standard
- Inlet:two inch
- Material:Aluminum Alloy
- Warranty:One Year
- diaphragm:santopprene
- Max Flow:667lpm
- Weight:28kgs
- Head:70m
- Certificate:CE Certificate
Product Description
Product Application
Air operated double diaphragm pumps not only can exhaust the flow liquid , but also can convey some uneasy flowed medium.

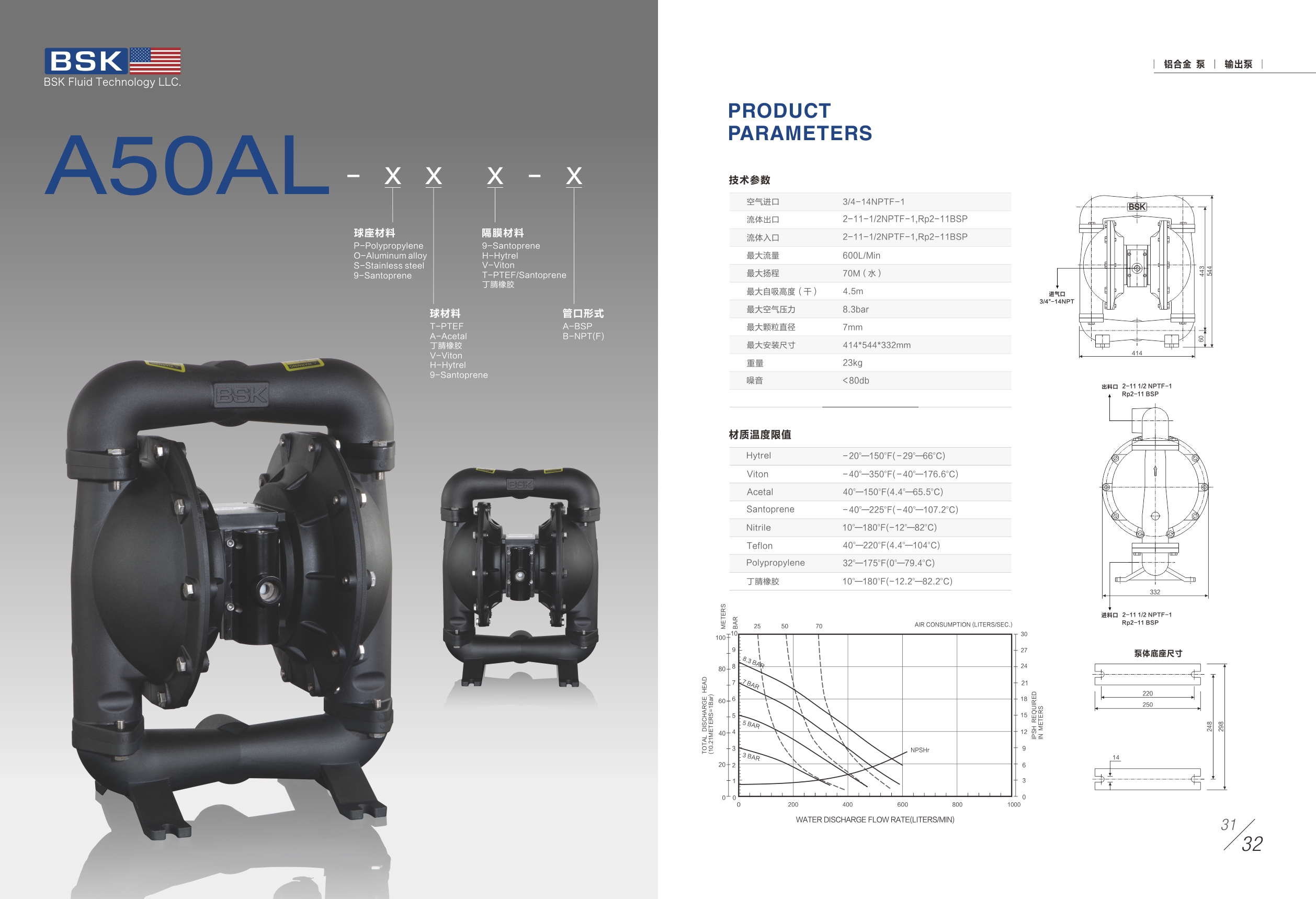

SPECIFICATIONS FOR 50AL Diaphragm Pump of BSK | ||||||
Product Parameters | Air Inlet | 3/4-14NPTF-1 | ||||
Fluid outlet & inlet | 2-11-1/2NPTF-1 | Rp1-11BSP | ||||
Max. Flow | 667 | L/Min | ||||
Technical Parameters | Weight | 24.5 | kgs | |||
Noise | <80 | db | ||||
Max. Self-priming Lift(dry) | 7 | m | ||||
Main performance parameters | Max.Head | 70 | m(water) | |||
Max.Air Pressure | 8.3 | bar | ||||
Max.Particle Diameter | 7 | mm | ||||
Main Features
1.Ceramic material for main valve and reversing valve ensures longer life, more stability and working in dirty compressed air ( most occasions, air filter become option).
2.Without ice with the muffler. Innovative design with the exhaust space of the pump, some of muffler inside, this makes the air outlet smooth.)
3.Outward parts of the pump are all die casted aluminum and special environment-protected painting, makes the pump with elegant appearance.
4.Large flow capacity. Innovative design of chamber maximizes the flow capacity. Seamless adjustment with inlet valve, or even close the valve, without damaging the pump.
5.Low consumption compressed air. Innovative design of the air flow system, minimizes the usage of compressed air to achieve maximum performance.
6.Light and small size, movable.
7.Modularization of main valve and air motor. No broken, easy to disassemble and repair.
8.Optimized design greatly reduces overall component number of pump. Significantly improve performance, help for maintenance.
9.For power variety, pneumatic pump’s flow capacity normally lowers than electric pump, but BSK pump is workable in series at certain conditions. This can largely satisfy customer request.
10.Innovated design of sealing structure and material, totally solve the leakage inside or outside.
11.BSK pump can be started with low air press ( only 1.5 KG air press can start BSK pump).
Related Products
Certifications

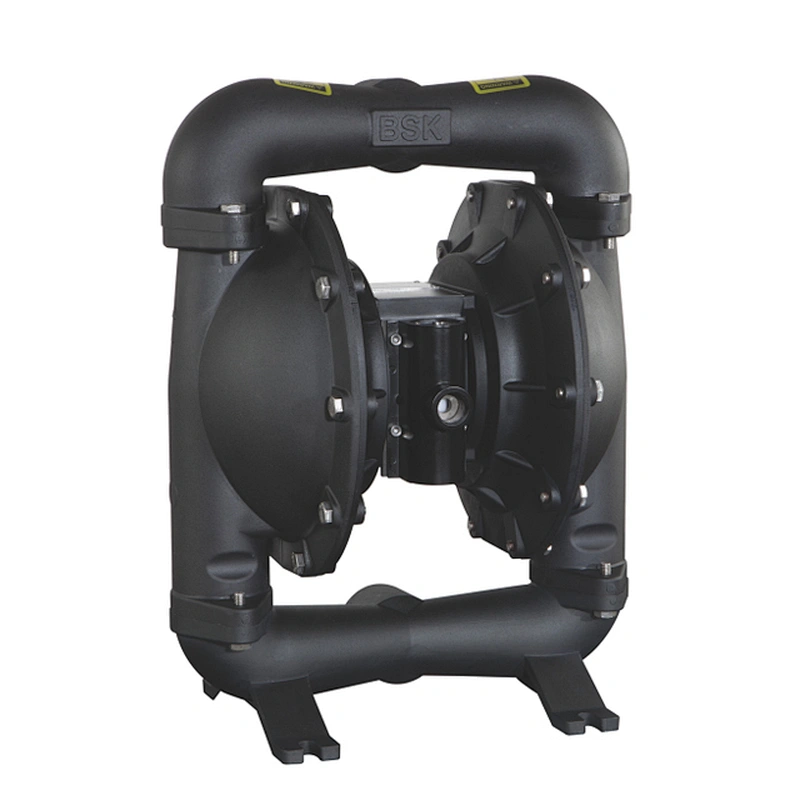

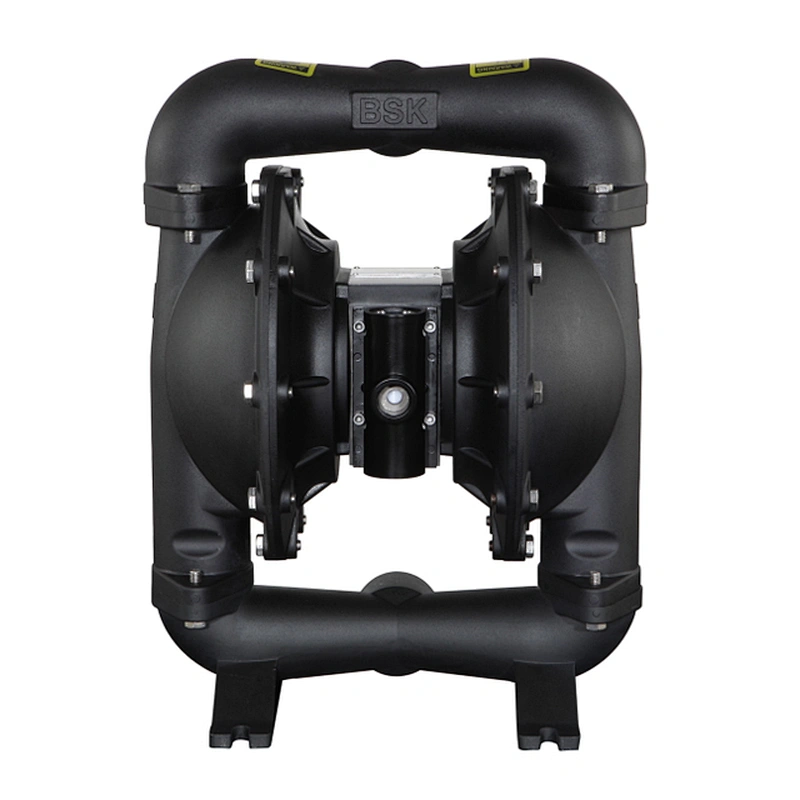

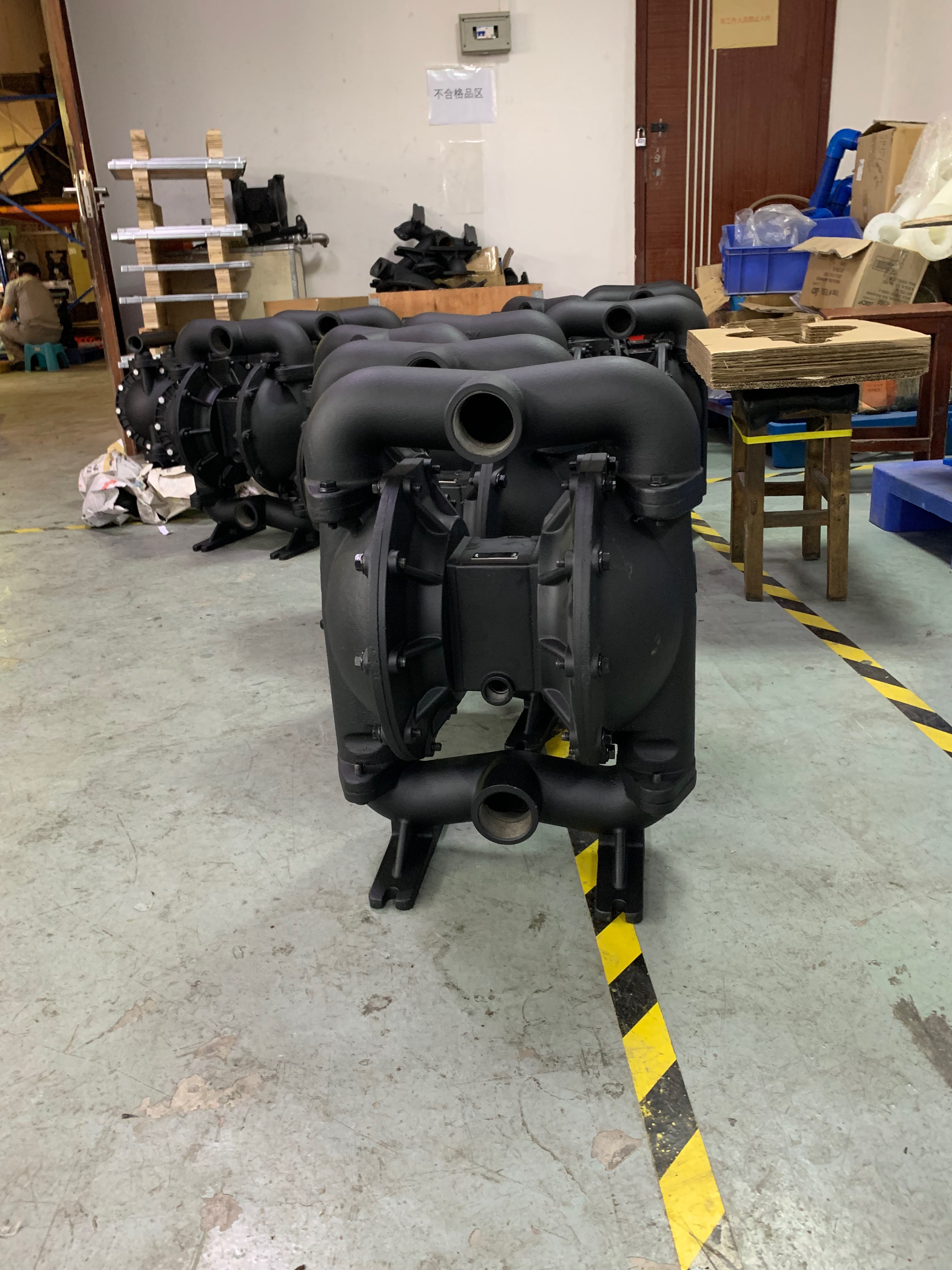

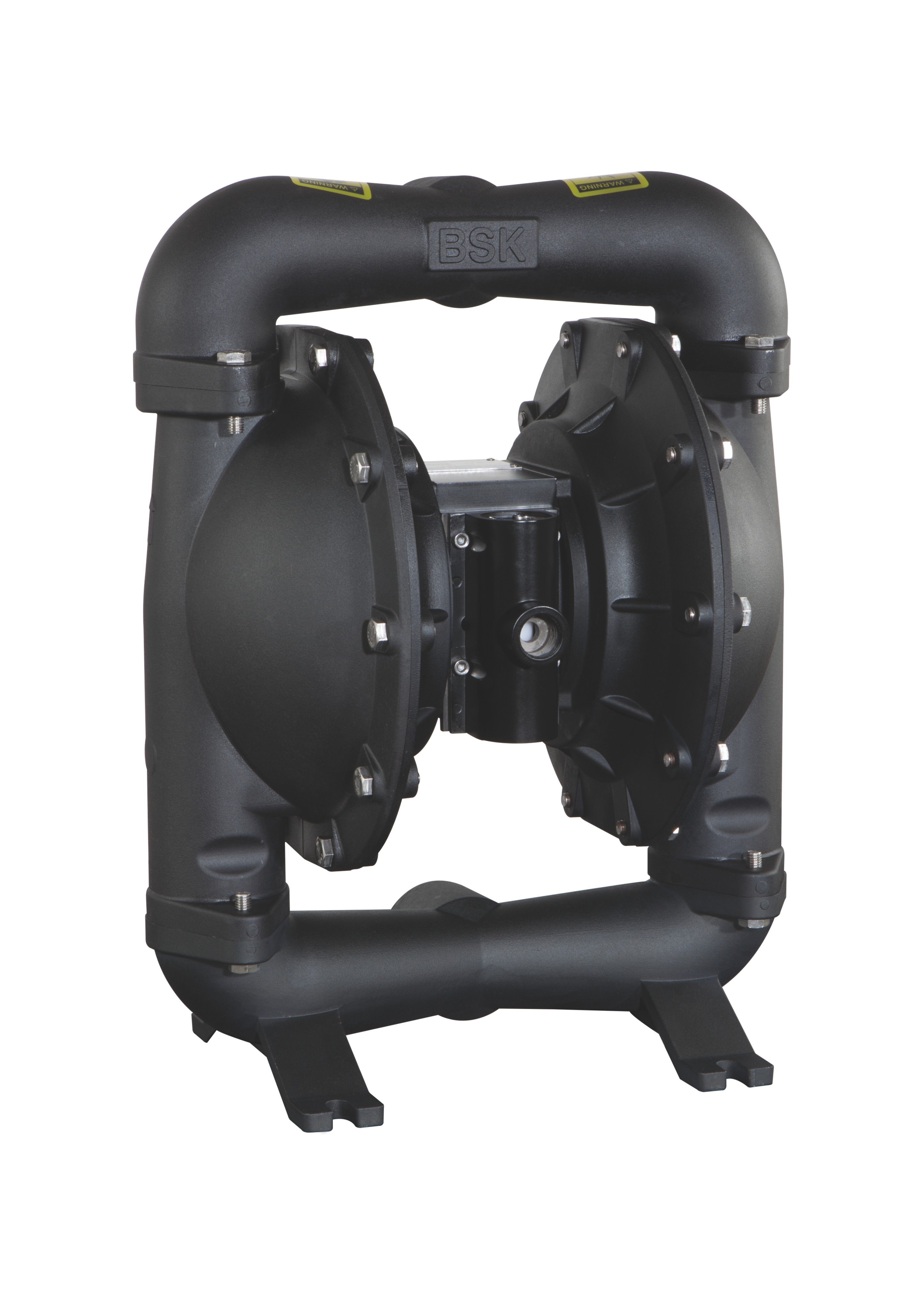

Detailed Images
Machine Parts
Main Features
Large flow, durable
Main Features
Name: BSK FLUID.
Brand: BSK
Original:Domestic
Packing & Delivery
packing | ||
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* One year warranty
Packaging | ||
installation dimension | 414* 544 * 332mm | |
Weight | 27.8 kg | |
Packaging Details | The normal package is carton box(Size: 45L*37W*63H). | |
