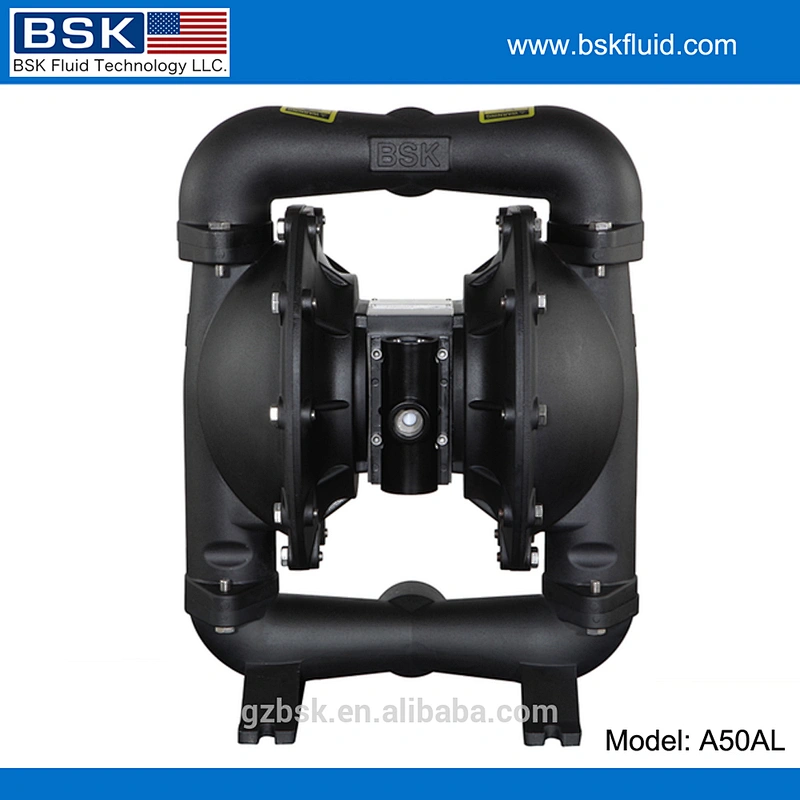

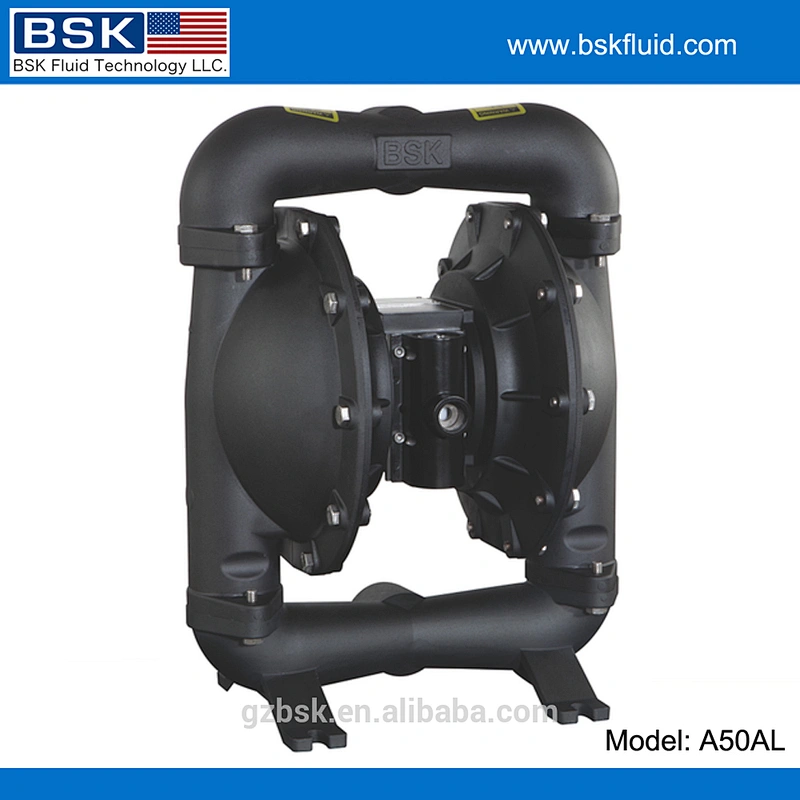

2" Aluminum alloy Hytrel diaphragm double chamber pumps

Quantity:

Model No.	Pipe Size	Air side/ Fluid side Material	Seat Material	Diaphragm/Ball Material
A50AL-PHH-A	2’inch	Aluminium Alloy (AL)	Polypropylene (PP)	Hytrel
Product Description
Pneumatic diaphragm pump is a new transport machinery , is currently one of the most innovative pump . Using compressed gas as a power source for a variety of corrosive liquid , with particles of liquid , high viscosity , volatile, flammable, poisonous liquid can be pumped optical exhaustion . There are four pneumatic diaphragm material: plastic , aluminum, cast iron , stainless steel. Pneumatic diaphragm pumps were used nitrile rubber,neoprene , Viton , Teflon , depending on the liquid medium , poly ethylene forty-six . To meet the needs of different users . Placed in a variety of special occasions , for pumping a variety of conventional pumps can not pump the media , have achieved satisfactory results.
Product Application
*	Pressure filter	Plate-and-frame type filter press, for filter polluted water and separate moisture material.
*	Chemical Factory	Material handling or removable barrels material ( instead of drum pumps )
*	Ceramic industry	Ceramic manufacturers pumping pulp extract clay and pottery
*	Paint factory	Pumping materials or do filling machinery function
*	Mine	Pumping sewage
*	Moving baggy filter	Industrial wastewater filtration or chemical material separation
*	Paint Filling Machine	pumping varnish for filling and packaging
