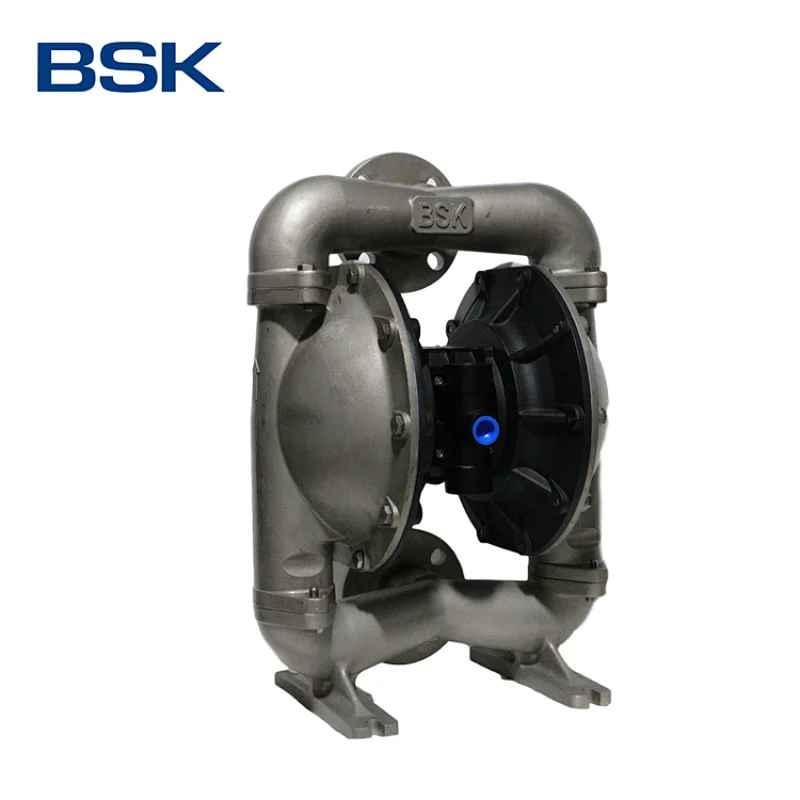

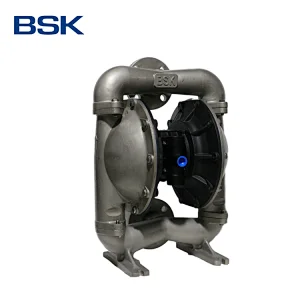

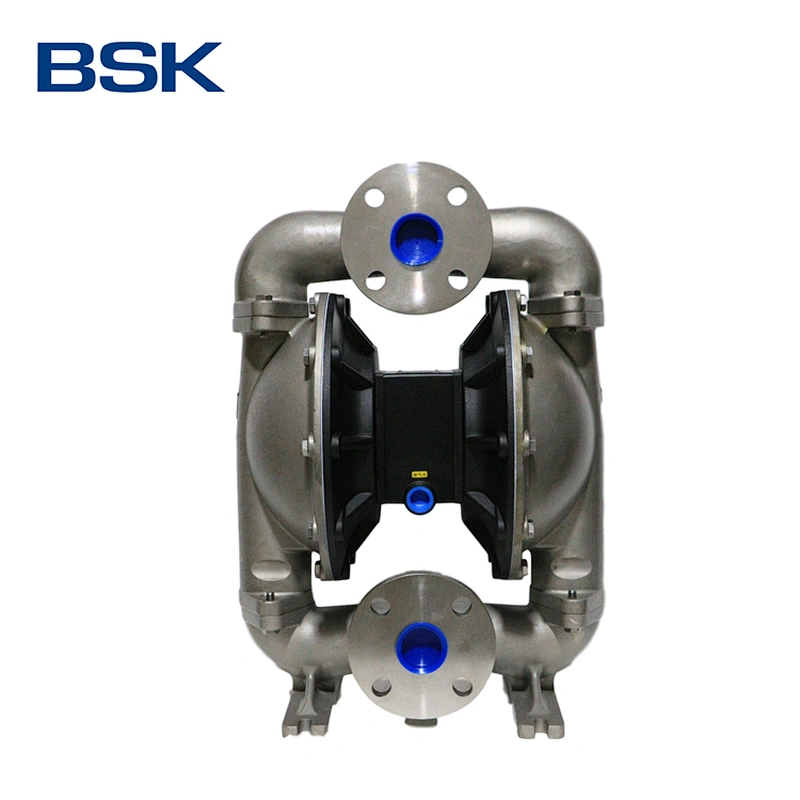

2" stainless steel PTFE diaphragm air driven valve housing diaphragm pumps

Model NO.
BA50SS-S991-C
Price:
USD 1.00-1,400.00 / piece
Minimum order quantity:
1 piece
Supply Ability:
2000 piece / Month
Country of Origin:
Guangzhou
Quantity:
  • Place of Origin:CN;GUA
  • Structure:Diaphragm Pump
  • Power:Pneumatic
  • Brand Name:BSK
  • Usage:Air Pump
  • Standard or Nonstandard:Standard
  • Model Number:A50SS-S99-C
  • Pressure:8.3 Bar
  • Fuel:Air
  • Application:Liquid pumping
  • Theory:Air operated diaphragm pump

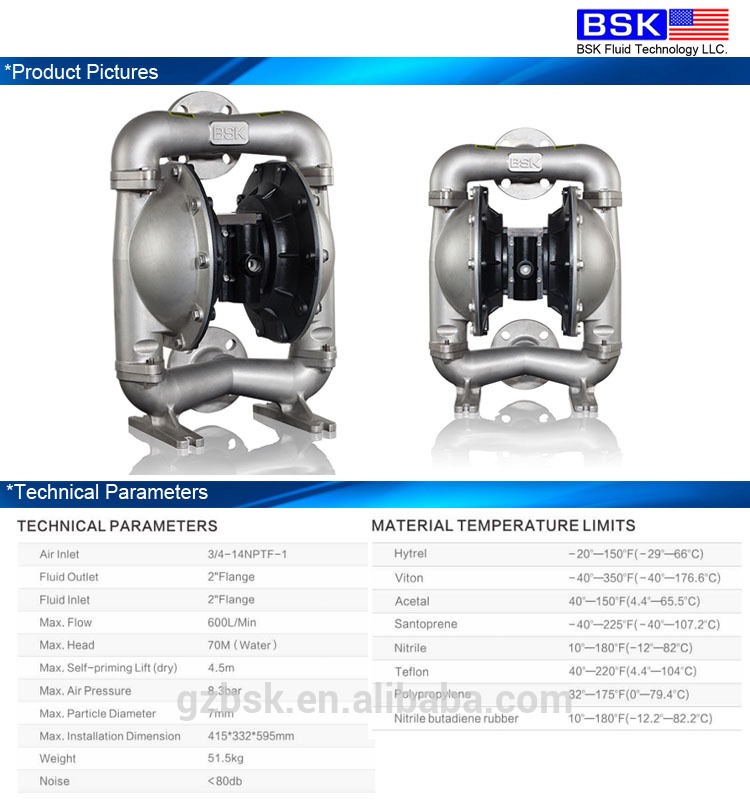

  • Air Inlet:3/4-14NPTF-1
  • Liquid Outlet:2"Flange
  • Liquid Inlet:2"Flange

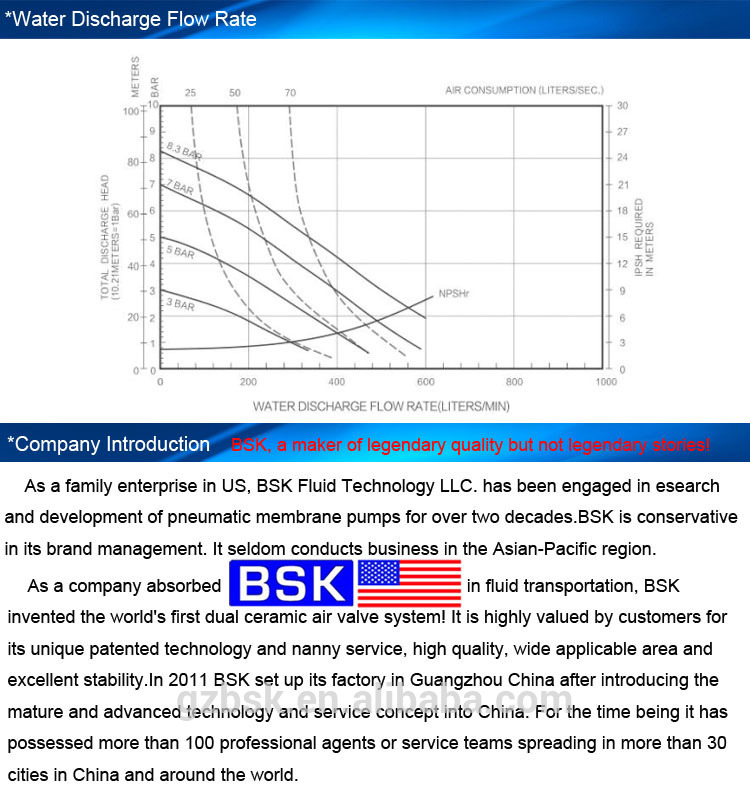

  • Max Flow:600L/Min
  • Max Head:70M/Water
  • Max Self-Priming Lift(Dry):4.5M
  • Max Air Pressure:8.3Bar
  • Max Particle Diameter:7mm

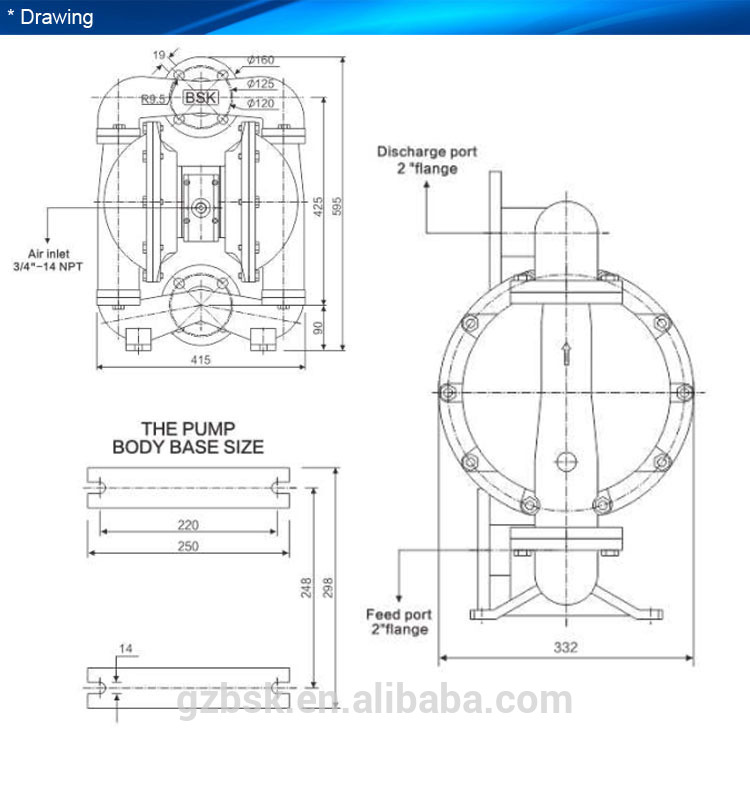

  • Max Installation Dimension:415*332*595cm
  • Weight:51.5KG

Model No.Pipe SizeAir side/
Fluid side Material
Seat MaterialDiaphragm/Ball
Material
A50SS-S99-C2’inchCasting steel
(CS)
Polypropylene
(PP)
PTFE
Product Description

Pneumatic diaphragm pump is a new transport machinery , is currently one of the most

innovative pump . Using compressed gas as a power source for a variety of corrosive liquid ,

with particles of liquid , high viscosity , volatile, flammable, poisonous liquid can be pumped

optical exhaustion . There are four pneumatic diaphragm material: plastic , aluminum, cast iron ,

stainless steel. Pneumatic diaphragm pumps were used nitrile
rubber,neoprene , Viton , Teflon , depending on the liquid medium , poly ethylene forty-six .

To meet the needs of different users . Placed in a variety of special occasions , for pumping

a variety of conventional pumps can not pump the media , have achieved satisfactory results.

Product Application
*Chemical Factory

Material handling or removable barrels material ( instead of drum pumps ),

applicableto concentrated sulfuric acid, nitric acid and other strong oxidizing

materials.

*Pharmaceutical factoryMaterial handling or removable barrels material
( instead of drum pumps )
*Biological technology factoryPumping animal blood for refining
*New energy plant/
multi crystalline silicon plant
Pumping polysilicon raw material for solar
*Commodity FactoryPumping perfume / fragrance / dairy mixture
*Pressure filterPlate-and-frame type filter press, for filter polluted water
and separate moisture material.
*Moving baggy filterIndustrial wastewater filtration or chemical material separation
