- Place of Origin:CN;GUA
- Structure:Diaphragm Pump
- Power:Pneumatic
- Brand Name:BSK
- Usage:Air Pump
- Standard or Nonstandard:Standard

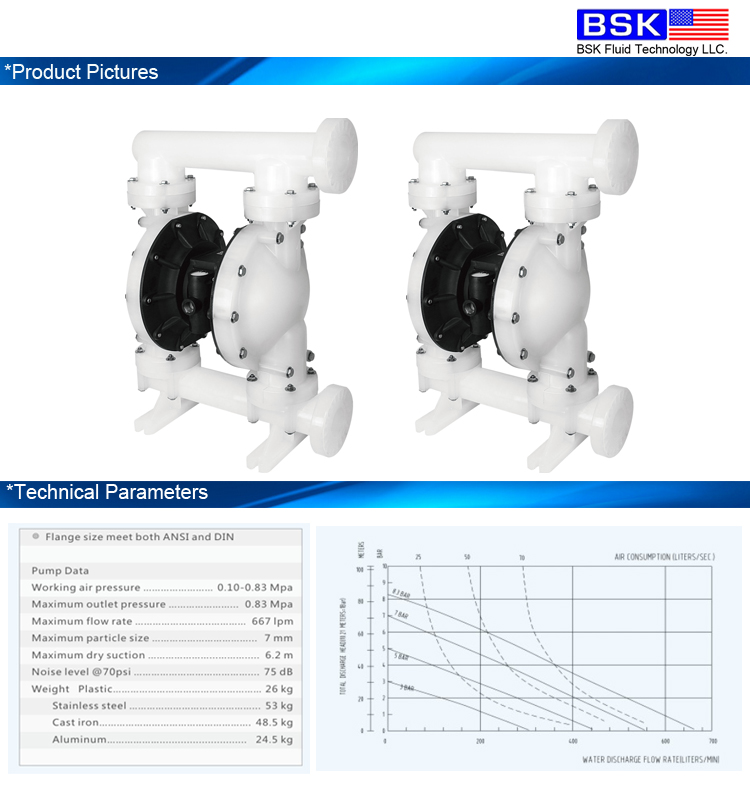

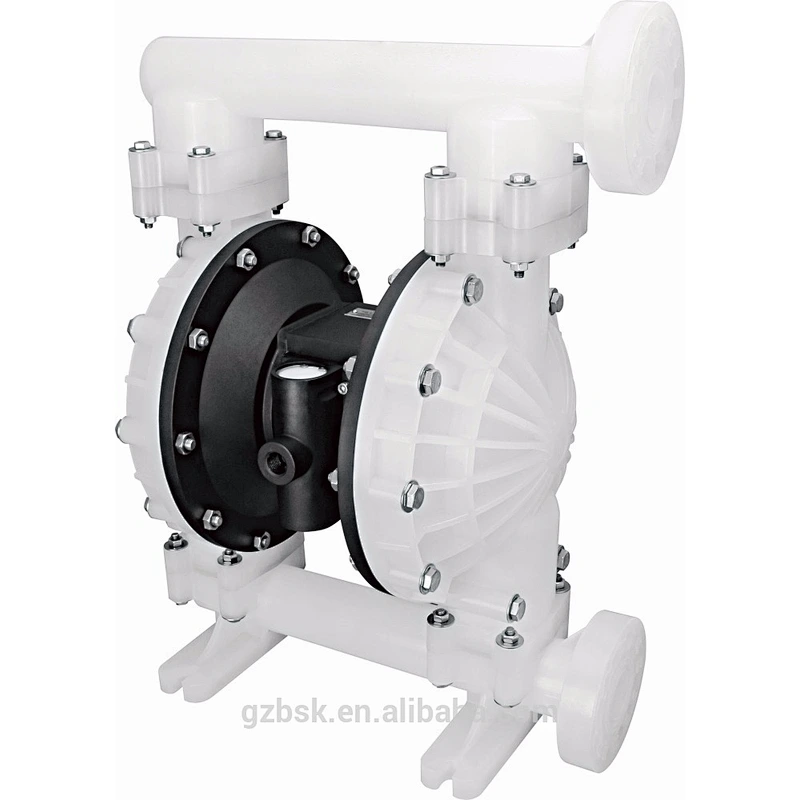

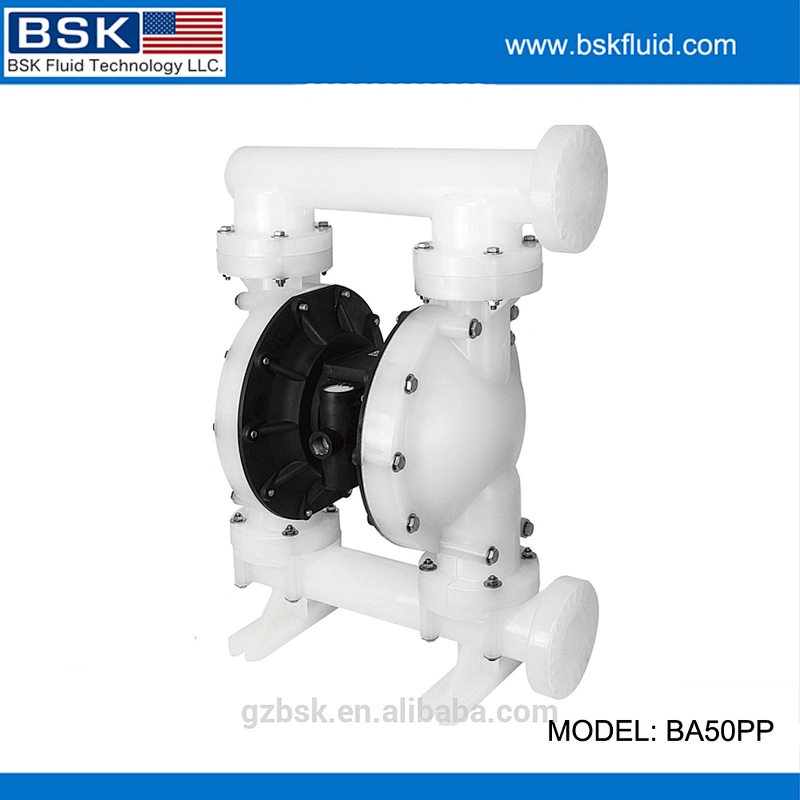

- Model Number:BA50PP-PTT4-C
- Pressure:8.3 Bar
- Fuel:Air
- Application:Liquid pumping
- Theory:Air operated diaphragm pump
- Air Inlet:3/4-14NPTF-1
- Liquid Outlet:2-11-1/2NPTF-1,Rp2-11BSP
- Liquid Inlet:2-11-1/2NPTF-1,Rp2-11BSP

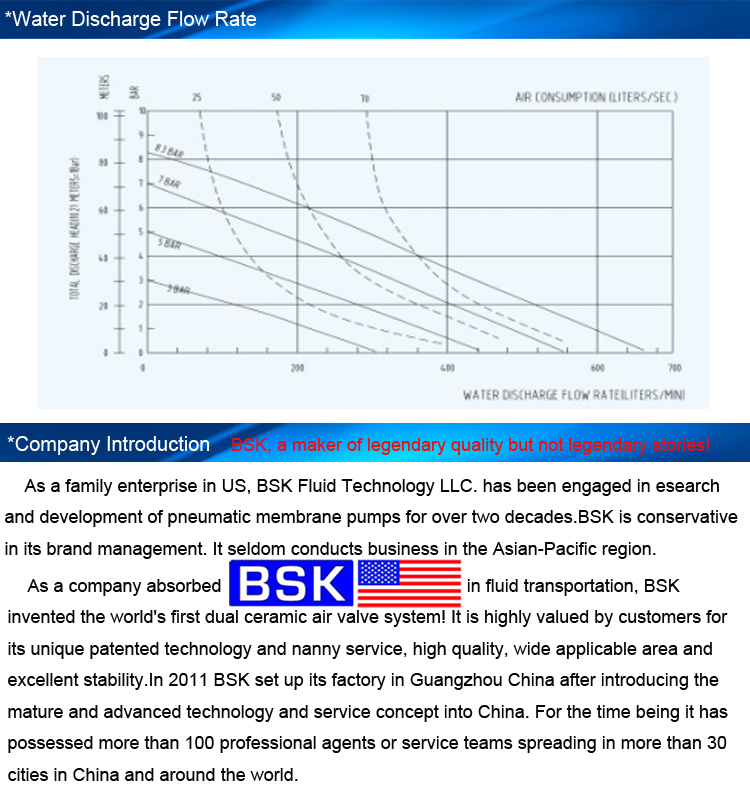

- Max Flow:667L/Min
- Max Head:70M/Water
- Max Self-Priming Lift(Dry):6.2M
- Max Air Pressure:8.3Bar
- Max Particle Diameter:7mm

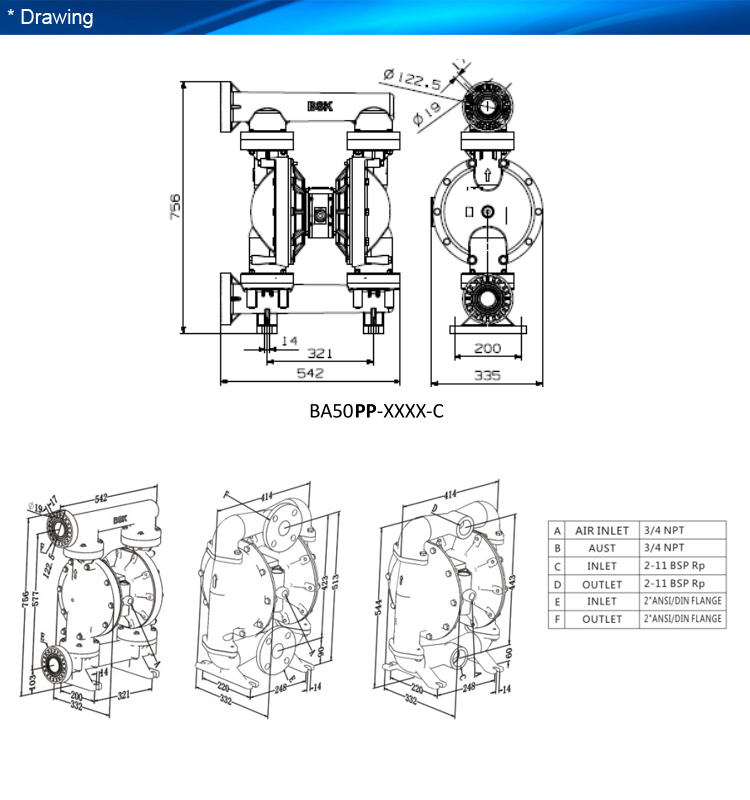

- Max Installation Dimension:756*542*332CM
- Weight:26KG
| Model No. | Pipe Size | Air side/ Fluid side Material | Seat Material | Diaphragm/Ball Material |
| BA50PP-PTT4-C | 2 inch | Polypropylene (PP) | Polypropylene (PP) | PTFE |
| Product Description | ||||
| BSK is a USA family own brand which has been in AODD pumps production are for more than 28 years. With the 2 sets ceramic valve housing design, BSK pumps' spare parts are 20% less than any other exsisting brands. This design can help users save more time&money for their future maintenance. As all users know, AODD pump can be used for many industries where need fluid transferring. Waster water, oil&gas, food, beverage, powder etc. Our pumps are getting more and more comprehensive. Welcome customer visit BSK factory. We hope you can be our next users, if fate promise, maybe you can be also BSK agent. | ||||
| Product Application | ||||
| * | Chemical Factory | Material handling or removable barrels material ( instead of drum pumps ) | ||
| * | Pharmaceutical factory | Material handling or removable barrels material ( instead of drum pumps ) | ||
| * | Pharmaceutical chemical factory | Material handling or removable barrels material ( instead of drum pumps ) | ||
| Electroplating Machinery | Pumping plating material or wastewater replacement. | |||
| Spinning factory | Delivery dye for textile/knitting production | |||
    | ||||
