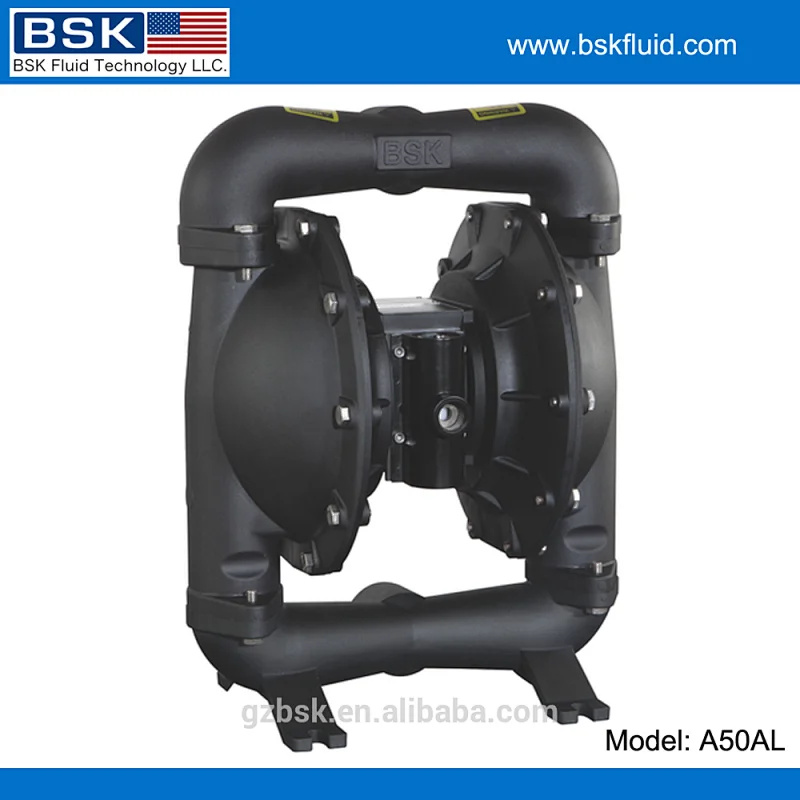

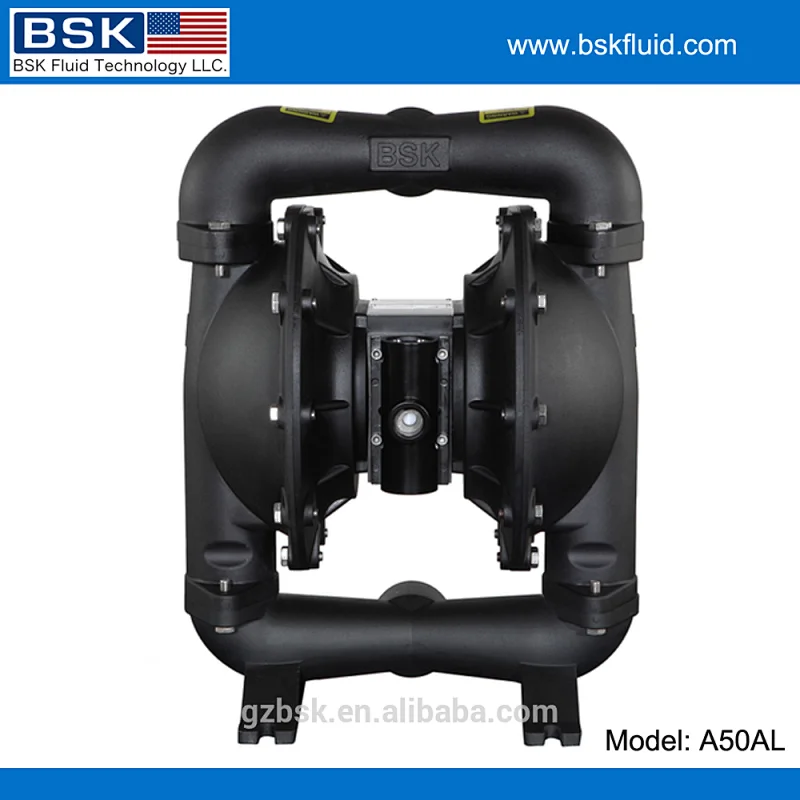

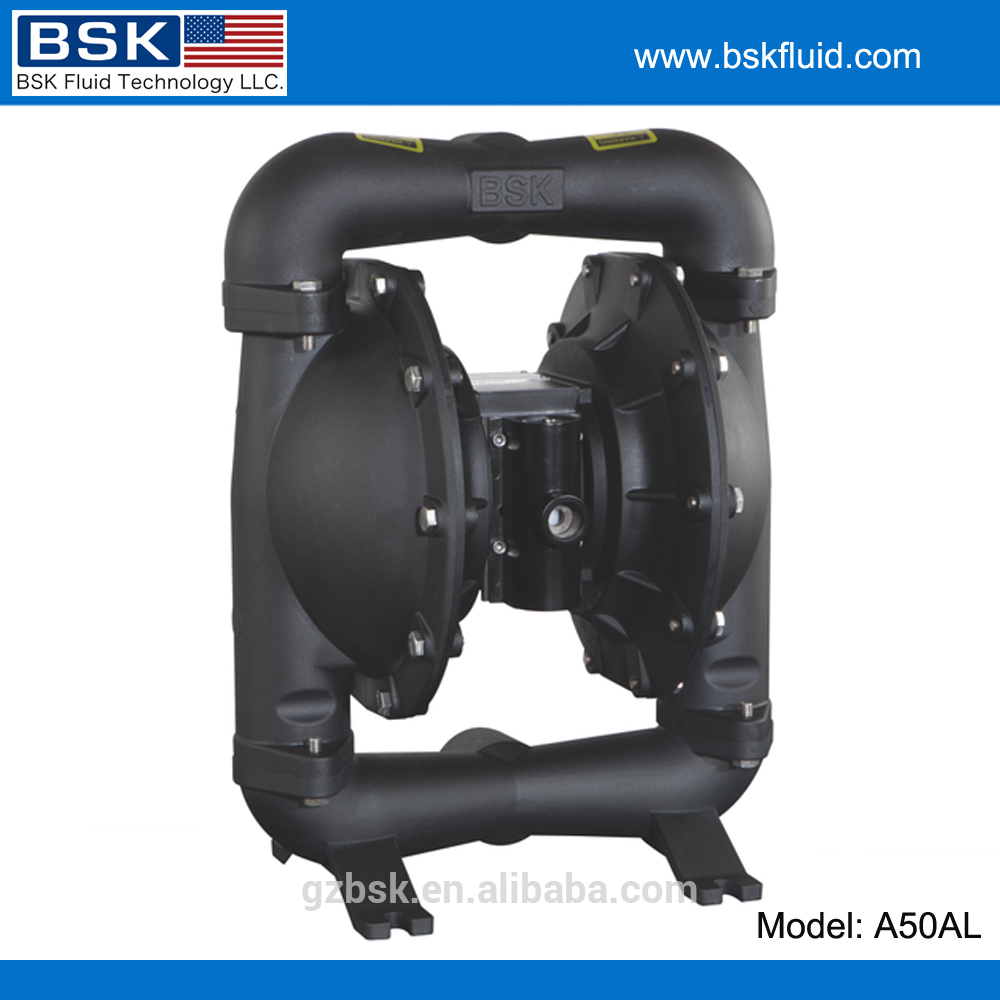

High Quality Good Price Diaphragm Air Pump For Industry
High Quality Good Price Diaphragm Air Pump For Industry
High Quality Good Price Diaphragm Air Pump For Industry
High Quality Good Price Diaphragm Air Pump For Industry
High Quality Good Price Diaphragm Air Pump For Industry

High Quality Good Price Diaphragm Air Pump For Industry

Model NO.
A50AL-999-A
Price:
USD 1.00-500.00 / piece
Minimum order quantity:
1 piece
Supply Ability:
2000 piece / Month
Country of Origin:
Guangzhou
Quantity:
  • Place of Origin:CN;GUA
  • Structure:Diaphragm Pump
  • Power:Pneumatic
  • Brand Name:BSK
  • Usage:Air Pump
  • Standard or Nonstandard:Standard
  • Model Number:A50AL-999-A
  • Pressure:8.3 Bar
  • Fuel:Air
  • Application:Liquid pumping
  • Theory:Air operated diaphragm pump

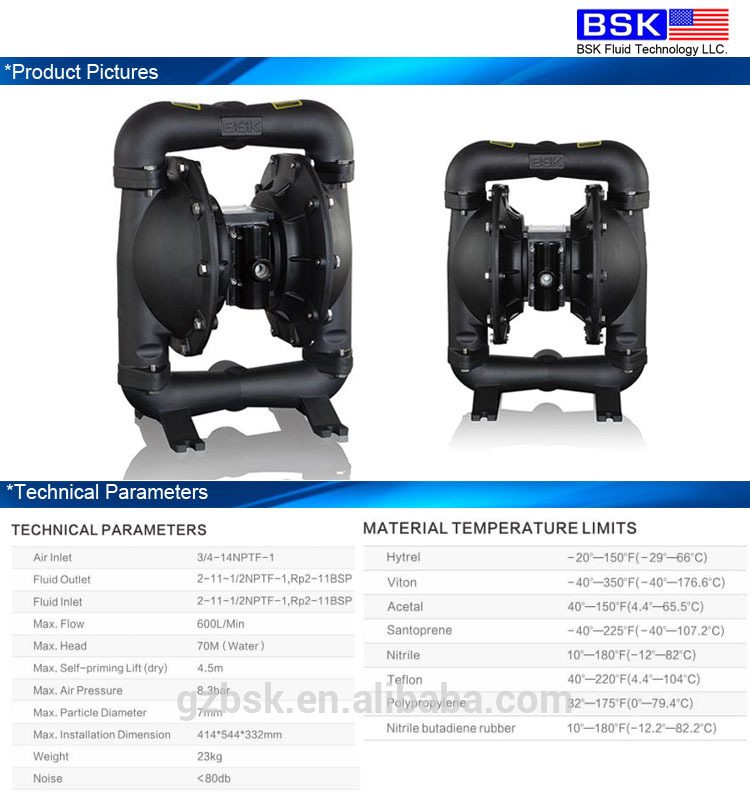

  • Air Inlet:3/4-14NPTF-1
  • Liquid Outlet:2-11-1/2NPTF-1,Rp2-11BSP
  • Liquid Inlet:2-11-1/2NPTF-1,Rp2-11BSP
  • Max Flow:600L/Min
  • Max Head:70M/Water
  • Max Self-Priming Lift(Dry):4.5M
  • Max Air Pressure:8.3Bar
  • Max Particle Diameter:7mm

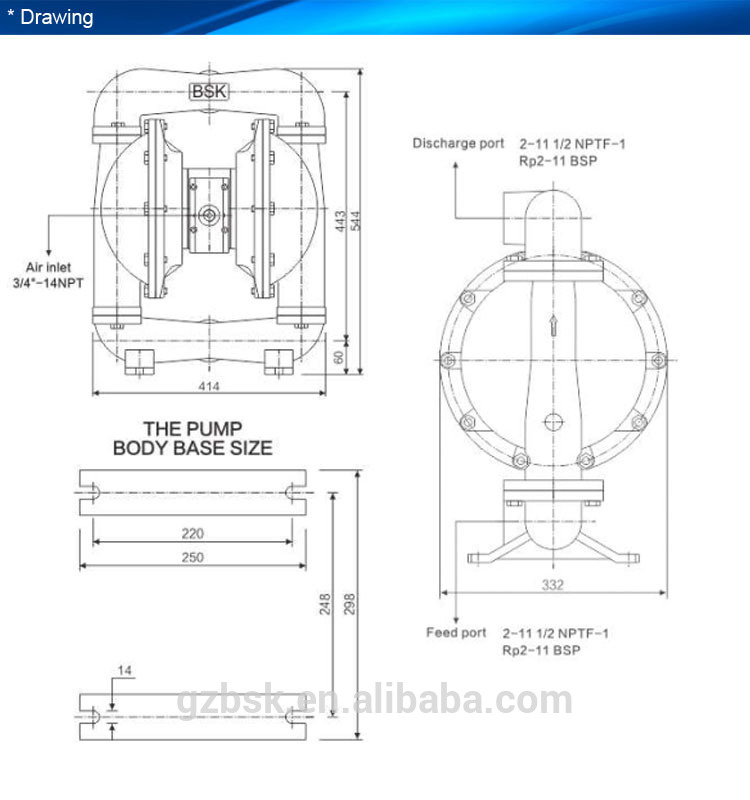

  • Max Installation Dimension:414*544*332cm
  • Weight:23KG
Model No.Pipe SizeAir side/
Fluid side Material
Seat MaterialDiaphragm/Ball
Material
A50AL-999-A2’inchAluminium Alloy
(AL)
SantonpreneSantonprene
Product Description

Pneumatic diaphragm pump is a new transport machinery , is currently one of the most

innovative pump . Using compressed gas as a power source for a variety of corrosive liquid ,

with particles of liquid , high viscosity , volatile, flammable, poisonous liquid can be pumped

optical exhaustion . There are four pneumatic diaphragm material: plastic , aluminum, cast iron ,

stainless steel. Pneumatic diaphragm pumps were used nitrile
rubber,neoprene , Viton , Teflon , depending on the liquid medium , poly ethylene forty-six . To meet the needs of different users . Placed in a variety of special occasions , for pumping

a variety of conventional pumps can not pump the media , have achieved satisfactory results.

Product Application
*Pressure filterPlate-and-frame type filter press, for filter polluted water
and separate moisture material.
*Chemical FactoryMaterial handling or removable barrels material ( instead
of drum pumps )
*Ceramic industryCeramic manufacturers pumping pulp extract clay and pottery
*Paint factoryPumping materials or do filling machinery function
*MinePumping sewage
*Moving baggy filter

Industrial wastewater filtration or chemical material

separation

*Paint Filling
Machine
pumping varnish for filling and packaging
