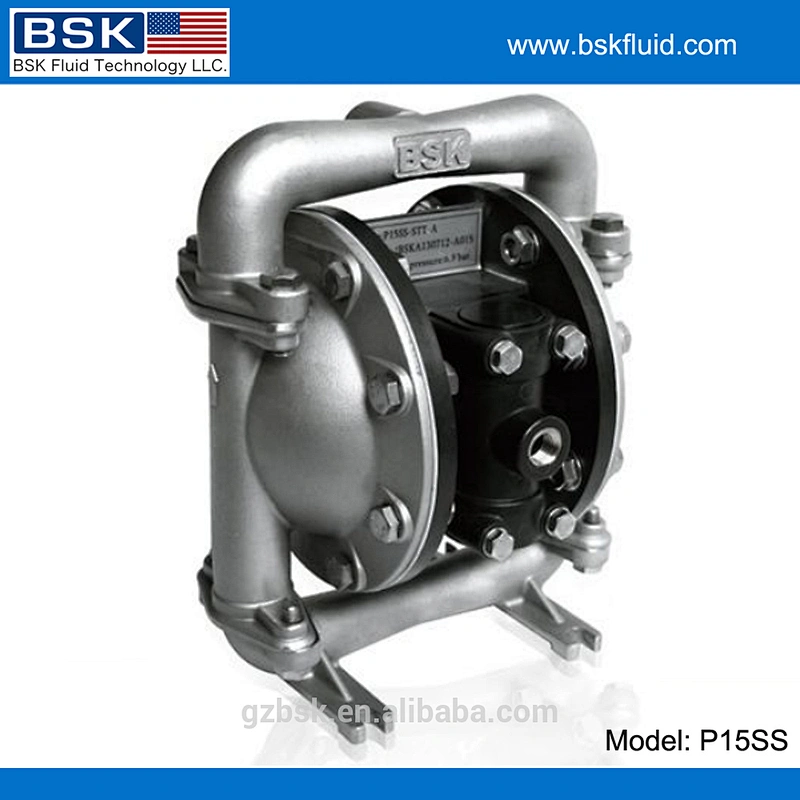

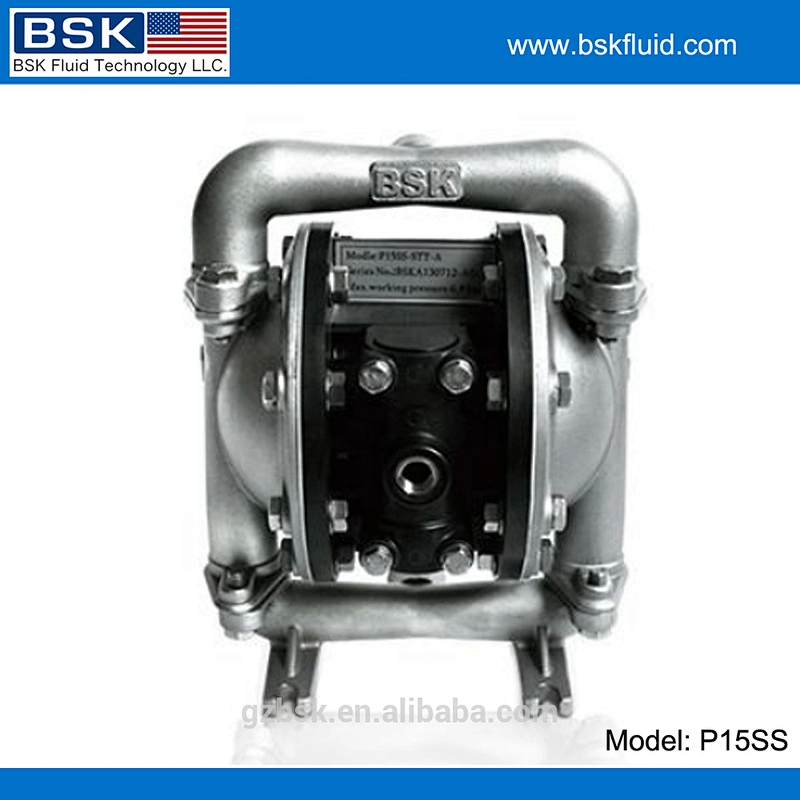

Half inch pipe stainless steel sandering machine pneumatic diaphragm pump
Half inch pipe stainless steel sandering machine pneumatic diaphragm pump
Half inch pipe stainless steel sandering machine pneumatic diaphragm pump
Half inch pipe stainless steel sandering machine pneumatic diaphragm pump
Half inch pipe stainless steel sandering machine pneumatic diaphragm pump

Half inch pipe stainless steel sandering machine pneumatic diaphragm pump

Model NO.
P15SS-S99-A
Price:
USD 1.00-400.00 / piece
Minimum order quantity:
1 piece
Supply Ability:
2000 piece / Month
Country of Origin:
Guangzhou
Quantity:
  • Place of Origin:CN;GUA
  • Structure:Diaphragm Pump
  • Power:Pneumatic
  • Brand Name:BSK
  • Usage:Air Pump
  • Standard or Nonstandard:Standard
  • Model Number:P15SS-S99-A
  • Pressure:6.9 Bar
  • Fuel:Air
  • Application:Liquid pumping
  • Theory:Air operated diaphragm pump
  • Air Inlet:1/4-18NPTF-1
  • Liquid Outlet:1/2-14BSP
  • Liquid Inlet:1/2-14BSP

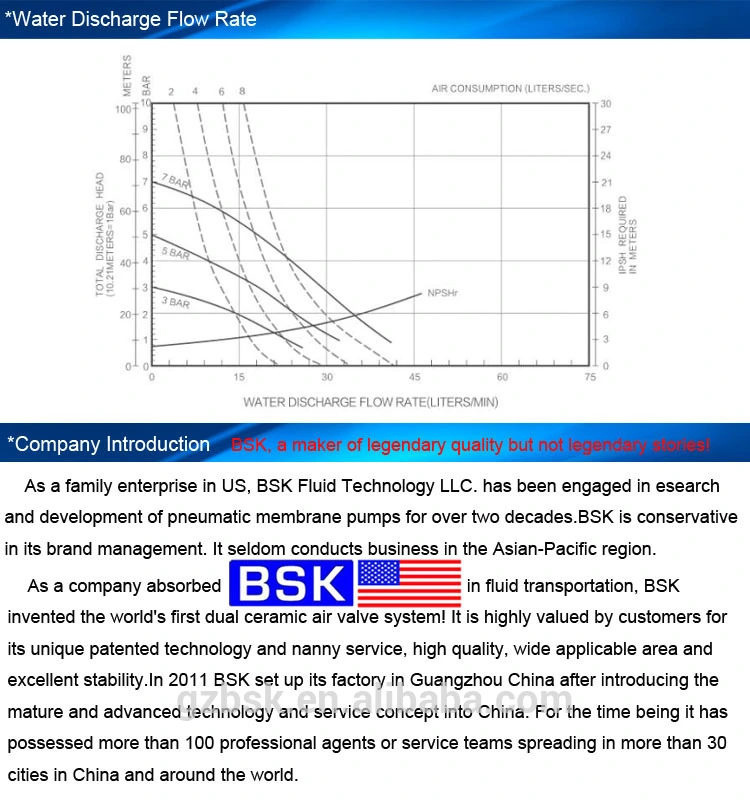

  • Max Flow:44L/Min
  • Max Head:70M/Water
  • Max Self-Priming Lift(Dry):4.5M
  • Max Air Pressure:6.9Bar
  • Max Particle Diameter:2.5mm
  • Max Installation Dimension:188*229.5*153.5mm
  • Weight:5.5KG







Model No.Pipe SizeAir side/
Fluid side Material
Seat MaterialDiaphragm/Ball
Material
P15SS-S99-A1/2’inch316#Stainless Steel
(SS)
316#Stainless Steel
(SS)
Santonprene
Product Description

Pneumatic diaphragm pump is a new transport machinery , is currently one of the most

 innovative pump . Using compressed gas as a power source for a variety of corrosive

liquid , with particles of liquid , high viscosity , volatile, flammable, poisonous liquid

can be pumped optical exhaustion . There are four pneumatic diaphragm material: plastic

 , aluminum, cast iron , stainless steel. Pneumatic diaphragm pumps were used nitrile
rubber,neoprene , Viton , Teflon , depending on the liquid medium , poly ethylene

forty-six . To meet the needs of different users . Placed in a variety of special occasions ,

 for pumping a variety of conventional pumps can not pump the media , have achieved

satisfactory results.

Product Application
*Ink/Printing Machinery

20PCS and above pumps in 1 ink equipments

production line,mainly transfer ink, for example:

 printing machines for newspaer and magazine.

*Spraying Machinery

For spraying production line, especial for transfering

paint. Where give stainless steel tanks to reduce the

general pulse.  example:  spraying factory

*

Ceramic Coating

Equipment

20PCS and above pumps in  1 spraying production lines,

spraying glaze  or varnish on the surfave of ceramics.

*Packaging Machinery
/ Industry

Cardboard synthesis equipment to extract soda and additives

to form a mixing bucket and cassava paste , stick into kraft

paper and corrugated

*Cardboard printing equipment , pumping ink
*Plastic packaging machinery, pumping fancy printing ink
*Pharmaceutical
 Machinery / Industry

Alternative peristaltic pump , as used in the " pill coating

machine ," etc.

*Cleaning MachineryPumping chemical  abluent  and cleaning materials for pipelines.
*Painting / Chemical
Machinery
Chemical/ spraying factory, for material cycling
*Filter/Environmental
protection machinery/Industry

For dosing purposes and adding chemical additive into polluted

water according to demand, in order to have effect by

condensation and separation

*Lubricant filling
machinery

Car/motorcycle terminal plant, with the mechanical filling oil

for the engine or refrigerant for the gearbox

*Ceramic glaze tinting
machine

For fully automatic tinting system and production equipments

of painting, used in coatings, paints, inks, wallpaper , wallpaper ,

 wood, paper , flexible packaging , ceramics, printing and dyeing ,

leather, chemicals and other toner printing and dyeing industry.

*Automatic ink tinting
system
*

Automatic feeding of
chemical raw materials

distributor

*Painting automatic
tinting system
*Automated Liquid
Filling tinting system
*Dosing SystemChemical dosing system integration.
