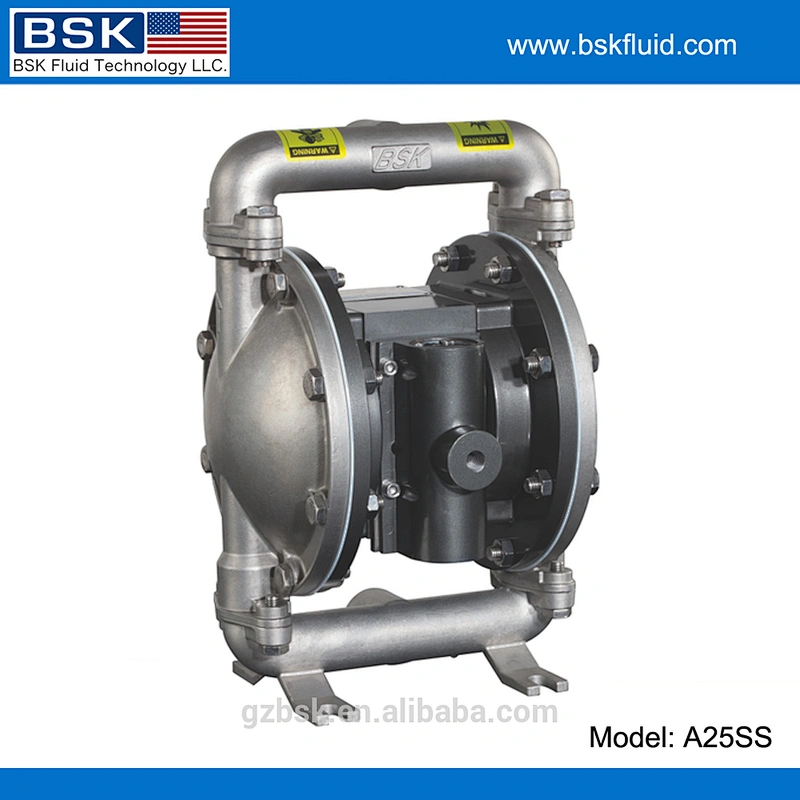

high quality AODD stainess steel air opetated diaphragm pumps
high quality AODD stainess steel air opetated diaphragm pumps
high quality AODD stainess steel air opetated diaphragm pumps
high quality AODD stainess steel air opetated diaphragm pumps
high quality AODD stainess steel air opetated diaphragm pumps

high quality AODD stainess steel air opetated diaphragm pumps

Model NO.
A25SS-SHH-A
Price:
USD 1.00-500.00 / piece
Minimum order quantity:
1 piece
Supply Ability:
2000 piece / Month
Country of Origin:
Guangzhou
Quantity:
  • Place of Origin:CN;GUA
  • Structure:Diaphragm Pump
  • Power:Pneumatic
  • Brand Name:BSK
  • Usage:Air Pump
  • Standard or Nonstandard:Standard
  • Model Number:A25SS-SHH-A
  • Pressure:8.3 Bar
  • Fuel:Air
  • Application:Liquid pumping
  • Theory:Air operated diaphragm pump
  • Air Inlet:1/4-18NPTF-1
  • Liquid Outlet:1-11-1/2NPTF-1,Rp1-11BSP
  • Liquid Inlet:1-11-1/2NPTF-1,Rp1-11BSP
  • Max Flow:135L/Min
  • Max Head:70M/Water
  • Max Self-Priming Lift(Dry):4M
  • Max Air Pressure:8.3Bar
  • Max Particle Diameter:3mm
  • Max Installation Dimension:244*360.5*245cm
  • Weight:14.5KG
Model No.Pipe SizeAir side/
Fluid side Material
Seat MaterialDiaphragm/Ball
Material
A25SS-SHH-A1’inch316#Stainless Steel
(SS)
316#Stainless Steel
(SS)
Hytrel
Product Description

Pneumatic diaphragm pump is a new transport machinery , is currently one of the most

innovative pump . Using compressed gas as a power source for a variety of corrosive liquid ,

with particles of liquid , high viscosity , volatile, flammable, poisonous liquid can be pumped

optical exhaustion . There are four pneumatic diaphragm material: plastic , aluminum, cast

iron , stainless steel. Pneumatic diaphragm pumps were used nitrile
rubber,neoprene , Viton , Teflon , depending on the liquid medium , poly ethylene forty-six .

To meet the needs of different users . Placed in a variety of special occasions , for

pumping a variety of conventional pumps can not pump the media , have achieved

satisfactory results.

Product Application
*Chemical Factory

Material handling or removable barrels material

( instead of drum pumps ),applicable to concentrated

 sulfuric acid, nitric acid and other strong oxidizing materials.

 Pharmaceutical
factory
Material handling or removable barrels material
( instead of drum pumps )
 Pharmaceutical
chemical factory
Pumping animal blood for refining


New Power Plant/
Multi- silicon

plant

Pumping polysilicon raw material for solar


Commodity

Factory

Pumping perfume / fragrance / dairy mixture
*Pressure filterPlate-and-frame type filter press, for filter polluted water and
separate moisture material.
*

Moving baggy

filter

Industrial wastewater filtration or chemical material

separation

*Kneading machineLeather rubbing printing
*Tanneries

Rawhide manufacturing and processing , pumping

water and additives
