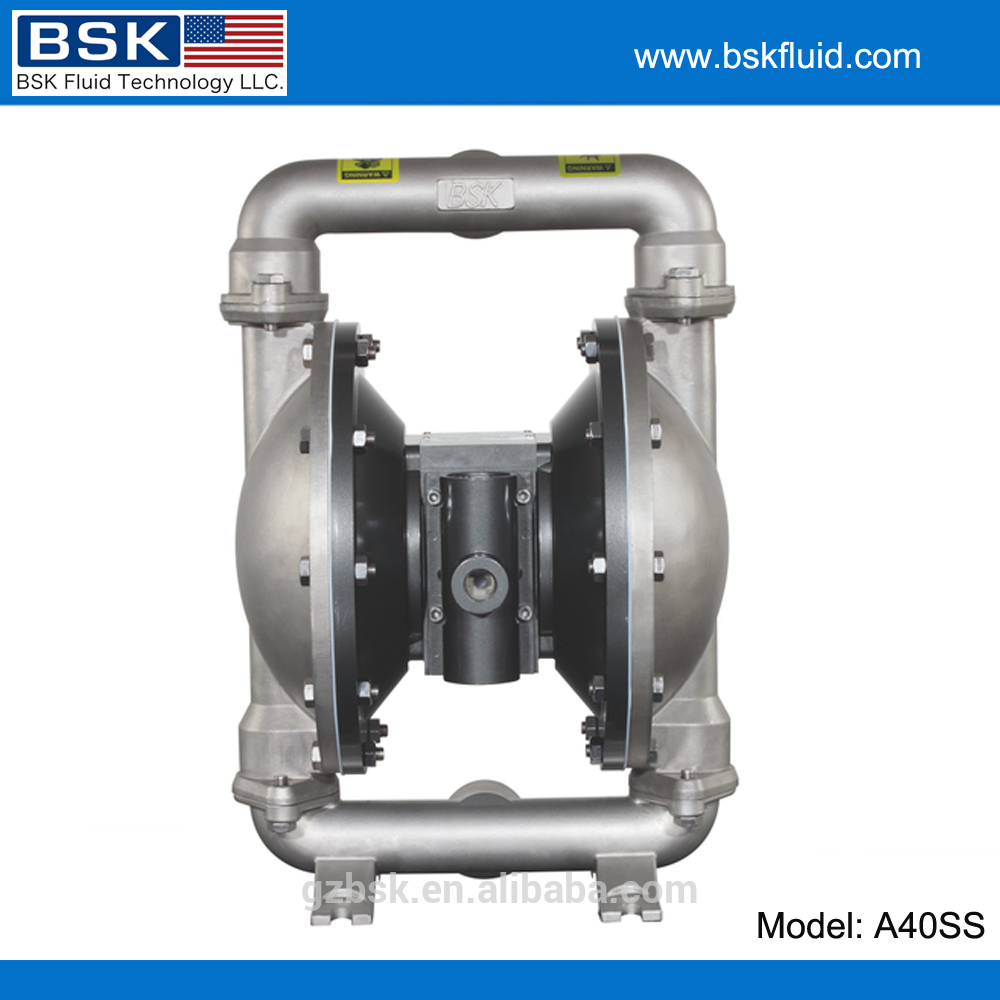

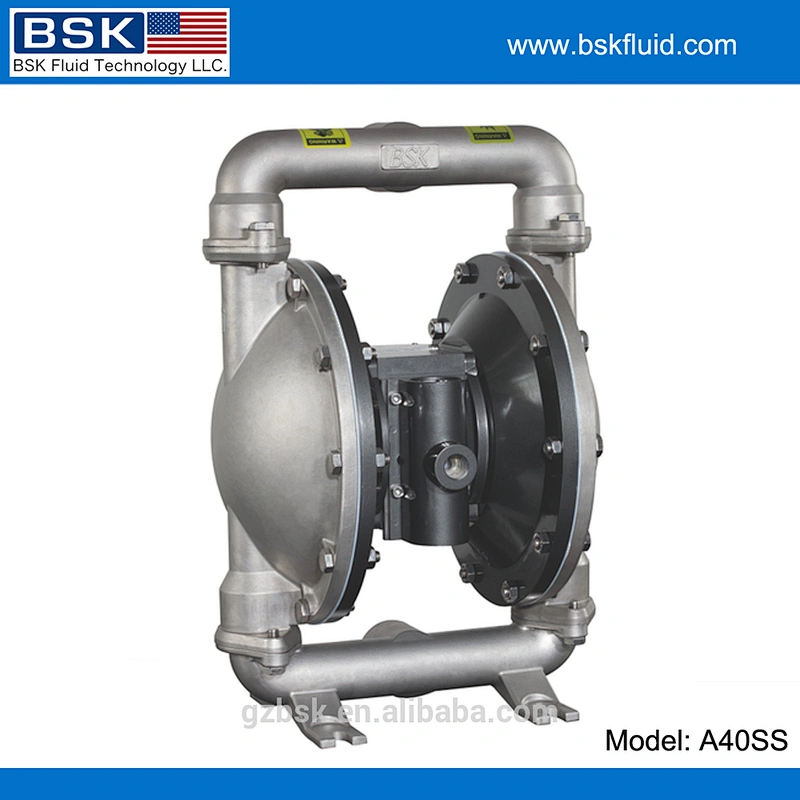

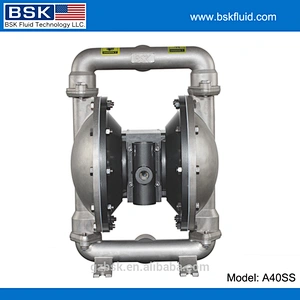

316 stainless steel 1 1/2" BSK santoprene diaphragm aodd pump

Model NO.
BA40SS-S991-A
Price:
USD 1.00-900.00 / piece
Minimum order quantity:
1 piece
Supply Ability:
2000 piece / Month
Country of Origin:
Guangzhou
Quantity:
  • Place of Origin:CN;GUA
  • Structure:Diaphragm Pump
  • Power:Pneumatic
  • Brand Name:BSK
  • Usage:Air Pump
  • Standard or Nonstandard:Standard
  • Model Number:BA40SS-S991-A

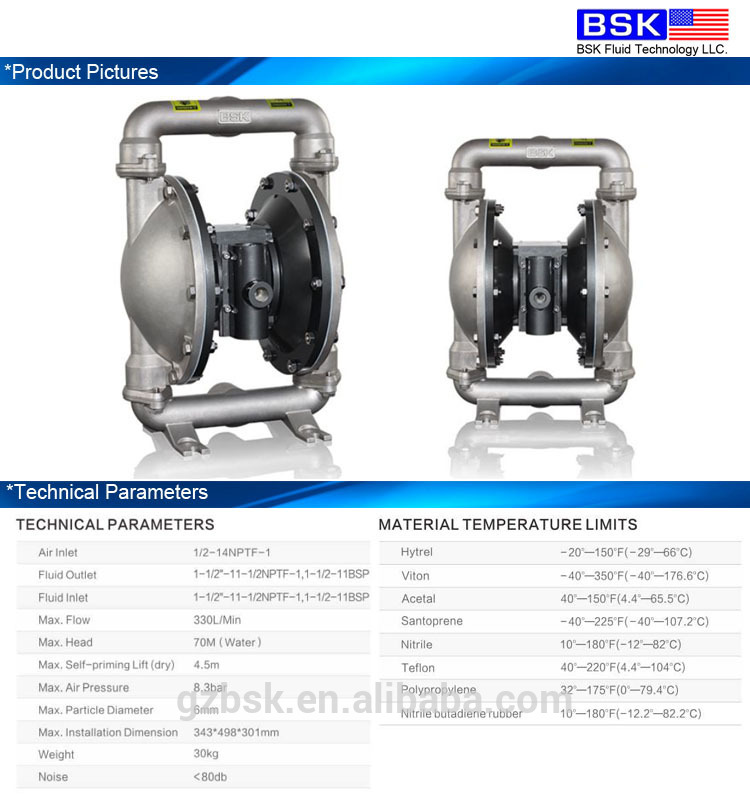

  • Pressure:8.3 Bar
  • Fuel:Air
  • Application:Liquid pumping
  • Theory:Air operated diaphragm pump
  • Air Inlet:1/2-14NPTF-1
  • Liquid Outlet:1-1/2"-11-1/2NPTF-1,1-1/2-11BSP
  • Liquid Inlet:1-1/2"-11-1/2NPTF-1,1-1/2-11BSP

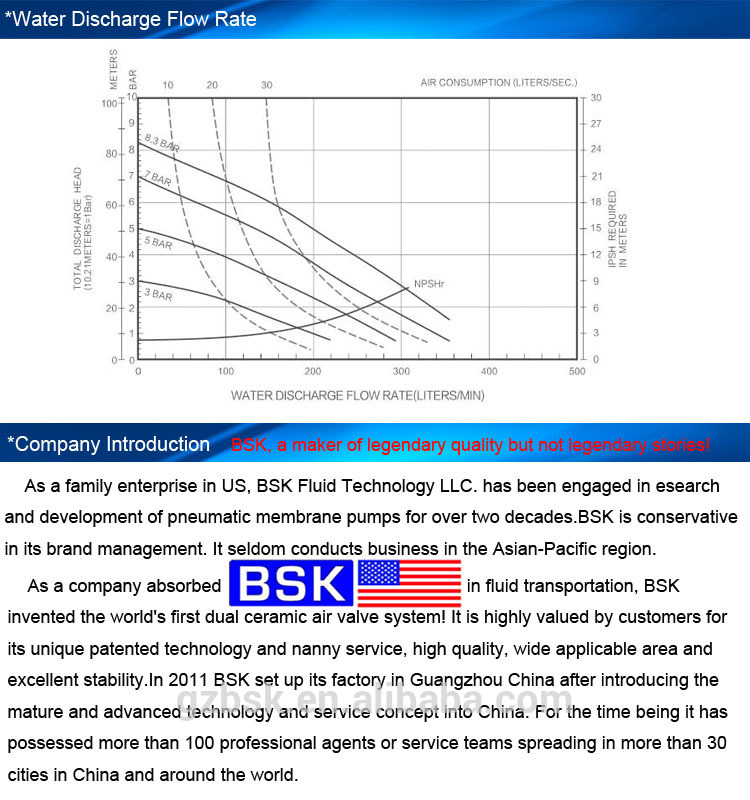

  • Max Flow:330L/Min
  • Max Head:70M/Water
  • Max Self-Priming Lift(Dry):4.5M
  • Max Air Pressure:8.3Bar
  • Max Particle Diameter:6mm

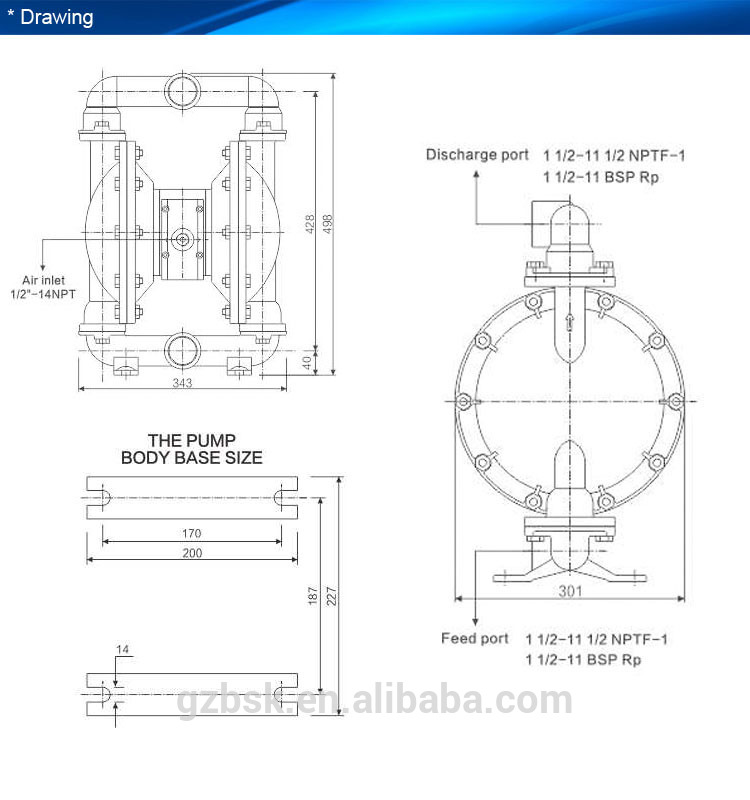

  • Max Installation Dimension:343*498*301cm
  • Weight:30KG
Model No.Pipe SizeAir side/
Fluid side Material
Seat MaterialDiaphragm/Ball
Material
A40SS-S99-A1 1/2’inch316#Stainless Steel
(SS)
316#Stainless Steel
(SS)
Santonprene
Product Description

Pneumatic diaphragm pump is a new transport machinery , is currently one of the most

innovative pump . Using compressed gas as a power source for a variety of corrosive

liquid , with particles of liquid , high viscosity , volatile, flammable, poisonous liquid

can be pumped optical exhaustion . There are four pneumatic diaphragm material:

plastic , aluminum, cast iron , stainless steel. Pneumatic diaphragm pumps were used

nitrile rubber,neoprene , Viton , Teflon , depending on the liquid medium , poly ethylene

forty-six . To meet the needs of different users . Placed in a variety of special occasions ,

for pumping a variety of conventional pumps can not pump the media , have achieved

satisfactory results.

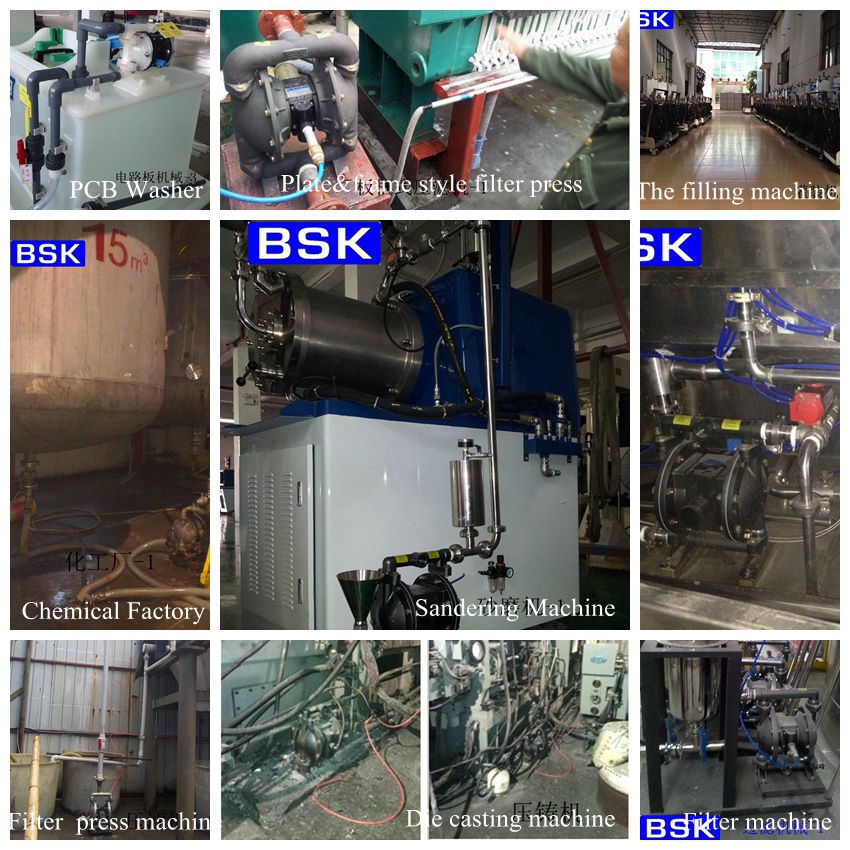

Product Application
*Chemical Factory

Material handling or removable barrels material

( instead of drum pumps ),applicable to concentrated

sulfuric acid, nitric acid and other strong oxidizing materials.

Pharmaceutical factory

Material handling or removable barrels material

( instead of drum pumps )

Biological technology factoryPumping animal blood for refining
New energy plant/
multi crystalline silicon plant
Pumping polysilicon raw material for solar
Commodity FactoryPumping perfume / fragrance / dairy mixture
*Pressure filter

Plate-and-frame type filter press, for filter polluted water and separate

moisture material.

*Moving baggy filterIndustrial wastewater filtration or chemical material separation
