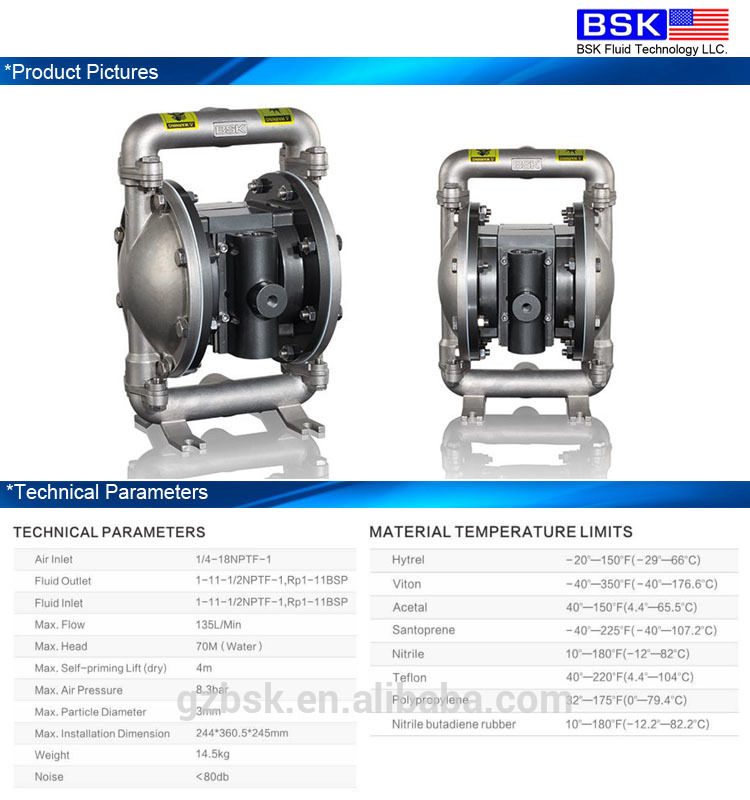

- Place of Origin:CN;GUA
- Structure:Diaphragm Pump
- Power:Pneumatic
- Brand Name:BSK
- Usage:Air Pump
- Standard or Nonstandard:Standard

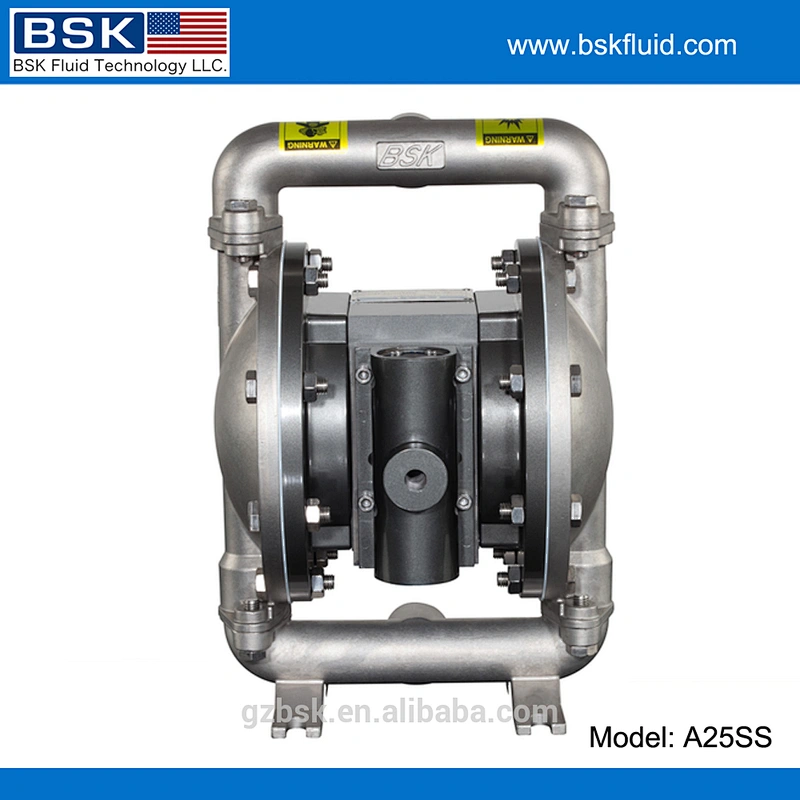

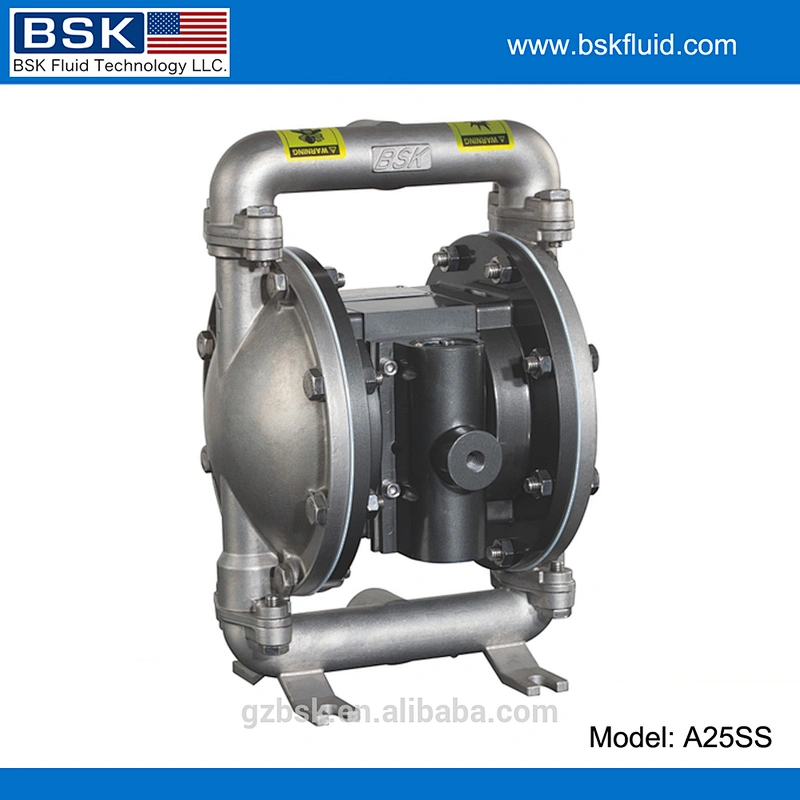

- Model Number:A25SS-STT-A
- Pressure:8.3 Bar
- Fuel:Air
- Application:Liquid pumping
- Theory:Air operated diaphragm pump
- Air Inlet:1/4-18NPTF-1
- Liquid Outlet:1-11-1/2NPTF-1,Rp1-11BSP
- Liquid Inlet:1-11-1/2NPTF-1,Rp1-11BSP

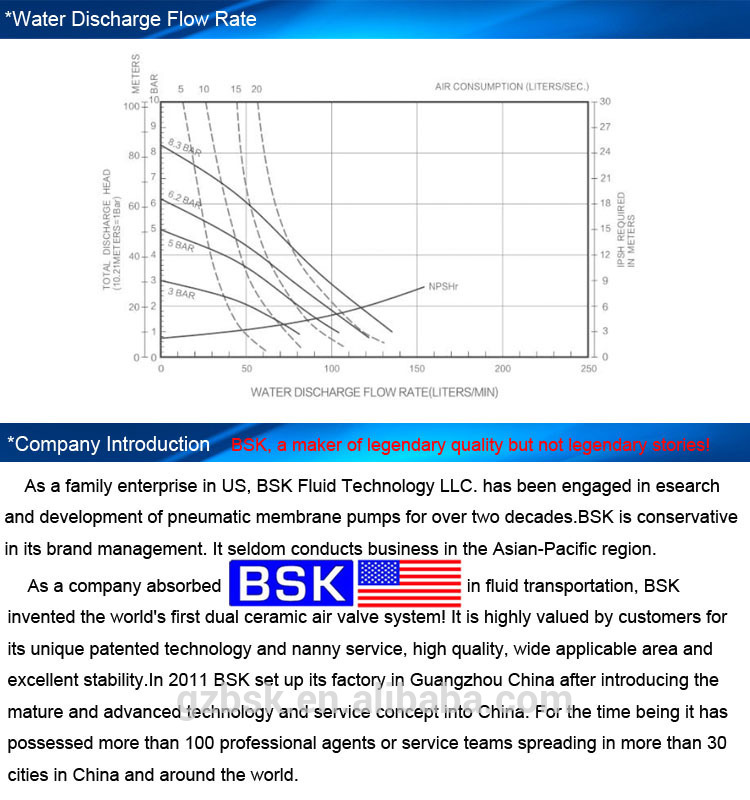

- Max Flow:135L/Min
- Max Head:70M/Water
- Max Self-Priming Lift(Dry):4M
- Max Air Pressure:8.3Bar
- Max Particle Diameter:3mm

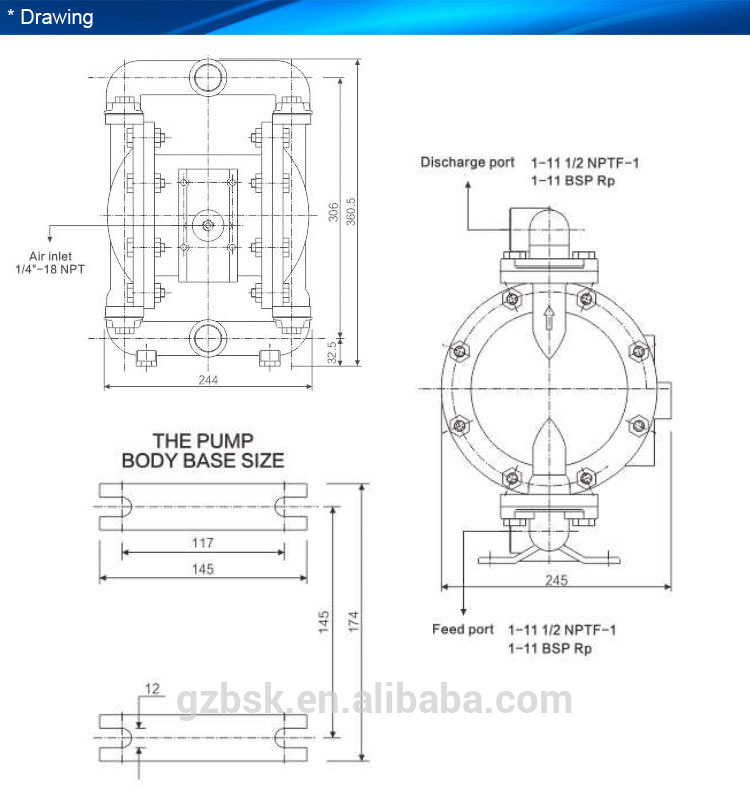

- Max Installation Dimension:244*360.5*245cm
- Weight:14.5KG
| Model No. | Pipe Size | Air side/ Fluid side Material | Seat Material | Diaphragm/Ball Material |
| A25SS-STT-A | 1’inch | 316#Stainless Steel (SS) | 316#Stainless Steel (SS) | PTFE |
| Product Description | ||||
Pneumatic diaphragm pump is a new transport machinery , is currently one of the most innovative pump . Using compressed gas as a power source for a variety of corrosive liquid , with particles of liquid , high viscosity , volatile, flammable, poisonous liquid can be pumped optical exhaustion . There are four pneumatic diaphragm material: plastic , aluminum, cast iron , stainless steel. Pneumatic diaphragm pumps were used nitrile rubber,neoprene , Viton , Teflon , depending on the liquid medium , poly ethylene forty-six . To meet the needs of different users . Placed in a variety of special occasions , for pumping a variety of conventional pumps can not pump the media , have achieved satisfactory results. | ||||
| Product Application | ||||
| * | Chemical Factory | Material handling or removable barrels material ( instead of drum pumps ),applicable to concentrated sulfuric acid, nitric acid and other strong oxidizing materials. | ||
| Pharmaceutical factory | Material handling or removable barrels material ( instead of drum pumps ) | |||
| Pharmaceutical chemical factory | Pumping animal blood for refining | |||
| New Power Plant/ Multi- silicon plant | Pumping polysilicon raw material for solar | |||
| Commodity Factory | Pumping perfume / fragrance / dairy mixture | |||
| * | Pressure filter | Plate-and-frame type filter press, for filter polluted water and separate moisture material. | ||
| * | Moving baggy filter | Industrial wastewater filtration or chemical material separation | ||
| * | Kneading machine | Leather rubbing printing | ||
| * | Tanneries | Rawhide manufacturing and processing , pumping water and additives | ||
    | ||||
