- Place of Origin:CN;GUA
- Application:Automotive Industry
- Application:Biofuel Industry
- Application:Commercial Buildings
- Application:Developing World Water Solutions
- Application:District Energy
- Application:Drinking water treatment
- Application:Family Homes
- Application:Food and Beverage Industry
- Application:HVAC OEM
- Application:Industrial Boilers
- Application:Industrial Utilities
- Application:Irrigation and Agriculture
- Application:Machining
- Application:Marine
- Application:Metal and Equipment Manufacturers
- Application:Mining industry
- Application:Pharmaceutical industry
- Application:Raw Water Intake
- Application:temperature control
- Application:Washing and Cleaning
- Application:Wastewater Transport and Flood Control
- Application:wastewater treatment
- Application:Water Distribution
- Application:Water Treatment Solutions
- Power Source:Pneumatic
- Structure:Diaphragm Pump
- Certification:ce
- Brand Name:BSK
- Model Number:BA50PP-P991-C
- Pressure:120PSI/8.3 BAr
- Certification:ISO:9001
- Brand:BSK
- Fuel:compressed air
- Model No.:BA50PP-P991-C
- Pipe Size:2"
- Diaphragm material:Santoprene
- Ball/seat material:Santoprene
- Max pressure:120PSI/8.3 bar
- Weight:26KG
- Max flow:667L/min
- Max particle size:7mm
| Parameters&Specifications | |||||
| Brand | Model No. | Pipe Size | Air side/ Fluid side Material | Seat Material | Diaphragm/Ball Material |
| BSK | BA50PP-P991-C | 2 inch | Polypropylene (PP) | Polypropylene (PP) | Santoprene |
| Max pressure | Air inlet | Fluid inlet/Outlet | Max. flow rate | Max. dry sunction | Max. Head |
| 8.3 bar | 3/4" | 2" | 667L/min | 4.5m | 70m |
| Product Description | |||||
| BSK is a USA family own brand which has been in AODD pumps production from the year of 1989. With the pantented deaign of the 2 sets ceramics in the air motor, bring the spare parts of our pumps can be 20% less than any other exsisting brands in around the world. This design can help our dealers&users save more time&money for their future maintenance. AODD pumps are using the compressed air to driven it to work, with the high energy saving and high safety factor, more and more users are enjoying of using this kind of pumps. It's available for lots of industries such as waster water, oil&gas, food, beverage, powder etc. Our pumps are getting more and more comprehensive. Welcome customer visit BSK factory. We hope you can be our next users, if fate promise, maybe you can be also BSK agent. | |||||

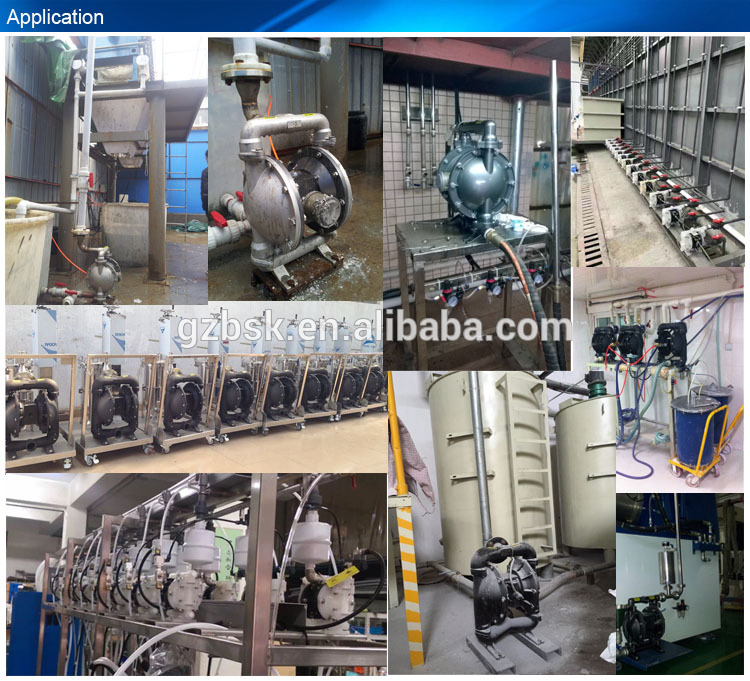

| Product Application | |||||
| Chemical Factory | Material handling or removable barrels material ( instead of drum pumps ) | ||||
| Pharmaceutical factory | Material handling or removable barrels material ( instead of drum pumps ) | ||||
| Pharmaceutical chemical factory | Material handling or removable barrels material ( instead of drum pumps ) | ||||
| Electroplating Machinery | Pumping plating material or wastewater replacement. | ||||
| Spinning factory | Delivery dye for textile/knitting production | ||||
| |||||
