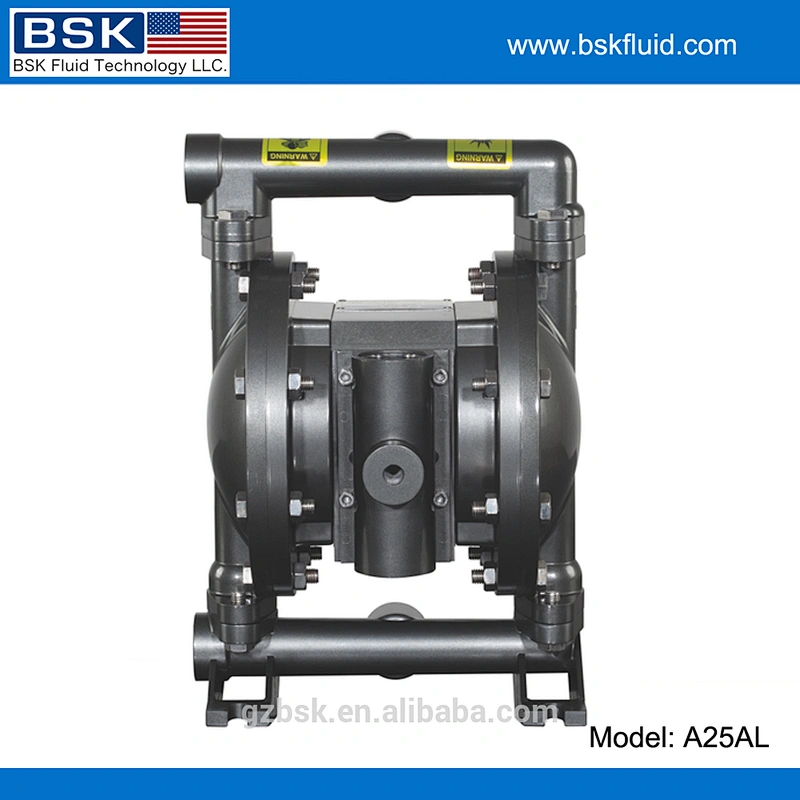

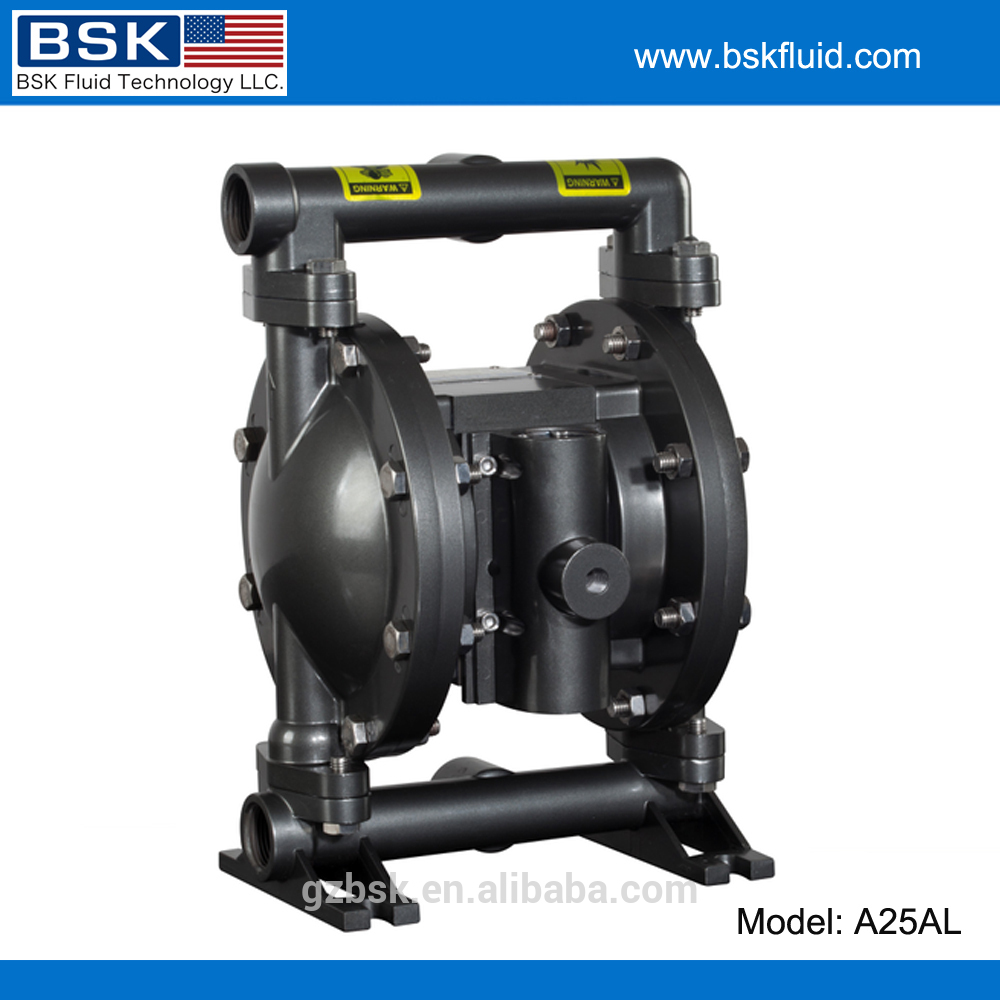

1" alumiunm alloy pipe PTFE corrosive resistance air operated pneumatic diaphragm pump

Model NO.
A25AL-PTT-A
Price:
USD 1.00-300.00 / piece
Minimum order quantity:
1 piece
Supply Ability:
2000 piece / Month
Country of Origin:
Guangzhou
Quantity:

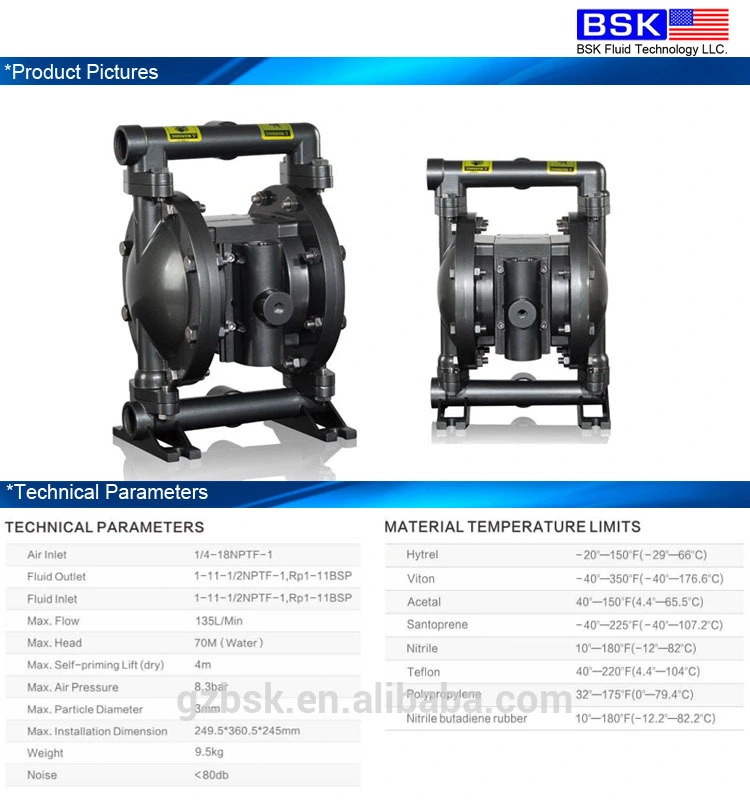

  • Place of Origin:CN;GUA
  • Structure:Diaphragm Pump
  • Power:Pneumatic
  • Brand Name:BSK
  • Usage:Air Pump
  • Standard or Nonstandard:Standard
  • Model Number:A25AL-PTT-A
  • Pressure:8.3 Bar
  • Fuel:Air
  • Application:Liquid pumping
  • Theory:Air operated diaphragm pump
  • Air Inlet:1/4-18NPTF-1
  • Liquid Outlet:1-11-1/2NPTF-1,Rp1-11BSP
  • Liquid Inlet:1-11-1/2NPTF-1,Rp1-11BSP

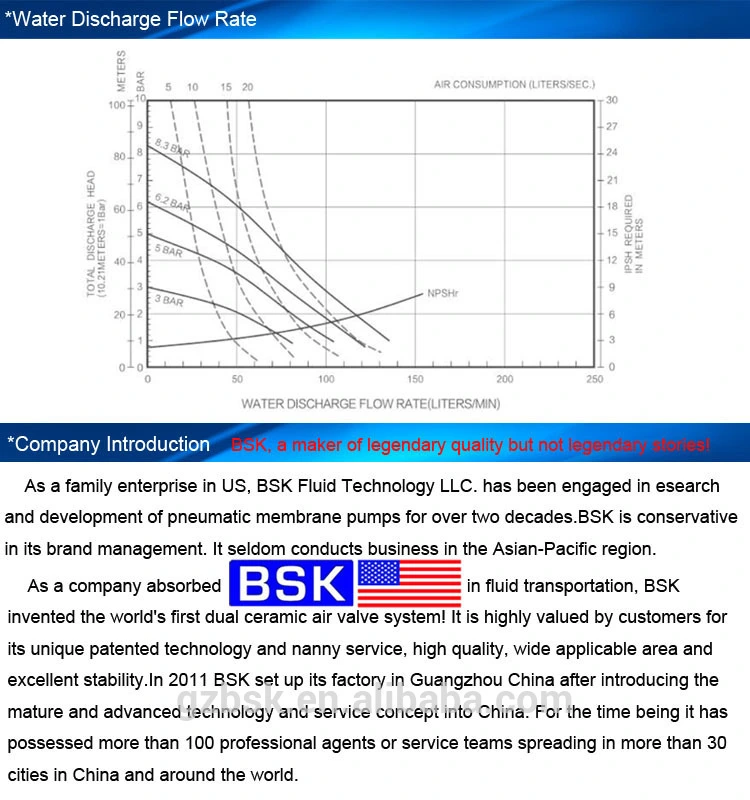

  • Max Flow:135L/Min
  • Max Head:70M/Water
  • Max Self-Priming Lift(Dry):4M
  • Max Air Pressure:8Bar
  • Max Particle Diameter:3mm

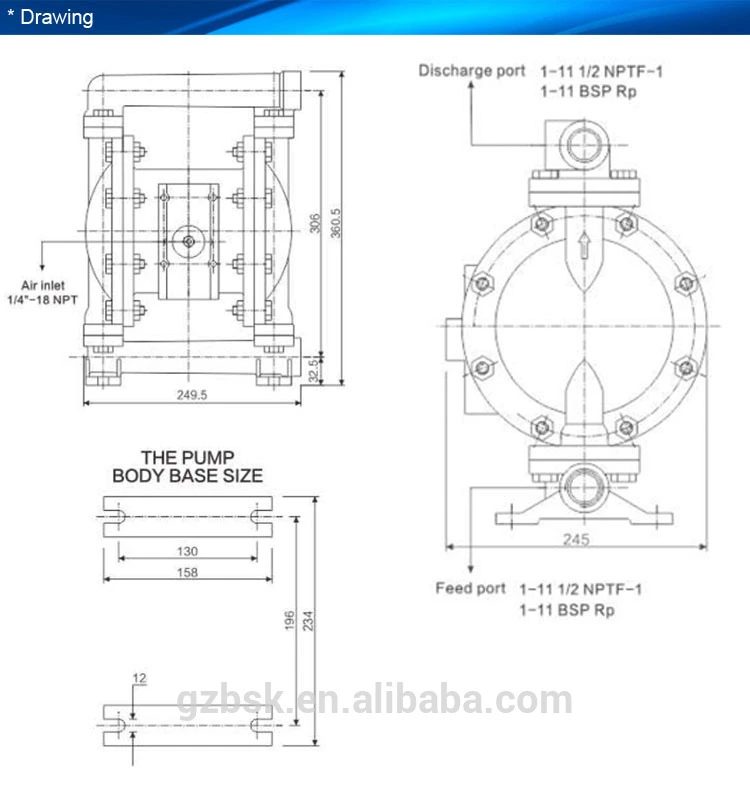

  • Max Installation Dimension:249.5*360.5*245
  • Weight:9.5KG

Model No.Pipe SizeAir side/
Fluid side Material
Seat MaterialDiaphragm/Ball
Material
A25AL-PTT-A1’inchAluminium Alloy
(AL)
Polypropylene
(PP)
PTFE
Product Description

Pneumatic diaphragm pump is a new transport machinery , is currently one of the most

innovative pump . Using compressed gas as a power source for a variety of corrosive liquid ,

with particles of liquid , high viscosity , volatile, flammable, poisonous liquid can be pumped

optical exhaustion . There are four pneumatic diaphragm material: plastic , aluminum, cast

iron , stainless steel. Pneumatic diaphragm pumps were used nitrilerubber,neoprene , Viton ,

Teflon , depending on the liquid medium , poly ethylene forty-six . To meet the needs of different

users . Placed in a variety of special occasions , for pumping a variety of conventional pumps can

not pump the media ,have achieved satisfactory results.

Product Application
*Sandering
machinery

Grinding varnish.There have lots of bead mills in varnish and

chemical factories.Need pumps can start up with low pressure and

endure 85 Celsius.

*

Moving baggy

filter

Industrial wastewater filtration or chemical material

separation

*Material MixerChemical machinery or chemical plant use
*Ink/printing
machinery

Mainly transfer ink. ep: printing machinery of

newspaper/magazine's .

*Pressure filter

Plate-and-frame type filter press, for filter polluted

water and separate
moisture material.

*Packaging
Machinery
Pumping adhesives or glass glue etc.
*Chemical Factory

Material handling or removable barrels material

( instead of drum pumps )

*

Paint Filling

Machine

pumping varnish for filling and packaging
*

Ceramic glaze

toner

For fully automatic tinting system and production

equipments of painting, used in coatings, paints,

inks, wallpaper , wallpaper , wood, paper , flexible

packaging , ceramics, printing and dyeing , leather,

chemicals and other toner printing and dyeing

industry.

*

Automatic ink

tinting system

*

Automatic feeding

of chemical raw

materials distributor

*

Painting automatic

tinting system

*

Automated Liquid

Filling tinting system

*Ball crusherInternal agitation energy ball mill can be used for wet grinding production
*TanneriesPumping dye and sewage treatment
*Battery MachinePumping the material into the mixing bucket
*Gravure pressFinish the upgrading and cycling of the ink and glue.
*Spreader
*Dyeing printing
presses
*Dry laminating
machine
*Stencil CleanerEmerging industries ( steel washing machines or stencil cleaning machines)
