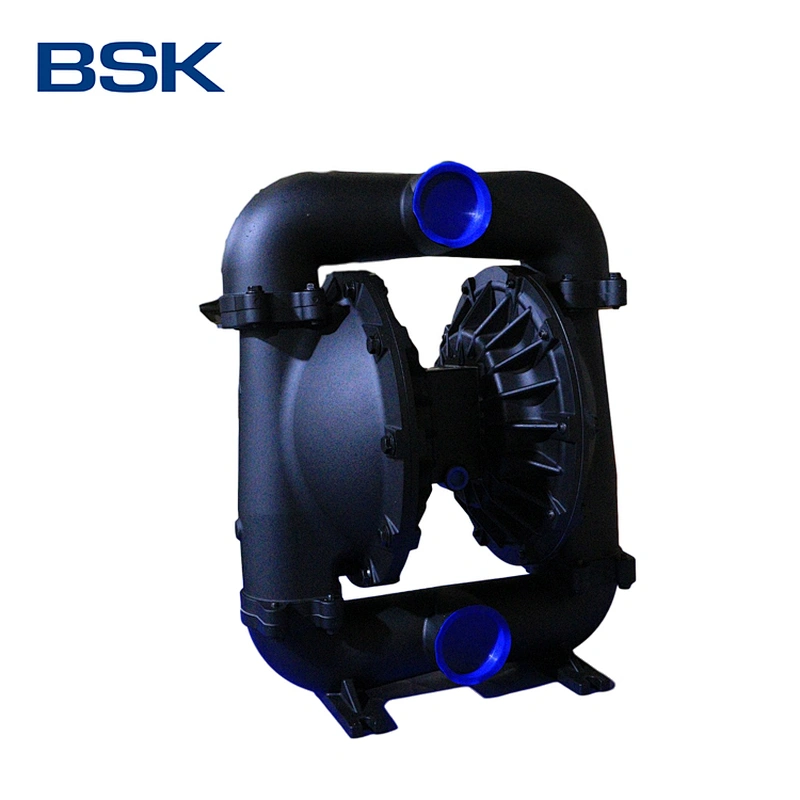

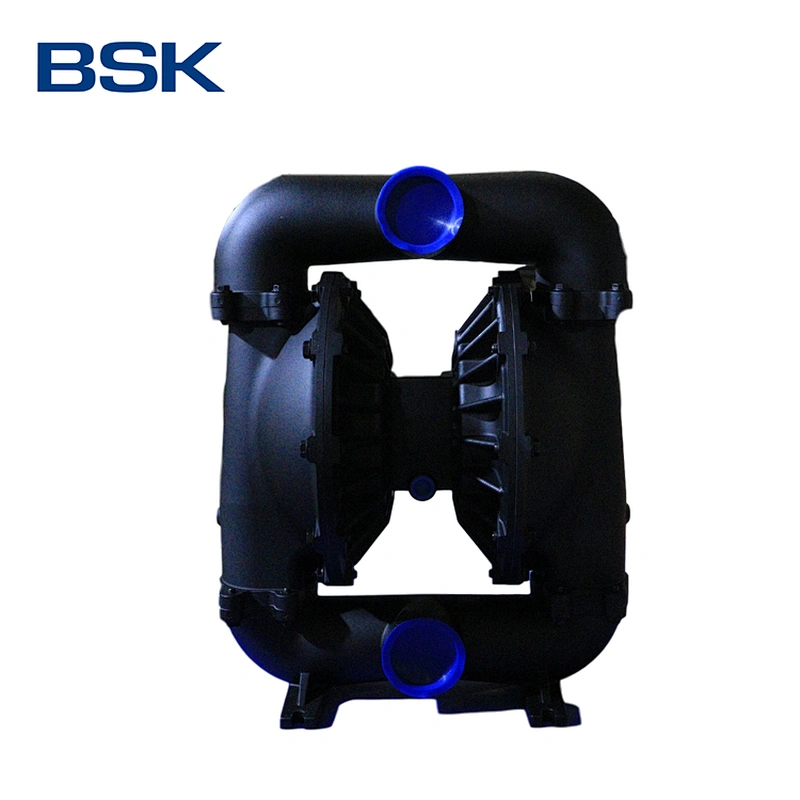

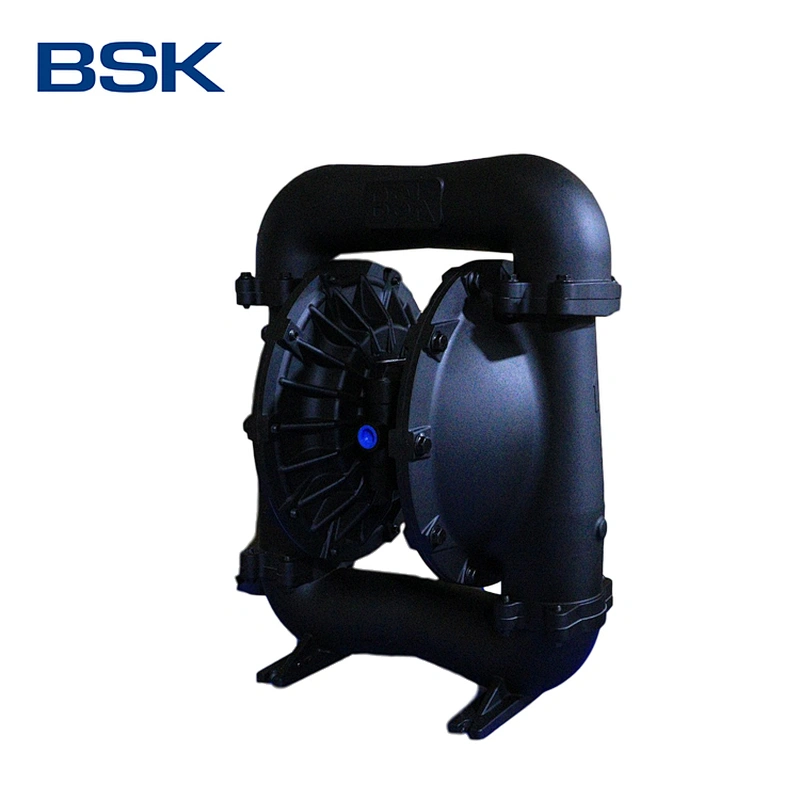

3 inch ceramic and tile industry santoprene pneumatic diaphragm air operated double chamber large flow pumps
3 inch ceramic and tile industry santoprene pneumatic diaphragm air operated double chamber large flow pumps
3 inch ceramic and tile industry santoprene pneumatic diaphragm air operated double chamber large flow pumps
3 inch ceramic and tile industry santoprene pneumatic diaphragm air operated double chamber large flow pumps
3 inch ceramic and tile industry santoprene pneumatic diaphragm air operated double chamber large flow pumps
3 inch ceramic and tile industry santoprene pneumatic diaphragm air operated double chamber large flow pumps
3 inch ceramic and tile industry santoprene pneumatic diaphragm air operated double chamber large flow pumps
3 inch ceramic and tile industry santoprene pneumatic diaphragm air operated double chamber large flow pumps
3 inch ceramic and tile industry santoprene pneumatic diaphragm air operated double chamber large flow pumps

3 inch ceramic and tile industry santoprene pneumatic diaphragm air operated double chamber large flow pumps

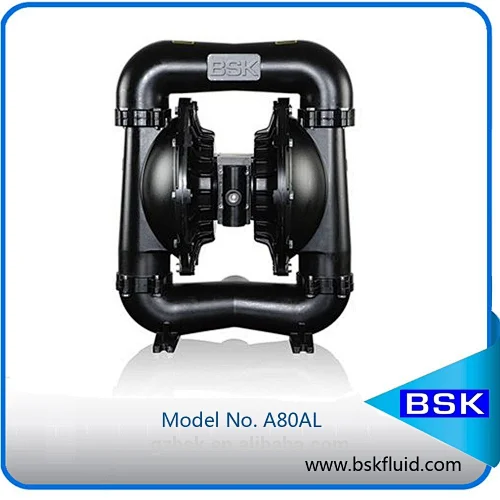

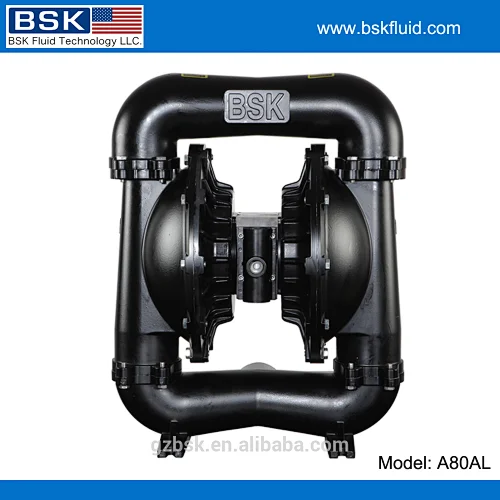

Model NO.
BA80AL-PHH1-A
Price:
USD 1.00-900.00 / piece
Minimum order quantity:
1 piece
Supply Ability:
2000 piece / Month
Country of Origin:
Guangzhou
Quantity:
  • Place of Origin:CN;GUA
  • Structure:Diaphragm Pump
  • Power:Pneumatic
  • Brand Name:BSK
  • Usage:Air Pump
  • Standard or Nonstandard:Standard
  • Model Number:A80AL-PHH-A

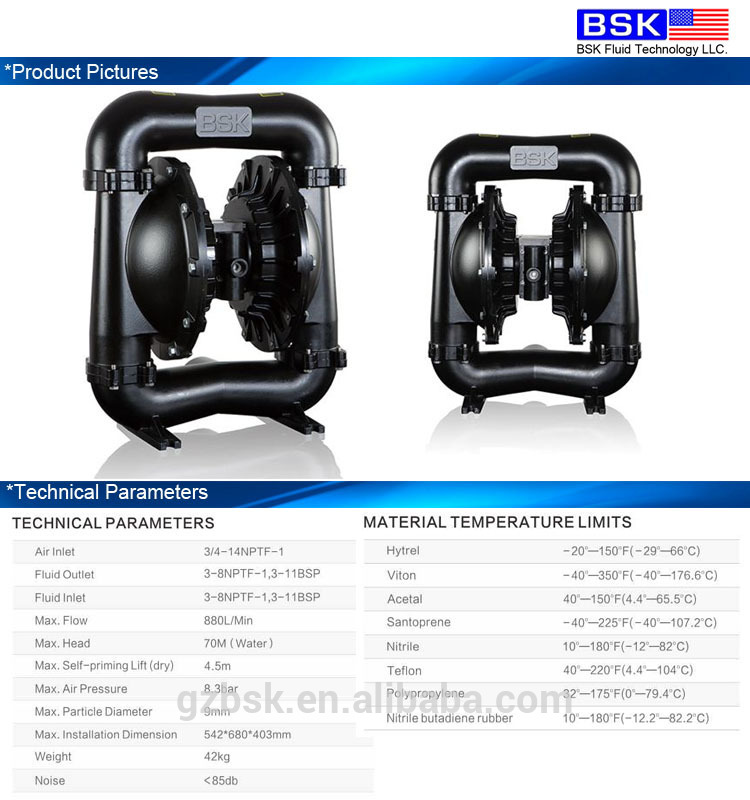

  • Pressure:8.3 Bar
  • Fuel:Air
  • Application:Liquid pumping
  • Theory:Air operated diaphragm pump
  • Air Inlet:3/4-14NPTF-1
  • Liquid Outlet:3-8NPTF-1,3-11BSP
  • Liquid Inlet:3-8NPTF-1,3-11BSP

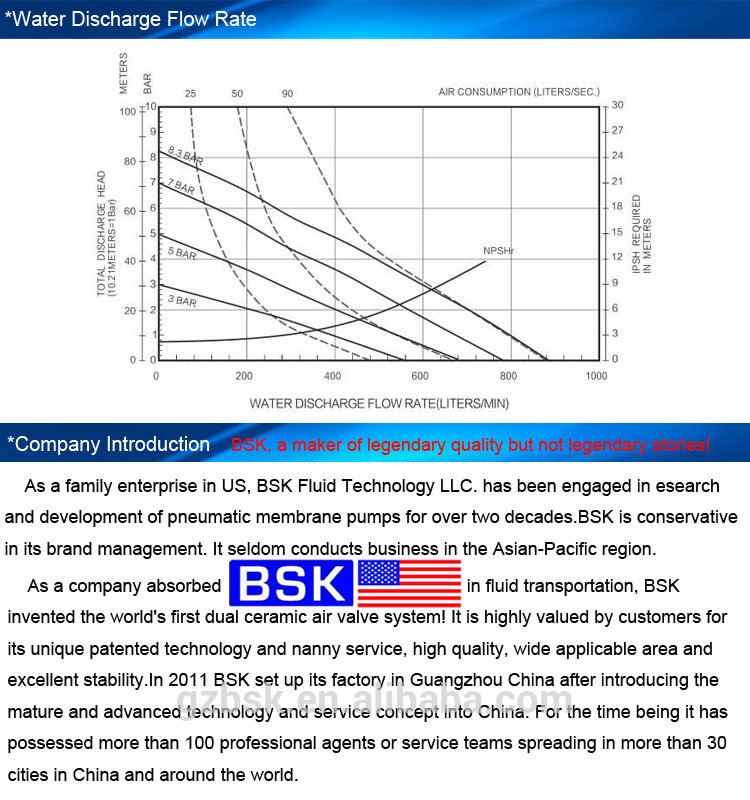

  • Max Flow:880L/Min
  • Max Head:70M/Water
  • Max Self-Priming Lift(Dry):4.5M
  • Max Air Pressure:8.3Bar
  • Max Particle Diameter:9mm

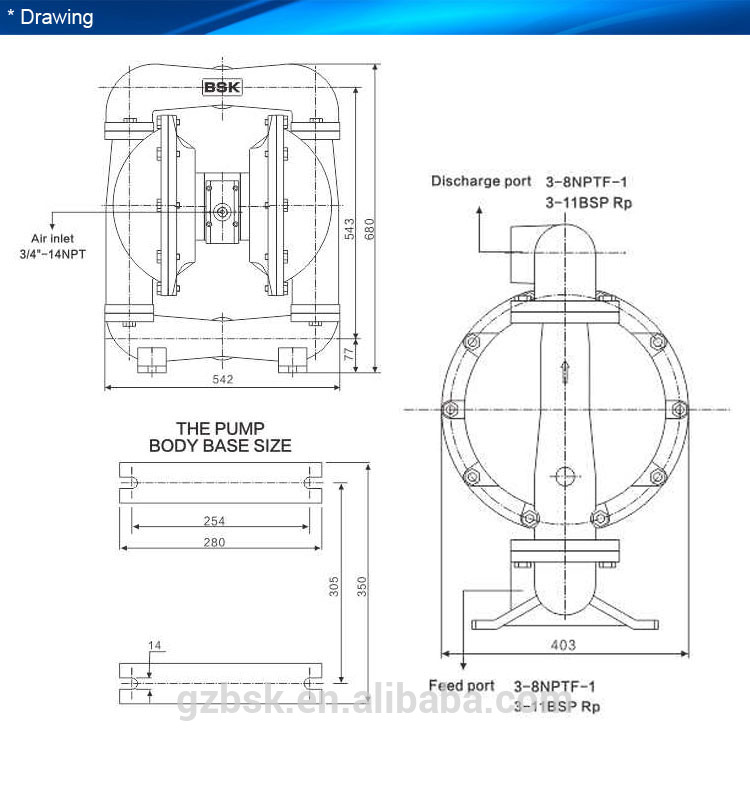

  • Max Installation Dimension:542*680*403cm
  • Weight:42KG

Model No.Pipe SizeAir side/
Fluid side Material
Seat MaterialDiaphragm/Ball
Material
A80AL-PHH-A3’inchAluminium Alloy
(AL)
SantonpreneHytrel
Product Description
Pneumatic diaphragm pump is a new transport machinery , is currently one of the most innovative pump . Using compressed gas as a power source for a variety of corrosive liquid , with particles of liquid , high viscosity , volatile, flammable, poisonous liquid can be pumped optical exhaustion . There are four pneumatic diaphragm material: plastic , aluminum, cast iron , stainless steel. Pneumatic diaphragm pumps were used nitrile
rubber,neoprene , Viton , Teflon , depending on the liquid medium , poly ethylene forty-six . To meet the needs of different users . Placed in a variety of special occasions , for pumping a variety of conventional pumps can not pump the media , have achieved satisfactory results.

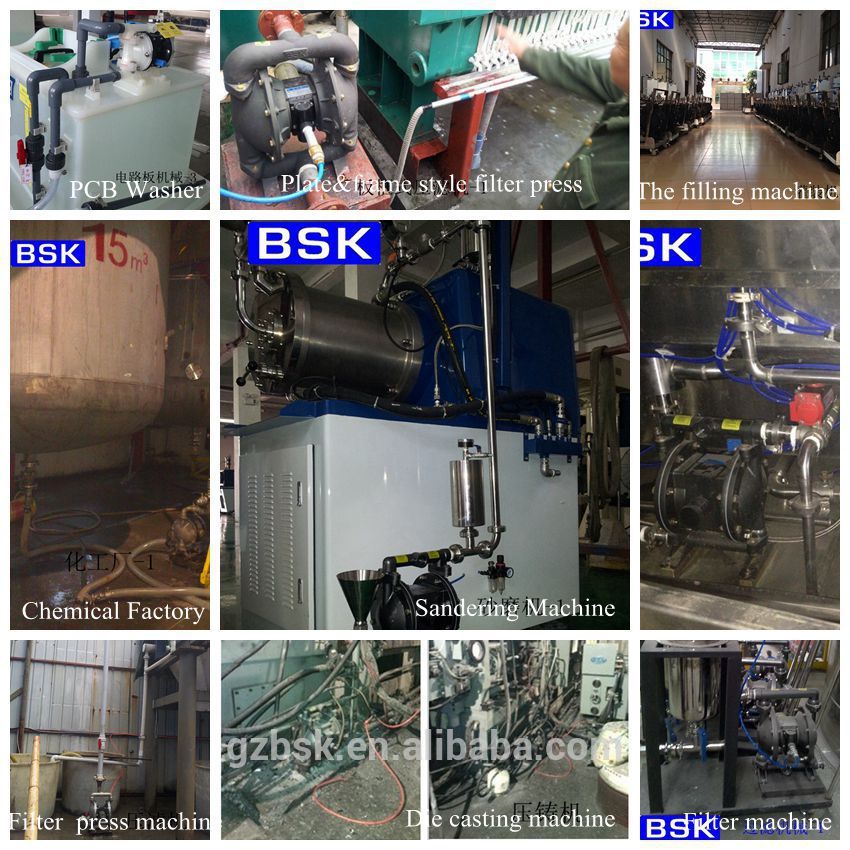

Product Application
*Chemical FactoryMaterial handling or removable barrels material ( instead of drum pumps ),applicable to concentrated sulfuric acid, nitric acid and other strong oxidizing materials.
*Pharmaceutical factoryMaterial handling or removable barrels material
( instead of drum pumps )
*Biological technology factoryPumping animal blood for refining
*New energy plant/
multi crystalline silicon plant
Pumping polysilicon raw material for solar
*Commodity FactoryPumping perfume / fragrance / dairy mixture
*Pressure filterPlate-and-frame type filter press, for filter polluted water
and separate moisture material.
*Moving baggy filterIndustrial wastewater filtration or chemical material separation
