- Place of Origin:CN;GUA
- Structure:Diaphragm Pump
- Power:Pneumatic
- Brand Name:BSK
- Usage:Air Pump
- Standard or Nonstandard:Standard
- Model Number:A40CS-P89-A
- Pressure:8.3 Bar
- Fuel:Air
- Application:Liquid pumping
- Theory:Air operated diaphragm pump

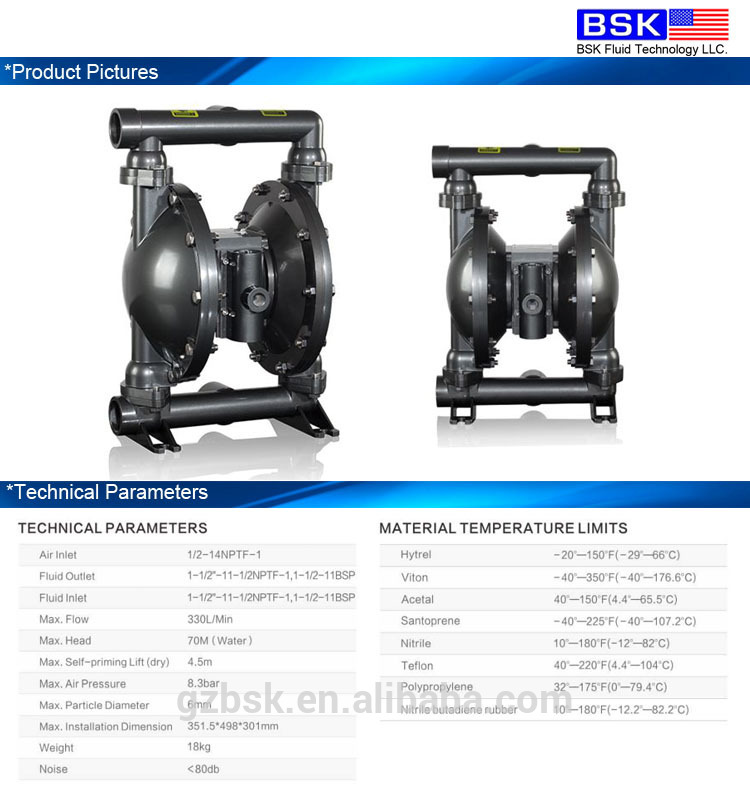

- Air Inlet:1/2-14NPTF-1
- Liquid Outlet:1-1/2"-11-1/2NPTF-1,1-1/2-11BSP
- Liquid Inlet:1-1/2"-11-1/2NPTF-1,1-1/2-11BSP
- Max Flow:330L/Min
- Max Head:70M/Water
- Max Self-Priming Lift(Dry):4.5M
- Max Air Pressure:8.3Bar
- Max Particle Diameter:6mm

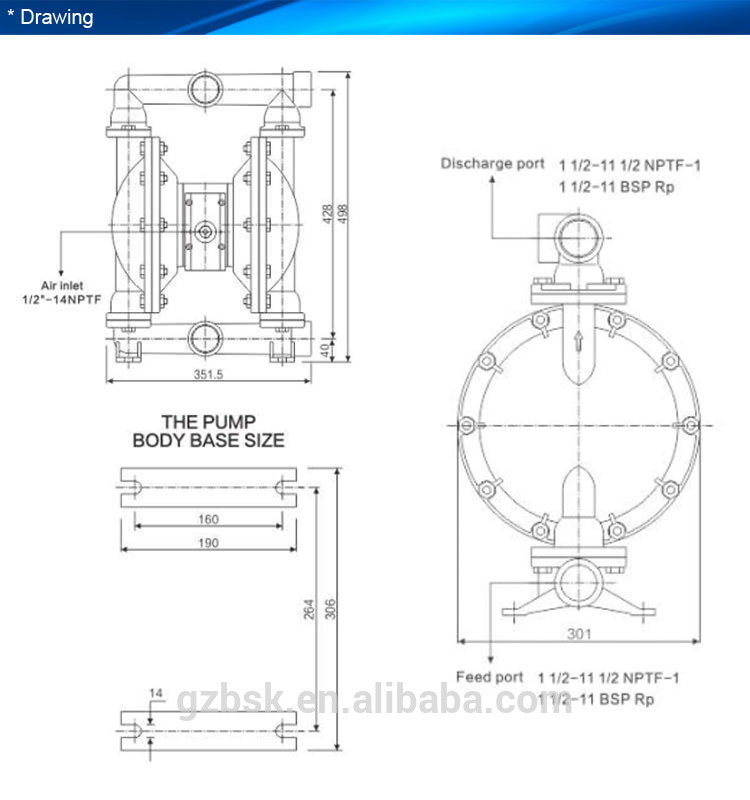

- Max Installation Dimension:351.5*498*301cm
- Weight:18KG
| Model No. | Pipe Size | Air side/ Fluid side Material | Seat Material | Diaphragm/Ball Material |
| A40CS-P89-A | 1 1/2’inch | Casting steel (CS) | Polypropylene (PP) | Santonprene/Gravity Ball |
| Product Description | ||||
Pneumatic diaphragm pump is a new transport machinery , is currently one of the most innovative pump . Using compressed gas as a power source for a variety of corrosive liquid , with particles of liquid , high viscosity , volatile, flammable, poisonous liquid can be pumped optical exhaustion . There are four pneumatic diaphragm material: plastic , aluminum, cast iron , stainless steel. Pneumatic diaphragm pumps were used nitrile pumping a variety of conventional pumps can not pump the media , have achieved satisfactory results. | ||||
| Product Application | ||||
| * | Glue machine | Corrugated cardboard machinery and glue making machinery | ||
| * | Plate-and-frame type filter press | |||
| * | Tanneries | Rawhide manufacturing and processing , pumping water and additives | ||
    | ||||
