- Place of Origin:CN;GUA
- Application:Automotive Industry
- Application:Biofuel Industry
- Application:Commercial Buildings
- Application:Developing World Water Solutions
- Application:District Energy
- Application:Drinking water treatment
- Application:Family Homes
- Application:Food and Beverage Industry
- Application:HVAC OEM
- Application:Industrial Boilers
- Application:Industrial Utilities
- Application:Irrigation and Agriculture
- Application:Machining
- Application:Marine
- Application:Metal and Equipment Manufacturers
- Application:Mining industry
- Application:Pharmaceutical industry
- Application:Raw Water Intake
- Application:temperature control
- Application:Washing and Cleaning
- Application:Wastewater Transport and Flood Control
- Application:wastewater treatment
- Application:Water Distribution
- Application:Water Treatment Solutions
- Power Source:Pneumatic
- Structure:Diaphragm Pump
- Certification:ce
- Brand Name:BSK

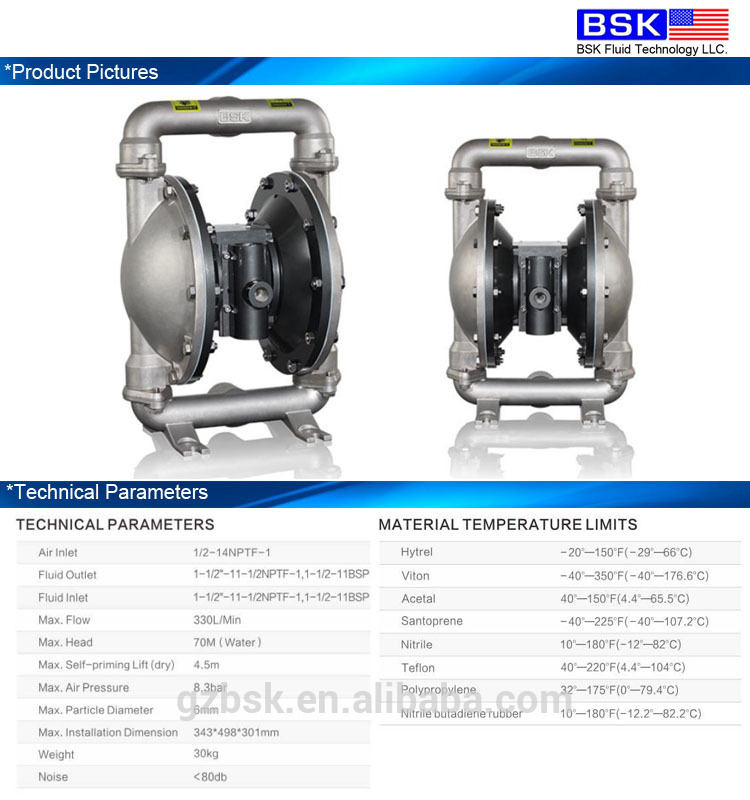

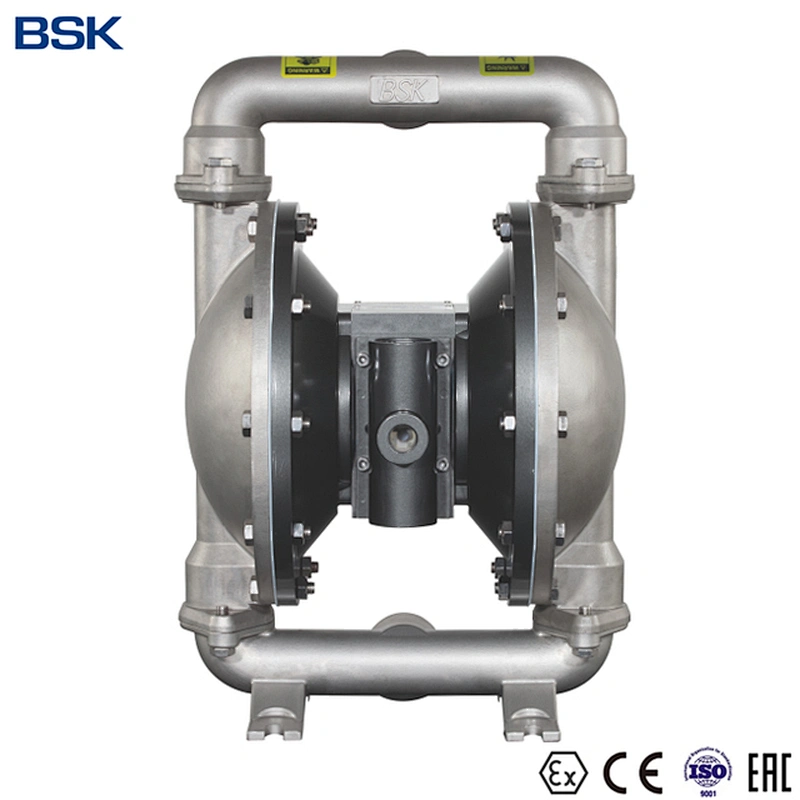

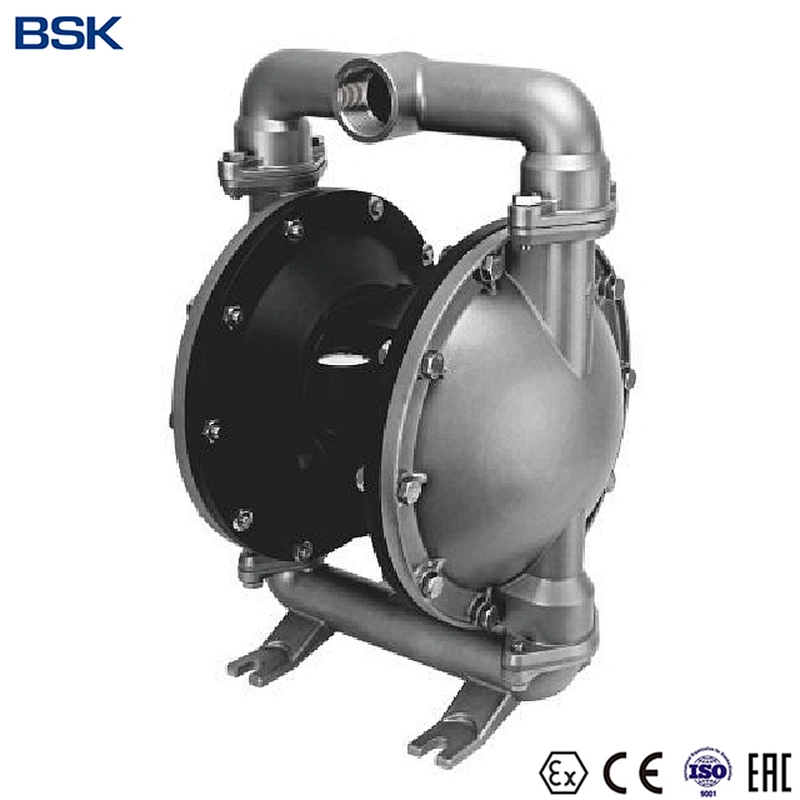

- Model Number:BA40SS-STT3-A
- Pressure:8.3 Bar
- Power Source:compressed air
- Certification:ISO:9001
- Brand:BSK
- Theory:Air operated diaphragm pump
- Fluid Inlet/Outlet Size:1.5 inch (40mm)

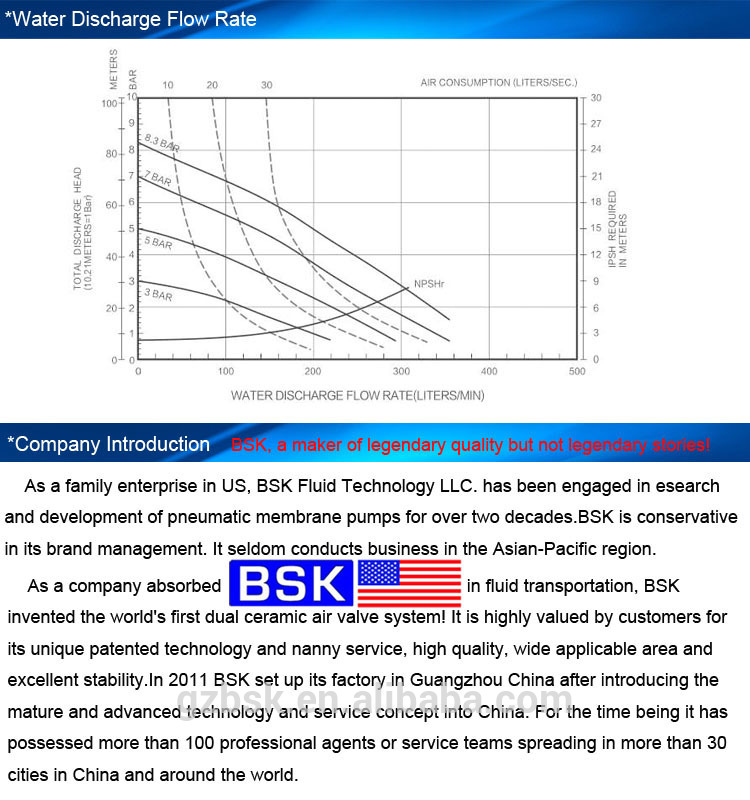

- Max Flow:378.5L/Min
- Max Head:70M/Water
- Max Self-Priming Lift(Dry):4.5M
- Max Air Pressure:8.3Bar
- Max Particle Diameter:6mm

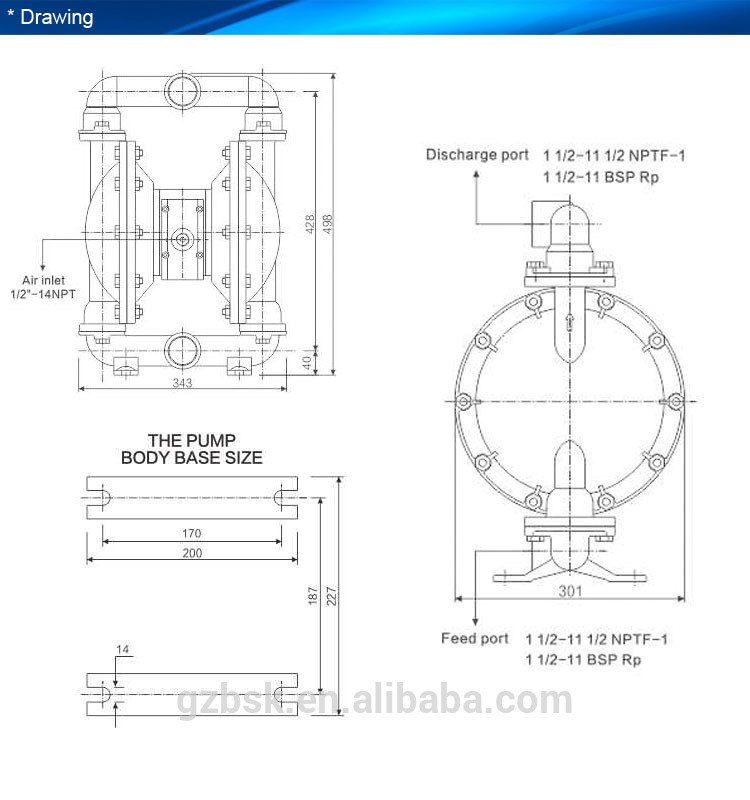

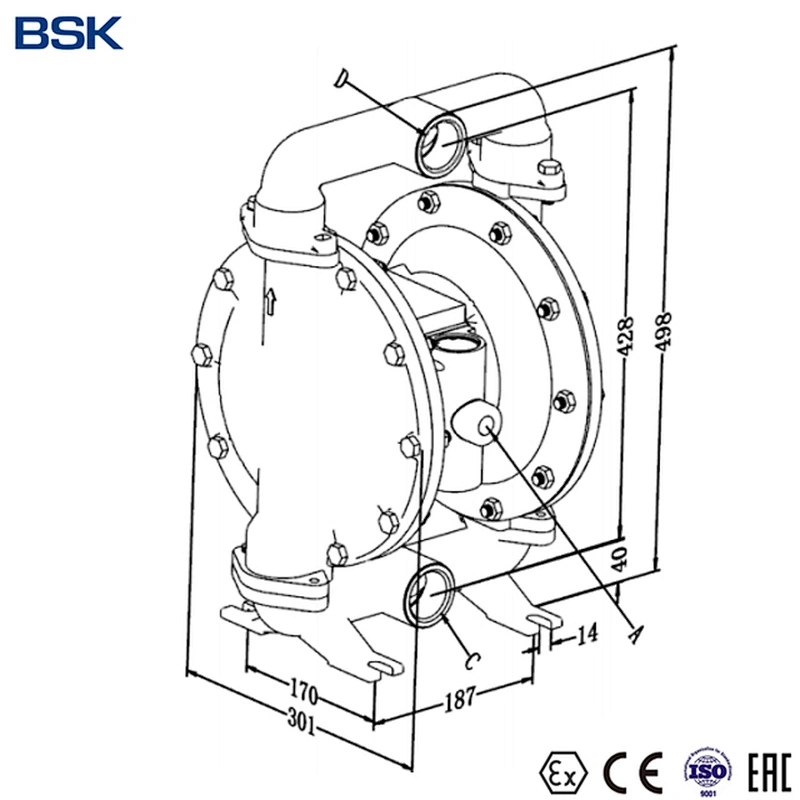

- Max Installation Dimension:343*498*301cm
- Weight:33.8KG
| Model No. | Pipe Size | Air side/ Fluid side Material | Seat Material | Diaphragm/Ball Material |
| BA40SS-STT3-A | 1 1/2’inch | 316#Stainless Steel (SS) | 316#Stainless Steel (SS) | PTFE |
| Product Description | ||||
Pneumatic diaphragm pump is a new transport machinery , is currently one of the most innovative pump . Using compressed gas as a power source for a variety of corrosive liquid , with particles of liquid , high viscosity , volatile, flammable, poisonous liquid can be pumped optical exhaustion . There are four pneumatic diaphragm material: plastic , aluminum, cast iron , stainless steel. Pneumatic diaphragm pumps were used nitrile rubber,neoprene , Viton , Teflon , depending on the liquid medium , poly ethylene forty-six . To meet the needs of different users . Placed in a variety of special occasions , for pumping a variety of conventional pumps can not pump the media , have achieved satisfactory results. | ||||
| Product Application | ||||
| * | Chemical Factory | Material handling or removable barrels material ( instead of drum pumps ),applicable to concentrated sulfuric acid, nitric acid and other strong oxidizing materials. | ||
| Pharmaceutical factory | Material handling or removable barrels material ( instead of drum pumps ) | |||
| Biological technology factory | Pumping animal blood for refining | |||
| New energy plant/ multi crystalline silicon plant | Pumping polysilicon raw material for solar | |||
| Commodity Factory | Pumping perfume / fragrance / dairy mixture | |||
| * | Pressure filter | Plate-and-frame type filter press, for filter polluted water and separate moisture material. | ||
| * | Moving baggy filter | Industrial wastewater filtration or chemical material separation | ||
| ||||
