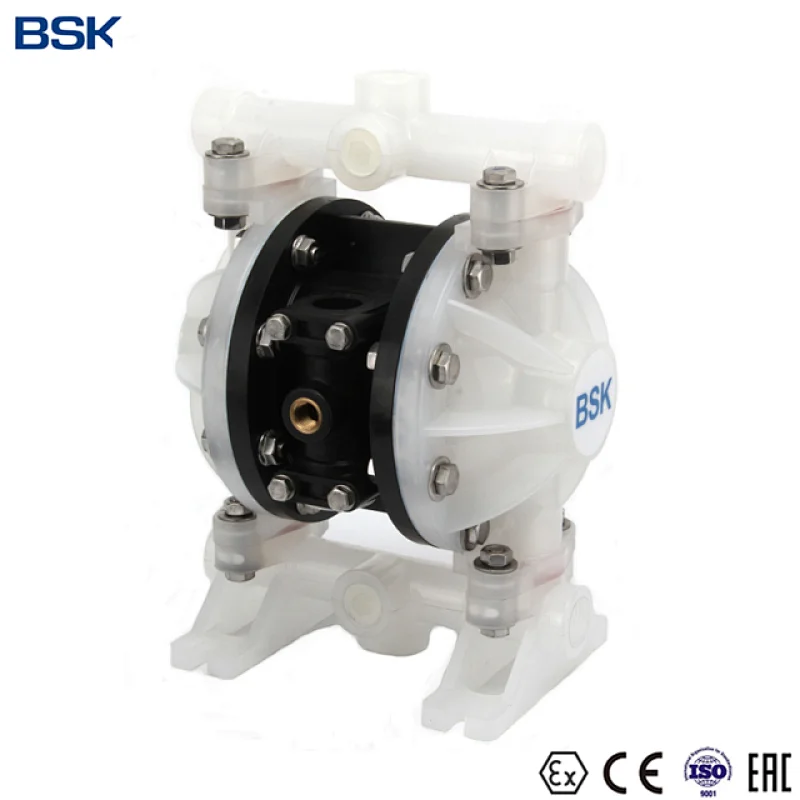

Oil and pink application pneumatic diaphragm pump
Oil and pink application pneumatic diaphragm pump

Oil and pink application pneumatic diaphragm pump

Model NO.
USD 1.00-200.00 / piece
Minimum order quantity:
1 piece
Supply Ability:
2000 piece / Month
Country of Origin:
  • Place of Origin:CN;GUA
  • Structure:Diaphragm Pump
  • Power:Pneumatic
  • Brand Name:BSK
  • Usage:Air Pump
  • Standard or Nonstandard:Standard
  • Model Number:P15PP-P99-B

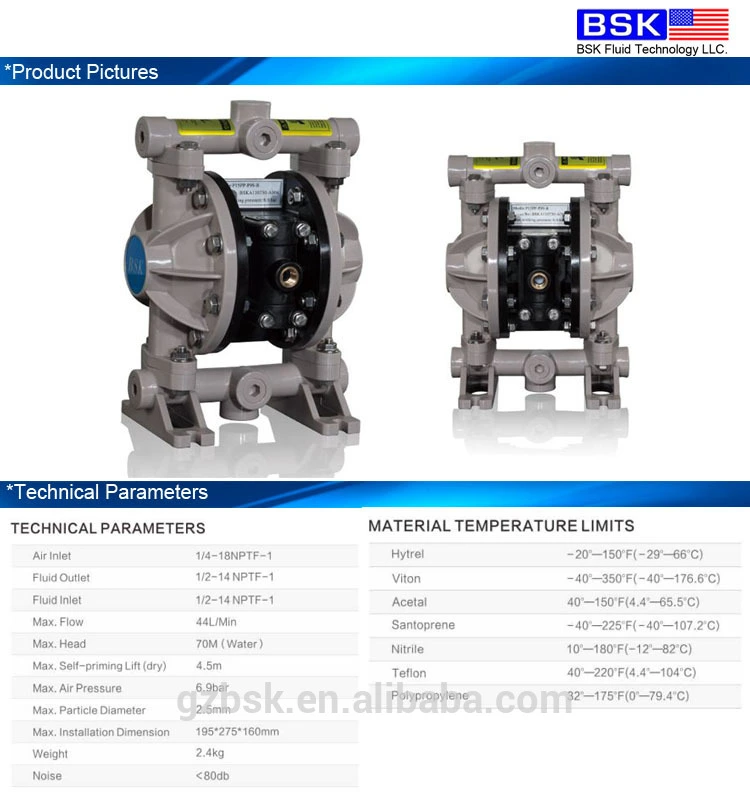

  • Pressure:6.9 Bar
  • Fuel:Air
  • Application:Liquid pumping
  • Theory:Air operated diaphragm pump
  • Air Inlet:1/4-18NPTF-1
  • Liquid Outlet:1/2-18NPTF-1
  • Liquid Inlet:1/2-18NPTF-1

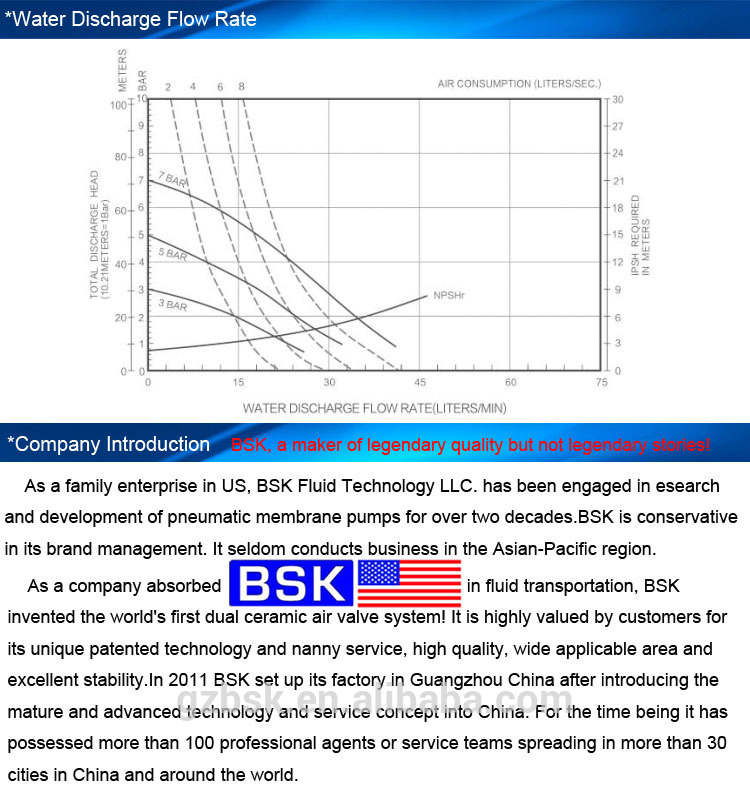

  • Max Flow:44L/Min
  • Max Head:70M/Water
  • Max Self-Priming Lift(Dry):4.5M
  • Max Air Pressure:6.9Bar
  • Max Particle Diameter:2.5mm

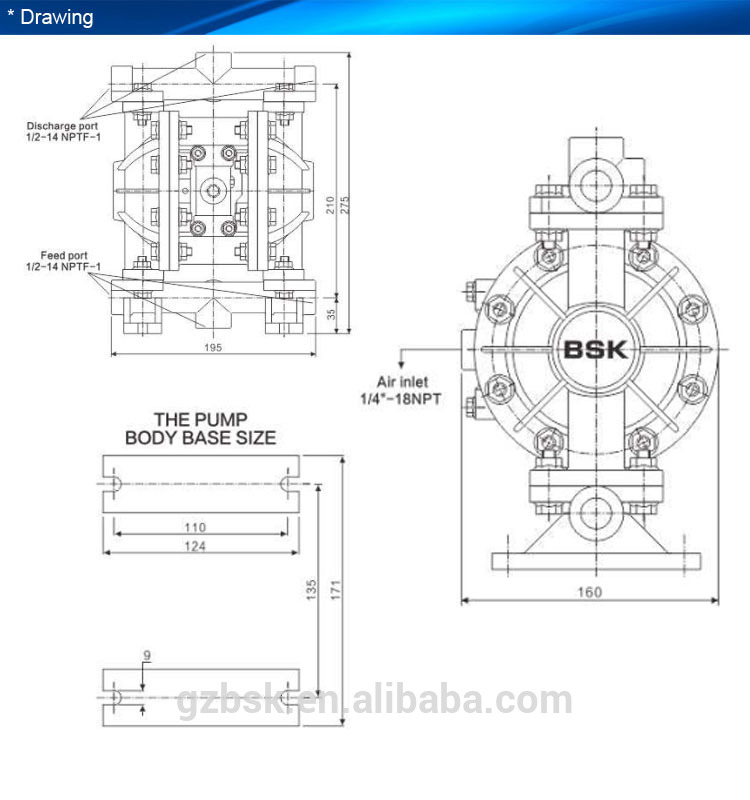

  • Max Installation Dimension:195*275*160mm
  • Weight:2.4KG

Model No.Pipe SizeAir side/
Fluid side Material
Seat MaterialDiaphragm/Ball
Product Description

Pneumatic diaphragm pump is a new transport machinery , is currently one of the most

innovative pump . Using compressed gas as a power source for a variety of corrosive

liquid , with particles of liquid , high viscosity , volatile, flammable, poisonous liquid

can be pumped optical exhaustion . There are four pneumatic diaphragm material: plastic

, aluminum, cast iron , stainless steel. Pneumatic diaphragm pumps were used nitrile
rubber,neoprene , Viton , Teflon , depending on the liquid medium , poly ethylene forty-six

. To meet the needs of different users . Placed in a variety of special occasions , for pumping

a variety of conventional pumps can not pump the media , have achieved satisfactory results.

Product Application
*Ink/Printing Machinery20PCS and above pumps in 1 ink equipments production line,mainly transfer ink, for example: printing machines for newspaer and magazine.
*Spraying MachineryFor spraying production line, especial for transfering paint. Where give stainless steel tanks to reduce the general pulse. example: spraying factory

Ceramic Coating


20PCS and above pumps in 1 spraying production lines, spraying glaze or varnish on the surfave of ceramics.
*Packaging Machinery
/ Industry
Cardboard synthesis equipment to extract soda and additives to form a mixing bucket and cassava paste , stick into kraft paper and corrugated
*Cardboard printing equipment , pumping ink
*Plastic packaging machinery, pumping fancy printing ink
Machinery / Industry
Alternative peristaltic pump , as used in the"pill coating machine ,"etc.
*Cleaning MachineryPumping chemical abluent and cleaning materials for pipelines.
*Painting / Chemical
Chemical/ spraying factory, for material cycling

protection machinery/


For dosing purposes and adding chemical additive into polluted water according to demand, in order to have effect by condensation and separation
*Lubricant filling
Car/motorcycle terminal plant, with the mechanical filling oil for the engine or refrigerant for the gearbox
*Ceramic glaze tinting
For fully automatic tinting system and production equipments of painting, used in coatings, paints, inks, wallpaper , wallpaper , wood, paper , flexible packaging , ceramics, printing and dyeing , leather, chemicals and other toner printing and dyeing industry.
*Automatic ink tinting

Automatic feeding of
chemical raw materials


*Painting automatic
tinting system
*Automated Liquid
Filling tinting system
*Dosing SystemChemical dosing system integration.
