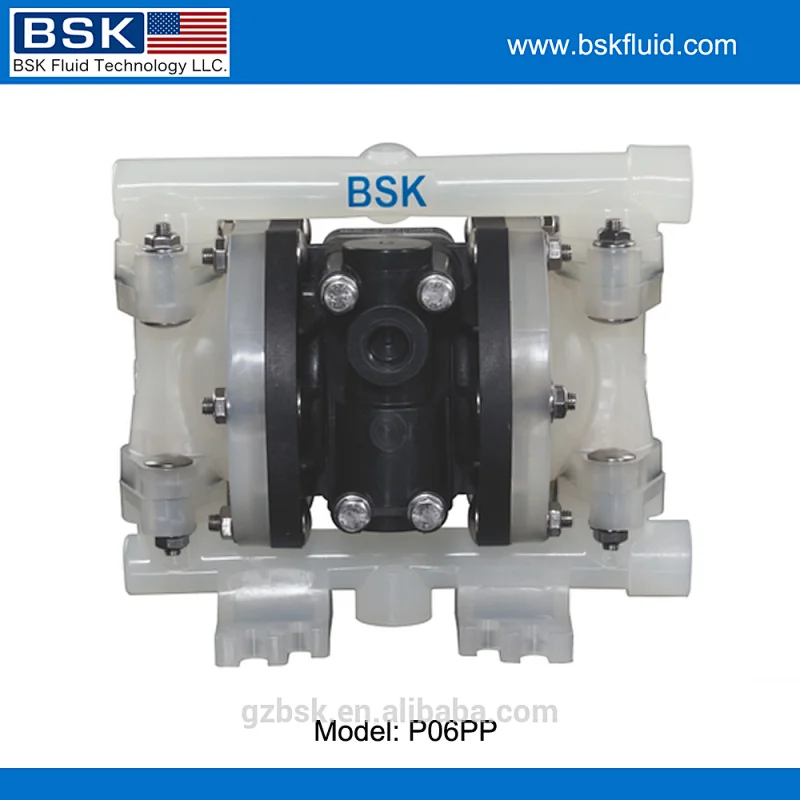

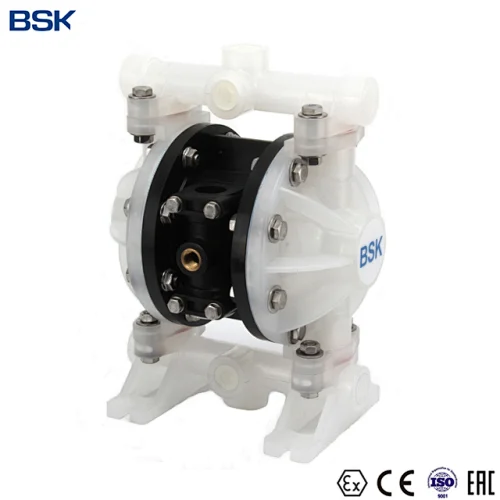

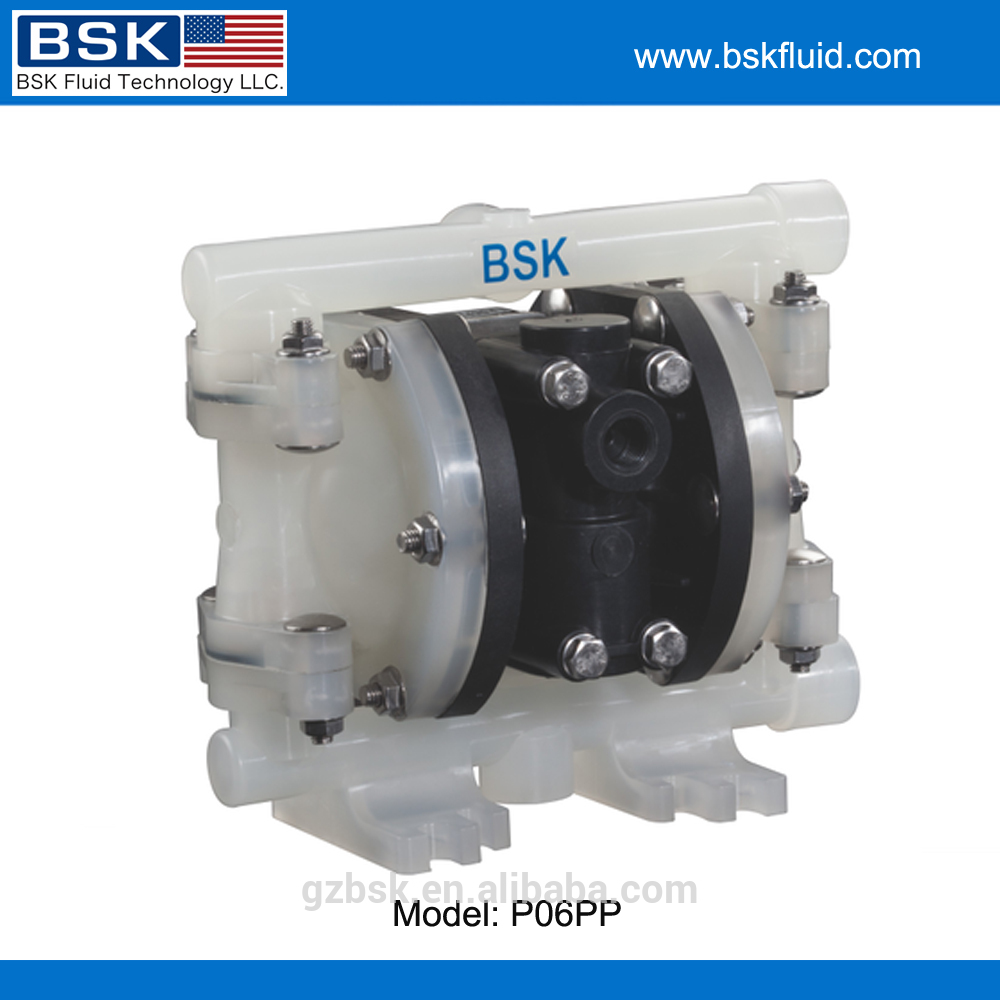

Model NO.
P06PP-P99-B
Price:
USD 1.00-100.00 / piece
Minimum order quantity:
1 piece
Supply Ability:
2000 piece / Month
Country of Origin:
Guangzhou
Quantity:
  • Place of Origin:CN;GUA
  • Structure:Diaphragm Pump
  • Power:Pneumatic
  • Brand Name:BSK
  • Usage:Air Pump
  • Standard or Nonstandard:Standard
  • Model Number:P06PP-P99-B
  • Pressure:5.0 Bar
  • Fuel:Air
  • Application:Liquid pumping
  • Theory:Air operated diaphragm pump

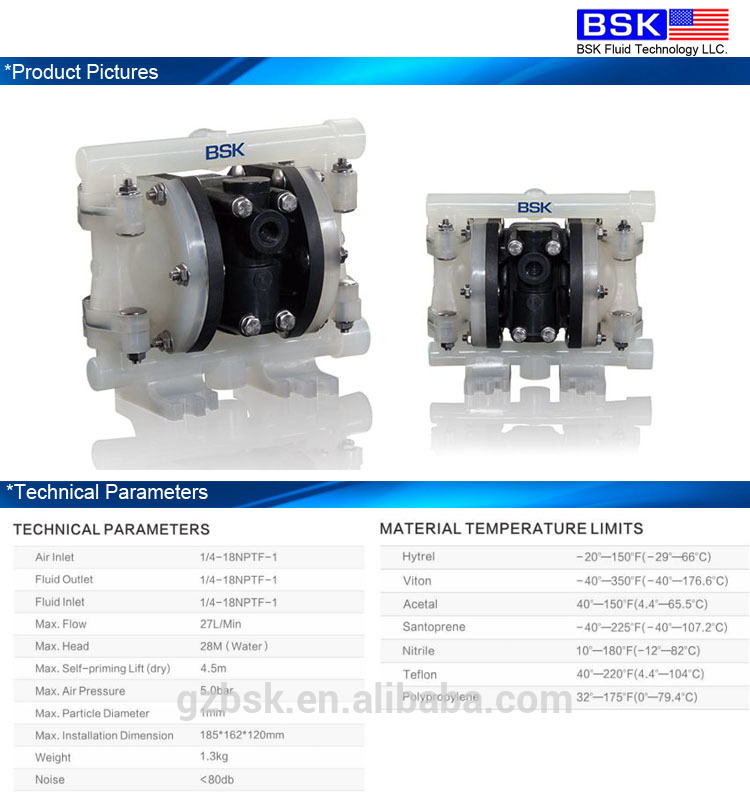

  • Air Inlet:1/4-18NPTF-1
  • Liquid Outlet:1/4-18NPTF-1
  • Liquid Inlet:1/4-18NPTF-1

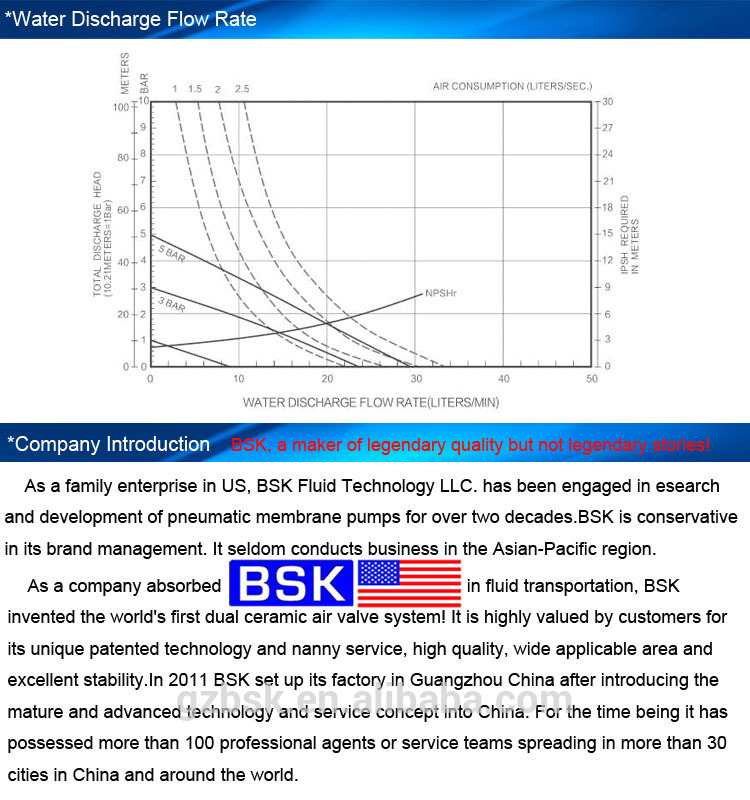

  • Max Flow:27L/Min
  • Max Head:28M/Water
  • Max Self-Priming Lift(Dry):4.5M
  • Max Air Pressure:5Bar
  • Max Particle Diameter:1mm

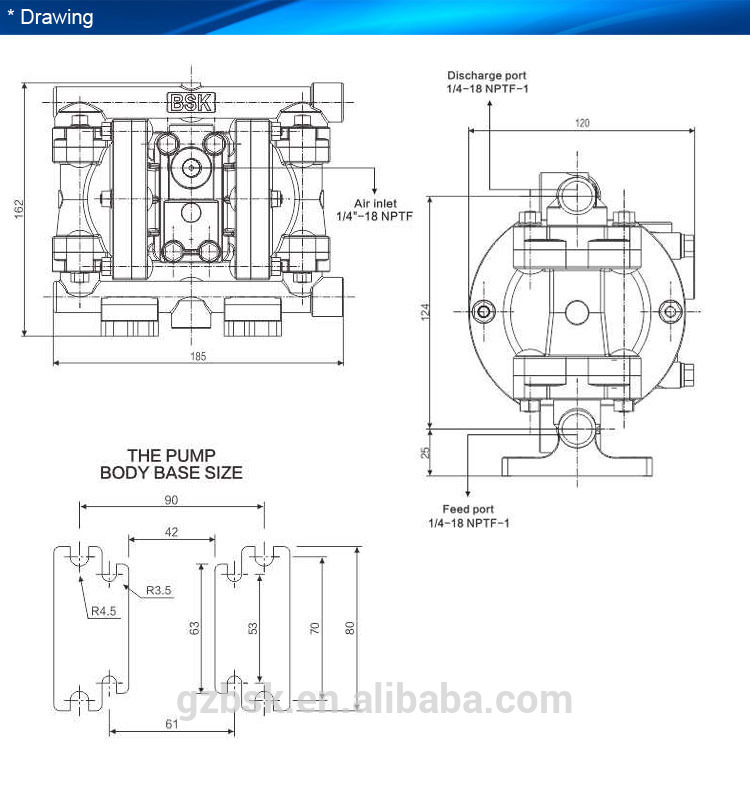

  • Max Installation Dimension:185*162*120mm
  • Weight:1.3KG

Model No.Pipe SizeAir side/
Fluid side Material
Seat MaterialDiaphragm/Ball
Material
P06PP-P99-B1/4’inchPolypropylene
(PP)
Polypropylene
(PP)
Santonprene
Product Description

Pneumatic diaphragm pump is a new transport machinery , is currently one of the most

innovative pump . Using compressed gas as a power source for a variety of corrosive

liquid , with particles of liquid , high viscosity , volatile, flammable, poisonous liquid

can be pumped optical exhaustion . There are four pneumatic diaphragm material: plastic

, aluminum, cast iron , stainless steel. Pneumatic diaphragm pumps were used nitrile
rubber,neoprene , Viton , Teflon , depending on the liquid medium , poly ethylene forty-six

. To meet the needs of different users . Placed in a variety of special occasions , for pump

ing a variety of conventional pumps can not pump the media , have achieved satisfactory

results.

Product Application
*

Laminating

Machine

Film printing for plastic packaging
*

Dosing

System

Chemical dosing system integration
