- Place of Origin:CN;GUA
- Structure:Diaphragm Pump
- Power:Pneumatic
- Brand Name:BSK
- Pressure:Low Pressure
- Usage:Air Pump
- Standard or Nonstandard:Standard
- Theory:Mixed Flow Pump

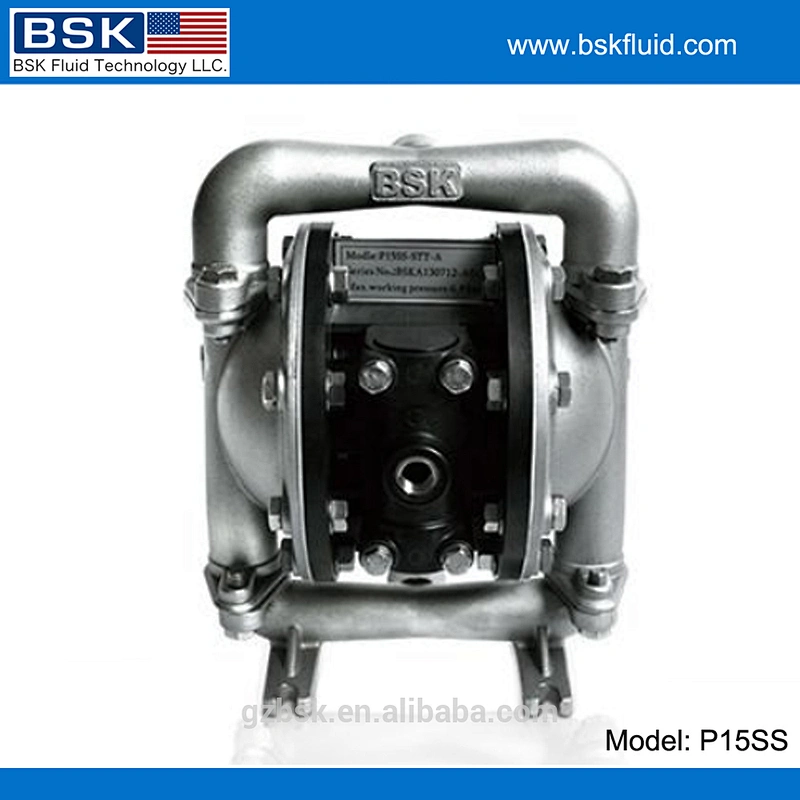

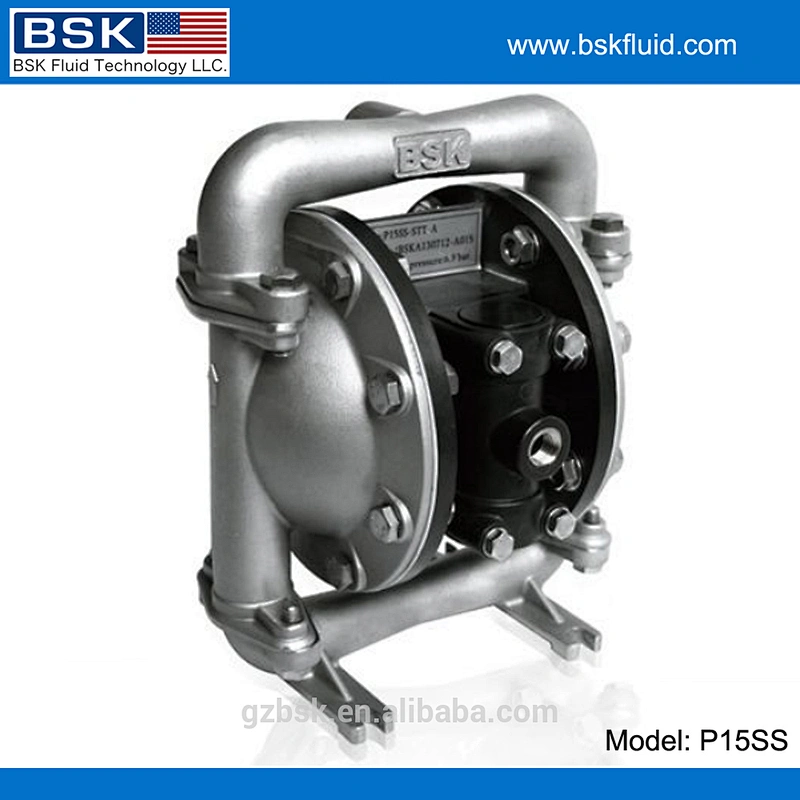

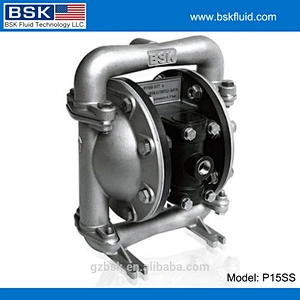

- Model Number:P15SS-S99-A
- Fuel:air
- Application:liquid transfer
- Material:Stainless Steel
- Name:Diaphragm Air Pump
- Product name:air driven pneumatic diaphragm pump
- Color:White
| Model No. | Pipe Size | Air side/ Fluid side Material | Seat Material | Diaphragm/Ball Material |
| P15SS-S99-A | 1/2’inch | 316#Stainless Steel (SS) | 316#Stainless Steel (SS) | Santonprene |
| Product Description | ||||
Pneumatic diaphragm pump is a new transport machinery , is currently one of the most innovative pump . Using compressed gas as a power source for a variety of corrosive liquid , with particles of liquid , high viscosity , volatile, flammable, poisonous liquid can be pumped optical exhaustion . There are four pneumatic diaphragm material: plastic , aluminum, cast iron , stainless steel. Pneumatic diaphragm pumps were used nitrile rubber,neoprene , Viton , Teflon , depending on the liquid medium , poly ethylene forty-six . To meet the needs of different users . Placed in a variety of special occasions , for pumping a variety of conventional pumps can not pump the media , have achieved satisfactory results. | ||||

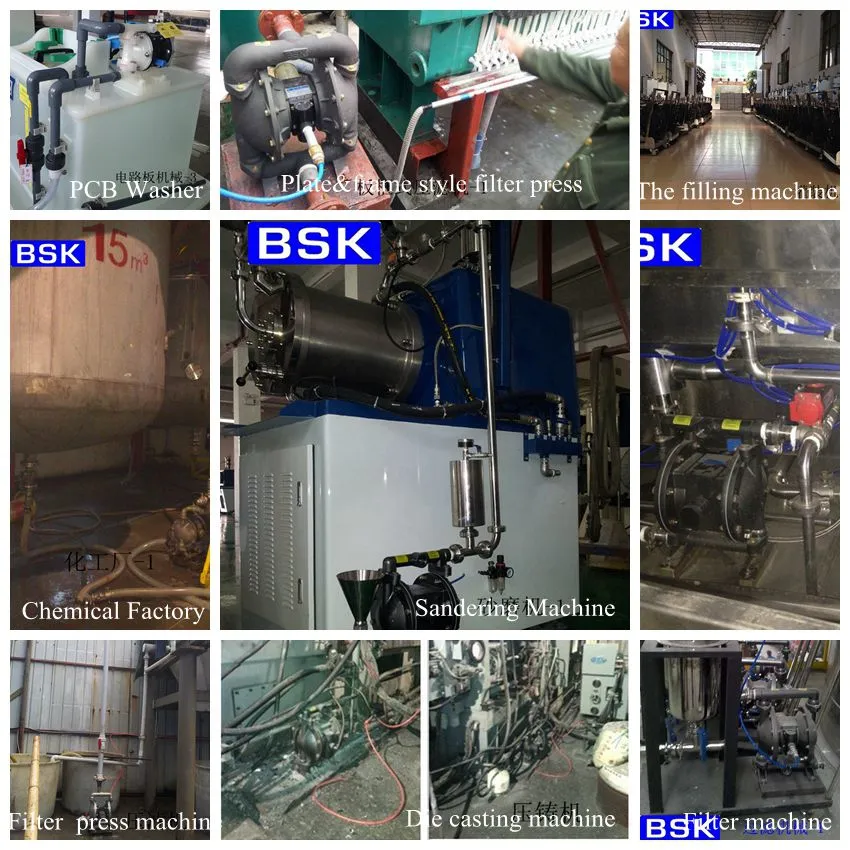

| Product Application | ||||
| * | Ink/Printing Machinery | 20PCS and above pumps in 1 ink equipments production line,mainly transfer ink, for example: printing machines for newspaer and magazine. | ||
| * | Spraying Machinery | For spraying production line, especial for transfering paint. Where give stainless steel tanks to reduce the general pulse. example: spraying factory | ||
| * | Ceramic Coating Equipment | 20PCS and above pumps in 1 spraying production lines, spraying glaze or varnish on the surfave of ceramics. | ||
| * | Packaging Machinery / Industry | Cardboard synthesis equipment to extract soda and additives to form a mixing bucket and cassava paste , stick into kraft paper and corrugated | ||
| * | Cardboard printing equipment , pumping ink | |||
| * | Plastic packaging machinery, pumping fancy printing ink | |||
| * | Pharmaceutical Machinery / Industry | Alternative peristaltic pump , as used in the " pill coating machine ," etc. | ||
| * | Cleaning Machinery | Pumping chemical abluent and cleaning materials for pipelines. | ||
| * | Painting / Chemical Machinery | Chemical/ spraying factory, for material cycling | ||
| * | Filter/Environmental protection machinery/Industry | For dosing purposes and adding chemical additive into polluted water according to demand, in order to have effect by condensation and separation | ||
| * | Lubricant filling machinery | Car/motorcycle terminal plant, with the mechanical filling oil for the engine or refrigerant for the gearbox | ||
| * | Ceramic glaze tinting machine | For fully automatic tinting system and production equipments of painting, used in coatings, paints, inks, wallpaper , wallpaper , wood, paper , flexible packaging , ceramics, printing and dyeing , leather, chemicals and other toner printing and dyeing industry. | ||
| * | Automatic ink tinting system | |||
| * | Automatic feeding of chemical raw materials distributor | |||
| * | Painting automatic tinting system | |||
| * | Automated Liquid Filling tinting system | |||
| * | Dosing System | Chemical dosing system integration. | ||
       | ||||
