- Place of Origin:CN;GUA
- Structure:Diaphragm Pump
- Power:Pneumatic
- Brand Name:BSK
- Usage:Air Pump
- Standard or Nonstandard:Standard

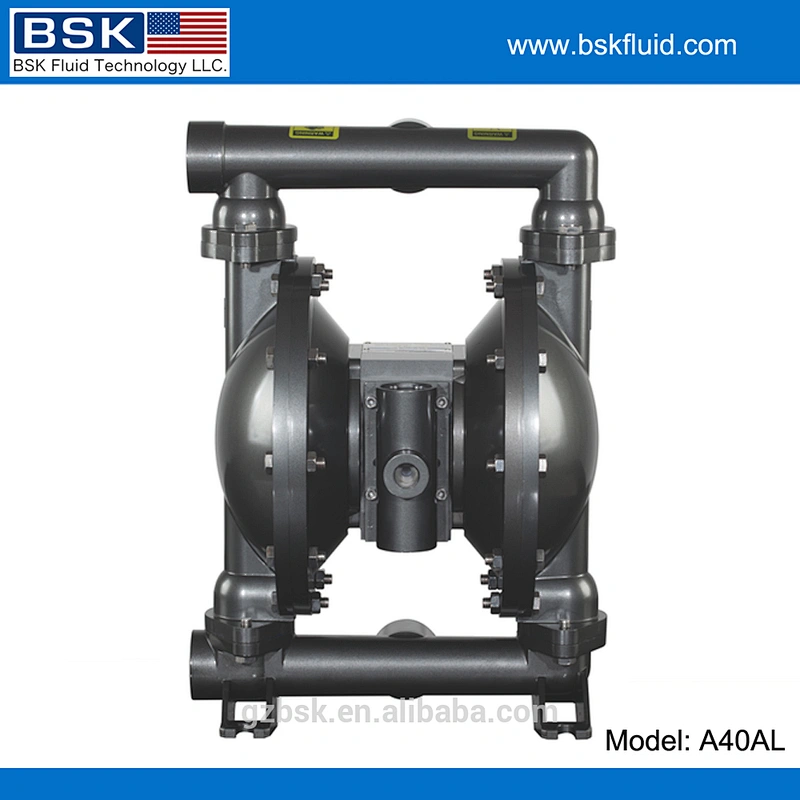

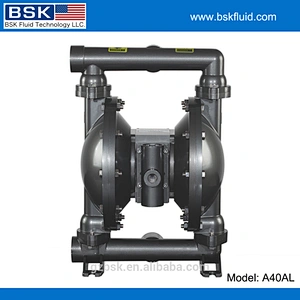

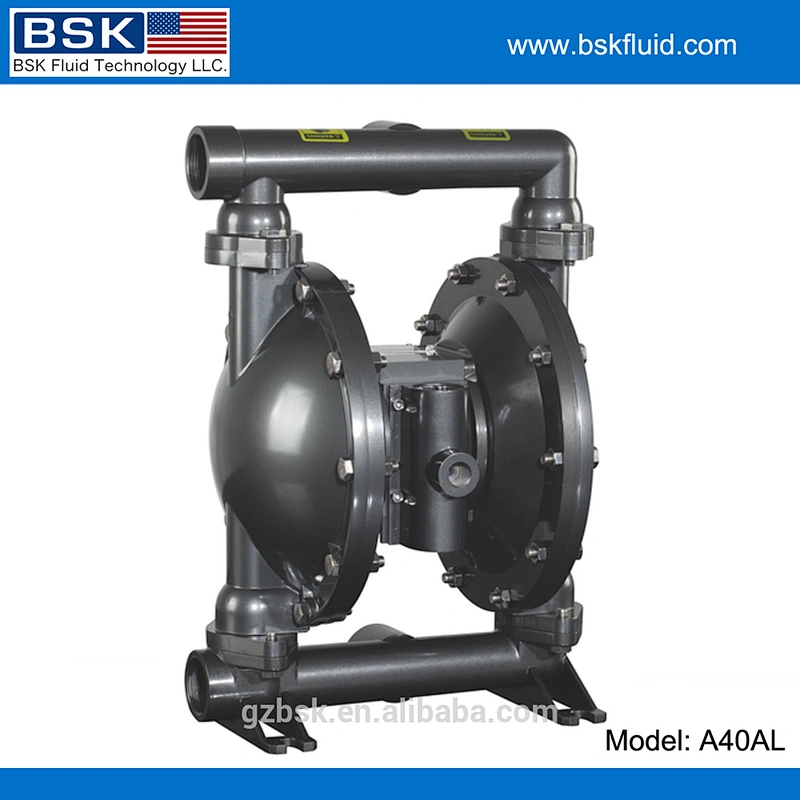

- Model Number:A40AL-PTT-A
- Pressure:8.3 Bar
- Fuel:Air
- Application:Liquid pumping
- Theory:Air operated diaphragm pump

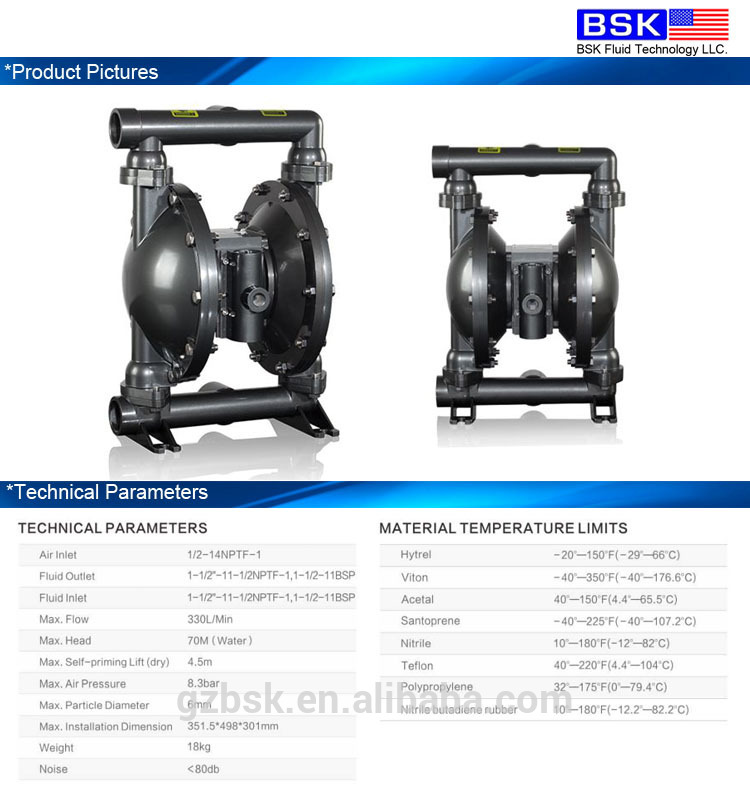

- Air Inlet:1/2-14NPTF-1
- Liquid Outlet:1--1/2"-11-1/2NPTF-1,1-1/2-11BSP
- Liquid Inlet:1--1/2"-11-1/2NPTF-1,1-1/2-11BSP

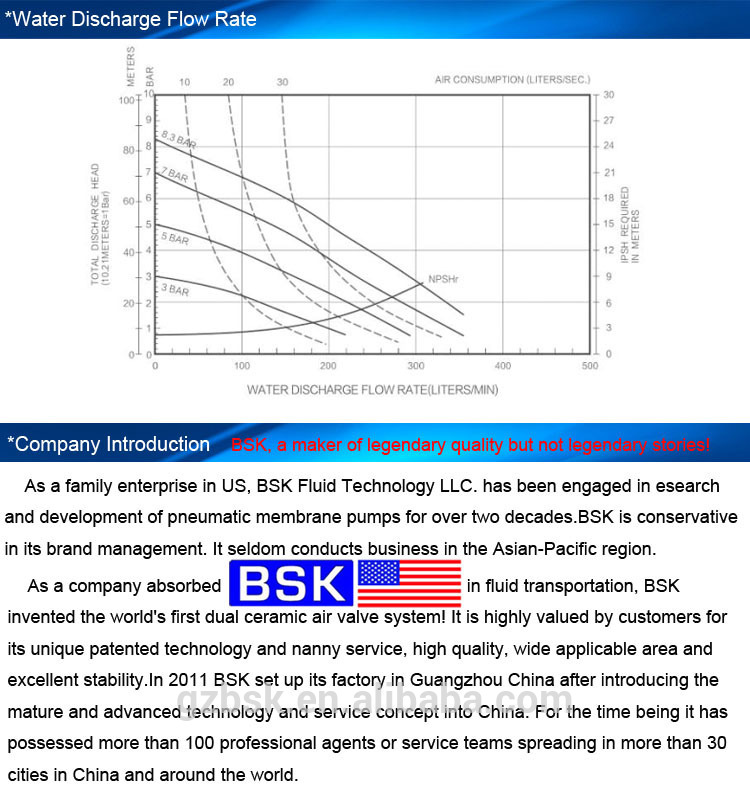

- Max Flow:330L/Min
- Max Head:70M/Water
- Max Self-Priming Lift(Dry):4.5M
- Max Air Pressure:8.3Bar
- Max Particle Diameter:6mm

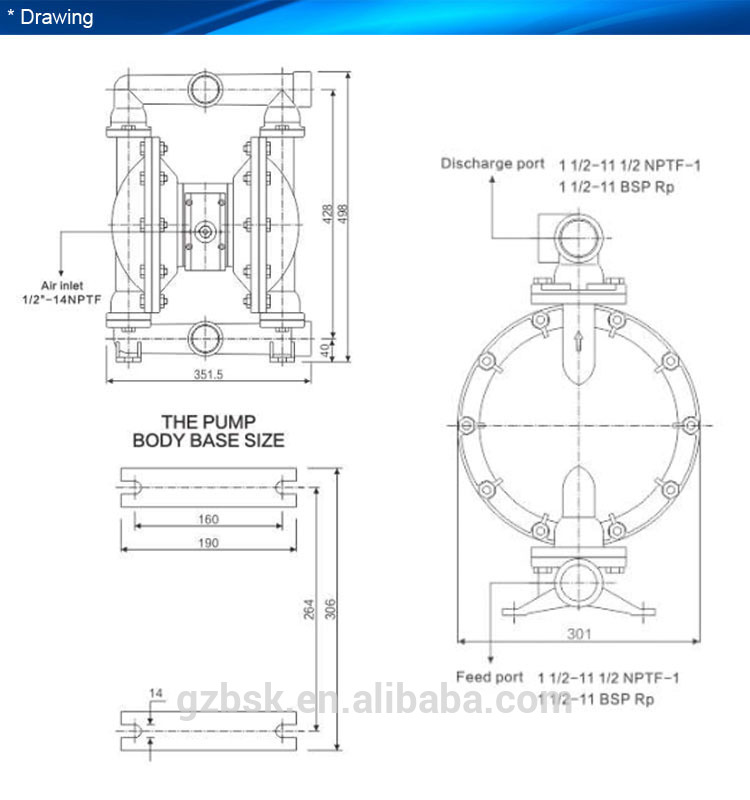

- Max Installation Dimension:351.5*498*301cm
- Weight:18KG
| Model No. | Pipe Size | Air side/ Fluid side Material | Seat Material | Diaphragm/Ball Material |
| A40AL-PTT-A | 1 1/2’inch | Aluminium Alloy (AL) | Polypropylene (PP) | PTFE |
| Product Description | ||||
Pneumatic diaphragm pump is a new transport machinery , is currently one of the most innovative pump . Using compressed gas as a power source for a variety of corrosive liquid , with particles of liquid , high viscosity , volatile, flammable, poisonous liquid can be pumped optical exhaustion . There are four pneumatic diaphragm material: plastic , aluminum, cast iron , stainless steel. Pneumatic diaphragm pumps were used nitrile To meet the needs of different users . Placed in a variety of special occasions , for pumping a variety of conventional pumps can not pump the media , have achieved satisfactory results. | ||||
| Product Application | ||||
| * | Sandering machinery | Grinding varnish.There have lots of bead mills in varnish and chemical factories.Need pumps can start up with low pressure and endure 85 Celsius. | ||
| * | Moving baggy filter | Industrial wastewater filtration or chemical material separation | ||
| * | Material Mixer | Chemical machinery or chemical plant use | ||
| * | Ink/printing machinery | Mainly transfer ink. ep: printing machinery of newspaper/ magazine's . | ||
| * | Pressure filter | Plate-and-frame type filter press, for filter polluted water and separate moisture material. | ||
| * | Detergent factory | Water-based glass cleaner | ||
| * | Chemical Factory | Material handling or removable barrels material ( instead of drum pumps ) | ||
| * | Paint Filling Machine | pumping varnish for filling and packaging | ||
| * | Pressure filter | Plate-and-frame type filter press, for filter polluted water and separate moisture material. | ||
| * | Feed factory | Pumping animal blood for refining the Protein to be the fodder | ||
| * | Moving baggy filter | Industrial wastewater filtration or chemical material separation | ||
| * | Stencil Cleaner | Emerging industries ( steel washing machines or stencil cleaning machines) | ||
| * | Packaging Machinery | Pumping adhesives or glass glue etc. | ||
    | ||||
