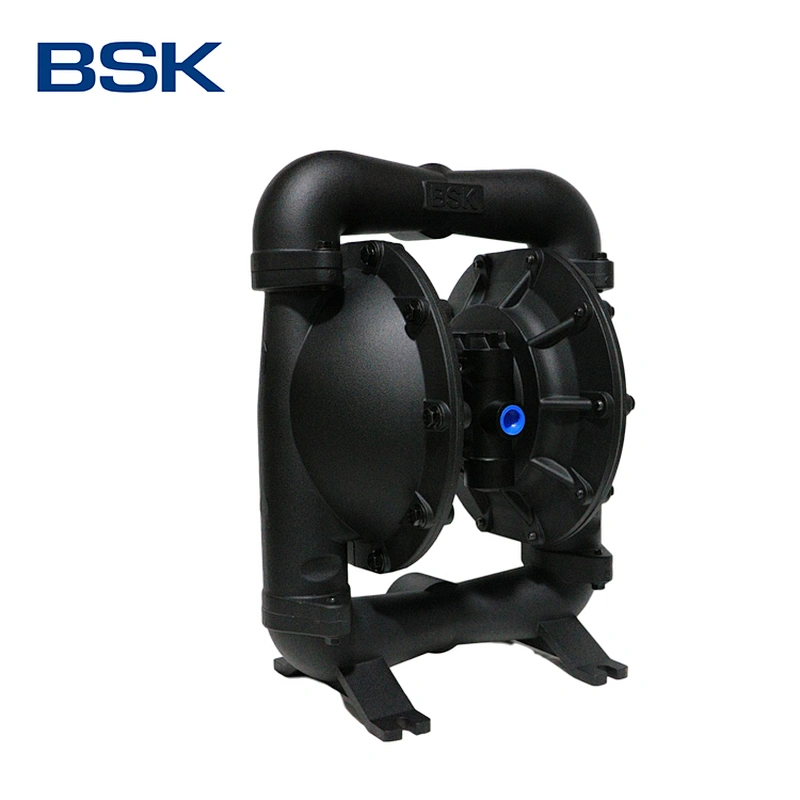

2 inch aluminum alloy air operated double chamber pneumatic diaphragm pumps
2 inch aluminum alloy air operated double chamber pneumatic diaphragm pumps
2 inch aluminum alloy air operated double chamber pneumatic diaphragm pumps
2 inch aluminum alloy air operated double chamber pneumatic diaphragm pumps
2 inch aluminum alloy air operated double chamber pneumatic diaphragm pumps
2 inch aluminum alloy air operated double chamber pneumatic diaphragm pumps
2 inch aluminum alloy air operated double chamber pneumatic diaphragm pumps

2 inch aluminum alloy air operated double chamber pneumatic diaphragm pumps

Model NO.
BA50AL-9991-A
Price:
USD 1.00-500.00 / piece
Minimum order quantity:
1 piece
Supply Ability:
2000 piece / Month
Country of Origin:
Guangzhou
Quantity:
  • Place of Origin:CN;GUA
  • Structure:Diaphragm Pump
  • Power:Pneumatic
  • Brand Name:BSK
  • Usage:Air Pump
  • Standard or Nonstandard:Standard
  • Model Number:A50AL-999-A

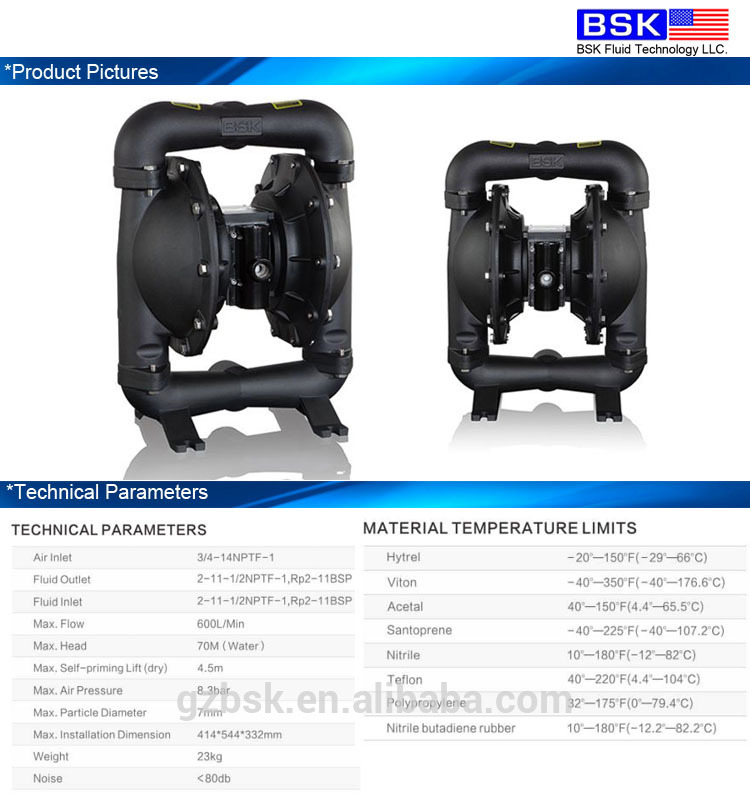

  • Pressure:8.3 Bar
  • Fuel:Air
  • Application:Liquid pumping
  • Theory:Air operated diaphragm pump
  • Air Inlet:3/4-14NPTF-1
  • Liquid Outlet:2-11-1/2NPTF-1,Rp2-11BSP
  • Liquid Inlet:2-11-1/2NPTF-1,Rp2-11BSP

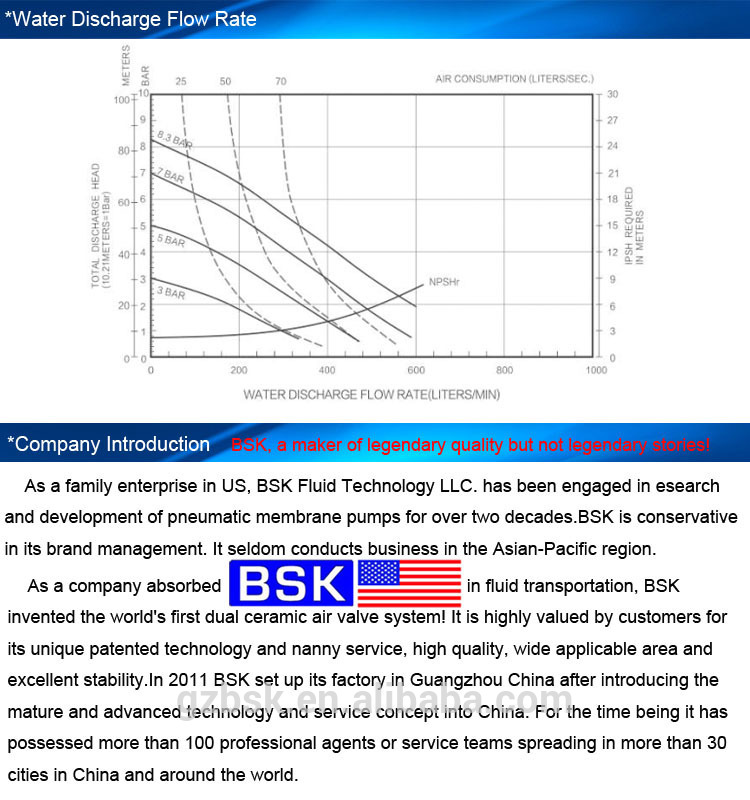

  • Max Flow:600L/Min
  • Max Head:70M/Water
  • Max Self-Priming Lift(Dry):4.5M
  • Max Air Pressure:8.3Bar
  • Max Particle Diameter:7mm

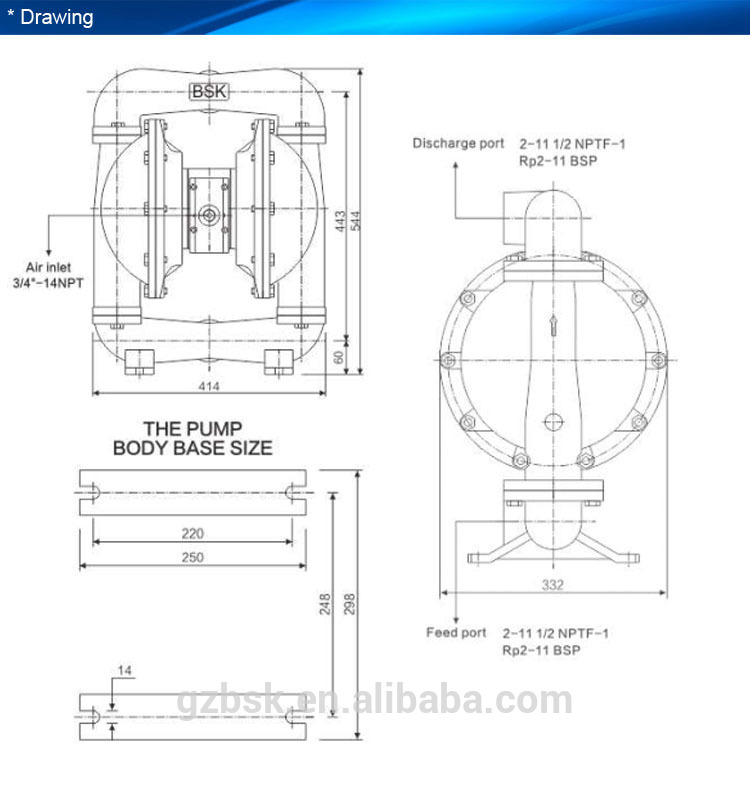

  • Max Installation Dimension:414*544*332cm
  • Weight:23KG
Model No.Pipe SizeAir side/
Fluid side Material
Seat MaterialDiaphragm/Ball
Material
A50AL-999-A2’inchAluminium Alloy
(AL)
SantonpreneSantonprene
Product Description

Pneumatic diaphragm pump is a new transport machinery , is currently one of the most

innovative pump . Using compressed gas as a power source for a variety of corrosive liquid ,

with particles of liquid , high viscosity , volatile, flammable, poisonous liquid can be pumped

optical exhaustion . There are four pneumatic diaphragm material: plastic , aluminum, cast iron ,

stainless steel. Pneumatic diaphragm pumps were used nitrile
rubber,neoprene , Viton , Teflon , depending on the liquid medium , poly ethylene forty-six . To meet the needs of different users . Placed in a variety of special occasions , for pumping

a variety of conventional pumps can not pump the media , have achieved satisfactory results.

Product Application
*Pressure filterPlate-and-frame type filter press, for filter polluted water
and separate moisture material.
*Chemical FactoryMaterial handling or removable barrels material ( instead
of drum pumps )
*Ceramic industryCeramic manufacturers pumping pulp extract clay and pottery
*Paint factoryPumping materials or do filling machinery function
*MinePumping sewage
*Moving baggy filter

Industrial wastewater filtration or chemical material

separation

*Paint Filling
Machine
pumping varnish for filling and packaging
