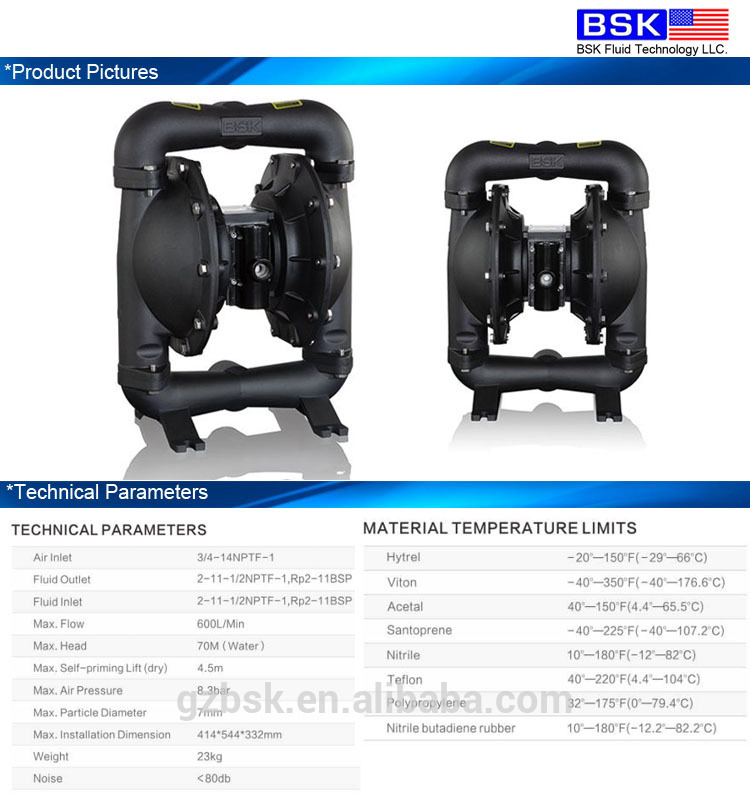

- Place of Origin:CN;GUA
- Structure:Diaphragm Pump
- Power:Pneumatic
- Brand Name:BSK
- Usage:Air Pump
- Standard or Nonstandard:Standard

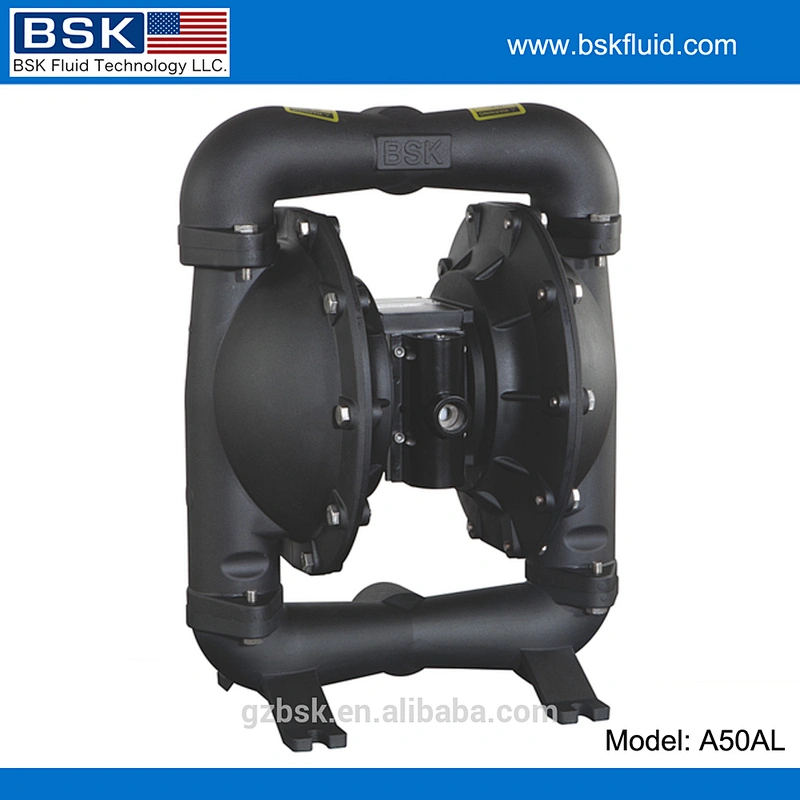

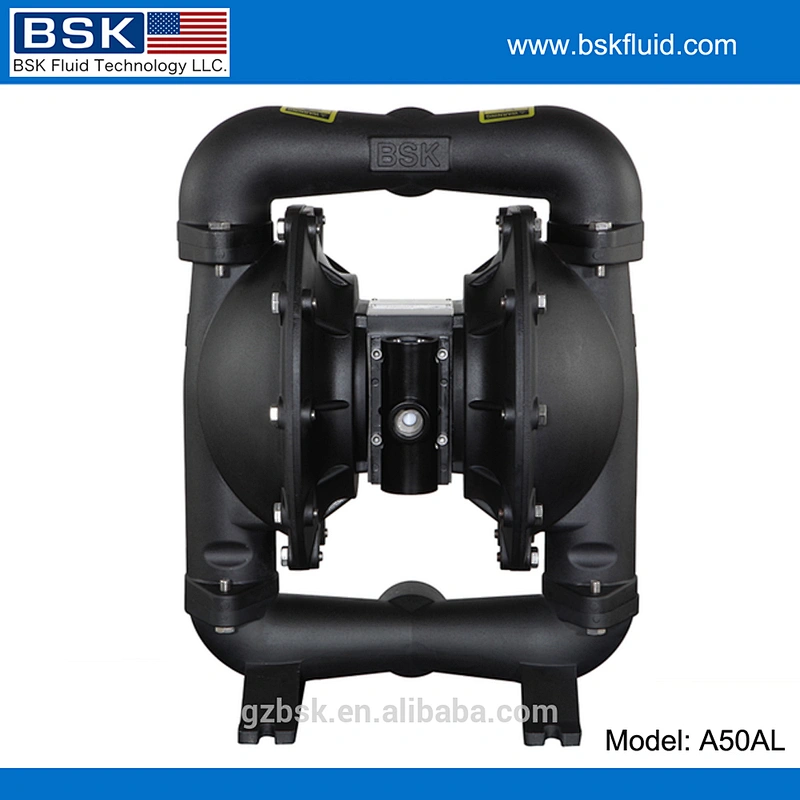

- Model Number:A50AL-999-A
- Pressure:8.3 Bar
- Fuel:Air
- Application:Liquid pumping
- Theory:Air operated diaphragm pump
- Air Inlet:3/4-14NPTF-1
- Liquid Outlet:2-11-1/2NPTF-1,Rp2-11BSP
- Liquid Inlet:2-11-1/2NPTF-1,Rp2-11BSP

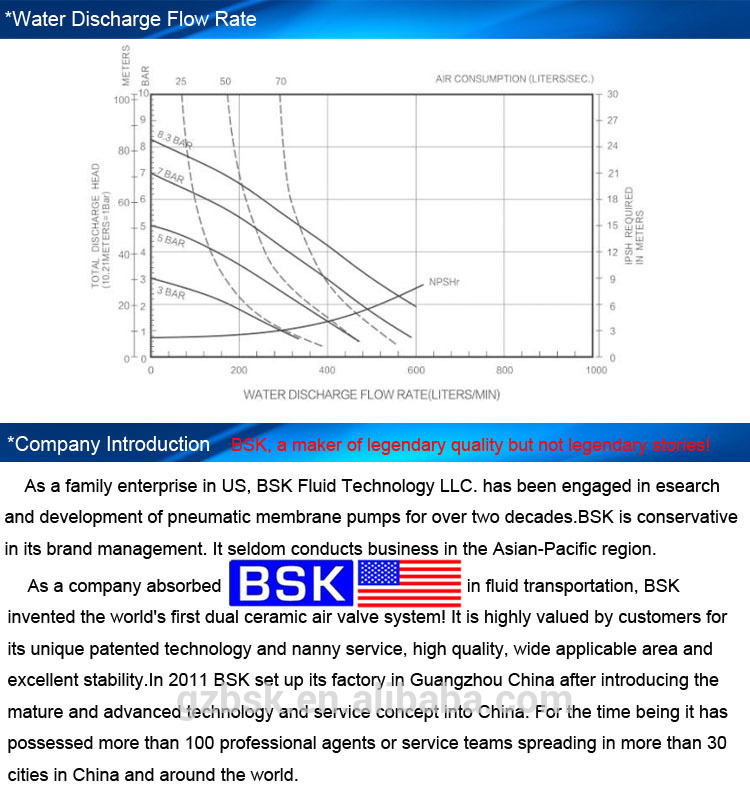

- Max Flow:600L/Min
- Max Head:70M/Water
- Max Self-Priming Lift(Dry):4.5M
- Max Air Pressure:8.3Bar
- Max Particle Diameter:7mm

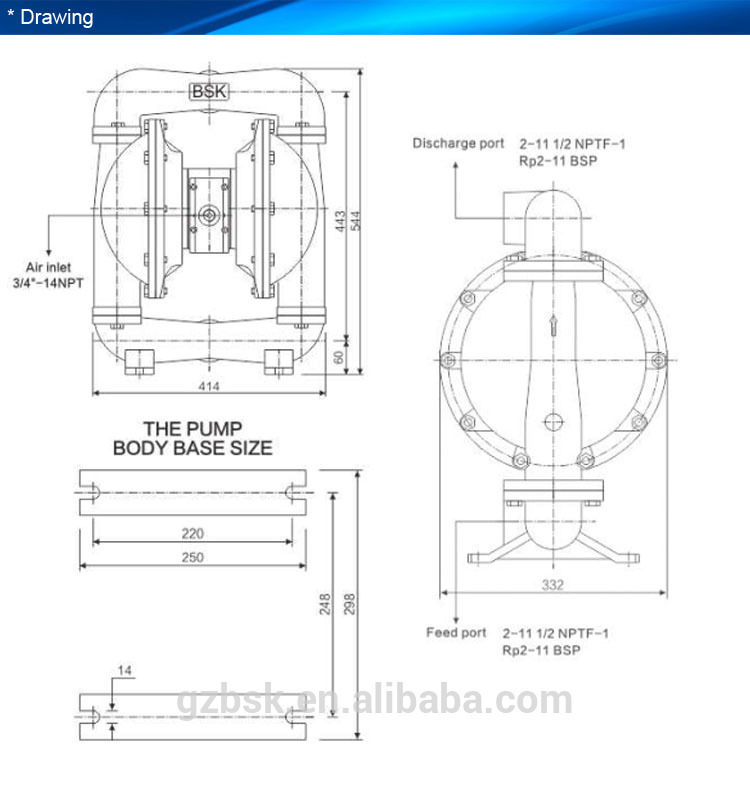

- Max Installation Dimension:414*544*332cm
- Weight:23KG
| Model No. | Pipe Size | Air side/ Fluid side Material | Seat Material | Diaphragm/Ball Material |
| A50AL-999-A | 2’inch | Aluminium Alloy (AL) | Santonprene | Santonprene |
| Product Description | ||||
Pneumatic diaphragm pump is a new transport machinery , is currently one of the most innovative pump . Using compressed gas as a power source for a variety of corrosive liquid , with particles of liquid , high viscosity , volatile, flammable, poisonous liquid can be pumped optical exhaustion . There are four pneumatic diaphragm material: plastic , aluminum, cast iron , stainless steel. Pneumatic diaphragm pumps were used nitrile a variety of conventional pumps can not pump the media , have achieved satisfactory results. | ||||
| Product Application | ||||
| * | Pressure filter | Plate-and-frame type filter press, for filter polluted water and separate moisture material. | ||
| * | Chemical Factory | Material handling or removable barrels material ( instead of drum pumps ) | ||
| * | Ceramic industry | Ceramic manufacturers pumping pulp extract clay and pottery | ||
| * | Paint factory | Pumping materials or do filling machinery function | ||
| * | Mine | Pumping sewage | ||
| * | Moving baggy filter | Industrial wastewater filtration or chemical material separation | ||
| * | Paint Filling Machine | pumping varnish for filling and packaging | ||
    | ||||
