- Place of Origin:CN;GUA
- Structure:Diaphragm Pump
- Power:Pneumatic
- Brand Name:BSK
- Usage:Air Pump
- Standard or Nonstandard:Standard

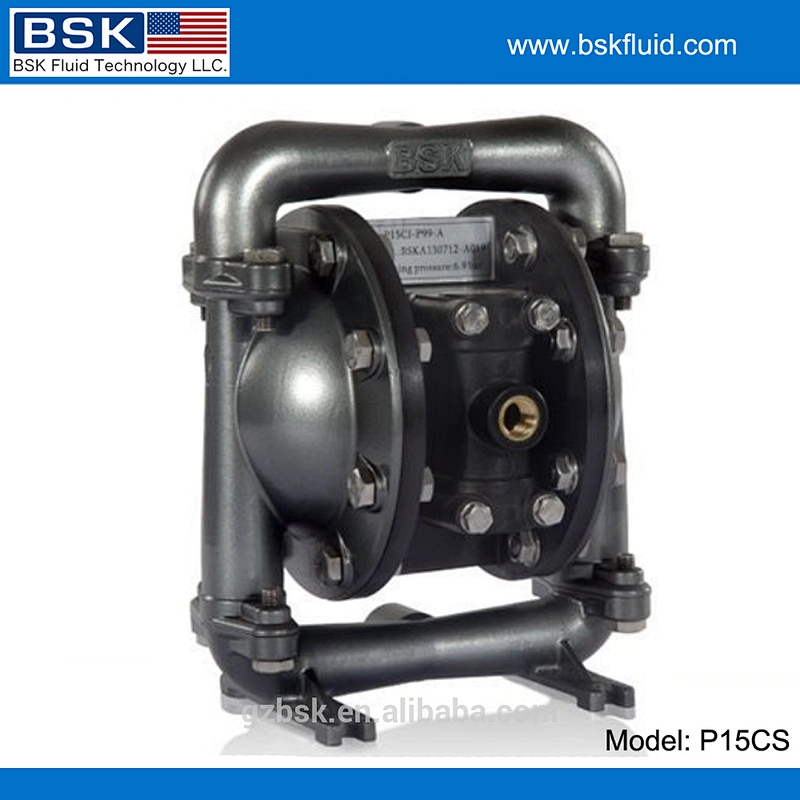

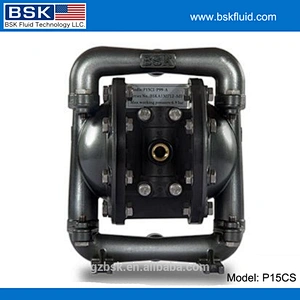

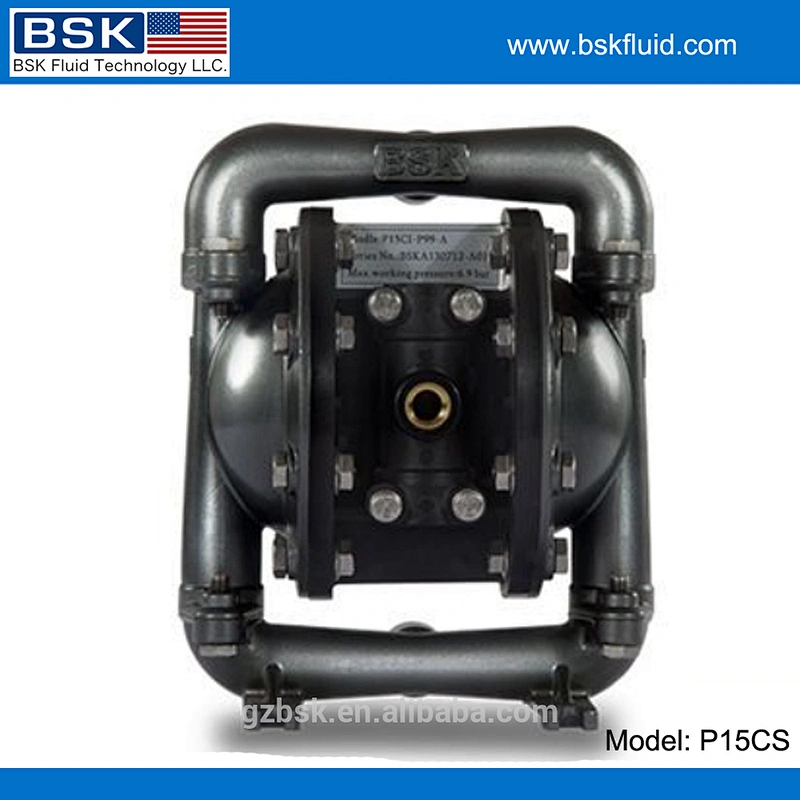

- Model Number:P15CS-PTT-A
- Pressure:6.9 Bar
- Fuel:Air
- Application:Liquid pumping
- Theory:Air operated diaphragm pump

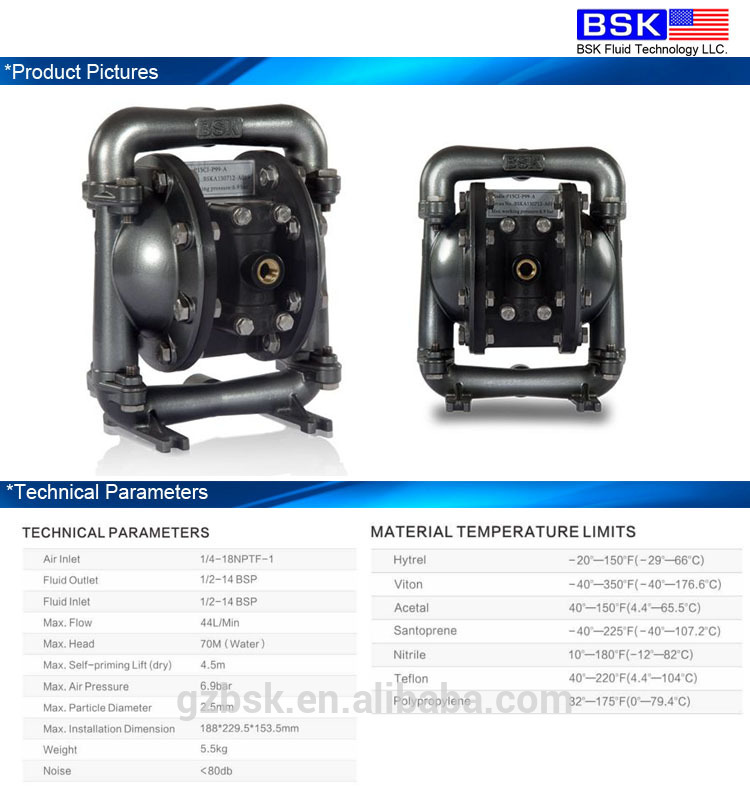

- Air Inlet:1/4-18NPTF-1
- Liquid Outlet:1/2-14NPTF-1
- Liquid Inlet:1/2-14NPTF-1

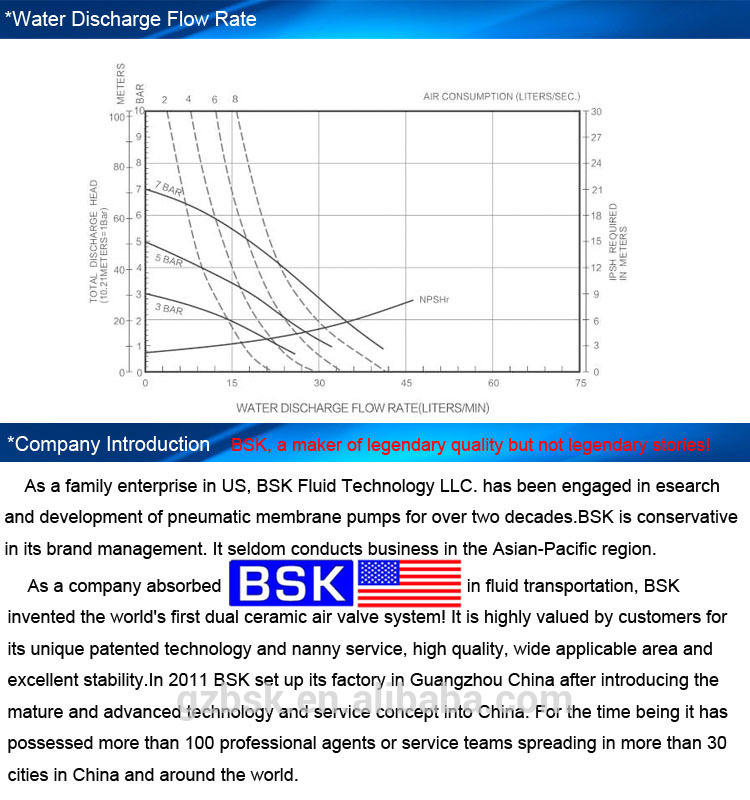

- Max Flow:44L/Min
- Max Head:70M/Water
- Max Self-Priming Lift(Dry):4.5M
- Max Air Pressure:6.9Bar
- Max Particle Diameter:2.5mm

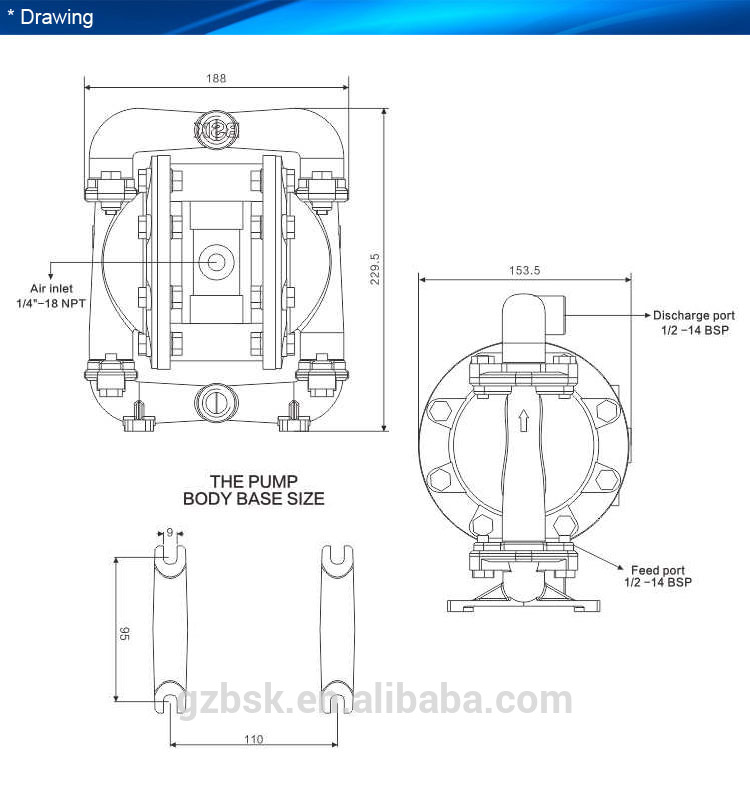

- Max Installation Dimension:188*229.5*153.5mm
- Weight:5.5KG
| Model No. | Pipe Size | Air side/ Fluid side Material | Seat Material | Diaphragm/Ball Material |
| P15CS-PTT-A | 1/2’inch | Casting steel (CS) | Polypropylene(PP) | PTFE |
| Product Description | ||||
Pneumatic diaphragm pump is a new transport machinery , is currently one of the most innovative pump . Using compressed gas as a power source for a variety of corrosive liquid , with particles of liquid , high viscosity , volatile, flammable, poisonous liquid can be pumped optical exhaustion . There are four pneumatic diaphragm material: plastic , aluminum , cast iron , stainless steel. Pneumatic diaphragm pumps were used nitrile,rubber,neoprene , Viton , Teflon , depending on the liquid medium , poly ethylene forty-six . To meet the needs of different users . Placed in a variety of special occasions , for pumping a variety of convention al pumps can not pump the media , have achieved satisfactory results. | ||||
| Product Application | ||||
| * | Ink/Printing Machinery | 20PCS and above pumps in 1 ink equipments production line, mainly transfer ink, for example: printing machines for newspaer and magazine. | ||
| * | Spraying Machinery | For spraying production line, especial for transfering paint. Where give stainless steel tanks to reduce the general pulse. example: spraying factory | ||
| * | Ceramic Coating Equipment | 20PCS and above pumps in 1 spraying production lines, spraying glaze or varnish on the surfave of ceramics. | ||
| * | Packaging Machinery / Industry | Cardboard synthesis equipment to extract soda and additives to form a mixing bucket and cassava paste , stick into kraft paper and corrugated | ||
| * | Cardboard printing equipment , pumping ink | |||
| * | Plastic packaging machinery, pumping fancy printing ink | |||
| * | Pharmaceutical Machinery / Industry | Alternative peristaltic pump , as used in the " pill coating machine ," etc. | ||
| * | Cleaning Machinery | Pumping chemical abluent and cleaning materials for pipelines. | ||
| * | Painting / Chemical Machinery | Chemical/ spraying factory, for material cycling | ||
| * | Filter/Environmental Industry | For dosing purposes and adding chemical additive into polluted water according to demand, in order to have effect by condensation and separation | ||
| * | Lubricant filling machinery | Car/motorcycle terminal plant, with the mechanical filling oil for the engine or refrigerant for the gearbox | ||
| * | Ceramic glaze tinting machine | For fully automatic tinting system and production equipments of painting, used in coatings, paints, inks, wallpaper , wallpaper , wood, paper , flexible packaging , ceramics, printing and dyeing , leather, chemicals and other toner printing and dyeing industry. | ||
| * | Automatic ink tinting system | |||
| * | Automatic feeding of distributor | |||
| * | Painting automatic tinting system | |||
| * | Automated Liquid Filling tinting system | |||
| * | Dosing System | Chemical dosing system integration. | ||
    | ||||
