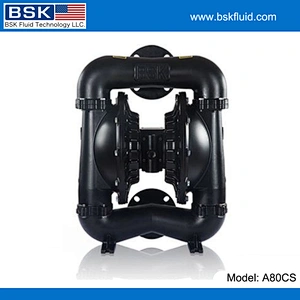

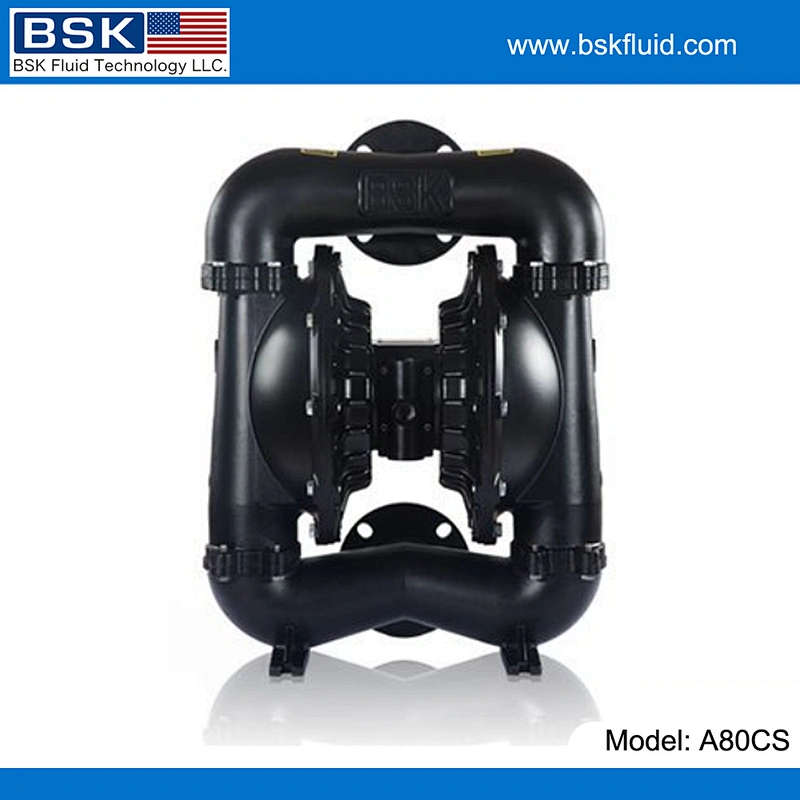

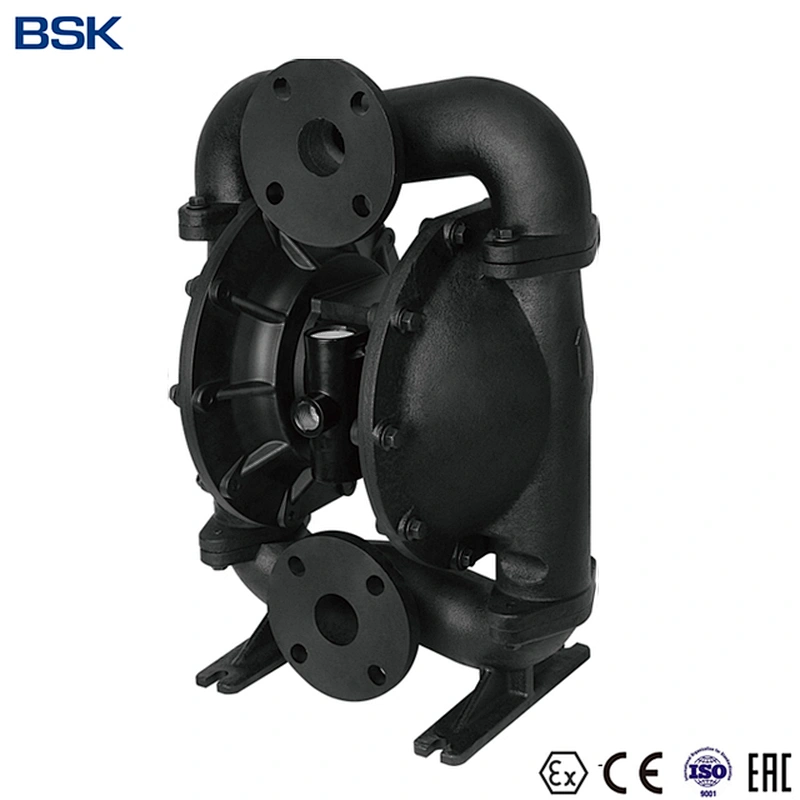

BSK big flow 3" cast iron air diaphragm pump

Model NO.
BA80CI-0TT3-C
Quantity:
  • Place of Origin:CN;GUA
  • Application:Automotive Industry
  • Application:Biofuel Industry
  • Application:Commercial Buildings
  • Application:Developing World Water Solutions
  • Application:District Energy
  • Application:Drinking water treatment
  • Application:Family Homes
  • Application:Food and Beverage Industry
  • Application:HVAC OEM
  • Application:Industrial Boilers
  • Application:Industrial Utilities
  • Application:Irrigation and Agriculture
  • Application:Machining
  • Application:Marine
  • Application:Metal and Equipment Manufacturers
  • Application:Mining industry
  • Application:Pharmaceutical industry
  • Application:Raw Water Intake
  • Application:temperature control
  • Application:Washing and Cleaning
  • Application:Wastewater Transport and Flood Control
  • Application:wastewater treatment
  • Application:Water Distribution
  • Application:Water Treatment Solutions
  • Power Source:Pneumatic
  • Structure:Diaphragm Pump
  • Certification:ce
  • Brand Name:BSK
  • Model Number:BA80CI-0TT3-C
  • Pressure:8.3 Bar
  • Power Source:Compressed air
  • Certification:ISO9001
  • Brand:BSK
  • Theory:Air operated diaphragm pump
  • Fluid inlet/outlet:3"Flange
  • Max Flow:903L/Min
  • Max Head:70M/Water
  • Max Self-Priming Lift(Dry):4.5M
  • Max Air Pressure:8.3Bar
  • Max Particle Diameter:9mm
  • Max Installation Dimension:542*247*403cm
  • Weight:42KG
Model No.Pipe SizeAir side/
Fluid side Material
Seat MaterialDiaphragm/Ball
Material
BA80CI-0TT3-C3’inchcasting ironPolypropylene
(PP)
PTFE
Product Description

Pneumatic diaphragm pump is a new transport machinery , is currently one of the most

innovative pump . Using compressed gas as a power source for a variety of corrosive liquid ,

with particles of liquid , high viscosity , volatile, flammable, poisonous liquid can be pumped

optical exhaustion . There are four pneumatic diaphragm material: plastic , aluminum, cast iron ,

stainless steel. Pneumatic diaphragm pumps were used nitrile
rubber,neoprene , Viton , Teflon , depending on the liquid medium , poly ethylene forty-six .

To meet the needs of different users . Placed in a variety of special occasions , for pumping

a variety of conventional pumps can not pump the media , have achieved satisfactory results.

Product Application
*Chemical Factory

Material handling or removable barrels material ( instead of

drum pumps ),applicable to concentrated sulfuric acid, nitric

acid and other strong oxidizing materials.

*Pharmaceutical factoryMaterial handling or removable barrels material
( instead of drum pumps )
*Biological technology factoryPumping animal blood for refining
*New energy plant/
multi crystalline silicon plant
Pumping polysilicon raw material for solar
*Commodity FactoryPumping perfume / fragrance / dairy mixture
*Pressure filterPlate-and-frame type filter press, for filter polluted water
and separate moisture material.
*Moving baggy filterIndustrial wastewater filtration or chemical material separation
