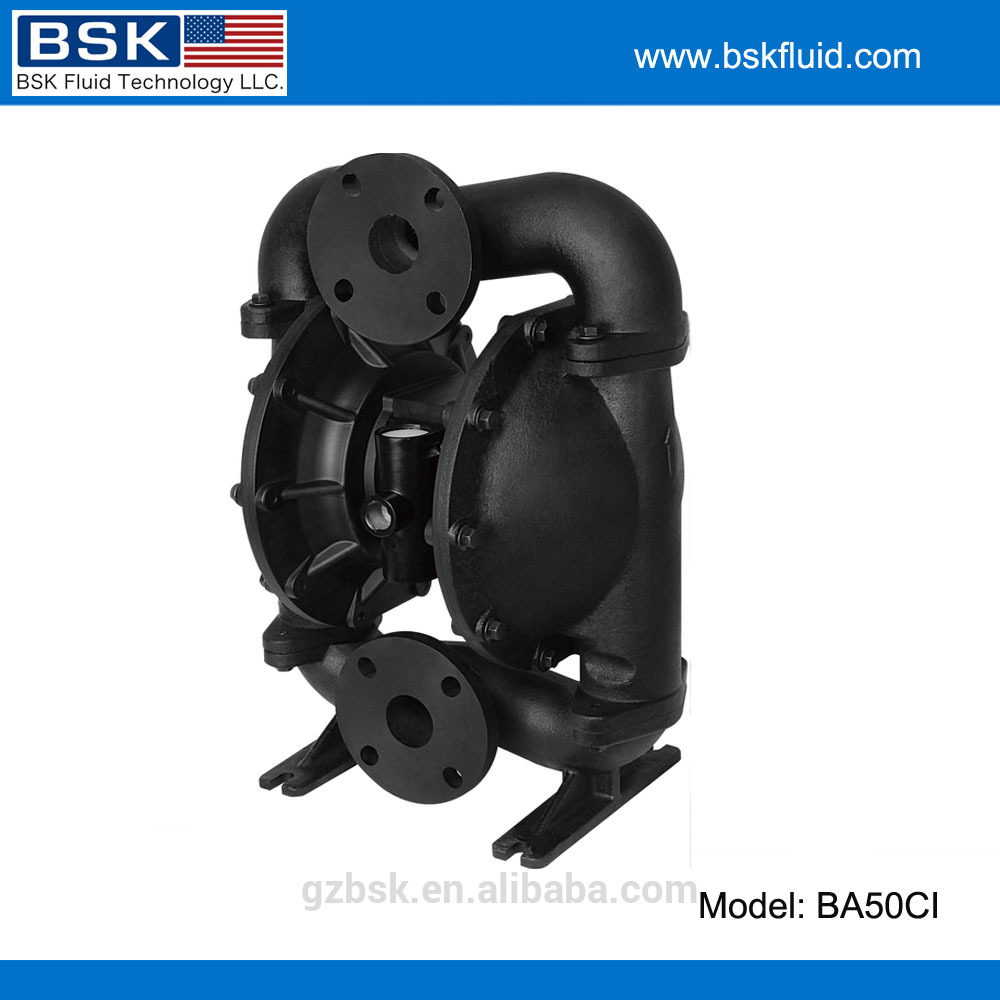

Vegetable Oil Transfer cheap cast iron 2" pipe Aodd Pump

Model NO.
BA50CS-DTT3-C
Quantity:
  • Place of Origin:CN;GUA
  • Structure:Diaphragm Pump
  • Power:Pneumatic
  • Brand Name:BSK
  • Usage:Air Pump
  • Standard or Nonstandard:Standard
  • Model Number:BA50CS-DTT3-C
  • Pressure:8.3 Bar
  • Fuel:Air
  • Application:Liquid pumping
  • Theory:Air operated diaphragm pump
  • Air Inlet:3/4-14NPTF-1
  • Liquid Outlet:2"Flange
  • Liquid Inlet:2"Flange
  • Max Flow:600L/Min
  • Max Head:70M/Water
  • Max Self-Priming Lift(Dry):4.5M
  • Max Air Pressure:8.3Bar
  • Max Particle Diameter:7mm
  • Max Installation Dimension:415*332*595cm
  • Weight:51.5KG
Model No.Pipe SizeAir side/
Fluid side Material
Seat MaterialDiaphragm/Ball
Material
BA50CS-DTT3-C2’inchCasting steel
(CS)
Polypropylene
(PP)
PTFE
Product Description

Pneumatic diaphragm pump is a new transport machinery , is currently one of the most

innovative pump . Using compressed gas as a power source for a variety of corrosive liquid ,

with particles of liquid , high viscosity , volatile, flammable, poisonous liquid can be pumped

optical exhaustion . There are four pneumatic diaphragm material: plastic , aluminum, cast iron ,

stainless steel. Pneumatic diaphragm pumps were used nitrile
rubber,neoprene , Viton , Teflon , depending on the liquid medium , poly ethylene forty-six . To meet the needs of different users . Placed in a variety of special occasions , for pumping

a variety of conventional pumps can not pump the media , have achieved satisfactory results.

Product Application
*Pressure filterPlate-and-frame type filter press, for filter polluted water
and separate moisture material.
*

Cardboard packaging

machinery

Cardboard synthesis equipment to extract paste,

adhesive kraft paper and corrugated

*Chemical FactoryMaterial handling or removable barrels material
( instead of drum pumps )
*Moving baggy filter

Industrial wastewater filtration or chemical material

separation

*Paint filling machinerypumping varnish for filling and packaging
*Tank Cleaning Machine
