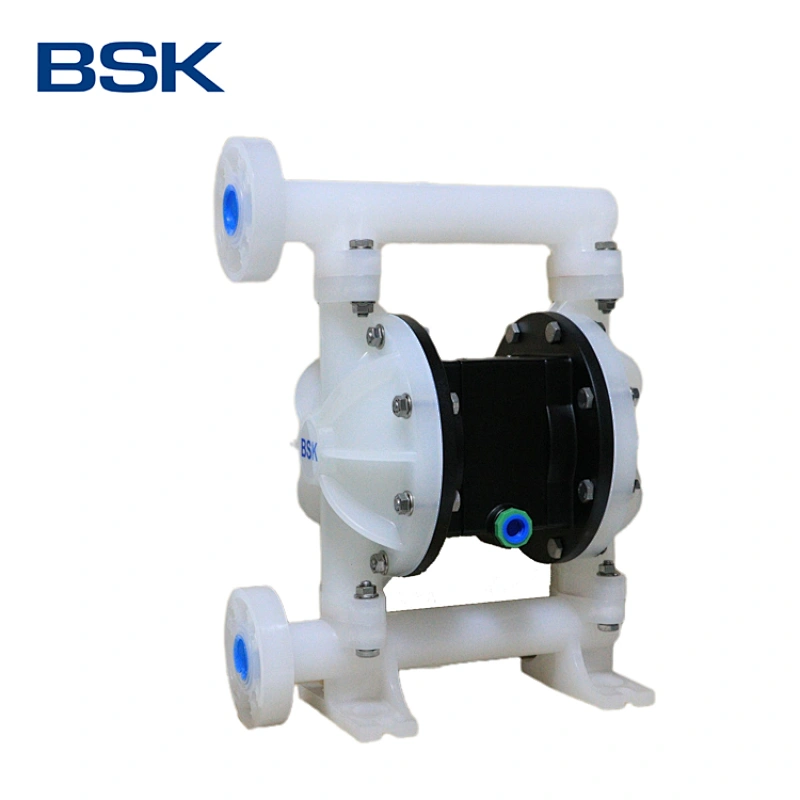

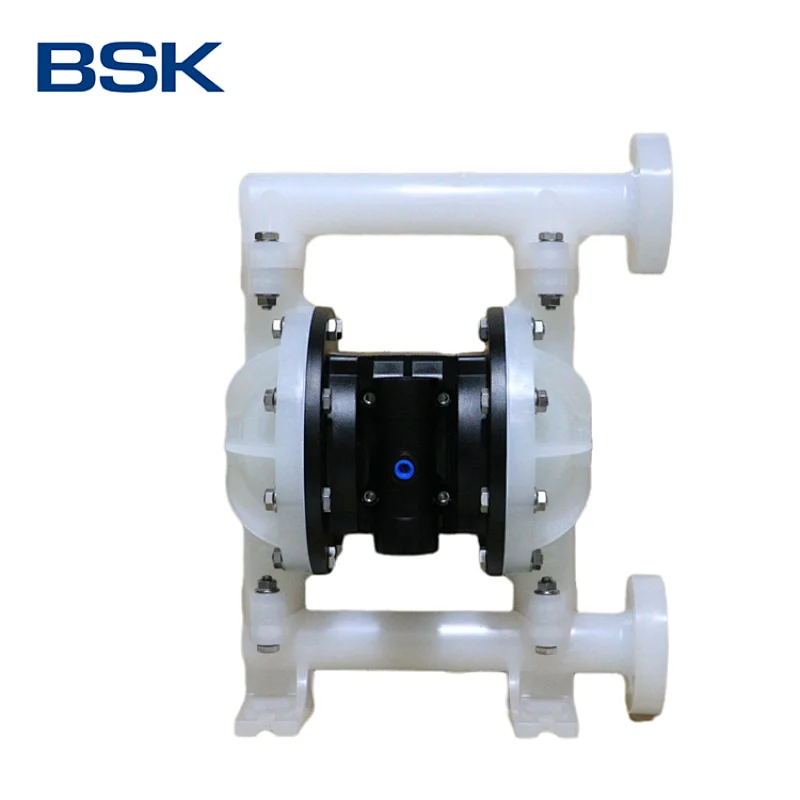

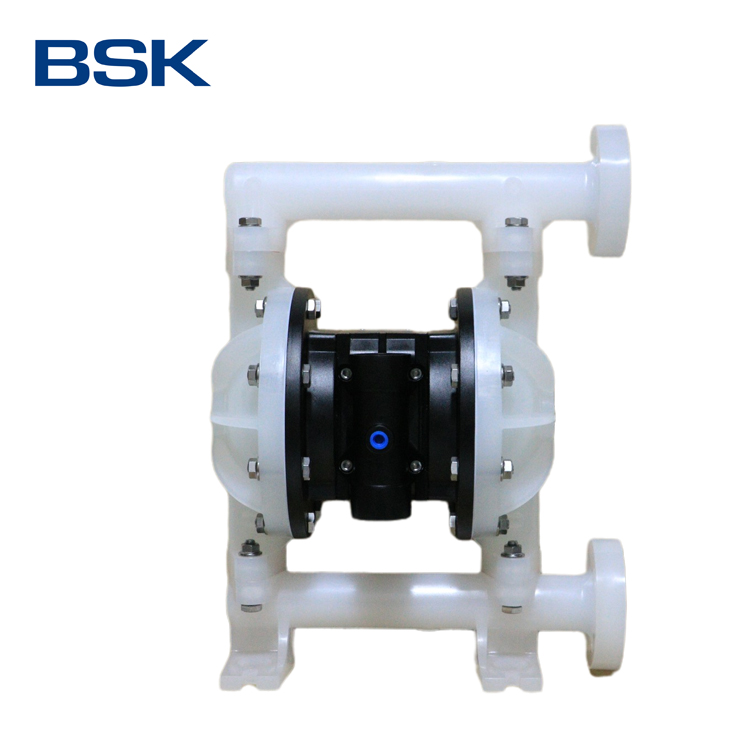

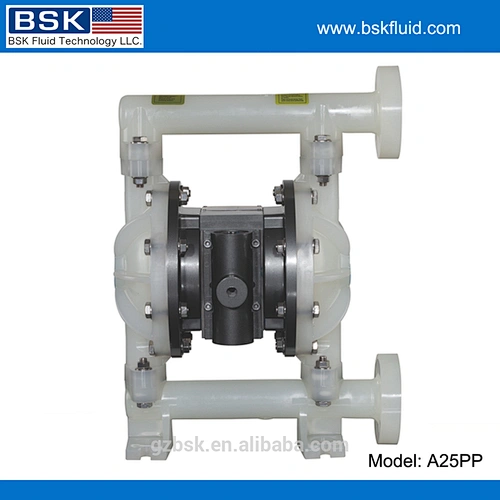

Glue pumping air driven pneumatic diaphragm pump
Glue pumping air driven pneumatic diaphragm pump
Glue pumping air driven pneumatic diaphragm pump
Glue pumping air driven pneumatic diaphragm pump
Glue pumping air driven pneumatic diaphragm pump

Glue pumping air driven pneumatic diaphragm pump

Model NO.
BA25PP-PTT3-C
Price:
USD 1.00-450.00 / piece
Minimum order quantity:
1 piece
Supply Ability:
2000 piece / Month
Country of Origin:
Guangzhou
Quantity:
  • Place of Origin:CN;GUA
  • Structure:Diaphragm Pump
  • Power:Pneumatic
  • Brand Name:BSK
  • Usage:Air Pump
  • Standard or Nonstandard:Standard
  • Model Number:A25PP-PTT-C
  • Pressure:8.3 Bar
  • Fuel:Air
  • Application:Liquid pumping
  • Theory:Air operated diaphragm pump

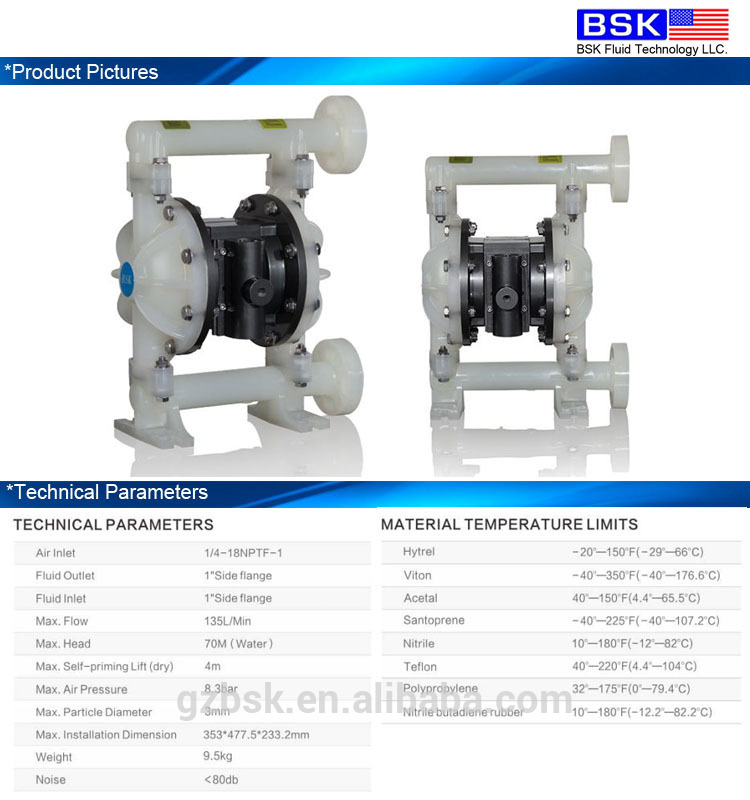

  • Air Inlet:1/4-18NPTF-1
  • Liquid Outlet:1"Side Flange
  • Liquid Inlet:1"Side Flange

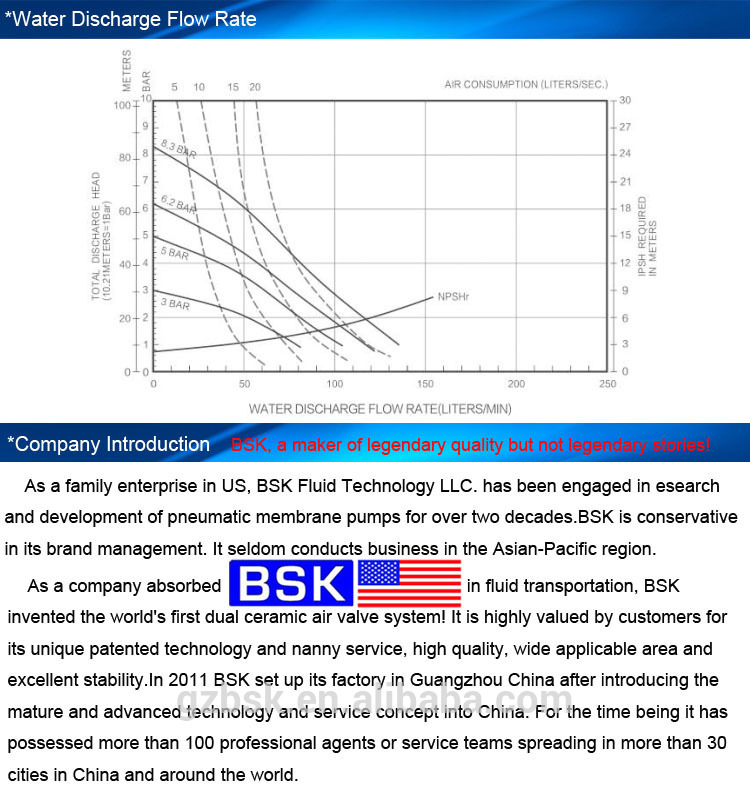

  • Max Flow:135L/Min
  • Max Head:70M/Water
  • Max Self-Priming Lift(Dry):4M
  • Max Air Pressure:8.3Bar
  • Max Particle Diameter:3mm

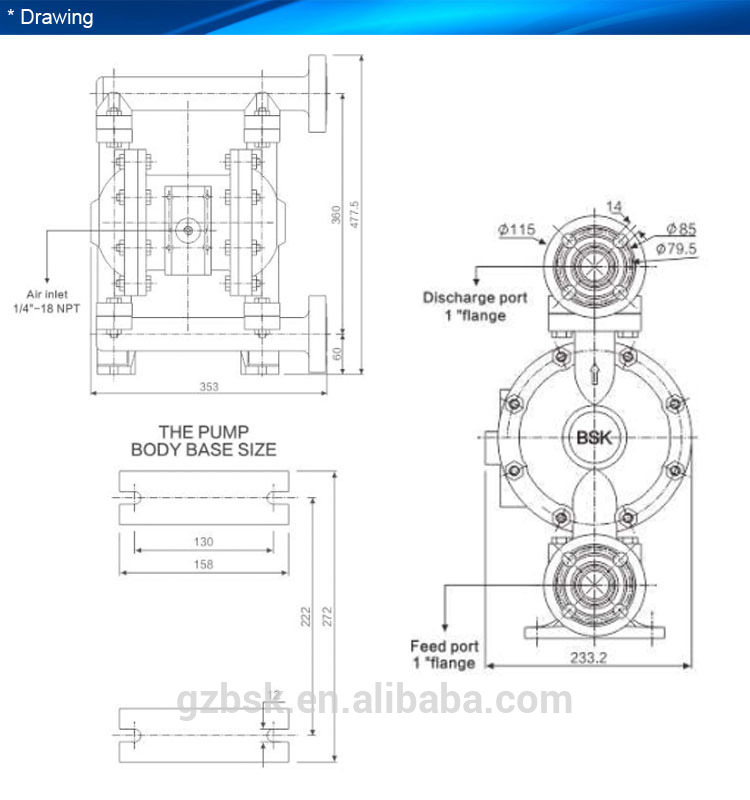

  • Max Installation Dimension:353*477.5*233.2cm
  • Weight:9.5KG

Model No.Pipe SizeAir side/
Fluid side Material
Seat MaterialDiaphragm/Ball
Material
A25PP-PTT-C1’inchPolypropylene
(PP)
Polypropylene
(PP)
PTFE
Product Description

Pneumatic diaphragm pump is a new transport machinery , is currently one of the most

innovative pump . Using compressed gas as a power source for a variety of corrosive liquid

, with particles of liquid , high viscosity , volatile, flammable, poisonous liquid can be pump

ed optical exhaustion . There are four pneumatic diaphragm material: plastic , aluminum, cast

iron , stainless steel. Pneumatic diaphragm pumps were used nitrile rubber,neoprene , Viton ,

Teflon , depending on the liquid medium , poly ethylene fortysix . To meet the needs of different

users . Placed in a variety of special occasions , for pumping a variety of conventional pumps can

not pump the media , have achieved satisfactory results.

Product Application
*Chemical Factory

Material handling or removable barrels material

( instead of
drum pumps )

*Pharmaceutical
factory

Material handling or removable barrels material

( instead of drum pumps )

*Pharmaceutical
chemical factory

Material handling or removable barrels material

( instead of drum pumps )

*Electroplating
Machinery
Pumping plating material or wastewater replacement.
*Spinning factoryDelivery dye for textile/knitting production

  1. it’s unnecessary to pour the drawing water. The suction lift reached 7MM height, the delivery lift reaches 70M length and export pressure
  2. wide flow and good performance ,the diameter allowed pass the max grain reaches 10MM ,the damage is very less to the pump while exhausting the slurry and impurity.
  3. The delivery lift and flow can pass the pneumatic value open to realize the stepless adjustment.
