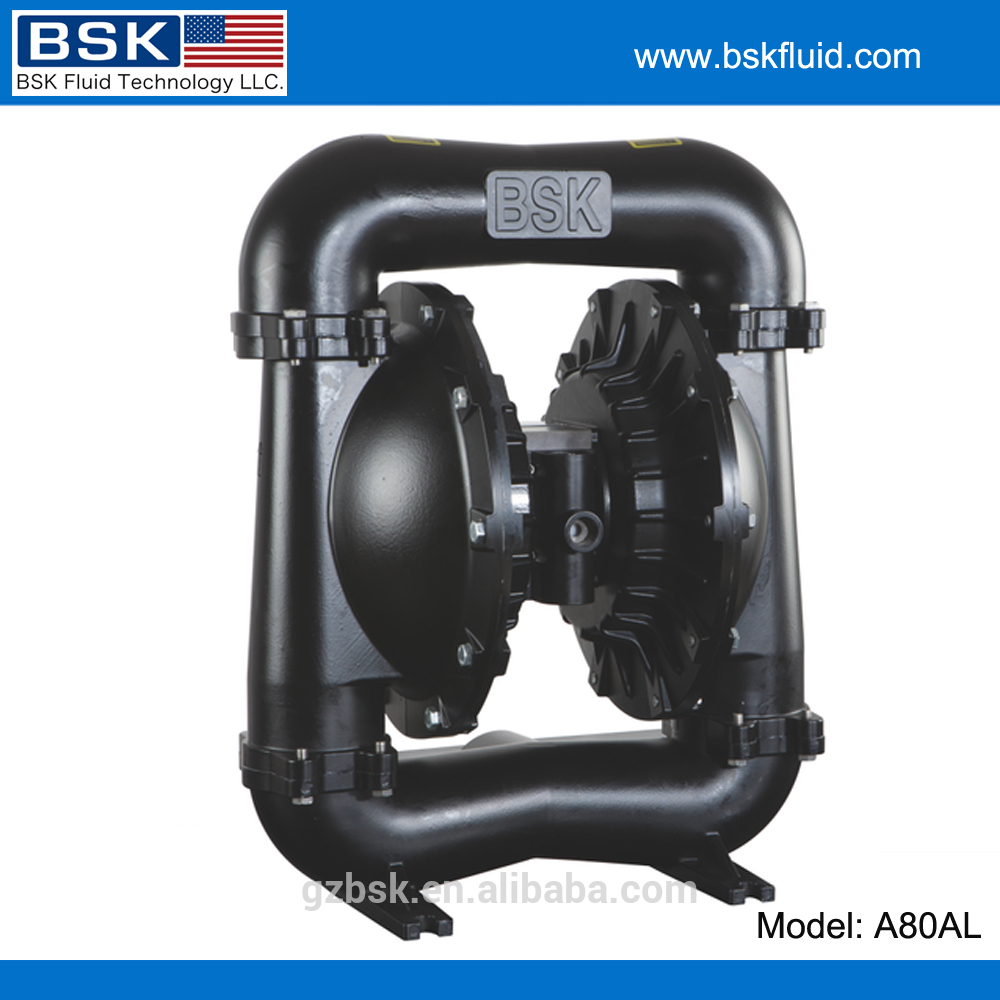

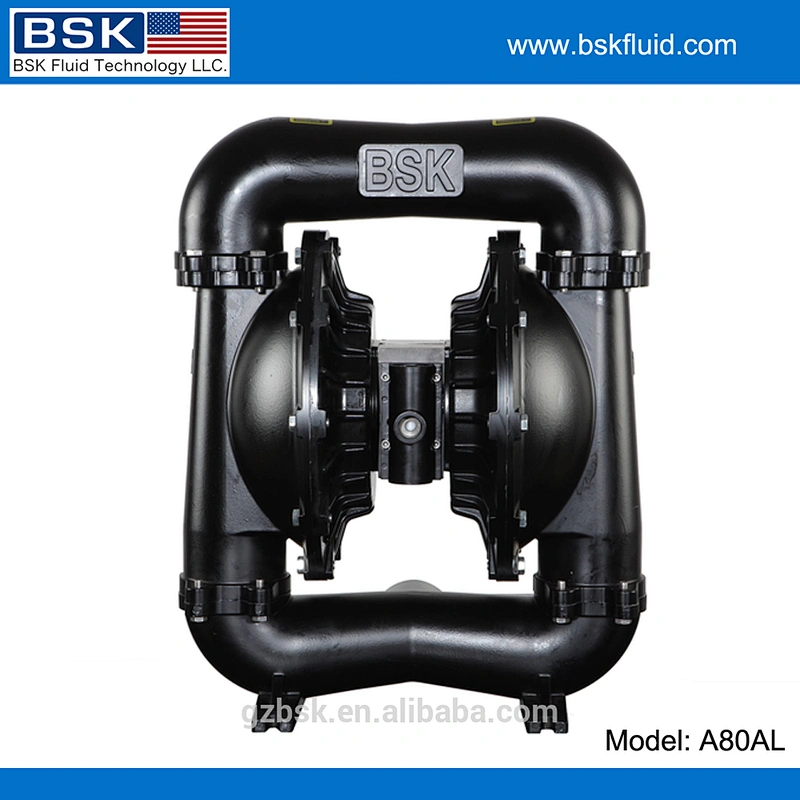

BSK aluminum alloy center body cheap air diaphragm pump
BSK aluminum alloy center body cheap air diaphragm pump
BSK aluminum alloy center body cheap air diaphragm pump
BSK aluminum alloy center body cheap air diaphragm pump
BSK aluminum alloy center body cheap air diaphragm pump

BSK aluminum alloy center body cheap air diaphragm pump

Model NO.
A80AL-999-A
Price:
USD 1.00-800.00 / piece
Minimum order quantity:
1 piece
Supply Ability:
2000 piece / Month
Country of Origin:
Guangzhou
Quantity:
  • Place of Origin:CN;GUA
  • Structure:Diaphragm Pump
  • Power:Pneumatic
  • Brand Name:BSK
  • Usage:Air Pump
  • Standard or Nonstandard:Standard
  • Model Number:A80AL-999-A
  • Pressure:8.3 Bar
  • Fuel:Air
  • Application:Liquid pumping
  • Theory:Air operated diaphragm pump
  • Air Inlet:3/4-14NPTF-1
  • Liquid Outlet:3-8NPTF-1,3-11BSP
  • Liquid Inlet:3-8NPTF-1,3-11BSP
  • Max Flow:880L/Min
  • Max Head:70M/Water
  • Max Self-Priming Lift(Dry):4.5M
  • Max Air Pressure:8.3Bar
  • Max Particle Diameter:9mm
  • Max Installation Dimension:542*680*403cm
  • Weight:42KG
Model No.Pipe SizeAir side/
Fluid side Material
Seat MaterialDiaphragm/Ball
Material
A80AL-999-A3’inchAluminium Alloy
(AL)
SantonpreneSantonprene
Product Description

Pneumatic diaphragm pump is a new transport machinery , is currently one of the most innovative pump .

Using compressed gas as a power source for a variety of corrosive liquid , with particles of liquid , high

viscosity , volatile, flammable, poisonous liquid can be pumped optical exhaustion . There are four pneumatic

diaphragm material: plastic , aluminum, cast iron , stainless steel. Pneumatic diaphragm pumps were used nitrile
rubber,neoprene , Viton , Teflon , depending on the liquid medium , poly ethylene forty-six . To meet the needs

of different users . Placed in a variety of special occasions , for pumping a variety

of conventional pumps can not pump the media , have achieved satisfactory results.

Product Application
*Chemical FactoryMaterial handling or removable barrels material ( instead of drum pumps ),applicable to concentrated sulfuric acid, nitric acid and other strong oxidizing materials.
*Pharmaceutical factoryMaterial handling or removable barrels material
( instead of drum pumps )
*Biological technology factoryPumping animal blood for refining
*New energy plant/
multi crystalline silicon plant
Pumping polysilicon raw material for solar
*Commodity FactoryPumping perfume / fragrance / dairy mixture
*Pressure filterPlate-and-frame type filter press, for filter polluted water
and separate moisture material.
*Moving baggy filterIndustrial wastewater filtration or chemical material separation
