- Place of Origin:CN;GUA
- Application:Automotive Industry
- Application:Biofuel Industry
- Application:Commercial Buildings
- Application:Developing World Water Solutions
- Application:District Energy
- Application:Drinking water treatment
- Application:Family Homes
- Application:Food and Beverage Industry
- Application:HVAC OEM
- Application:Industrial Boilers
- Application:Industrial Utilities
- Application:Irrigation and Agriculture
- Application:Machining
- Application:Marine
- Application:Metal and Equipment Manufacturers
- Application:Mining industry
- Application:Pharmaceutical industry
- Application:Raw Water Intake
- Application:temperature control
- Application:Washing and Cleaning
- Application:Wastewater Transport and Flood Control
- Application:wastewater treatment
- Application:Water Distribution
- Application:Water Treatment Solutions
- Power Source:Pneumatic
- Structure:Diaphragm Pump
- Certification:ce
- Brand Name:BSK

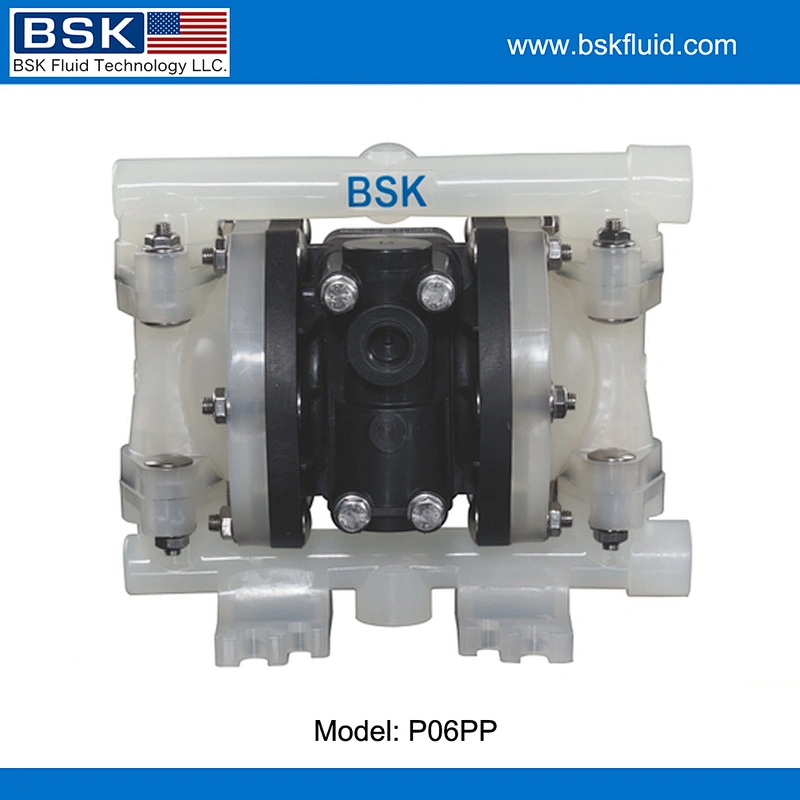

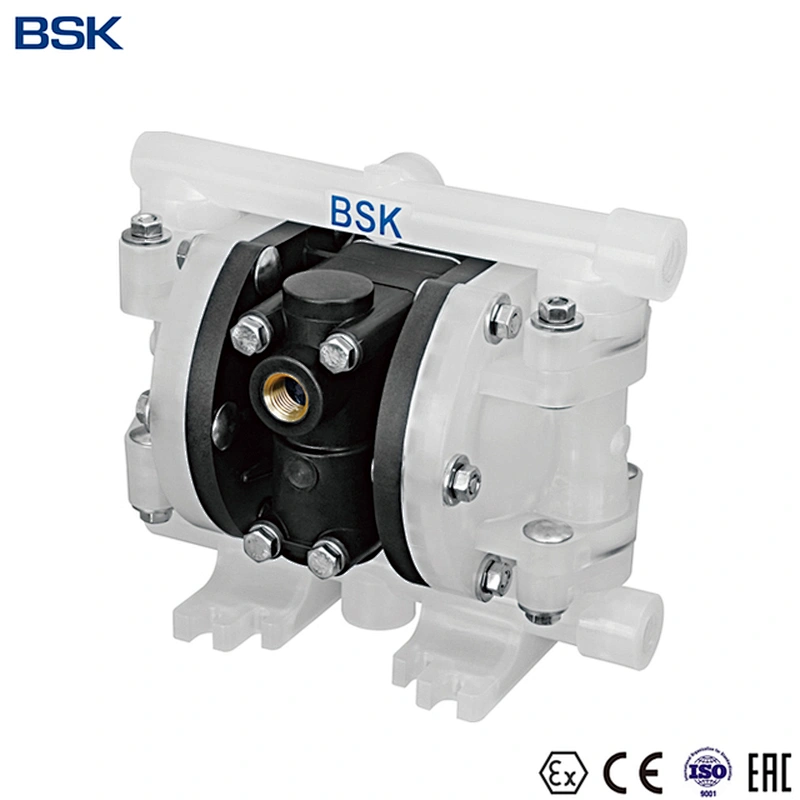

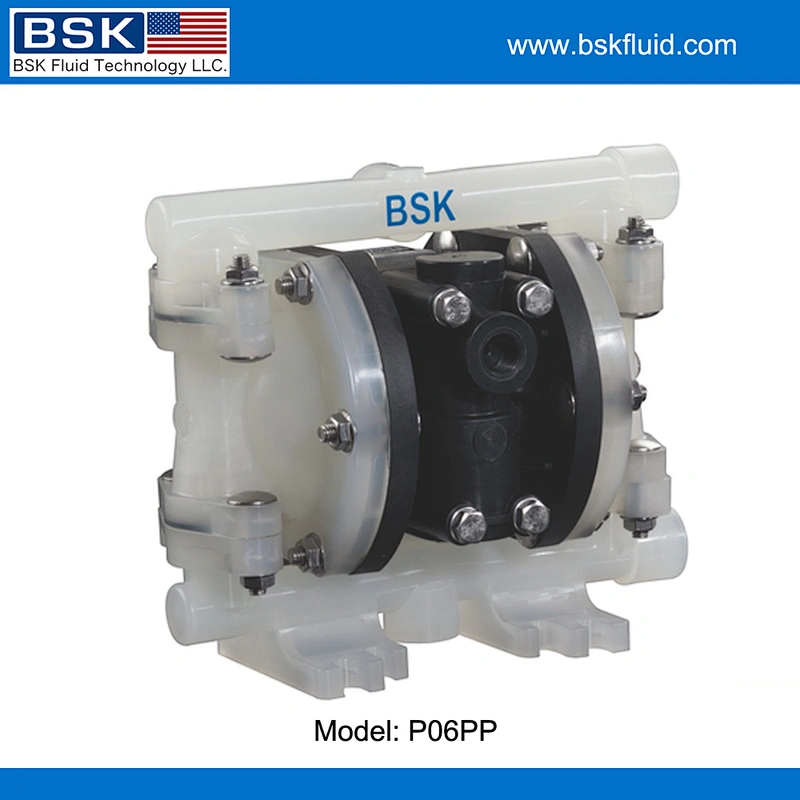

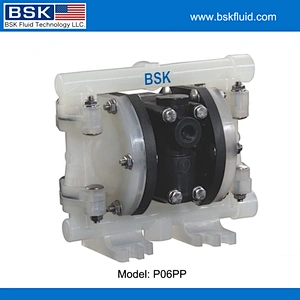

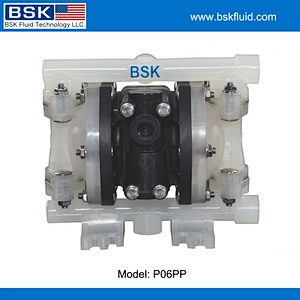

- Model Number:BP06PP-PTT4-B

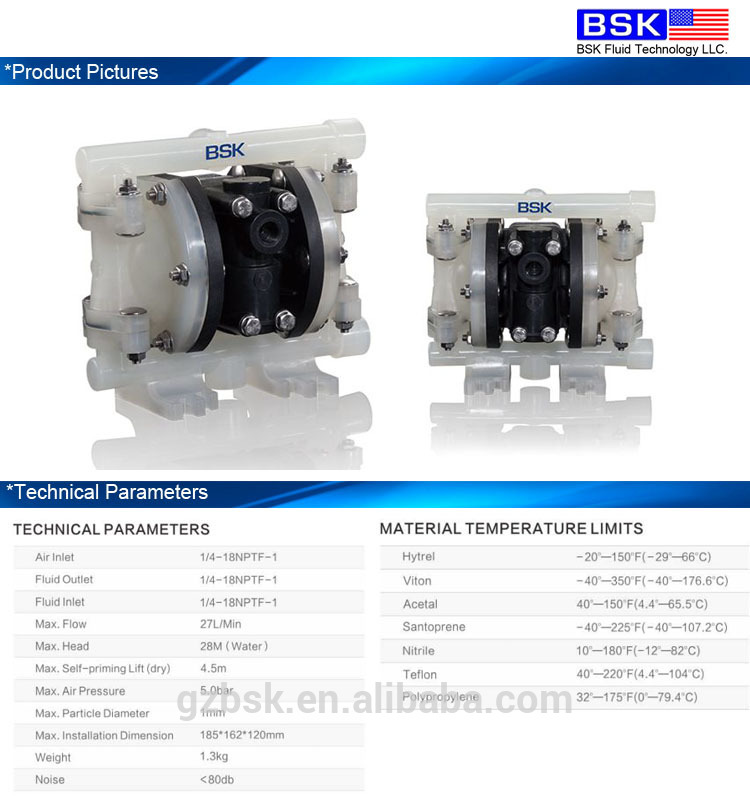

- Pressure:6.9bar
- Brand:BSK
- Theory:Air operated diaphragm pump
- Fluid inlet/outlet:1/4"

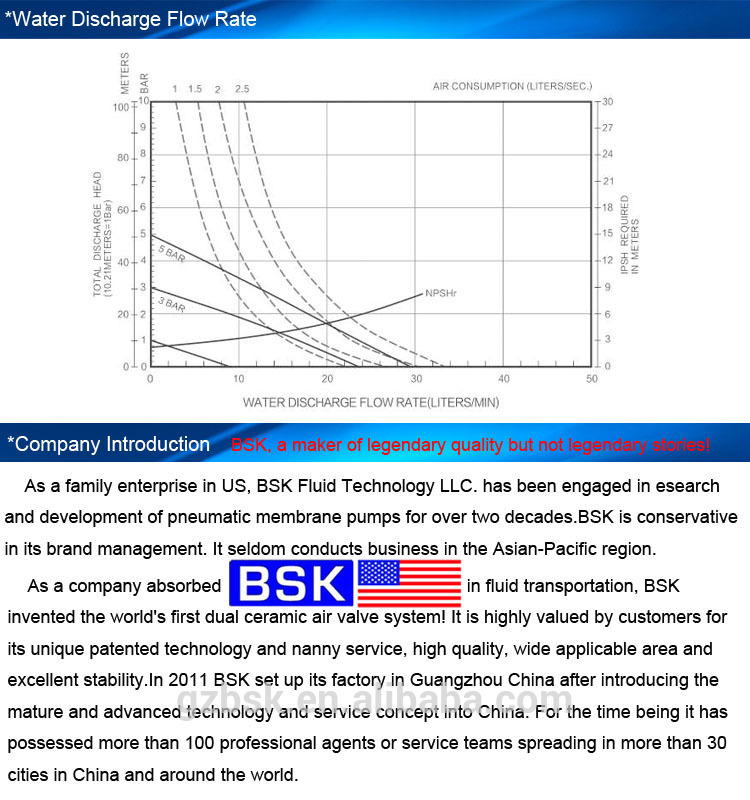

- Max Flow:27L/Min
- Max Head:28M/Water
- Max Self-Priming Lift(Dry):4.5M
- Max Air Pressure:5Bar
- Max Particle Diameter:1mm

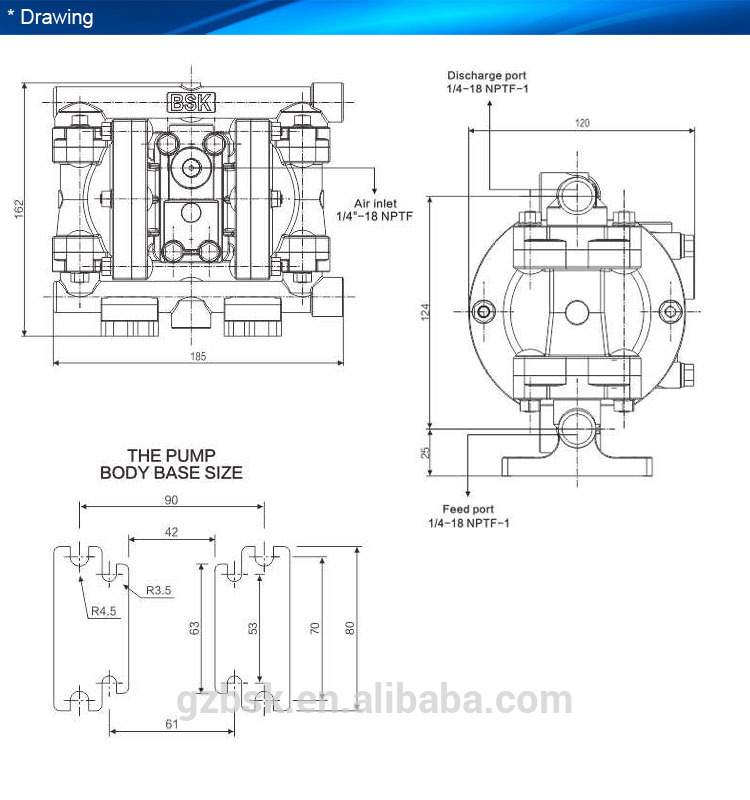

- Max Installation Dimension:185*162*120mm
- Weight:1.3KG
| Model No. | Pipe Size | Air side/ Fluid side Material | Seat Material | Diaphragm/Ball Material |
| BP06PP-PTT4-B | 1/4’inch | Polypropylene (PP) | Polypropylene (PP) | PTFE |
| Product Description | ||||
Pneumatic diaphragm pump is a new transport machinery , is currently one of the most innovative pump . Using compressed gas as a power source for a variety of corrosive liquid , with particles of liquid , high viscosity , volatile, flammable, poisonous liquid can be pumped optical exhaustion . There are four pneumatic diaphragm material: plastic , aluminum, cast iron , stainless steel. Pneumatic diaphragm pumps were used nitrile rubber,neoprene , Viton , Teflon , depending on the liquid medium , poly ethylene forty-six . To meet the needs of different users . Placed in a variety of special occasions , for pumping a variety of conventional pumps can not pump the media , have achieved satisfactory results. | ||||
| Product Application | ||||
| * | Laminating Machine | Film printing for plastic packaging | ||
| * | Dosing System | Chemical dosing system integration | ||
| ||||
