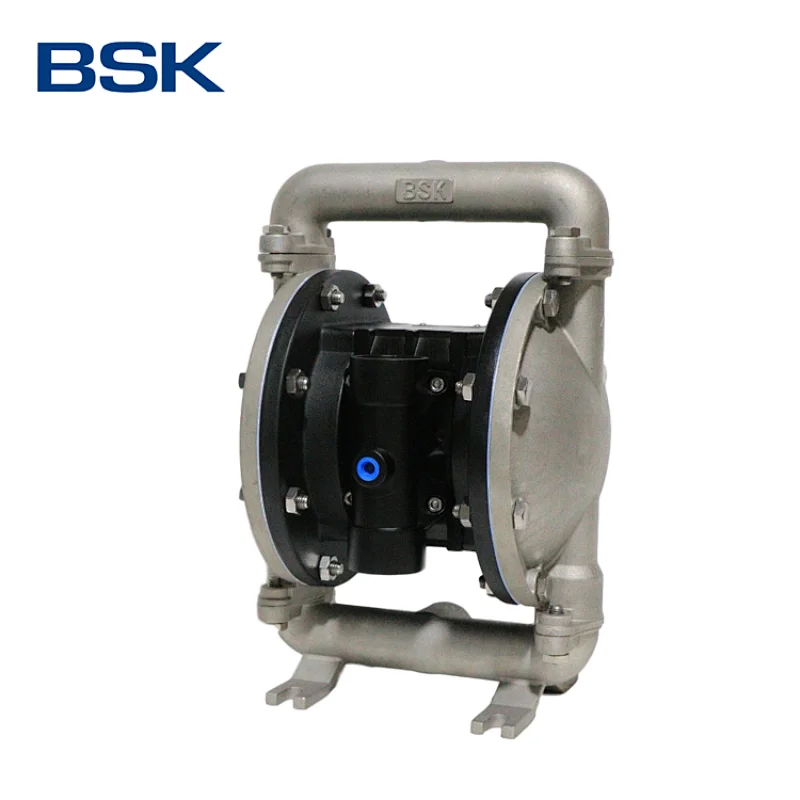

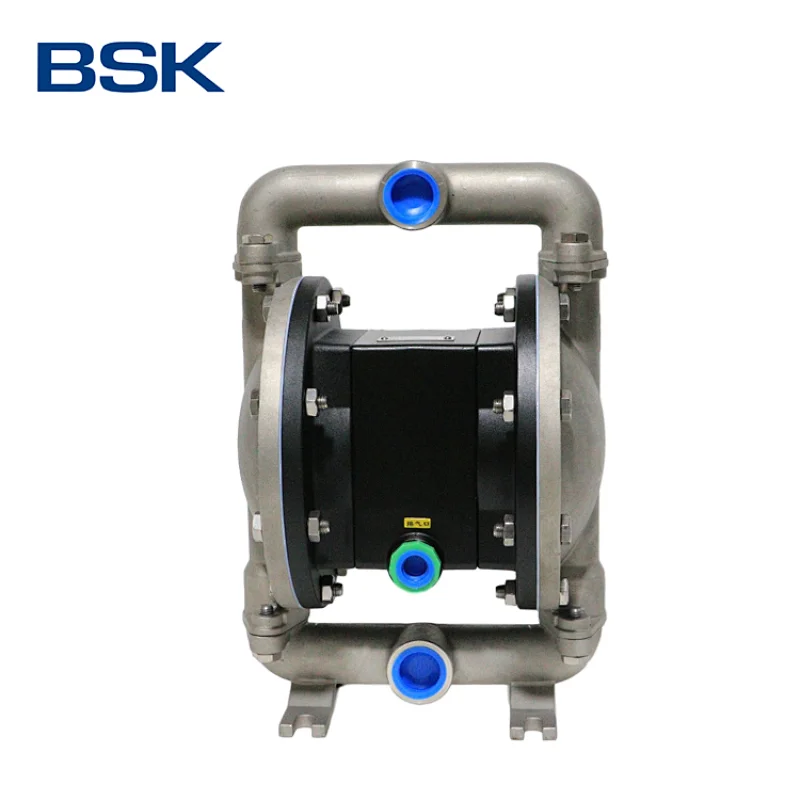

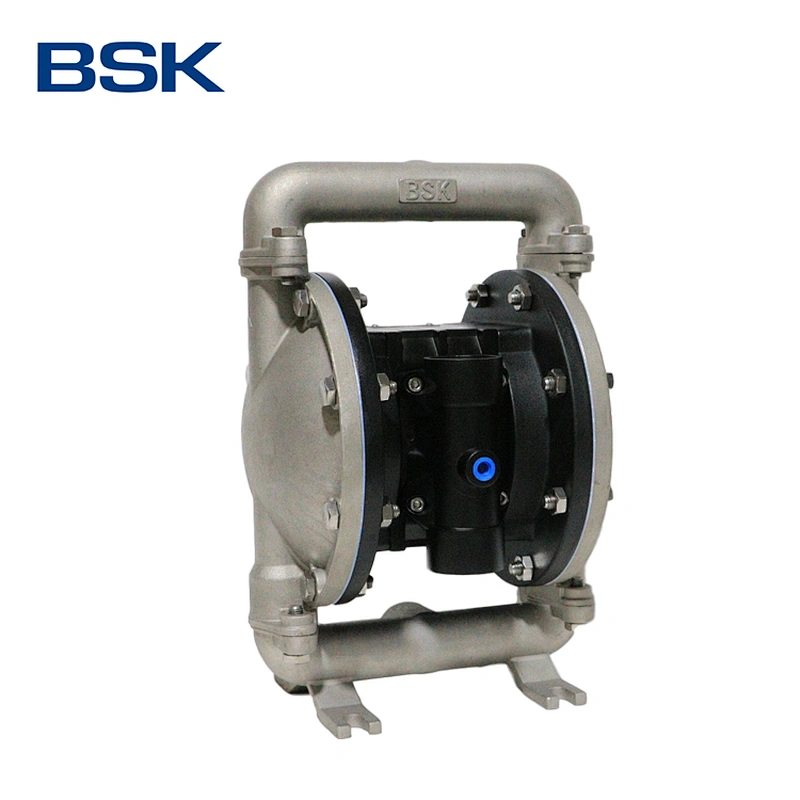

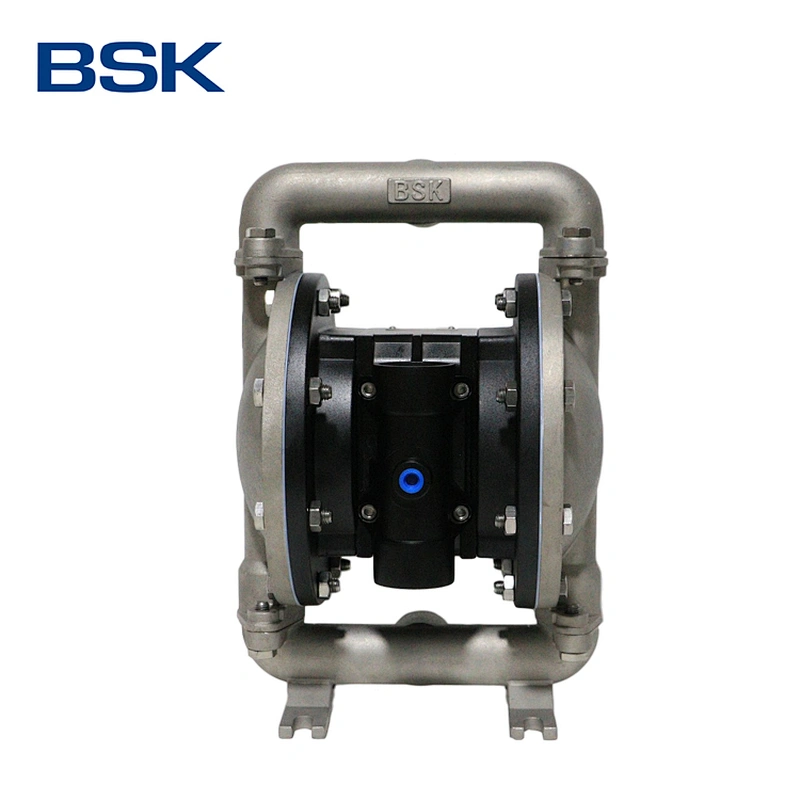

waste water pneumatic diaphragm pump

Model NO.: BA25SS-STT3-A
Price:: USD 1.00-500.00 / piece
Minimum order quantity:: 1 piece
Supply Ability:: 2000 piece / Month
Country of Origin:: Guangzhou

Quantity:

Product Description
Application Description

Place of Origin:CN;GUA
Structure:Diaphragm Pump
Power:Pneumatic
Brand Name:BSK
Usage:Air Pump
Standard or Nonstandard:Standard
Model Number:A25SS-STT-A

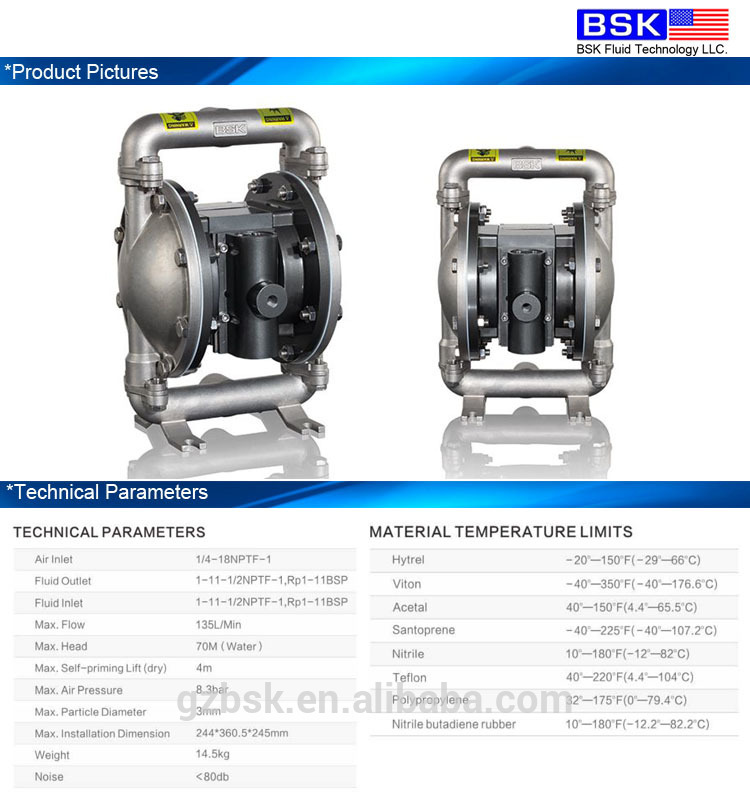

Pressure:8.3 Bar
Fuel:Air
Application:Liquid pumping
Theory:Air operated diaphragm pump
Air Inlet:1/4-18NPTF-1
Liquid Outlet:1-11-1/2NPTF-1,Rp1-11BSP
Liquid Inlet:1-11-1/2NPTF-1,Rp1-11BSP

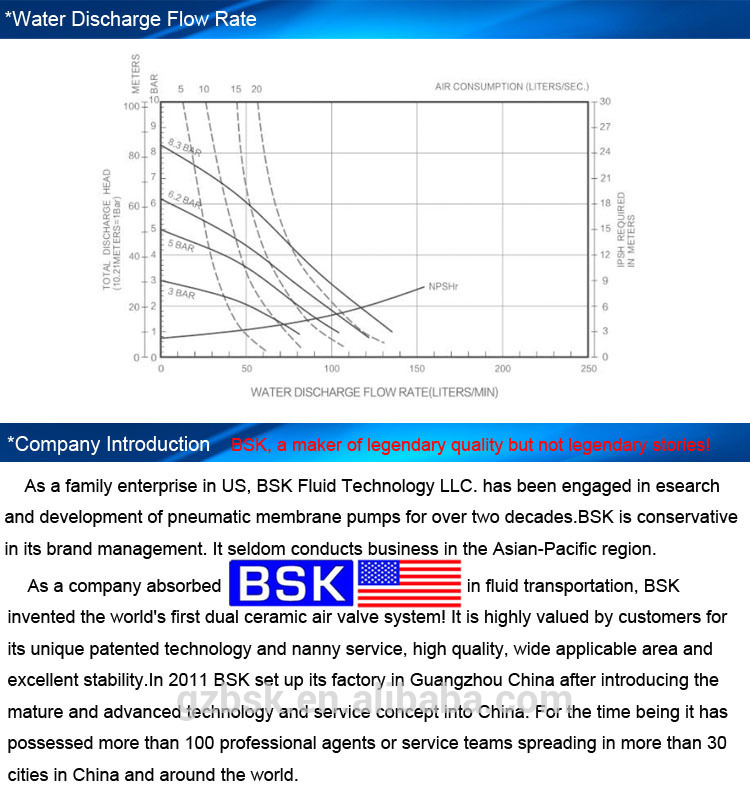

Max Flow:135L/Min
Max Head:70M/Water
Max Self-Priming Lift(Dry):4M
Max Air Pressure:8.3Bar
Max Particle Diameter:3mm

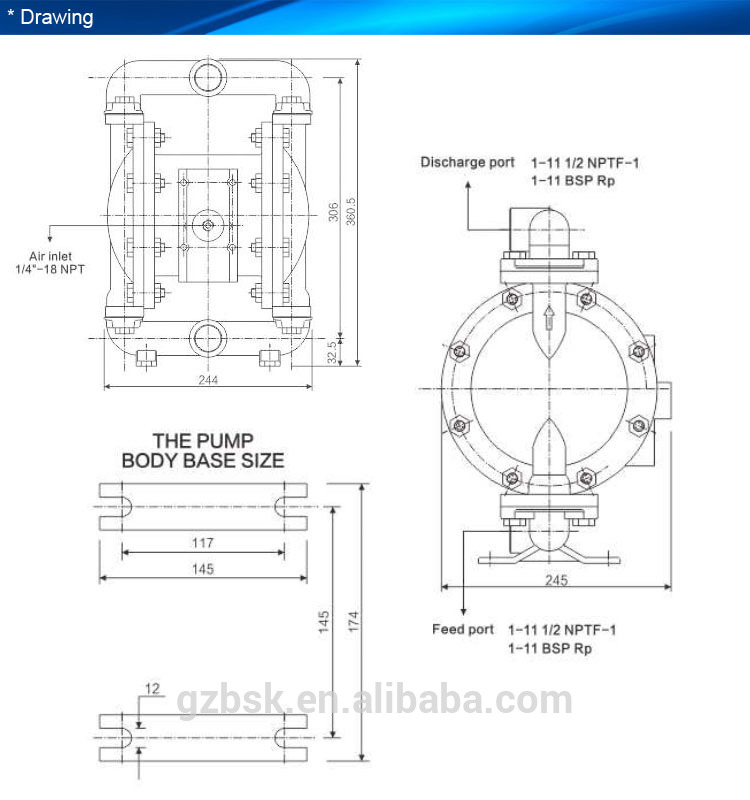

Max Installation Dimension:244*360.5*245cm
Weight:14.5KG

Model No.	Pipe Size	Air side/ Fluid side Material	Seat Material	Diaphragm/Ball Material

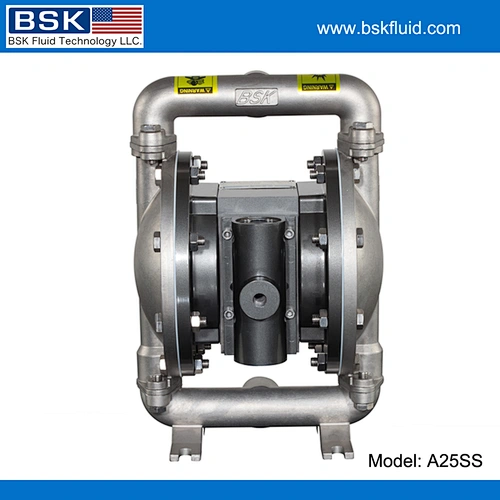

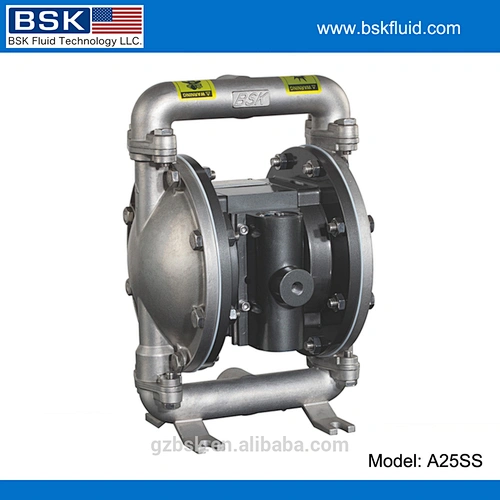

A25SS-STT-A	1’inch	316#Stainless Steel (SS)	316#Stainless Steel (SS)	PTFE
Product Description
Pneumatic diaphragm pump is a new transport machinery , is currently one of the most innovative pump . Using compressed gas as a power source for a variety of corrosive liquid , with particles of liquid , high viscosity , volatile, flammable, poisonous liquid can be pumped optical exhaustion . There are four pneumatic diaphragm material: plastic , aluminum, cast iron , stainless steel. Pneumatic diaphragm pumps were used nitrile rubber,neoprene , Viton , Teflon , depending on the liquid medium , poly ethylene forty-six . To meet the needs of different users . Placed in a variety of special occasions , for pumping a variety of conventional pumps can not pump the media , have achieved satisfactory results.
Product Application
*	Chemical Factory	Material handling or removable barrels material ( instead of drum pumps ),applicable to concentrated sulfuric acid, nitric acid and other strong oxidizing materials.
	Pharmaceutical factory	Material handling or removable barrels material ( instead of drum pumps )
	Pharmaceutical chemical factory	Pumping animal blood for refining
	New Power Plant/ Multi- silicon plant	Pumping polysilicon raw material for solar
	Commodity Factory	Pumping perfume / fragrance / dairy mixture
*	Pressure filter	Plate-and-frame type filter press, for filter polluted water and separate moisture material.
*	Moving baggy filter	Industrial wastewater filtration or chemical material separation
*	Kneading machine	Leather rubbing printing
*	Tanneries	Rawhide manufacturing and processing , pumping water and additives

This pump has no rotary parts and no bearing seals, the diaphragm will completely separate the exhausted medium and pump running pollution and human body safety dangerous while exhausting the toxin and flammable or corrosive medium.
No electricity , it’s safe and reliable while using in the flammable and explore places.
It can be soaked in medium.
