- Place of Origin:CN;GUA
- Structure:Diaphragm Pump
- Power:Pneumatic
- Brand Name:BSK
- Usage:Air Pump
- Standard or Nonstandard:Standard

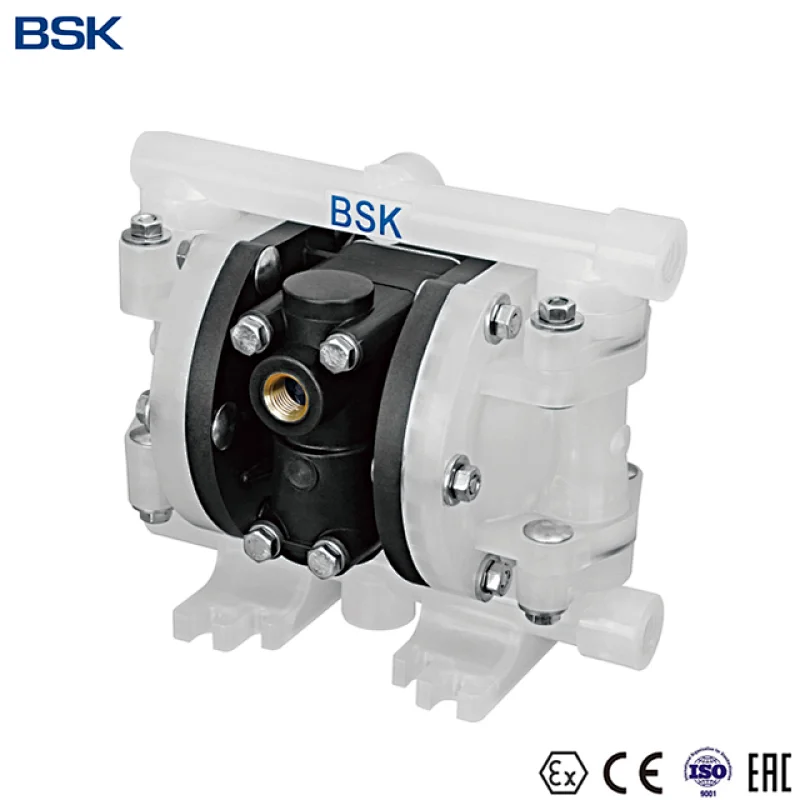

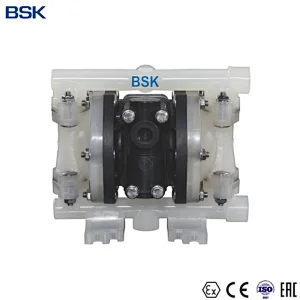

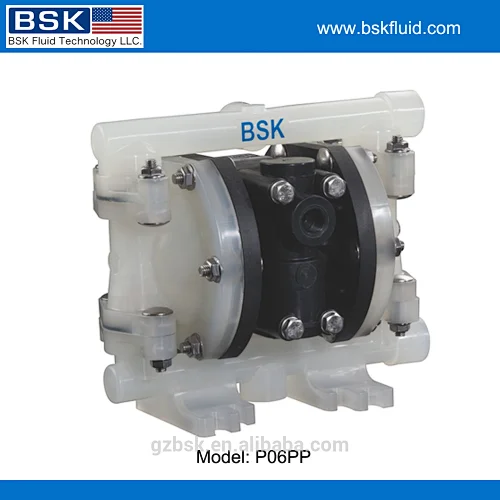

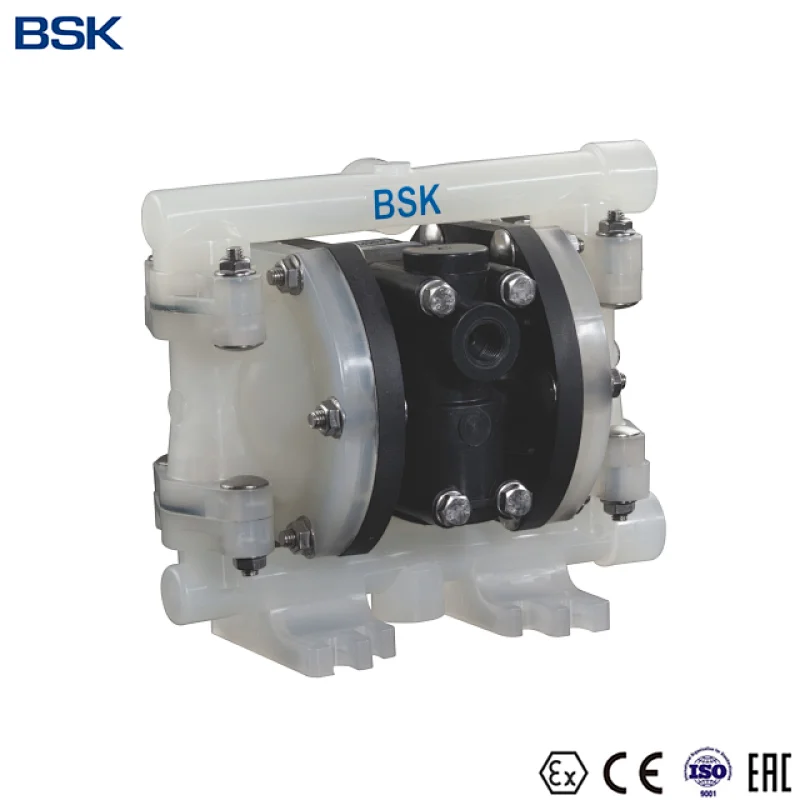

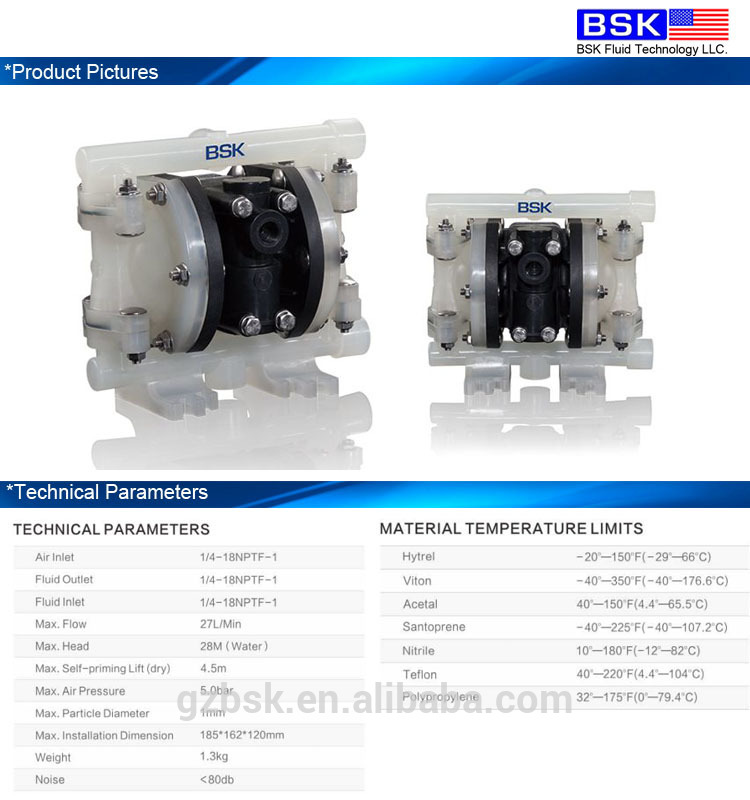

- Model Number:P06PP-PTT-B
- Pressure:5.0Bar
- Fuel:Air
- Application:Liquid pumping
- Theory:Air operated diaphragm pump
- Air Inlet:1/4-18NPTF-1
- Liquid Outlet:1/4-18NPTF-1
- Liquid Inlet:1/4-18NPTF-1

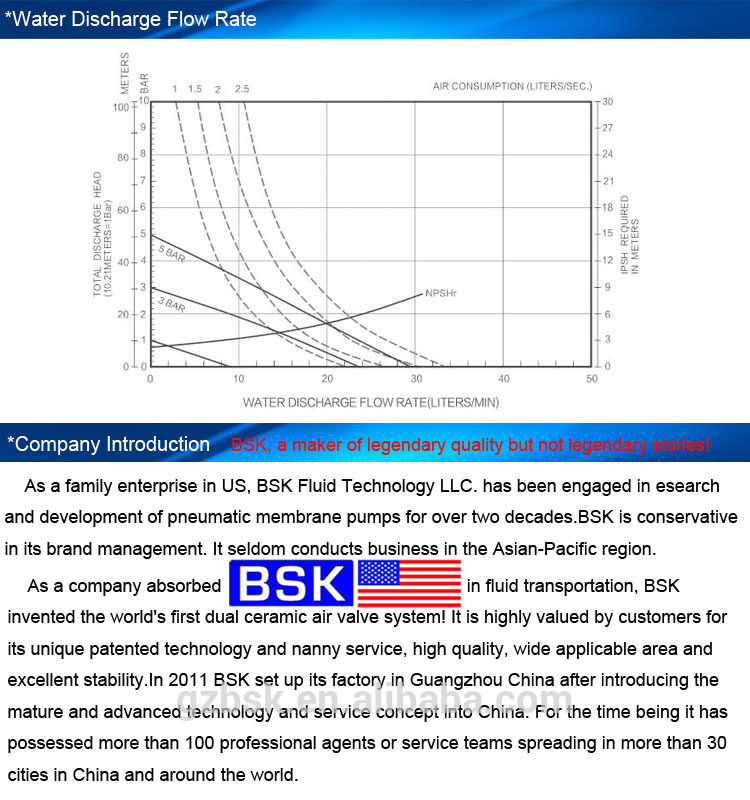

- Max Flow:27L/Min
- Max Head:28M/Water
- Max Self-Priming Lift(Dry):4.5M
- Max Air Pressure:5Bar
- Max Particle Diameter:1mm

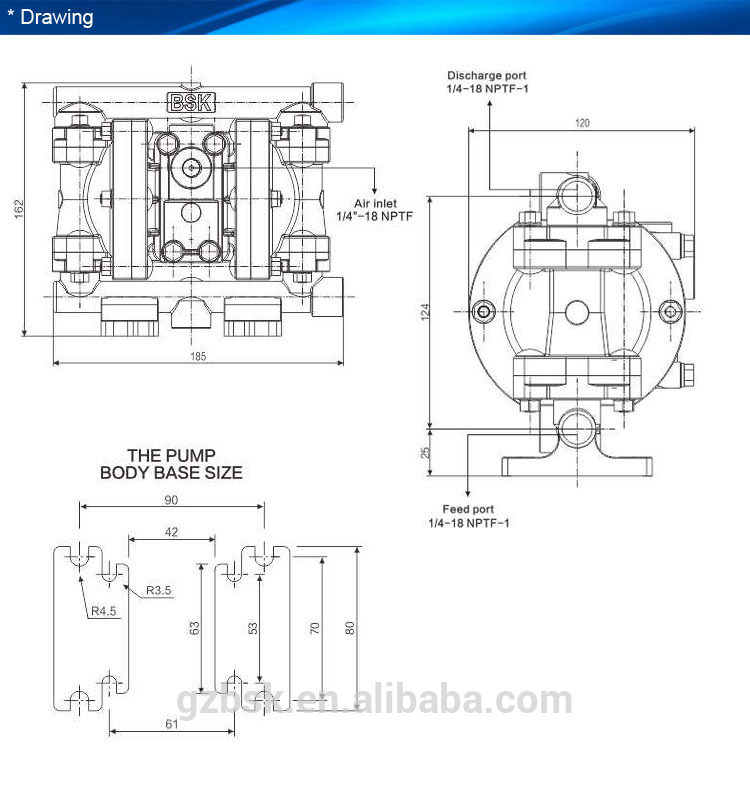

- Max Installation Dimension:185*162*120mm
- Weight:1.3KG
| Model No. | Pipe Size | Air side/ Fluid side Material | Seat Material | Diaphragm/Ball Material |
| P06PP-PTT-B | 1/4’inch | Polypropylene (PP) | Polypropylene (PP) | PTFE |
| Product Description | ||||
Pneumatic diaphragm pump is a new transport machinery , is currently one of the most innovative pump . Using compressed gas as a power source for a variety of corrosive liquid , with particles of liquid , high viscosity , volatile, flammable, poisonous liquid can be pumped optical exhaustion . There are four pneumatic diaphragm material: plastic , aluminum, cast iron , stainless steel. Pneumatic diaphragm pumps were used nitrile rubber,neoprene , Viton , Teflon , depending on the liquid medium , poly ethylene forty-six . To meet the needs of different users . Placed in a variety of special occasions , for pumping a variety of conventional pumps can not pump the media , have achieved satisfactory results. | ||||
| Product Application | ||||
| * | Laminating Machine | Film printing for plastic packaging | ||
| * | Dosing System | Chemical dosing system integration | ||
    | ||||
